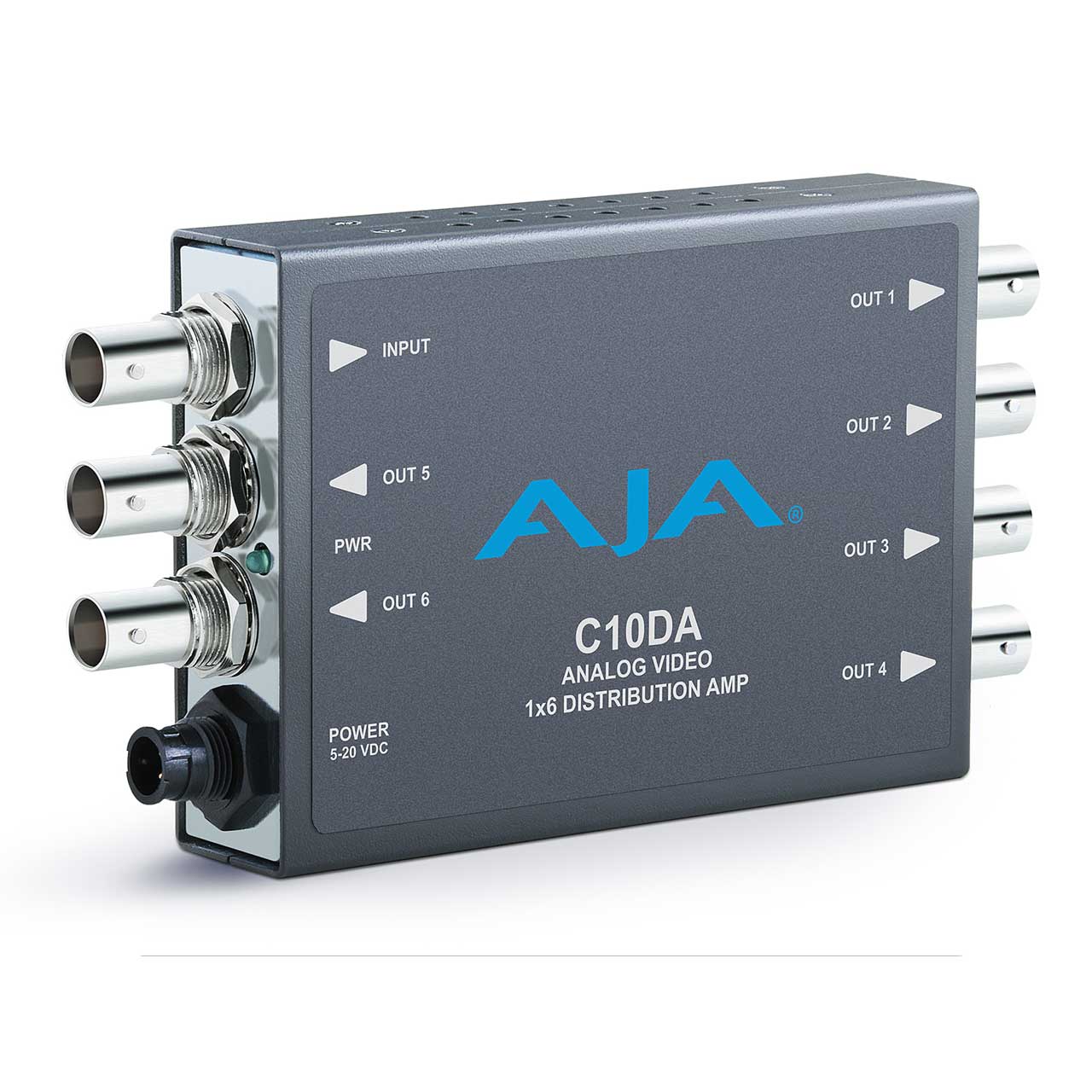

AJA C10DA Analog Video/Tri-Level Sync 1x6 Distribution Amplifier

C10DA - Overview

• Features:

  • Compact 1 x 6 Analog Distribution Amplifier NTSC / PAL
  • May be used to distribute tri-level sync when a syync signal is fed into the Video Input for HD workflows
  • Low Cost
  • 5 year warranty


• Specifications:

  • Formats
  • NTSC
  • PAL
  • Bi-level Reference
  • Tri-level Reference
  • AES3-id
  • LTC

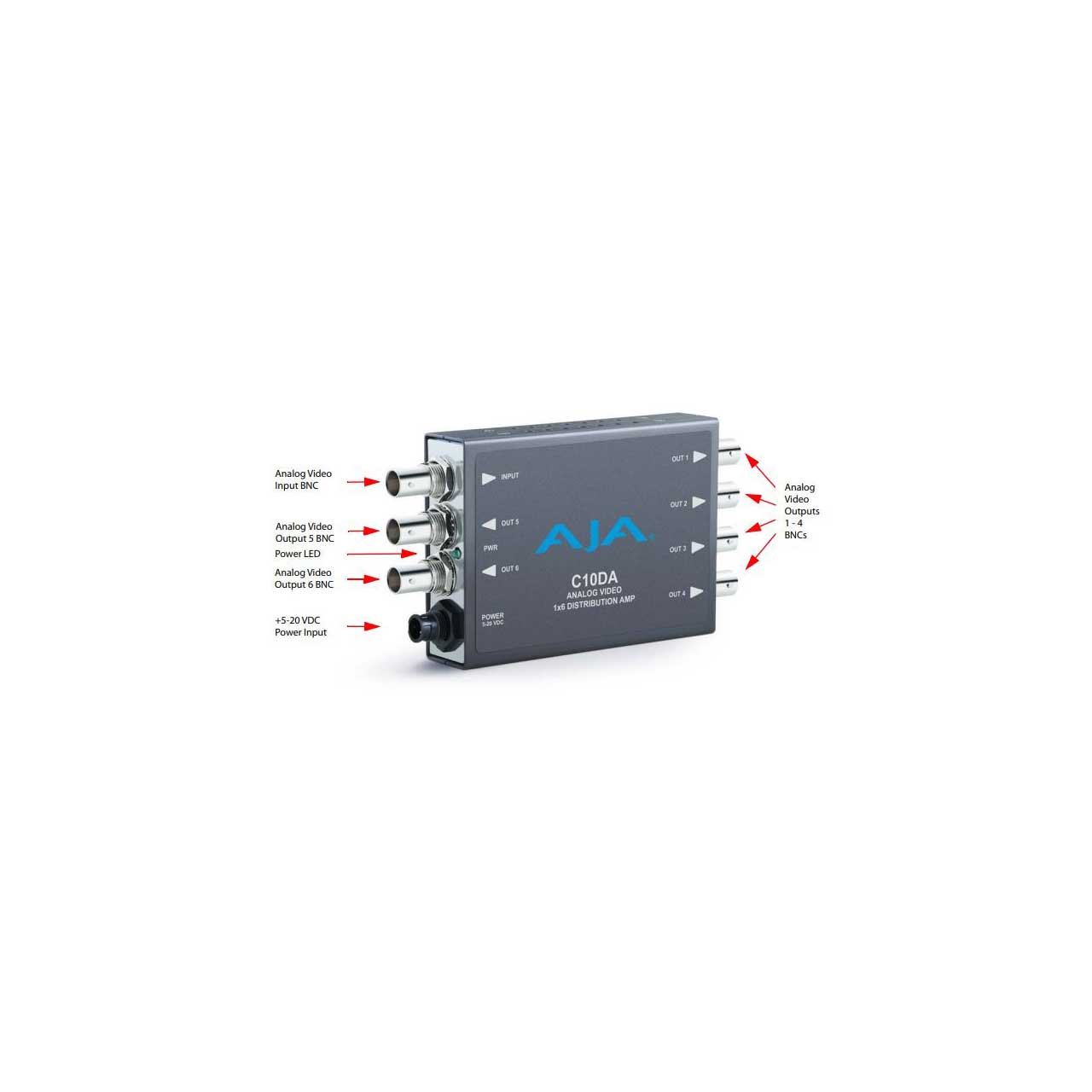

    Inputs
  • 1 Analog, Differential, 1 x BNC

    Outputs
  • 6 Analog, 6 x BNC

    Termination
  • 75 Ohms or nonterminated

    Video Bandwidth
  • 0 - 6 MHz ±0.1dB

    Gain
  • -3dB, -2dB, -1dB, 0dB, +1dB, +2dB, or +3dB, ±0.3dB

    Diff Gain
  • 0.15%, not load dependent

    Diff Phase
  • 0.1 degree, not load dependent

    H/V Tilt
  • < 0.1%

    Response Variation
  • < 0.1dB 1 to 6 loads

    Coupling
  • DC

    Max Common Mode Signal
  • 10Vp-p

    Return Loss
  • > 35dB to 6 MHz all inputs and outputs

    Output Isolation
  • >40dB

    User Controls
  • External Dipswitch
  • Termination
  • Gain

    Size (w x d x h)
  • 5.8 x 3.1 x 1.0" (147 x 79 x 25mm)

    Weight
  • 0.8Lbs (0.3kg)

    Power
  • 5VDC Regulated, 2 Watts, power supply required, included with purchase

    Environment
  • Safe Operating Temperature: 0° to 40°C (32° to 104°F)
  • Safe Storage Temperature (Power OFF): -40° to 60°C (-40° to 140°F)
  • Operating Relative Humidity: 10 to 90% non-condensing
  • Operating Altitude: <3,000 meters (<10,000 feet)


• Warranty:

  • 5 Years


• GTIN:

  0892448000670
