Blackmagic Design CONVMASA Mini Converter - SDI to Analog with Audio

Name: Blackmagic Design CONVMASA Mini Converter - SDI to Analog with Audio
Brand: Blackmagic Design
SKU: BMD-CONVMSA
Price: 215.00 USD
Availability: InStock

ITEM #: BMD-CONVMSA MFG #: CONVMASA

Blackmagic Design

Our Price:

$215.00

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

CONVMASA - Overview

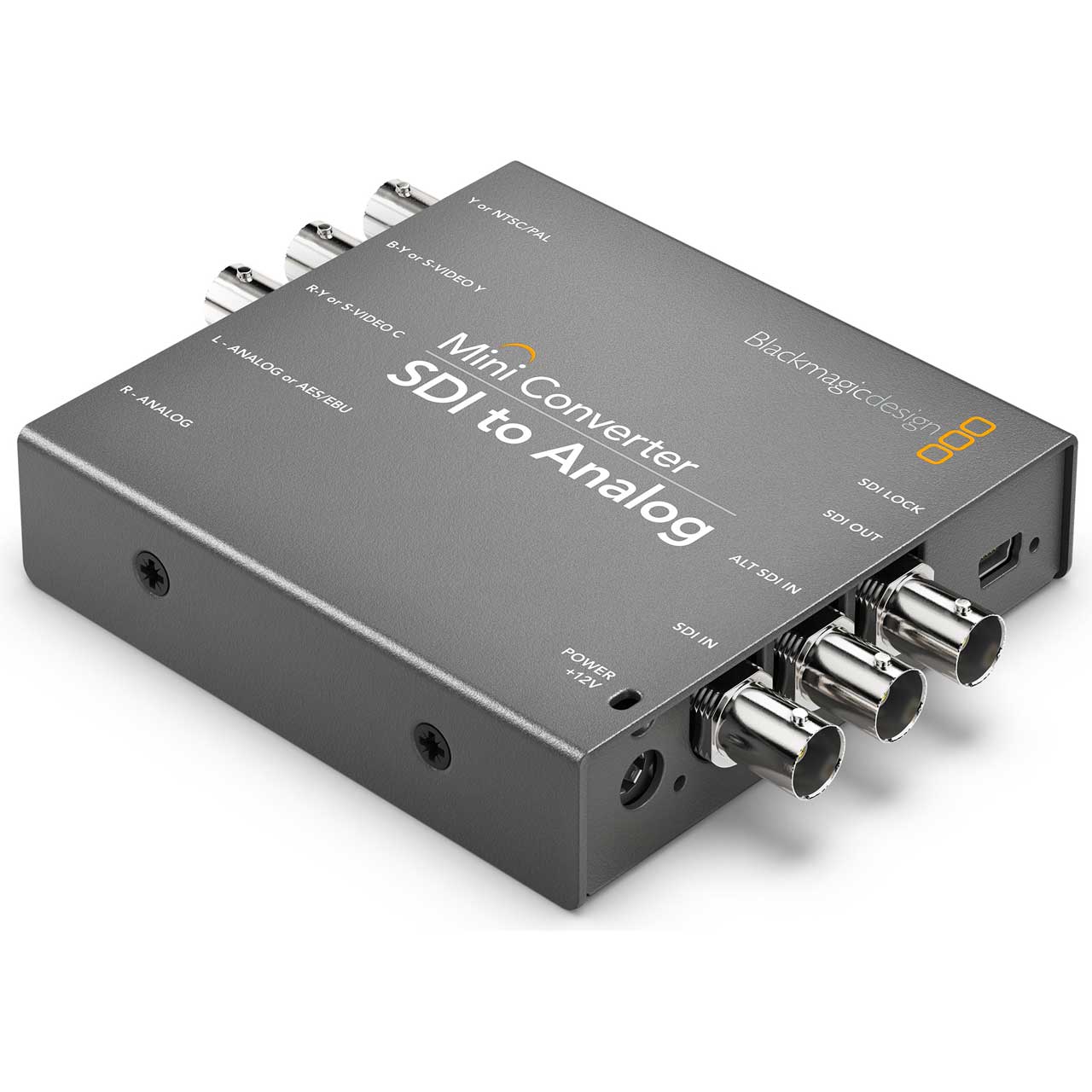

The Blackmagic BMD-CONVMASA is the perfect way to convert from SD and HD SDI to analog component, s video or NTSC/PAL composite. The unit converts SDI to analog and supports all SD and HD input formats up to 1080p30. It also includes a down converter for when you need to step downt from HD to standard definition analog formats such as s video and composite. Audio can be de embedded to balanced analog or AES/EBU. The Mini Converter SDI to Analog is ideal for converting to older analog equipment when you don't need the extra cost of the 6G SDI 4K model.

Specifications:
- SD Video Standards 525i59.94 NTSC, 625i50 PAL
- HD Video Standards 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60
- SDI Compliance SMPTE 292M, SMPTE 259M, SMPTE 296M, SMPTE 372M, SMPTE 424M B, SMPTE 425M, ITU R BT.656 and ITU R BT.601.
- SDI Video Rates SDI video connections are switchable between SD and HD.
- SDI Video Sampling 4:2:2
- SDI Audio Sampling Television standard sample rate of 48 kHz and 24 bit.
- SDI Color Precision 4:2:2 SDI Color Space YUV
- SDI Auto Switching Auto detection of SD, HD or 3G SDI.
- Analog Video Standards 525i29.97 NTSC, 625i25 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080i50, 1080i59.94, 1080i60
- Analog Color Space YUV
- Analog Color Precision 4:2:2
- Format Conversion HD to SD down converter

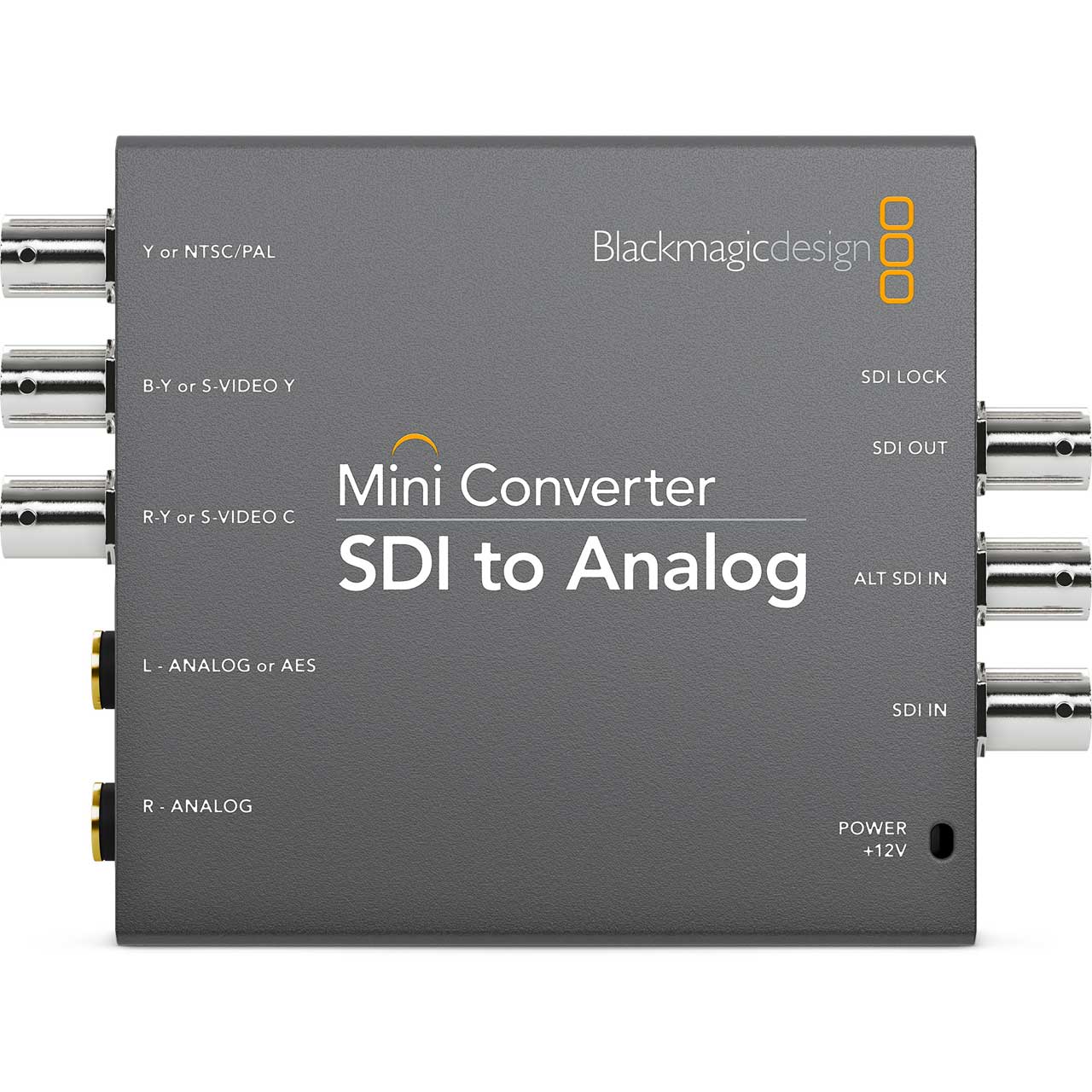

- SDI Video Inputs: 1 x SD, HD or 1.5G-SDI. 1 x ALT SDI Input for automatic switch over if main input fails.
- SDI Video Outputs: 1 x SDI Loop Output.
- SDI Rates: 270Mb, 1.5G
- Analog Video Outputs: NTSC, PAL, S-Video and component SD/HD from 1.5G-SDI input.
- Analog Audio Outputs: 2 channels of professional balanced analog audio with standard 1/4 inch jack connections.
- Digital Audio Outputs: 2 channels of balanced AES/EBU audio.
- SDI Redundant Input: Automatically switches over if main SDI input is lost.
- Multi Rate Support: Auto detection of SD, HD or 1.5G-SDI.
- Updates and Configuration: USB
- Reclocking: Yes
GTIN:
9338716000429
