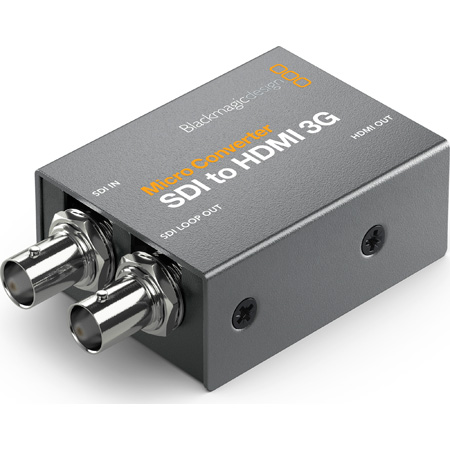

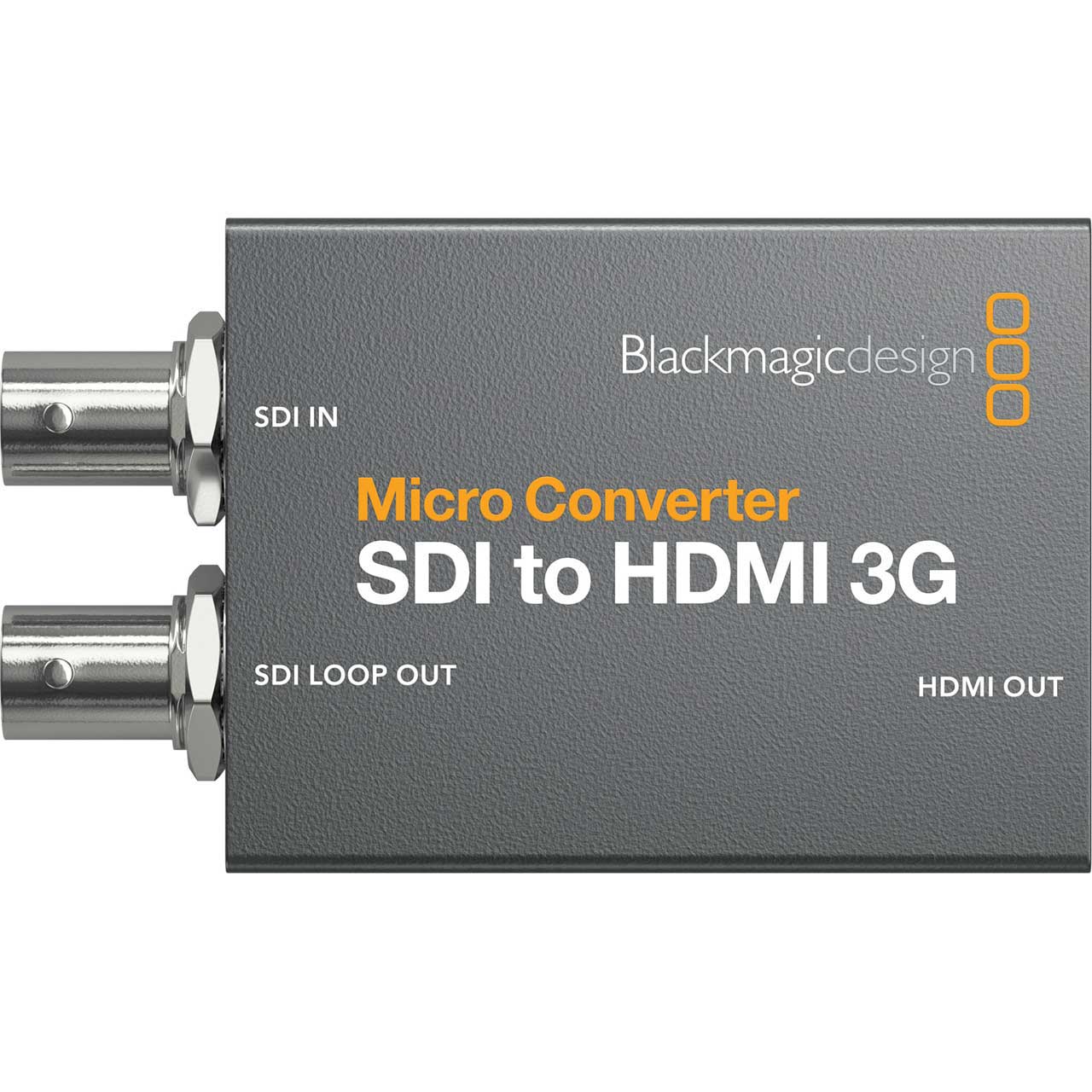

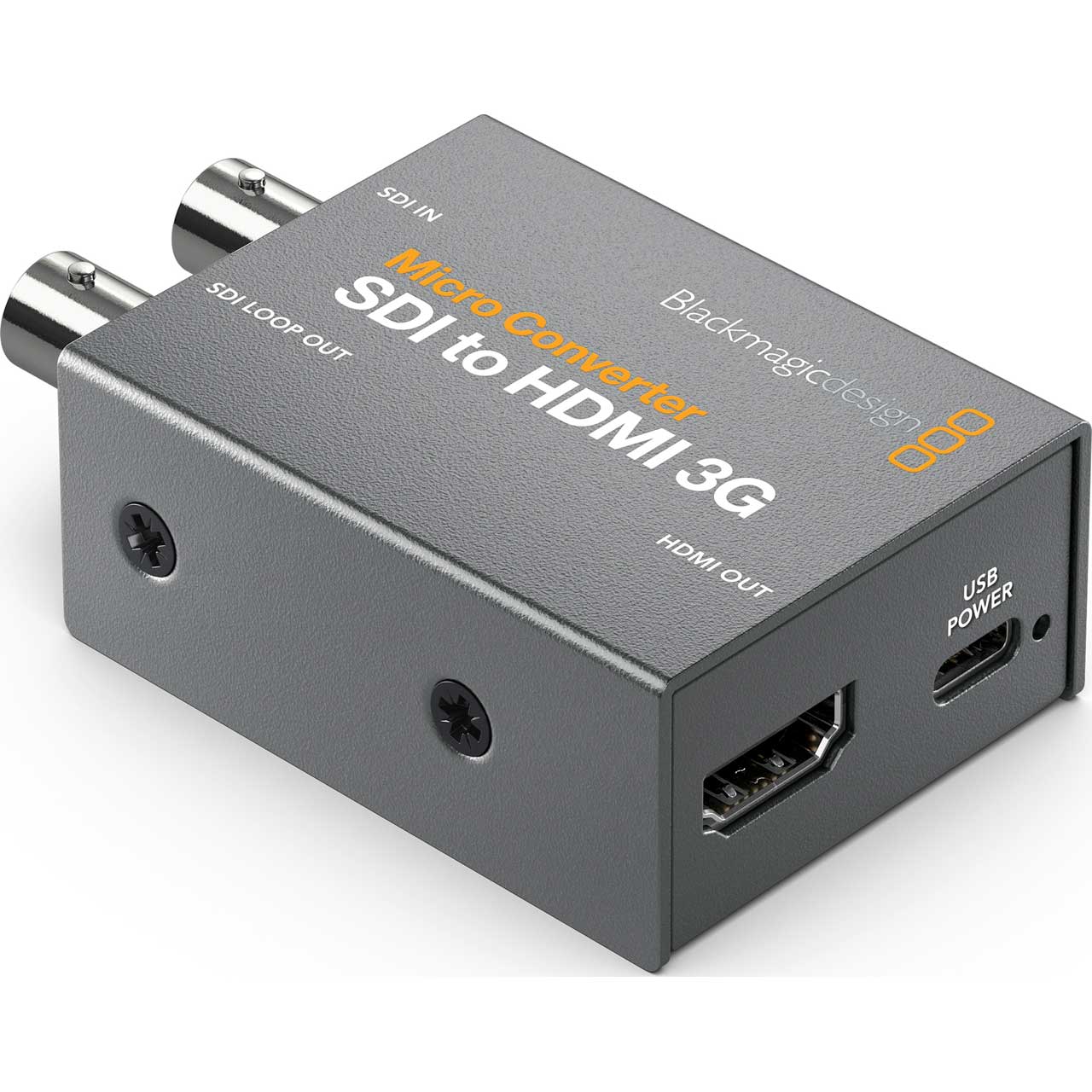

Blackmagic Design CONVCMIC/SH03G/WPSU Micro Converter - SDI to HDMI 3G with Power Supply

ITEM #: BMDCONVCMICSH3GW MFG #: CONVCMIC/SH03G/WPSU

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$69.00

Availability: In Stock
iAvailability Description Popup


CONVCMIC/SH03G/WPSU - Overview

The Blackmagic Design Micro Converter - SDI to HDMI with Power Supply has been specifically designed for professional monitoring. It includes a 17 point 3D LUT for color calibrating any monitor, projector or television. You can even output the 3D LUT on the SDI loop output! Plus it supports DCI formats and film rates including 1080p24, 1080p47.95 and 1080p48. The Micro Converter - SDI to HDMI includes the 100 to 240V AC power supply with international socket adapters.

Use Anywhere - Pocket sized broadcast quality converters
Blackmagic Micro Converters are so small you can use them anywhere! That means it's always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them for turning any computer display, television or video projector into high quality color calibrated broadcast monitoring. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending long HDMI distances using SDI.

  • Specifications:

    • Connections
    • SDI Video Inputs: 1 x SD, HD or 3G-SDI.
    • SDI Video Outputs: 1 x SDI loop out.
    • HDMI Outputs: HDMI Type A out.
    • Multi Rate Support: Auto detection of SD or HD.
    • Updates, Configurations and Power: USB Type-C

      Standards
    • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60/1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60/1080PsF25, 1080PsF29.97, 1080PsF30/1080i50, 1080i59.94, 1080i60/2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI/2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
    • SDI Video Rates: SDI video connections are switchable between standard definition, 720p 1080i, 1080p and DCI high definition
    • SDI Color Precision: 4:2:2
    • SDI Color Space: YUV
    • SDI Auto Switching: Automatically detects SD, HD and level A or B for 3G-SDI.
    • HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL/720p50, 720p59.94, 720p60/1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60/1080i50, 1080i59.94, 1080i60
    • HDMI Color Precision: 4:2:2. A 17 point LUT can be loaded via the software utility for calibrating or improving monitor color.
    • HDMI Color Space: YUV

      Software
    • Software Control: Mac OS X™ and Windows™ software upgrade via USB.
    • Internal Software Upgrade: Via USB.
    • Settings Control: Via software utility.

      Operating Systems
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later.
    • Windows 10.

      Power Requirements
    • +5V universal power supply included with international socket adapters for all countries.
    • Power Consumption: 1.60 Watts
    • Operational Voltage Range: 4.4V to 5.25V DC

      Environmental Specifications
    • Operating temperature: 0° to 40° C (32° to 104° F)
    • Storage temperature: -20° to 60° C (-4° to 140° F)
    • Relative Humidity: 0% to 90% non-condensing

  • Item Includes:

    • 1x Micro Converter SDI to HDMI 3G wPSU
    • 1x +5V universal power supply with international socket adapters

  • Warranty:

    • 3 Year Limited Manufacturer's Warranty.

  • GTIN:

    9338716007183
