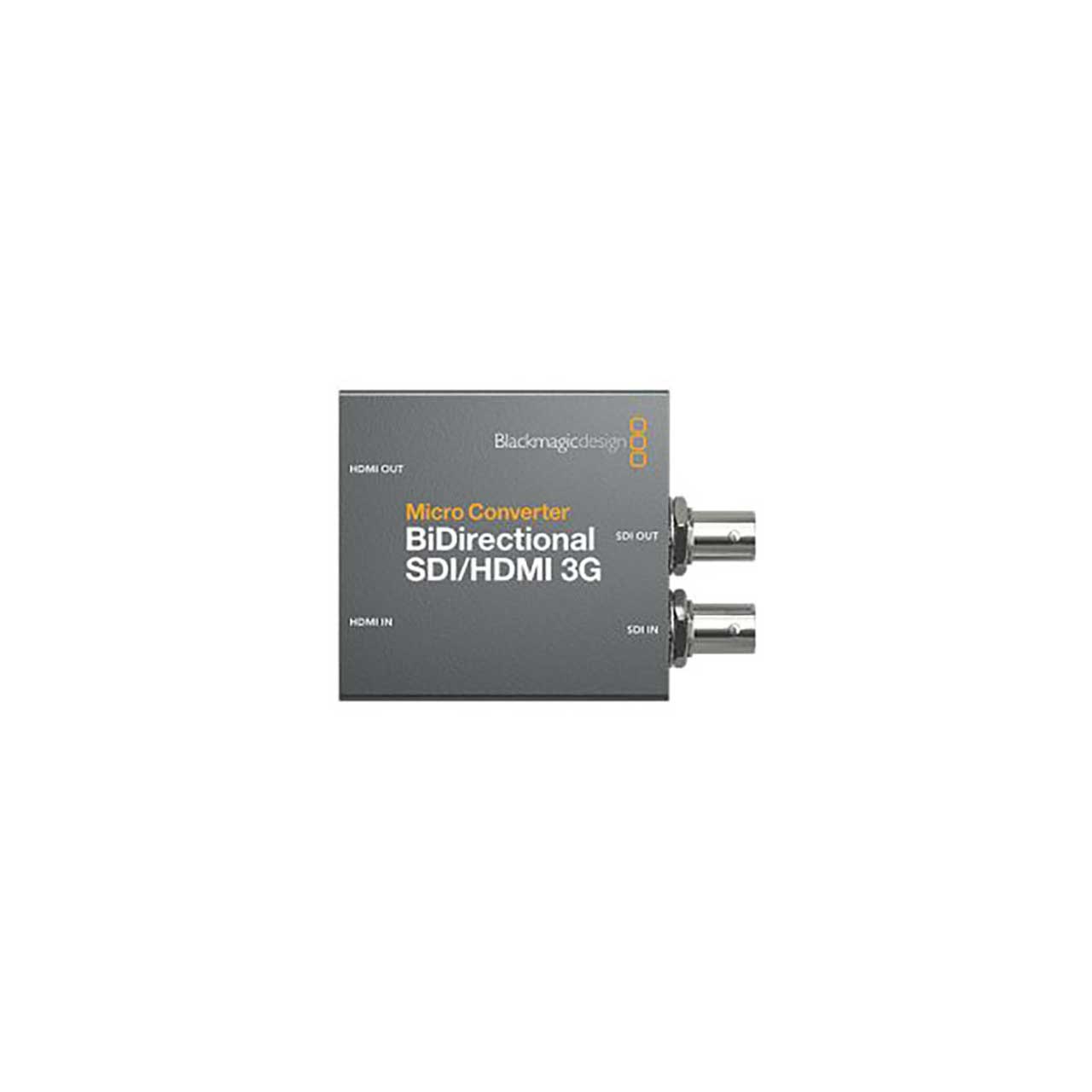

Blackmagic Design CONVBDC/SDI/HDMI03G/PS Micro Converter - BiDirectional SDI/HDMI 3G with Power Supply

ITEM #: BMDCONVBDCSDIHD3 MFG #: CONVBDC/SDI/HDMI03G/PS

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

Our Price:

$79.00

Availability: In Stock
iAvailability Description Popup


CONVBDC/SDI/HDMI03G/PS - Overview

Get the world's smallest bidirectional broadcast quality converter! The Blackmagic Design Micro Converter - BiDirectional SDI/HDMI 3G with Power Supply converts SDI to HDMI and at the same time HDMI to SDI, even in different formats! Plus it supports camera control protocol conversion, so you can use Blackmagic Pocket Cinema Cameras with professional SDI live production switchers! The Micro Converter BiDirectional SDI/HDMI 3G-PS includes the BMD-PSUPPLY-5V10, 100 to 240V AC power supply with international socket adapters.

Use Anywhere - Pocket sized broadcast quality converters!

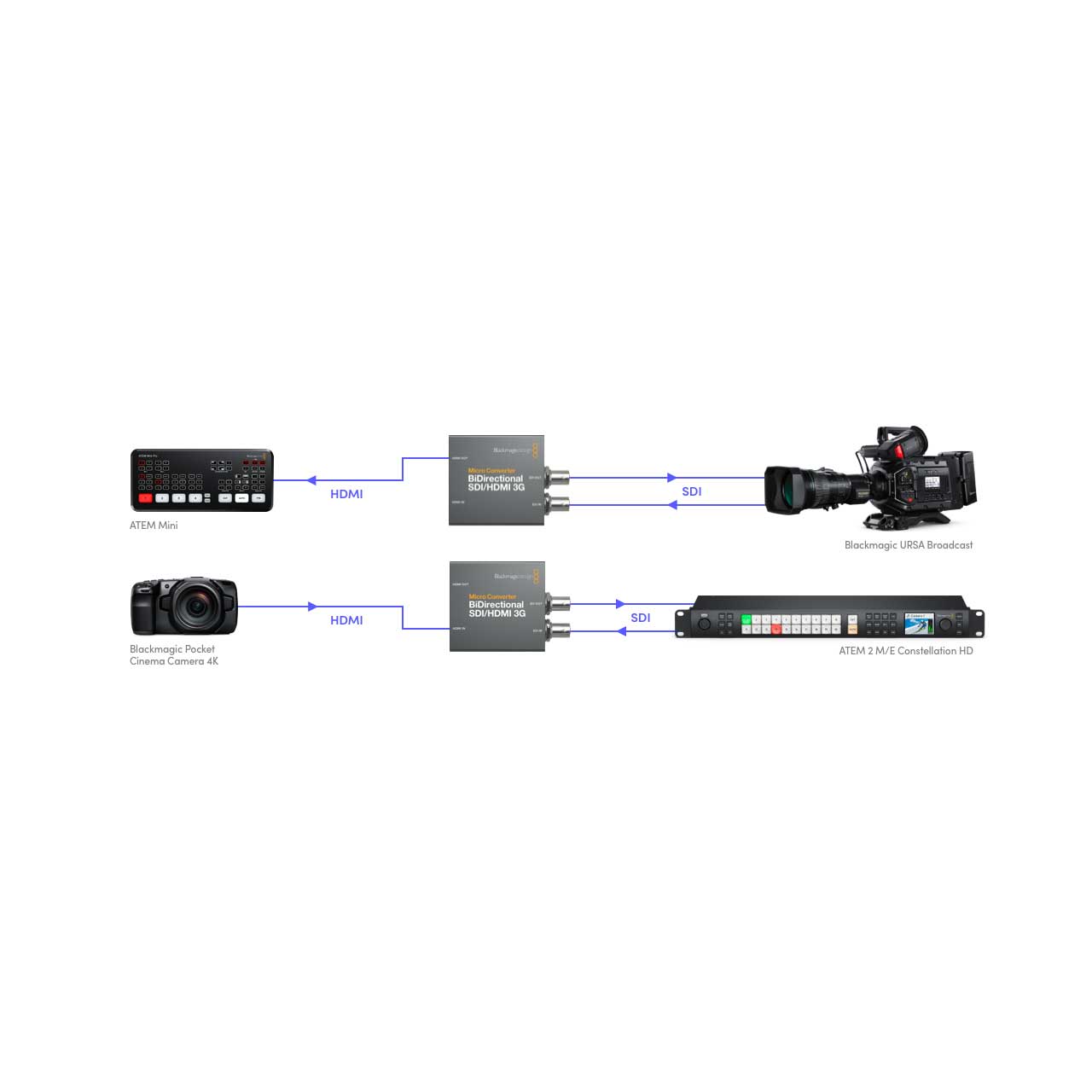

Blackmagic Micro Converters are so small you can use them anywhere! That means it's always easy to keep a few available for any urgent conversion task! Because they are extremely high quality, you can trust them for all kinds of broadcast, live production and on set use. Use them for turning any computer display, television or video projector into high quality color calibrated broadcast monitoring. They're also perfect for converting the HDMI outputs of computers and consumer video cameras to high end SDI equipment. Imagine using a slide show running on a computer for high end broadcast quality titles in live production! You could even use them for extending long HDMI distances using SDI.

Precision engineered broadcast grade converters!

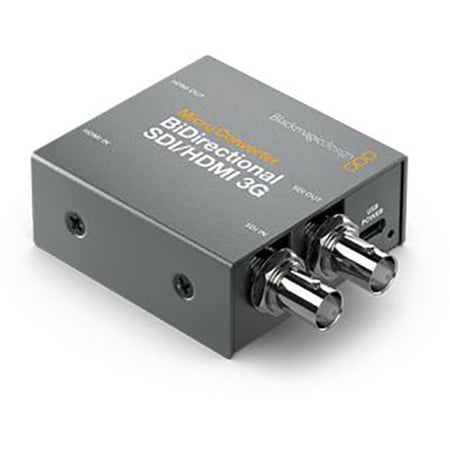

Unlike other small SDI converters, Blackmagic Micro Converters feature the highest quality broadcast technology, miniaturized into an incredibly strong metal enclosure. Each converter has industrial standard 3G-SDI and HDMI connections with strong high quality connectors. Blackmagic Micro Converters include a USB connection for power, as well as changing settings via the converter utility on Mac and Windows. Because the USB powers the converter, you can even power it from televisions or laptop computers. There are even LEDs for power and video status. You can also buy Blackmagic Micro Converters with an AC power supply including 4 adapters for international use.

Big converter quality, miniaturized!
Unlike cheap converters, Blackmagic Micro Converters include the highest quality signal processing and deep bit depth video pipeline. Micro Converters have been engineered with precision electronics so you get very low SDI jitter, allowing you to extend SDI cables over long distances. That's vital for live production where equipment such as cameras can be a long distance from switchers. Blackmagic Micro Converters work with both 8 and 10-bit video formats, in RGB or YUV, and in all SD and HD formats up to 1080p60. They even support 1080p24, 1080p47.95 and 1080p48 film rates! Plus you get fully embedded audio and timecode support.

  • Specifications:

    • Connections
    • SDI Video Inputs: 1 x SD, HD or 3G-SDI.
    • SDI Video Outputs: Automatically matches the HDMI video input.
    • HDMI Video Inputs: HDMI Type A in.
    • HDMI Outputs: HDMI Type A out.
    • Multi Rate Support: Auto detection of SD or HD.
    • Updates, Configurations and Power: USB Type C.
    • Reclocking: Yes

      Standards
    • SDI Video Standards: 525i59.94 NTSC, 625i50 PAL
    • HD Video Standards: 720p50, 720p59.94, 720p60/1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60,1080PsF25, 1080PsF29.97, 1080PsF30/1080i50, 1080i59.94, 1080i60/2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI
    • SDI Compliance: SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M
    • SDI Video Rates: SDI video connections are automatically switchable between standard definition and high definition, and user selectable for level A or B via setup utility.
    • SDI Color Precision 4:2:2
    • SDI Color Space: YUV
    • SDI Auto Switching: Automatically detects SD, HD and 3G-SDI
    • HDMI Video Standards: 525i29.97 NTSC, 625i25 PAL/720p50, 720p59.94, 720p60,1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080i50, 1080i59.94, 1080i60
    • HDMI Color Precision: 4:2:2
    • HDMI Color Space: YUV

      Copy Protection
    • HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.

      Camera Control
    • Bidirectional signal conversion supports Blackmagic Camera Control and Tally.

      Software
    • Software Control: Mac and Windows ™ software via USB.
    • Internal Software Upgrade: Via USB.

      Operating Systems
    • Mac 10.14 Mojave, Mac 10.15 Catalina or later. Windows 10.

      Settings Control
    • Via software utility.

  • Item Includes:

    • 1x Micro Converter BiDirectional SDI/HDMI 3G wPSU
    • 1x +5V universal power supply with international socket adapters

  • Warranty:

    • 3 Year Limited Manufacturer's Warranty

  • GTIN:

    9338716005486
