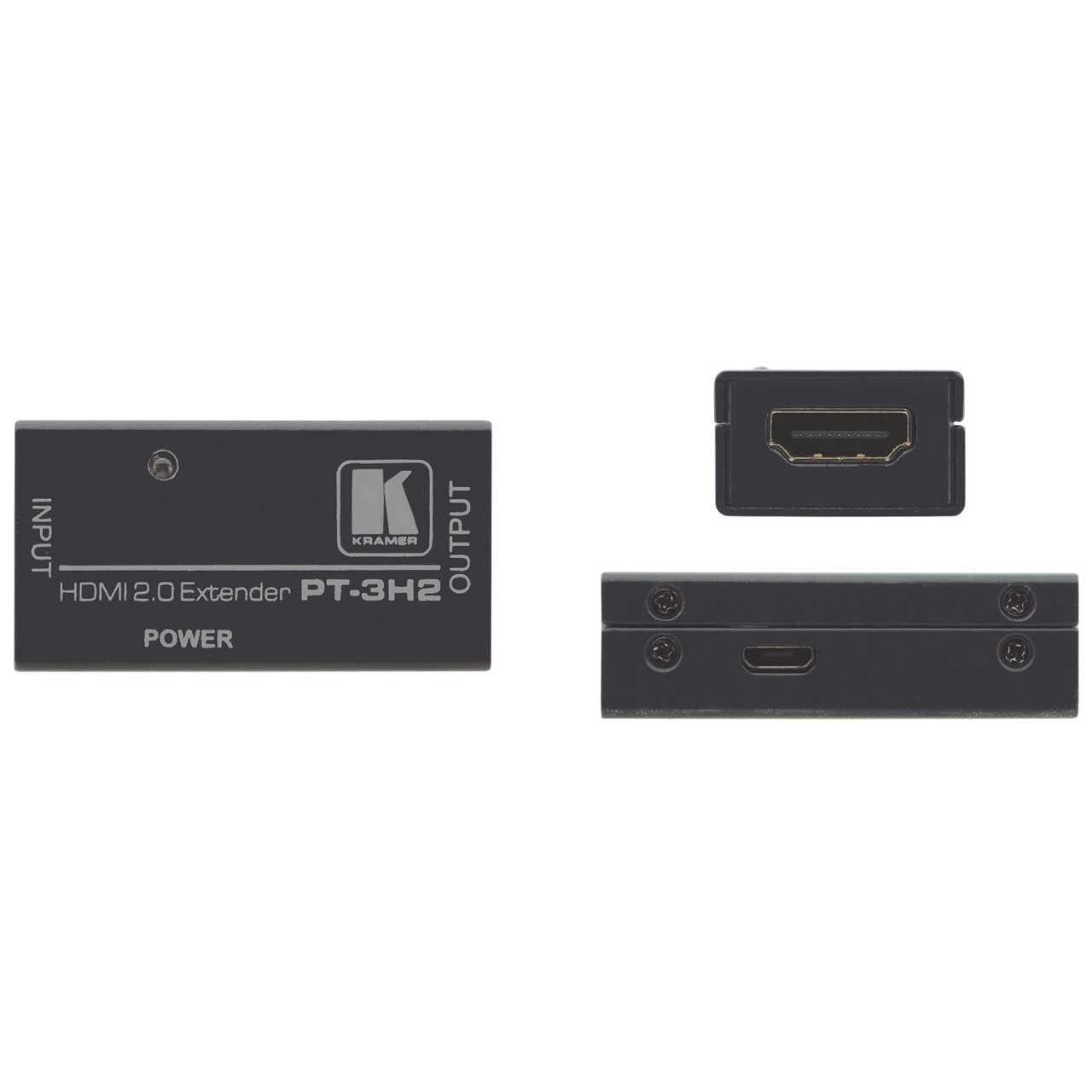

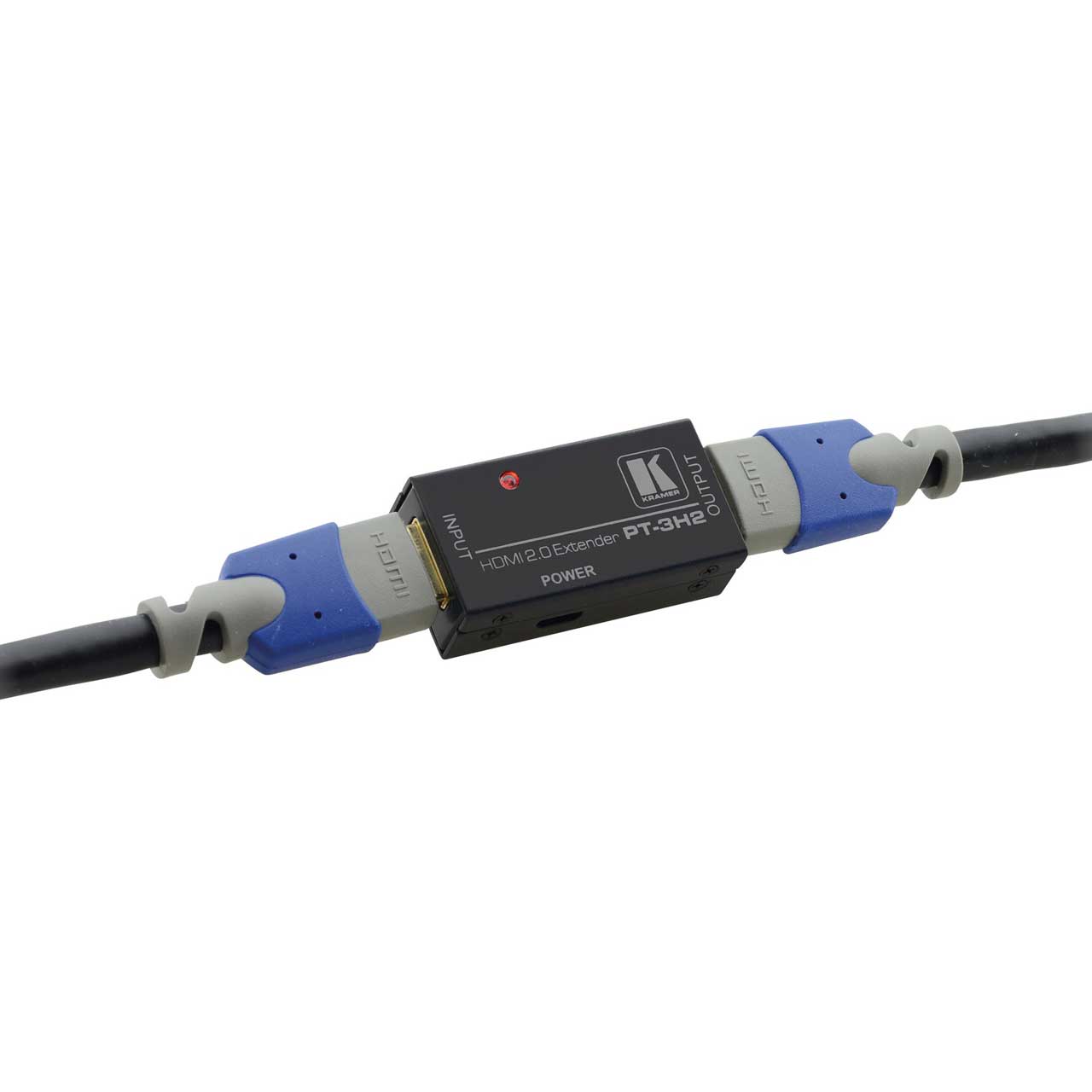

Kramer PT-3H2 4K HDR HDMI 2.0 Extender

PT-3H2 - Overview

HDTV Compatible

• Features:

  • Max. Resolution - 4K@60Hz (4:4:4).
  • HDTV Compatible.
  • Content Protection - Supports HDCP 2.2.
  • HDMI Support - HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby atmos DTS-HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0.
  • Range - 10m to input, 10m from output, total 20m (65ft) at 4K60 (4:4:4); 25m to input, 15m from output, total 40m (130ft) at 4K60 (4:2:0); 30m to input, 15m from output, total 45m (150ft) at 1080p60.
  • Kramer reKlocking™ & Equalization Technology - Rebuilds the digital signal to travel longer distances.
  • External Power Supply Option.


• Specifications:

  • INPUT/OUTPUT
  • HDMI connectors


  • MAX. DATA RATE
  • 18Gbps (6Gbps per graphic channel)


  • MAX. RESOLUTION
  • Up to 4K@60Hz (4:4:4)


  • MAX. RANGE
  • 4K@60 4:4:4 - 20m (115ft); 10m to PT-3H2, 10m to display
  • 4K@60 4:2:0 / 4K@30 - 40m (130ft); 25m to PT-3H2, 15m to display
  • 1080p@60 - 45m (150ft): 30m to PT-3H2, 15m to display


  • STANDARDS COMPLIANCE
  • HDR10, HDCP 2.2


  • HDMI SUPPORT
  • Supports HDR10, ARC, CEC, deep color, x.v.Color™, Lip Sync, 7.1 PCM, Dolby TrueHD, Dolby atmos DTS-HD, 2K, 4K, and 3D Dolby Vision as specified in HDMI 2.0


  • POWER CONSUMPTION
  • 5V DC, 150mA


  • OPERATING TEMPERATURE
  • 0°C to +70°C (32°F to 158°F)


  • OPERATING HUMIDITY
  • 10% to 85% RH (no condensation)


  • STORAGE TEMPERATURE
  • -10°C to +80°C (14°F to 176°F)


  • STORAGE HUMIDITY
  • 5% to 90% RH (no condensation)


  • EXTERNAL POWER SOURCE (OPTIONAL)
  • 5V, 150mA on micro-USB connector


• Item Includes:

  • PT-3H2 Extender


• Warranty:

  • Limited 7 Year Warranty


• GTIN:

  7291063078225
