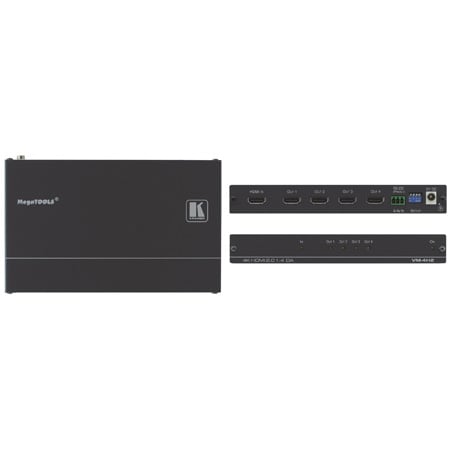

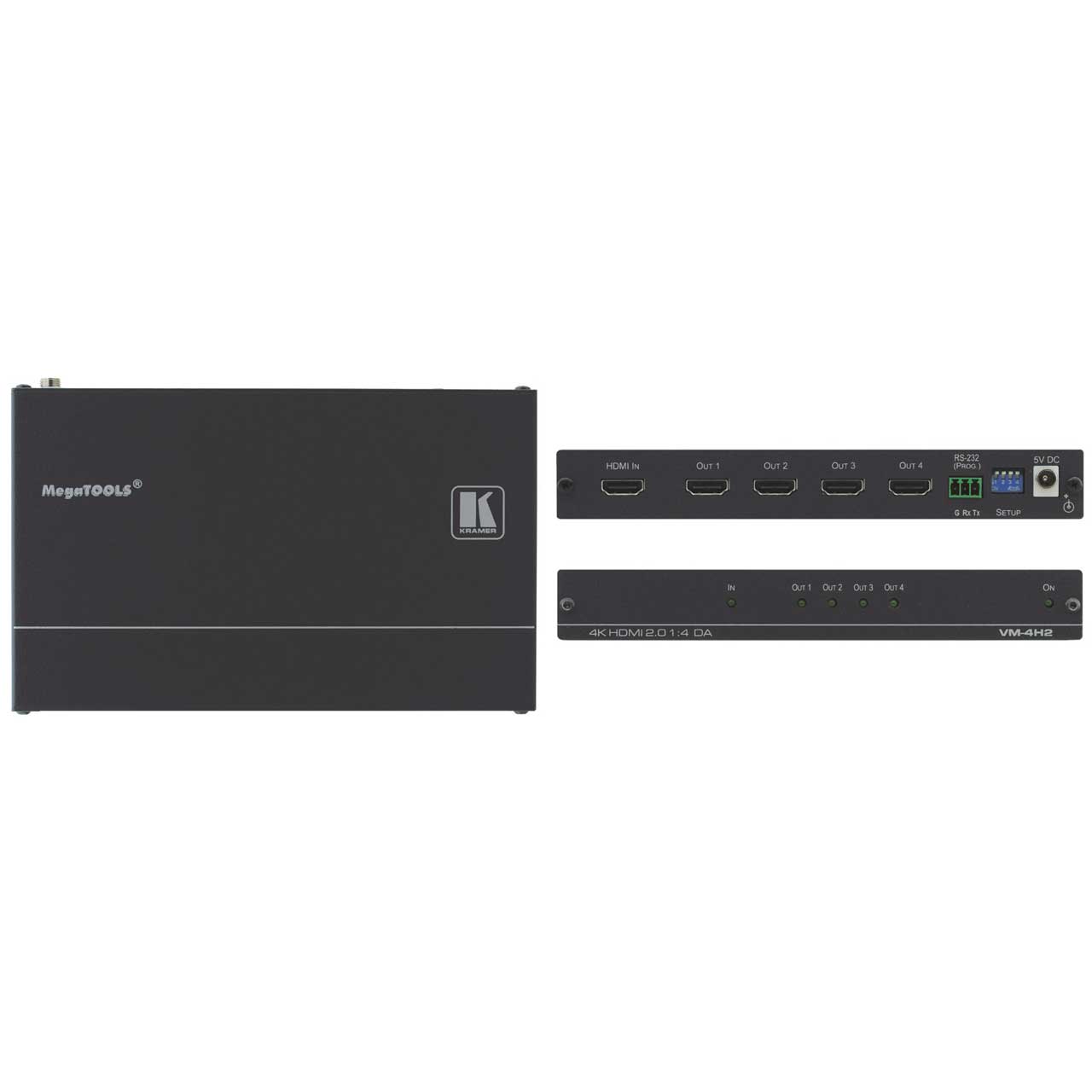

Kramer VM-4H2 1:4 4K HDR HDMI Distribution Amplifier

VM-4H2 - Overview

1:4 HDMI distributor

• Features:

  • Max. Data Rate - 17.82Gbps (5.94Gbps per graphic channel).
  • Max. Resolution - 4K@60Hz (4:4:4).
  • HDMI Signal Transmission - HDR, HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D as specified in HDMI 2.0.
  • Intelligent EDID Handling - Use connected display EDID or default EDID, with EDID lock and RGB-force options, to ensure proper operation of HDMI source and display systems.
  • Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
  • Force RGB - When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
  • Selectable HDCP Authorization - Allows the user to control the appearance of an HDCP or non-HDCP input to the source to permit delivery of protection-free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non-HDCP mode.
  • Field Maintenance - RS-232 connection for simple field firmware upgrade, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
  • Easy Installation - Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
  • Zoom Rooms Compatible


• Specifications:

  • INPUT:
  • 1 HDMI connector

    OUTPUTS:
  • 4 HDMI connectors PORT:1 RS?232 for firmware upgrade

    VIDEO
  • Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel)
  • Up to 4K@60Hz (4:4:4) resolution
  • HDR10, HDCP 2.2 signal compliance
  • Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0

    INDICATOR LEDs:
  • ON, IN, OUT 1 to 4

    OPERATING TEMPERATURE:
  • 0° to +40°C (32° to 104°F)

    STORAGE TEMPERATURE:
  • -40° to +70°C (-40° to 158°F)

    HUMIDITY:
  • 10% to 90%, RHL non-condensing

    POWER CONSUMPTION:
  • 5V DC, 730mA


• Item Includes:

  • VM-4H2 DA
  • Power Supply (1)


• Warranty:

  • 7 Year Limited Warranty


• GTIN:

  7291063078393
