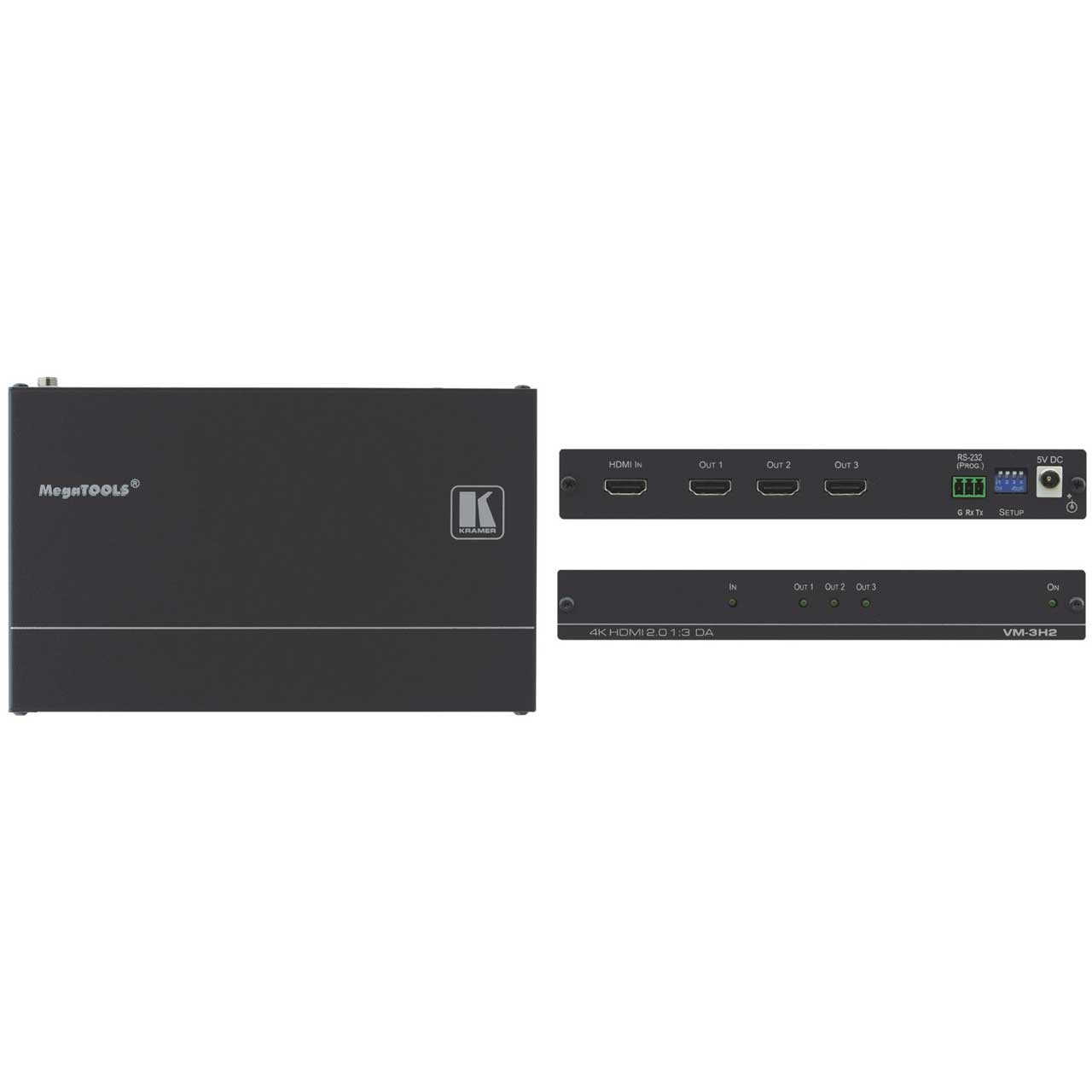

Kramer VM-3H2 1:3 4K HDR HDMI Distribution Amplifier

Name: Kramer VM-3H2 1:3 4K HDR HDMI Distribution Amplifier
Brand: Kramer
SKU: KR-VM-3H2
Price: 336.00 USD
Availability: PreSale

ITEM #: KR-VM-3H2 MFG #: VM-3H2

Kramer

List Price:

$420.00

Our Price:

$336.00

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

VM-3H2 - Overview

Max. Resolution - 4K@60Hz (4:4:4)

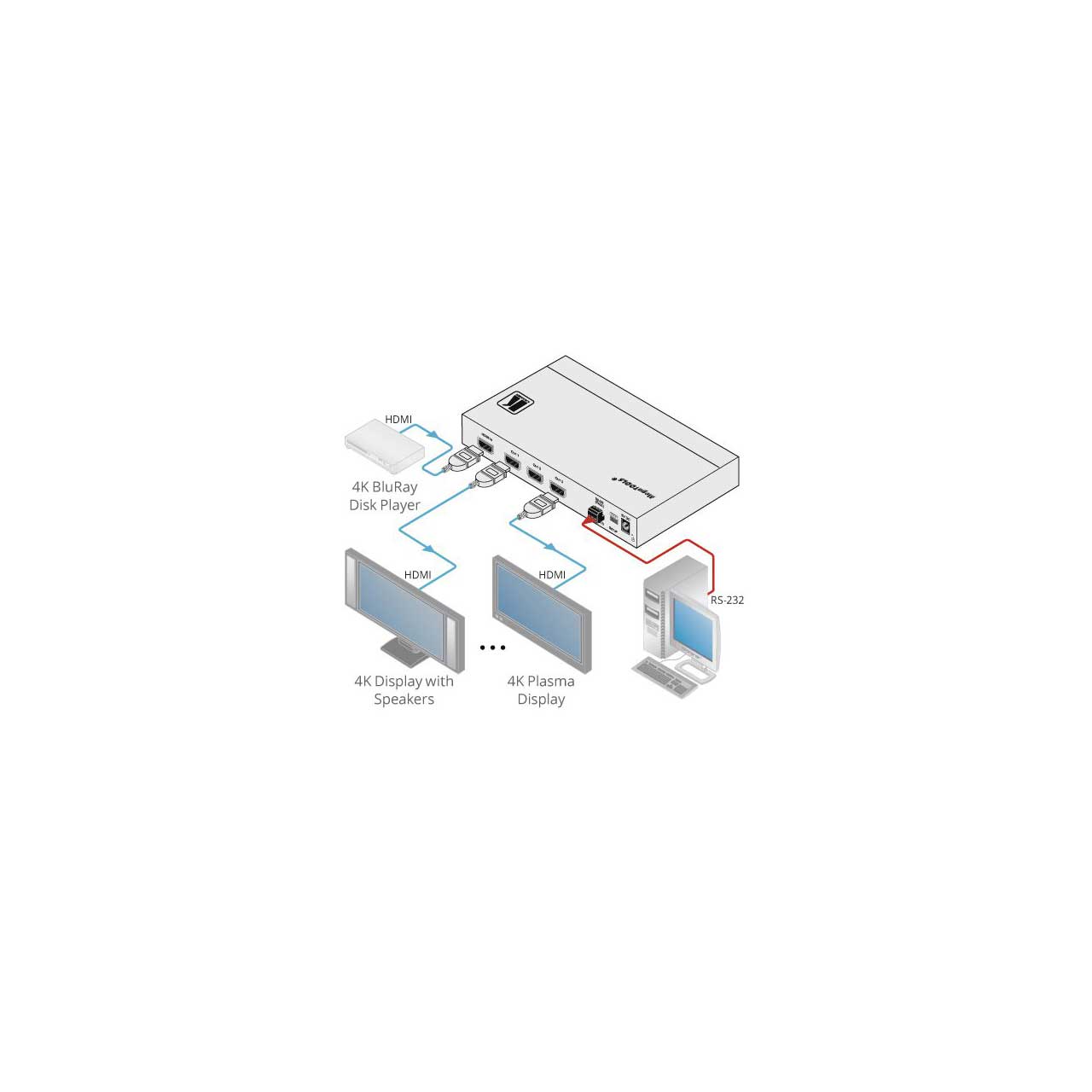

The Kramer VM-3H2 is a 1:3 distribution amplifier for up to 4K HDR, HDMI signals, that comply with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and reclocks the signal and distributes it to three identical outputs.

Perfect for
Simple distribution of high-resolution 4K signals in corporate, education, hospitality and government market segments

Features:
- Max. Data Rate - 17.82Gbps (5.94Gbps per graphic channel).
- Max. Resolution - 4K@60Hz (4:4:4).
- HDMI Signal Transmission - HDR, HDCP 2.2 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, CEC (OUT 1 only), 2K, 4K, and 3D as specified in HDMI 2.0.
- Intelligent EDID Handling - Use connected display EDID or default EDID, with EDID lock and RGB-force options, to ensure proper operation of HDMI source and display systems.
- Kramer Equalization & re-Klocking™ Technology - Rebuilds the digital signal to travel longer distances.
- Force RGB - When the display lacks YCbCr capabilities, the user can force native delivery of the RGB color format in HDMI content to improve picture quality.
- Selectable HDCP Authorization - Allows the user to control the appearance of an HDCP or non-HDCP input to the source to permit delivery of protection-free content, such as personal clips and charts, without HDCP encryption. HDCP protected content is not passed in non-HDCP mode.
- Field Maintenance - RS-232 connection for simple field firmware upgrade, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
- Easy Installation - Compact Mega TOOLS™ fan-less enclosure for over-ceiling mounting, or side-by-side rack mounting.
Specifications:
- INPUT
- 1 HDMI connector
- OUTPUTS
- 3 HDMI connectors
- PORT
- 1 RS-232 for firmware upgrade
- VIDEO
- Up to 17.82Gbps bandwidth (5.94Gbps per graphic channel)
- Up to 4K@60Hz (4:4:4) resolution
- HDR10, HDCP 2.2 signal compliance
- Supports deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0
- INDICATOR LEDS
- ON, IN, OUT 1 to 3
- OPERATING TEMPERATURE
- 0° to +40°C (32° to 104°F)
- STORAGE TEMPERATURE
- -40° to +70°C (-40° to 158°F)
- HUMIDITY
- 10% to 90%, RHL non-condensing
- POWER CONSUMPTION
- 5V DC, 730mA
Item Includes:
- VM-3H2 Distribution Amplifier
- Power Supply
Warranty:
- Limited 7 Year Warranty
GTIN:
7291063079178
