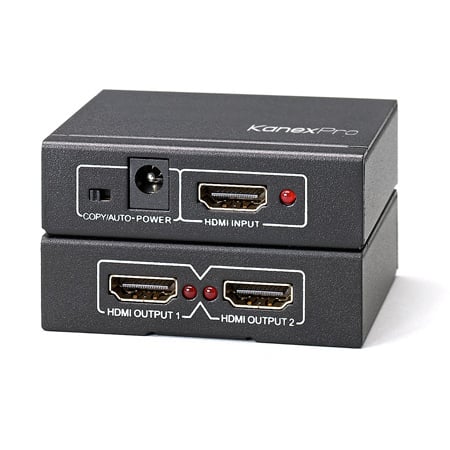

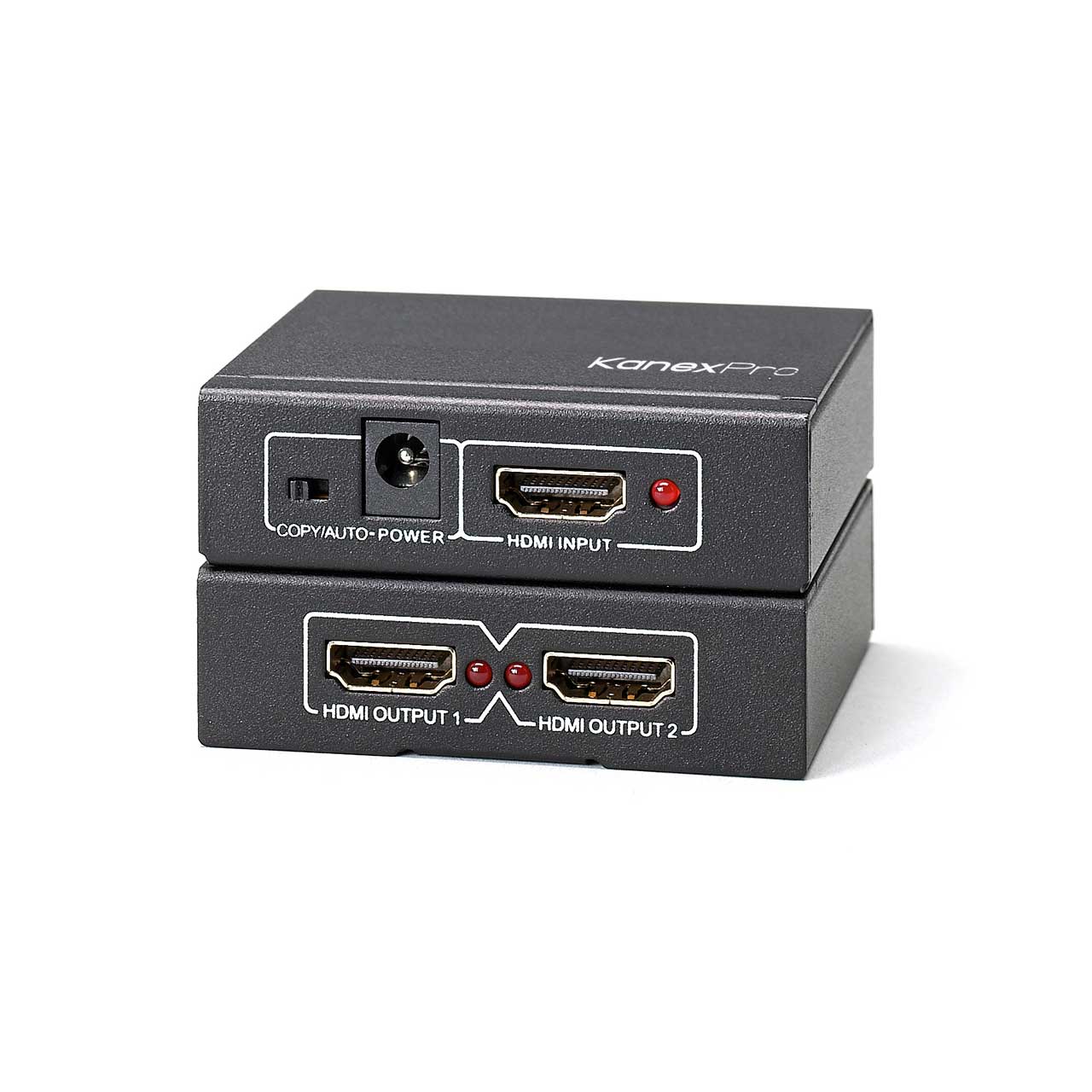

KanexPro SP-HD1X24K 1X2 HDMI Splitter with 4K Cinema Resolutions

SP-HD1X24K - Overview

• Features:

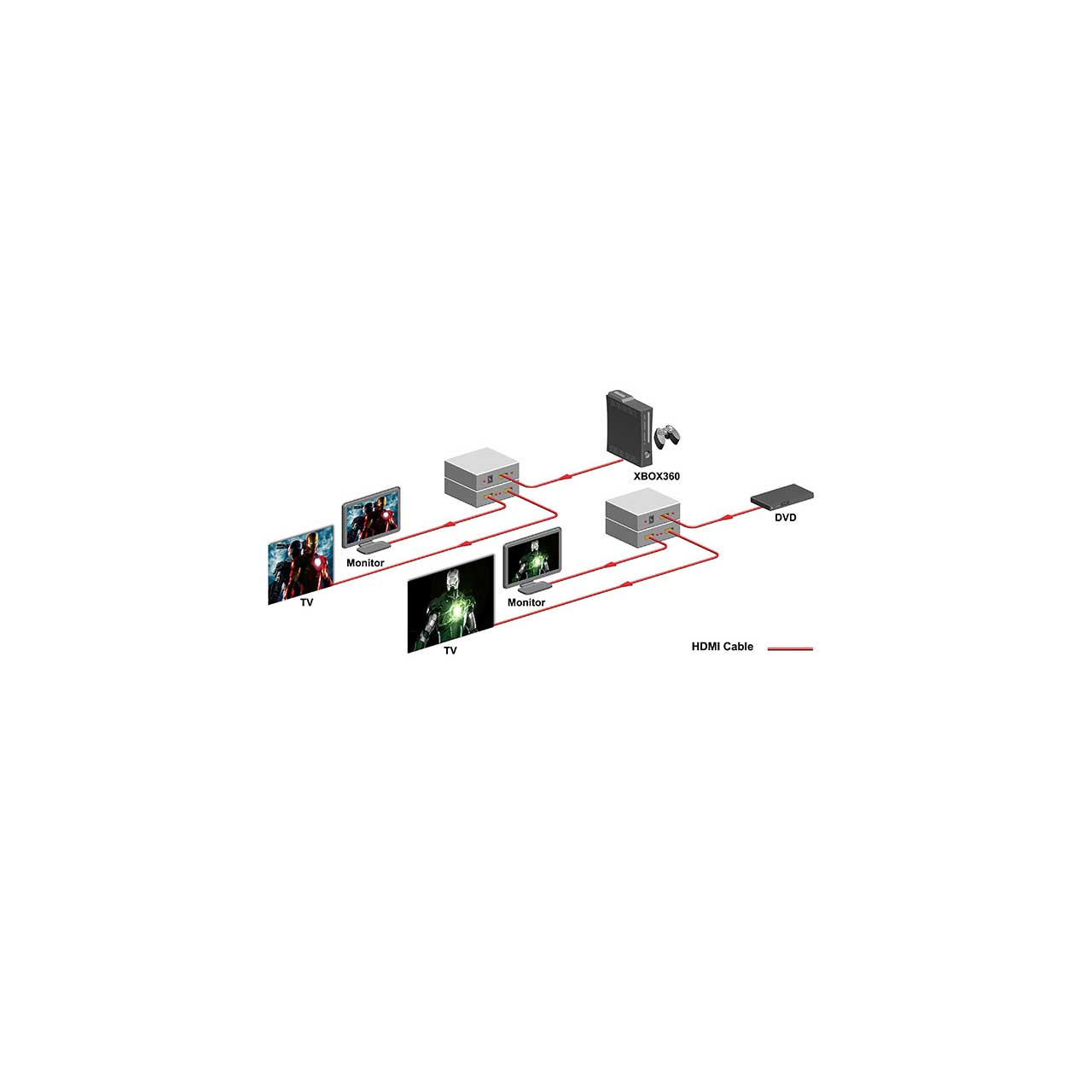

  • Distribute high-resolution HDMI signals to 2 Ultra HD displays
  • Supports full 3D and 4Kx2K resolution
  • Supports full HD 1080p (1920 x 1080@60Hz)
  • Computer resolution up to WUXGA (1920 x1200@60Hz)
  • HDCP & CEC compliant Supports
  • Supports latest HDMI High Speed Specifications
  • 12-bit per channel (36-bit all channel) Deep color
  • Compact metal enclosure


• Specifications:

  • Signal Inputs/Output
  • Input DDC Signal: 5 volts p-p (TTL)
  • Maximum Single Link Range: 4K x 2K
  • Output Video: HDMI 1.4 with full 3D and 4Kx2K@30Hz + HDCP
  • CEC - Pass through enabled


  • Operating Frequency
  • Vertical Frequency Range: 50/60Hz
  • Video Amplifier Bandwidth: 2.97 Gbps


  • Resolutions (HDTV)
  • Interlaced (50&60Hz): 480i, 576i, and 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K


  • Power Requirements
  • External Power Supply: 5V DC@ 1A
  • Power consumption (Max): 5W


  • Size: (L-W-H): 2.51" x 2.36" x 0.78"
  • Weight: 0.27 lbs. (25g)
  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Limited Warranty: 1-Year Parts & Labor


• Item Includes:

  • HDMI splitter
  • 5V USB to DC Power Supply
  • Operation Manual


• Warranty:

  • 1 Year


• GTIN:

  0813982020047
