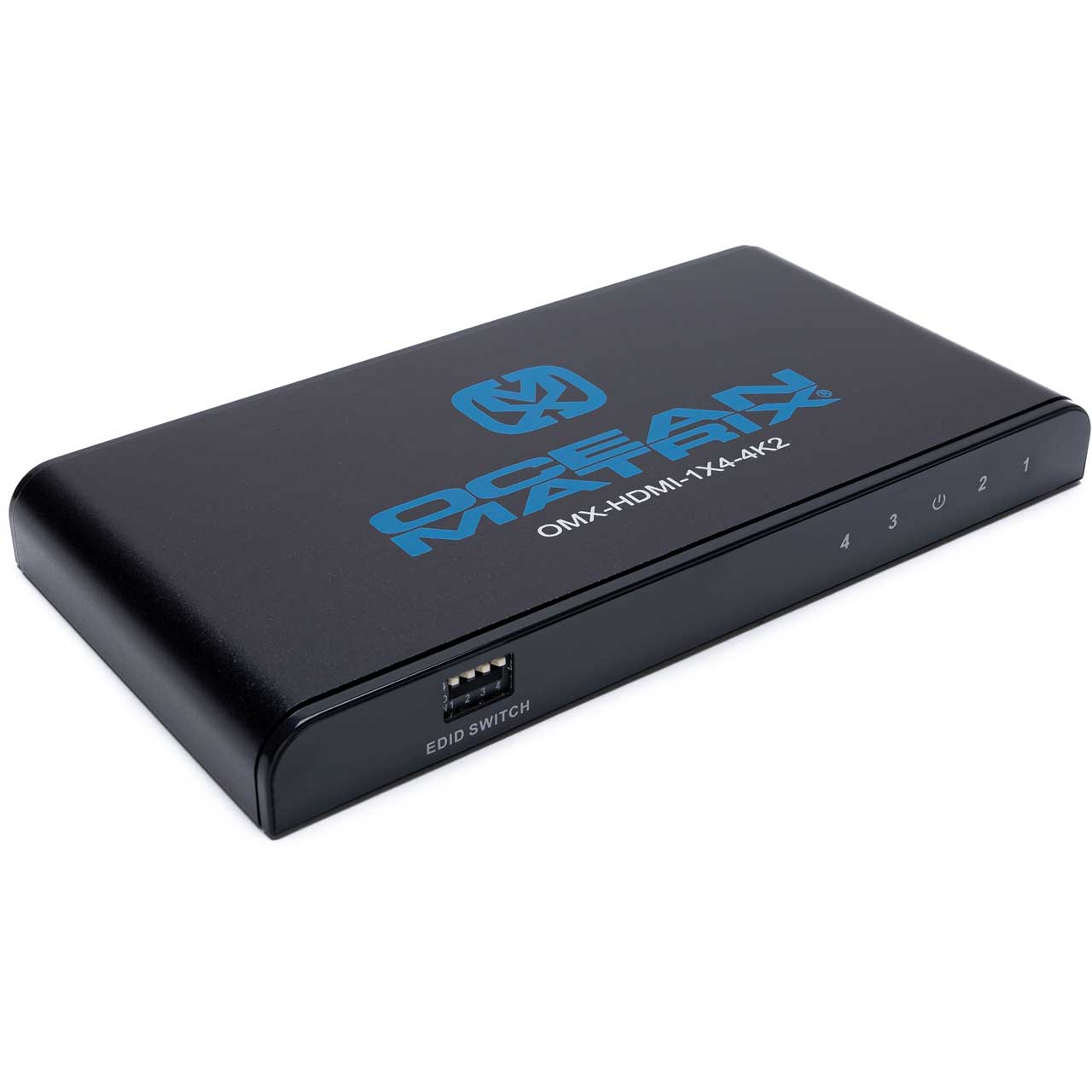

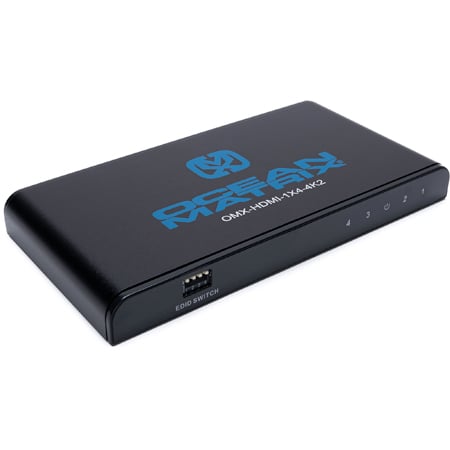

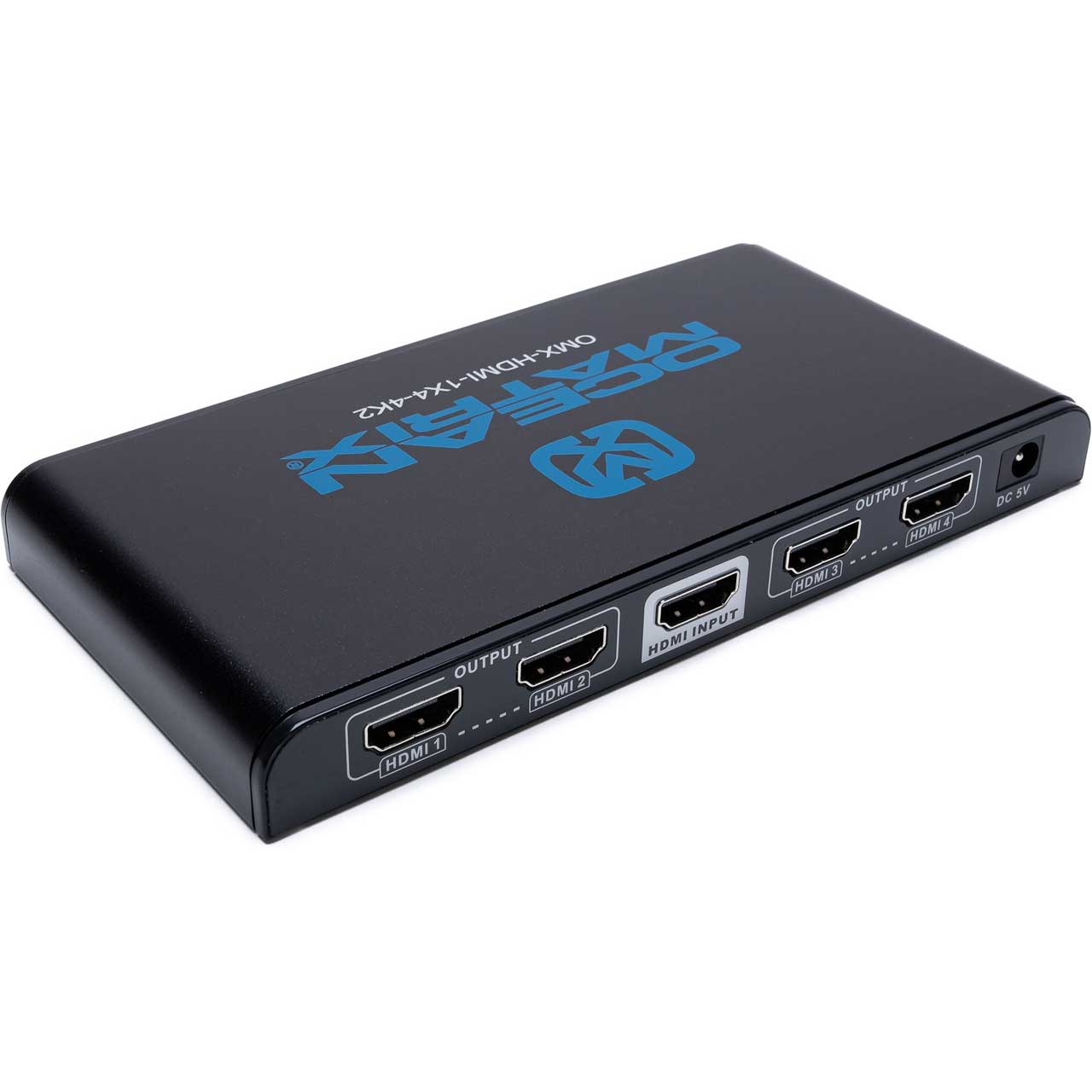

Ocean Matrix OMX-HDMI-1X4-4K2 4K UHD 1x4 HDMI 2.0 Splitter/Distribution Amplifier with EDID

ITEM #: OMX-HDMI-1X4-4K2 MFG #: OMX-HDMI-1X4-4K2

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$89.95

Our Price:

$79.95

Availability: In Stock
iAvailability Description Popup


OMX-HDMI-1X4-4K2 - Overview

Split a single 4K 60Hz HDR HDMI source out to 4 displays, projectors, HDMI extenders or recorders with the Ocean Matrix OMX-HDMI1X4-4K2. This slimline 1x4 HDMI splitter offers full HDR support delivering a superior ultra-high definition digital signage and display experience.

The Ocean Matrix OMX-HDMI-1X4-4K2 works with all resolutions up to 4K/UHD (4096 x 2160) and features and intelligent on-board EDID management system ensuring your signal will be visible across multiple display devices without making manual adjustments. This includes the ability to The OMX-HDMI1X4-4K2 can simultaneously output 4K and 1080p on different channels. It is fully HDMI 2.0 and HDCP 2.2 compatible and also fully supports HDR for deep, rich color reproduction.

  • Features:

    • Distributes 1 HDMI Source to 4 HDMI Displays Simultaneously
    • Supports HDR, HDMI 2.0, HDMI 1.4, DVI 1.0, 3D Video and 4K x 2K@30/60Hz UHD when both the input and output devices support 4K x 2K
    • HDMI source and HDMI displays support 3D

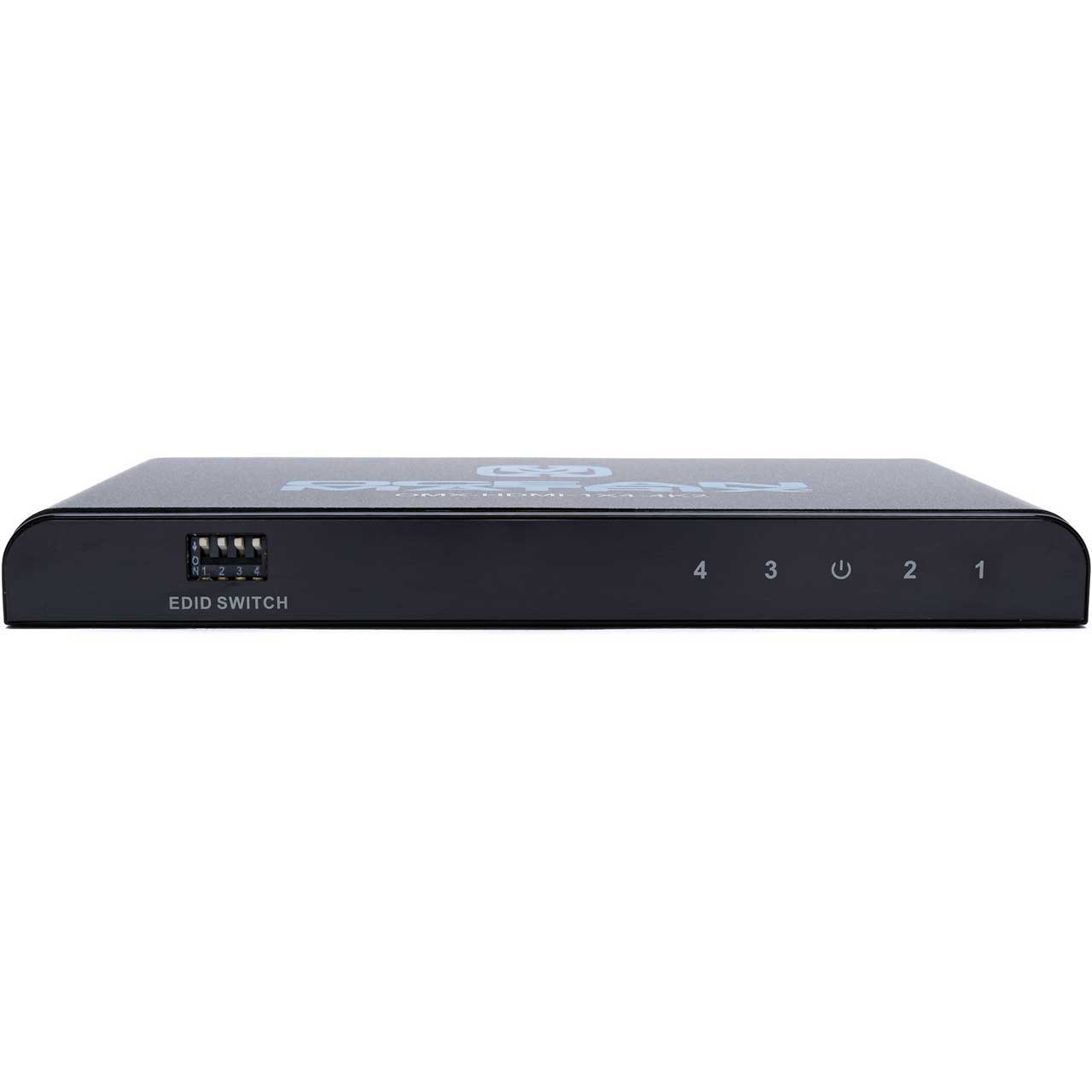

    • Built-In EDID Management
    • Supports Bandwidth up to 18Gpbs
    • HDMI 2.0, HDMI 1.4 Compliant
    • HDCP2.2, HDCP 1.4 Compliant
    • Audio - Supports Standard, Direct Stream Digital, and HD/HBR

  • Specifications:

    • Support 12 Bit Full HD Video, 3D Video and 4Kx2K@30/60Hz Ultra HD Video
    • HDMI Resolutions: 480i/480p/756i/756p/720p/1080i/1080p/
    • 4Kx2K@24/25/30/60Hz
    • Compatible with DVI1.0, HDMI1.4, HDMI2.0

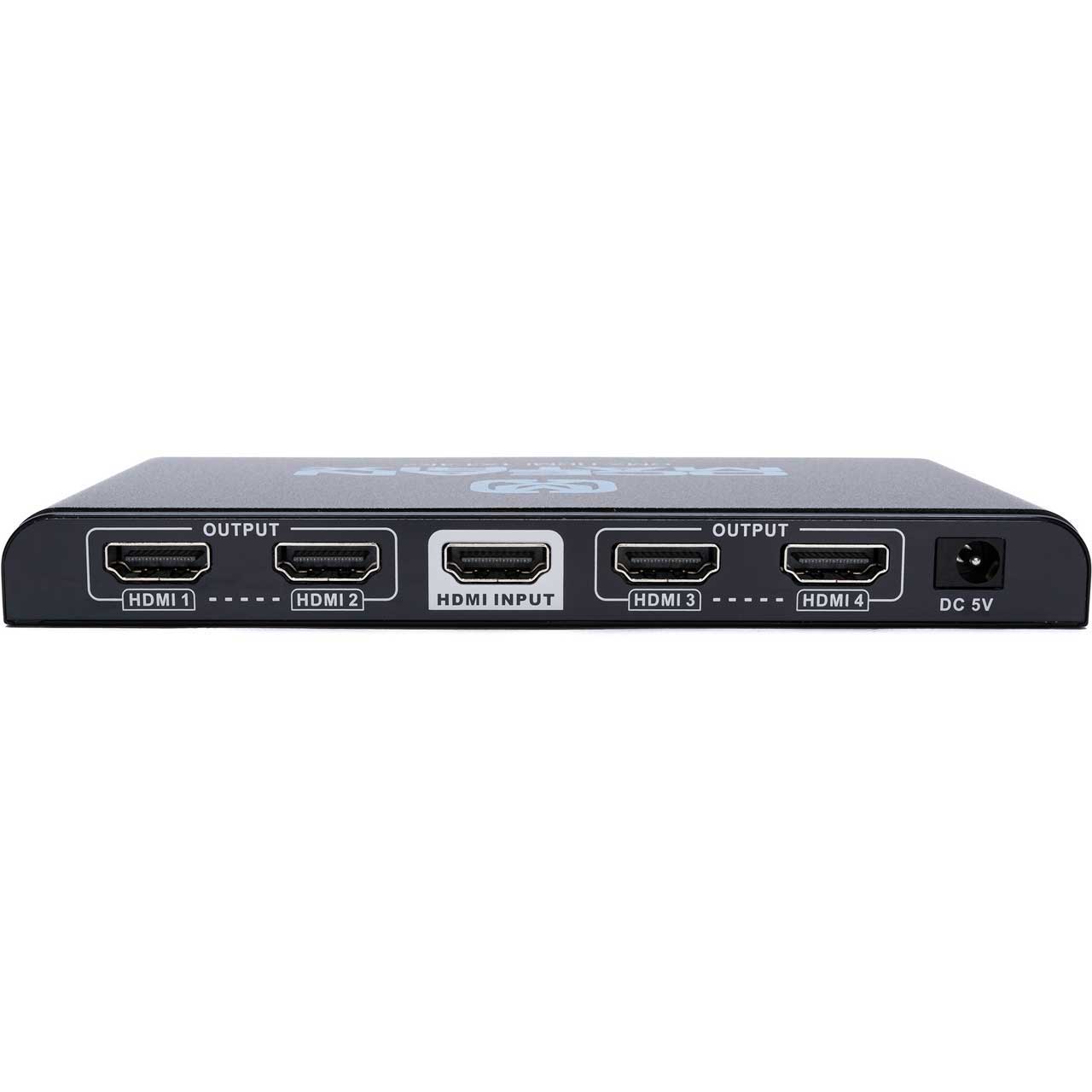

    • Input port: 1- HDMI / Output ports: 4 - HDMI
    • Frequency Range: 25MHz-600MHz
    • TMDS Signal: 0.5-1.5Vp-p(TMDS)
    • DDC Signal: 5Vp-p(TTL)
    • Power Consumption: 8W
    • Dimensions (WxDxH): 6.2x3.15x0.67in / 158x80x17mm
    • Weight: 6.9oz / 196g

  • Item Includes:

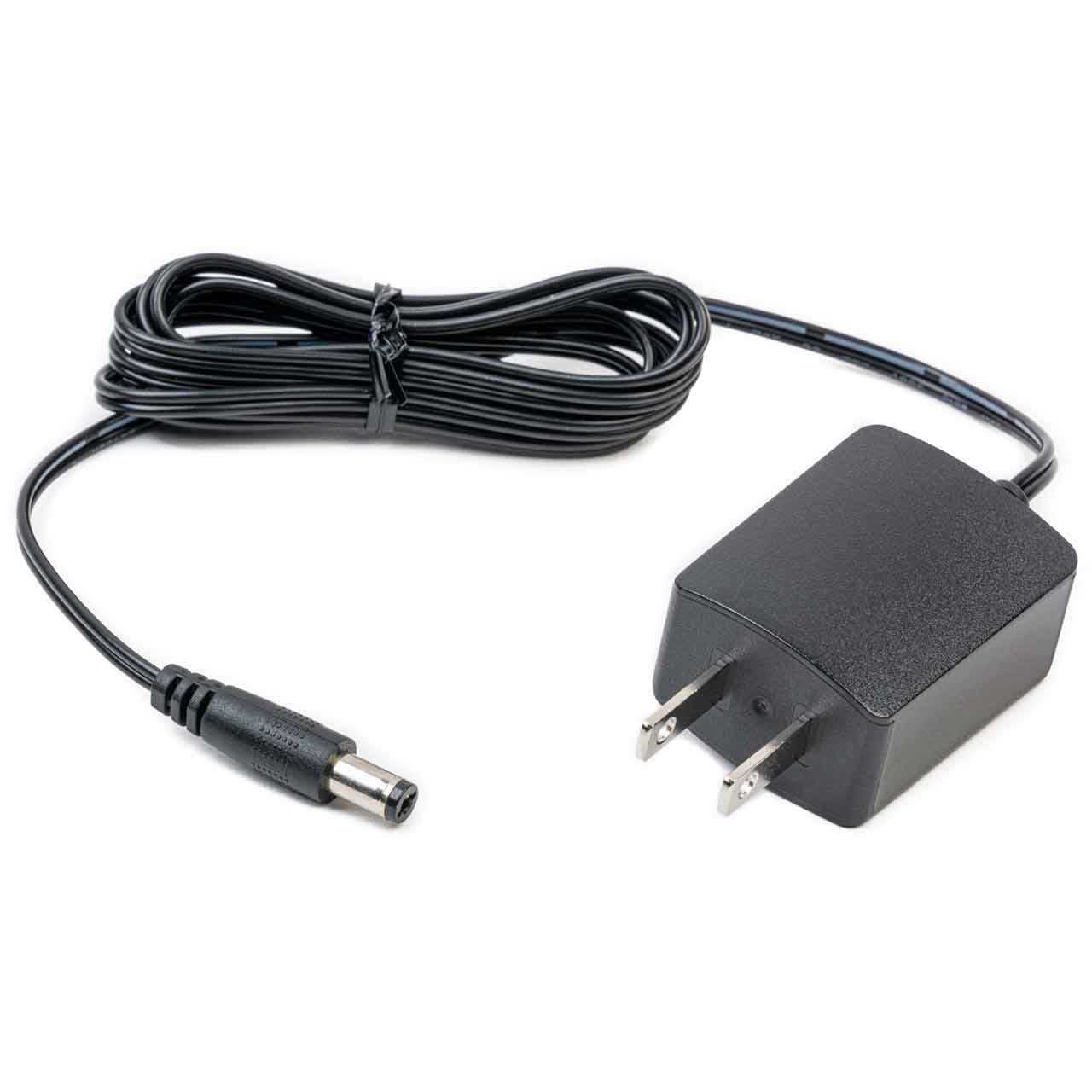

    • 5VDC/1A power supply

  • Warranty:

    • 1 Year

  • GTIN:

    6955361269747
