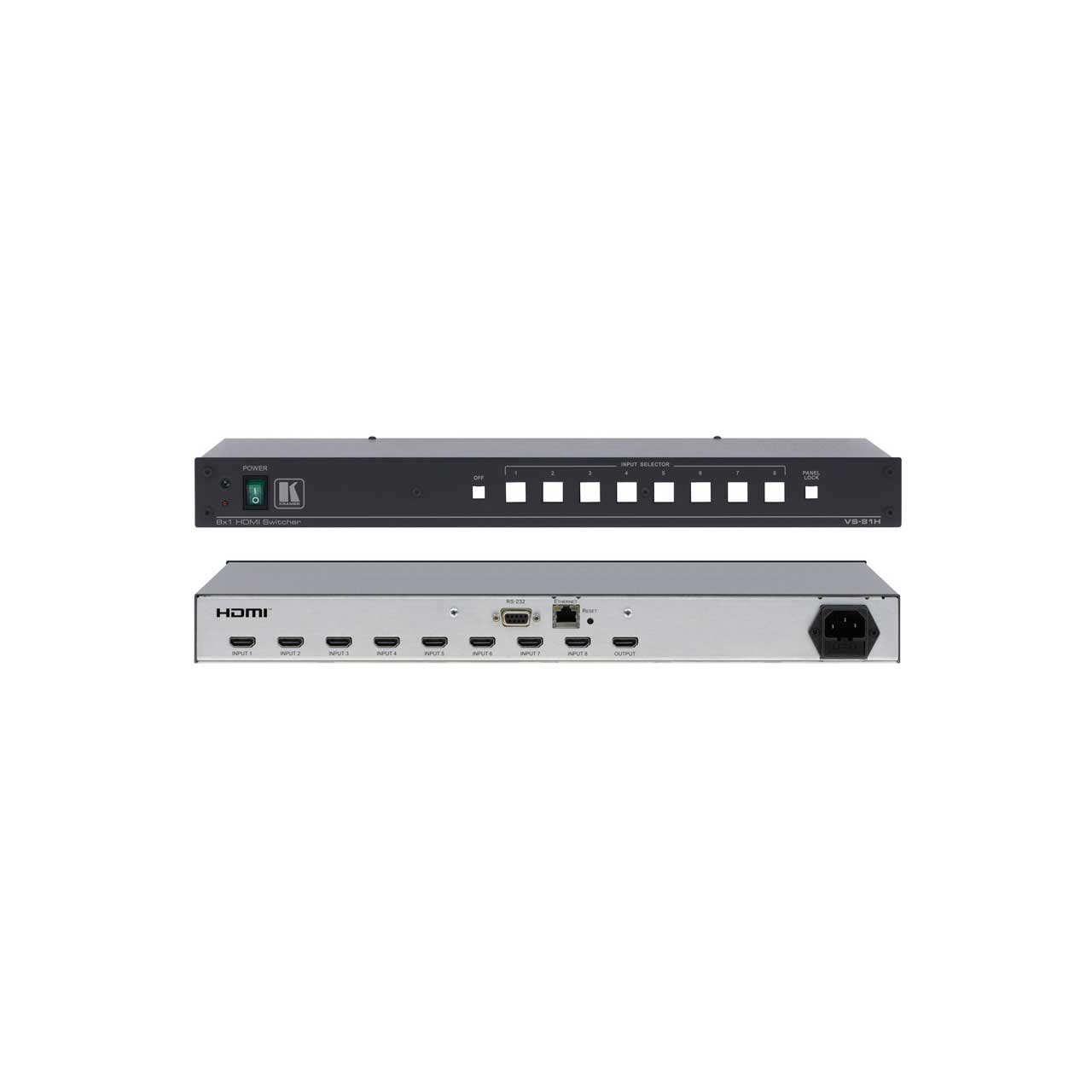

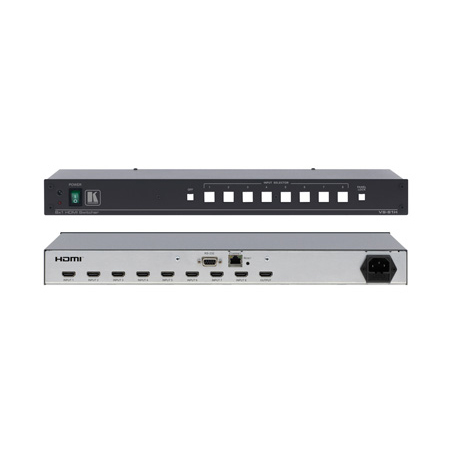

Kramer VS-81H 8x1 HDMI Switcher

VS-81H - Overview

• Features:

  • Max. Data Rate - 6.75Gbps (2.25Gbps per graphic channel).
  • HDCP Compliant.
  • HDTV Compatible.
  • HDMI Support - Deep Color, x.v.ColorT, Lip Sync, HDMI Uncompressed Audio Channels, Dolby TrueHD, DTS-HD, CEC.
  • 3D Pass-Through.
  • I-EDIDProT Kramer Intelligent EDID ProcessingT - Intelligent EDID handling & processing algorithm ensures Plug and Play operation for HDMI systems.
  • Dual Mode - PC and DVD Modes selectable by input.
  • Flexible Control Options - Front panel, RS-232 (K-RouterT Windowsr-based software is included), Ethernet & IR remote (included).
  • Video Disconnect.
  • Front Panel Lockout.
  • Kramer Equalization & re-KlockingT Technology - Rebuilds the digital signal to travel longer distances.
  • Worldwide Power Supply - 100-240V AC.
  • Standard 19" Rack Mount Size - 1U. Rack "ears" included.


• Specifications:

  • INPUT: 8 HDMI Connectors.
  • OUTPUT: 1 HDMI Connector.
  • MAX. DATA RATE: 6.75Gbps (2.25Gbps bandwidth per graphic channel).
  • COMPLIANCE WITH HDMI STANDARD: Supports HDMI and HDCP.
  • RESOLUTION: Up to UXGA; 1080p, deep color.
  • POWER CONSUMPTION: 100-240V AC, 50/60Hz, 12VA.
  • CONTROLS: Front panel buttons, infrared remote control port, RS-232, Ethernet.
  • DIMENSIONS: 19" x 7" x 1U W, D, H, rack mountable.
  • WEIGHT: 2.5kg (5.5lbs) approx.
  • INCLUDED ACCESSORIES: Power cord, RC-IR3 remote control transmitter.


• GTIN:

  7291063006440
