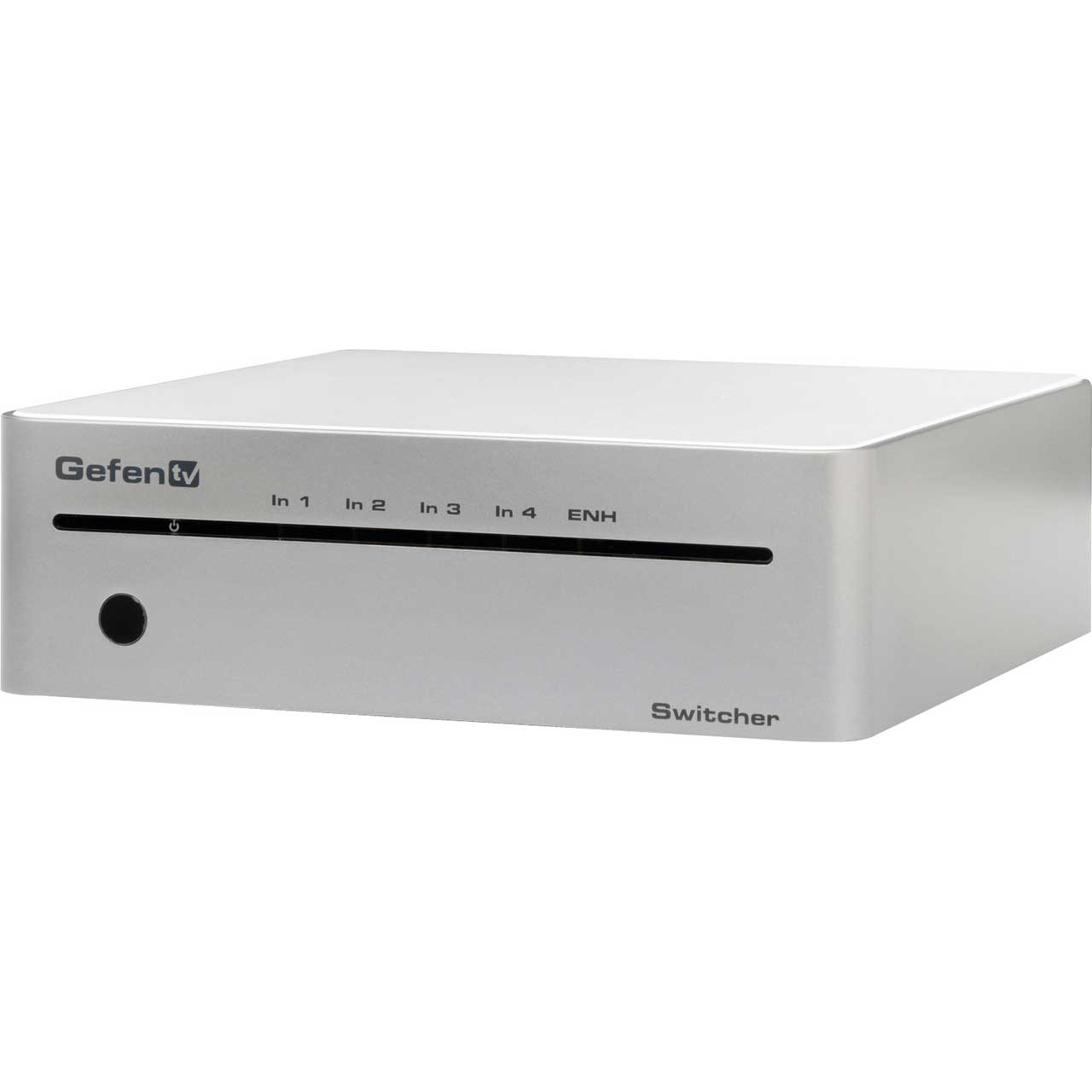

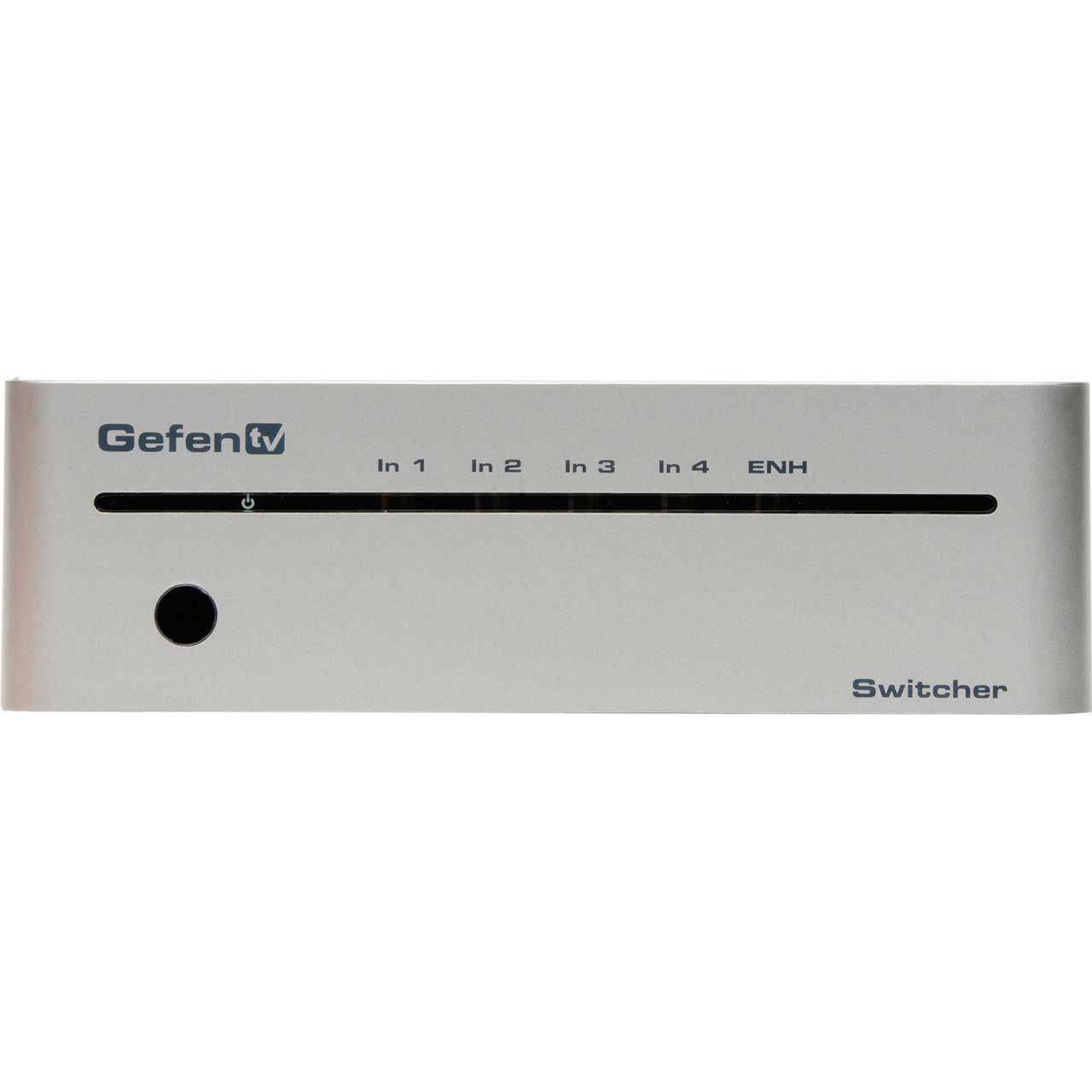

The GefenTV 4x1 Switcher for HDMI with RS232 switches between any of four Hi-Def sources to one HDTV display. Resolutions up to 1080p Full HD with multichannel digital audio are supported. The front panel LEDs show the currently selected source. This 4x1 Switcher has an auto-switching feature: If a new source is connected or turned on, the Switcher will automatically switch to that input. The 4x1 Switcher will revert to the previous input once the current device is turned off or disconnected. Any of the four Hi-Def sources can be selected by the push-button, IR remote control, or using the RS-232 control.
How It Works

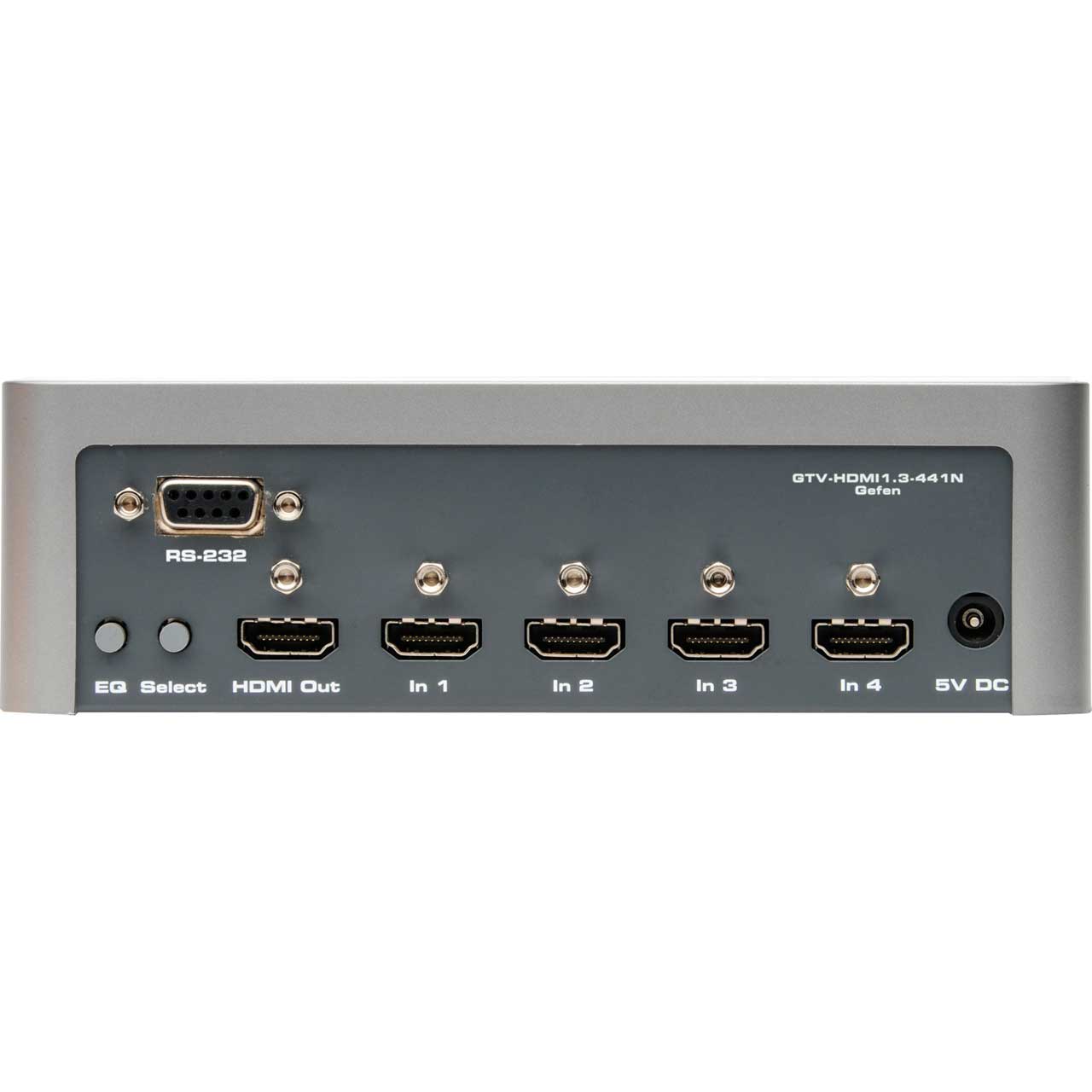

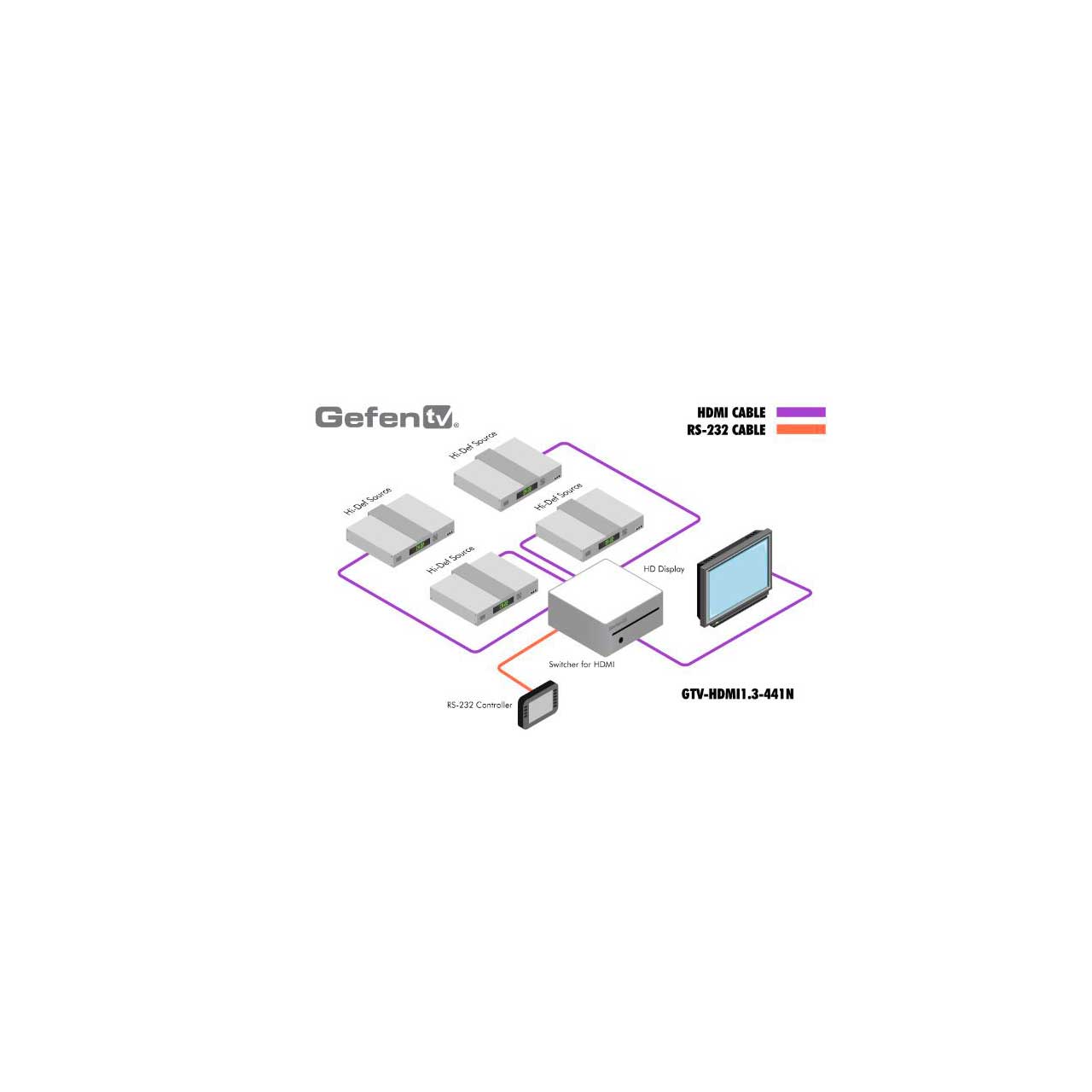

Connect up to four HDMI sources to the GefenTV 4x1 Switcher for HDMI with RS232 using the supplied cables. Connect the HDTV display to the HDMI output. Connect the 5V power supply to the 4x1 Switcher. Apply power to the source devices and the display. The Hi-Def source is displayed and will follow the current switching selection.
Supported HDMI 1.3 Features:
225 MHz (up to 12 bit YUV 444 @ 1080p)
Deep Color
Dolby TrueHD and DTS-HD Master Audio
3DTV Pass-Through
Lip-Sync Pass-Through
CEC Pass-Through.
