Blustream SP24AB-8K 2x4 HDMI 2.1 8K 2-way Switch 4-Way Splitter

SP24AB-8K - Overview

• Features:

  • Features 2x selectable HDMI 2.1 inputs that are split to 4x HDMI outputs
  • Supports HDMI 2.1 specification including HDR (40Gbps maximum)
  • Supports up to 8K 60Hz YCbCr 4:2:0 10bit, 8K 30Hz RGB/YCbCr 4:4:4 10bit, or 4K 120Hz RGB/YCbCr 4:4:4 10bit
  • Supports ALLM (Auto Low Latency Mode) & VRR (Variable Refresh Rate)
  • Supports all known HDMI audio formats including Dolby Atmos, Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
  • Auto HDMI source switching via 5V and / or TMDS signal sensing
  • Manual HDMI source switching via front panel and IR
  • Audio breakout to analogue L/R audio and Coaxial (S/PDIF) digital outputs concurrently
  • 5V / 12V IR Compatible
  • HDCP 2.3 compliant with advanced EDID management


• Specifications:

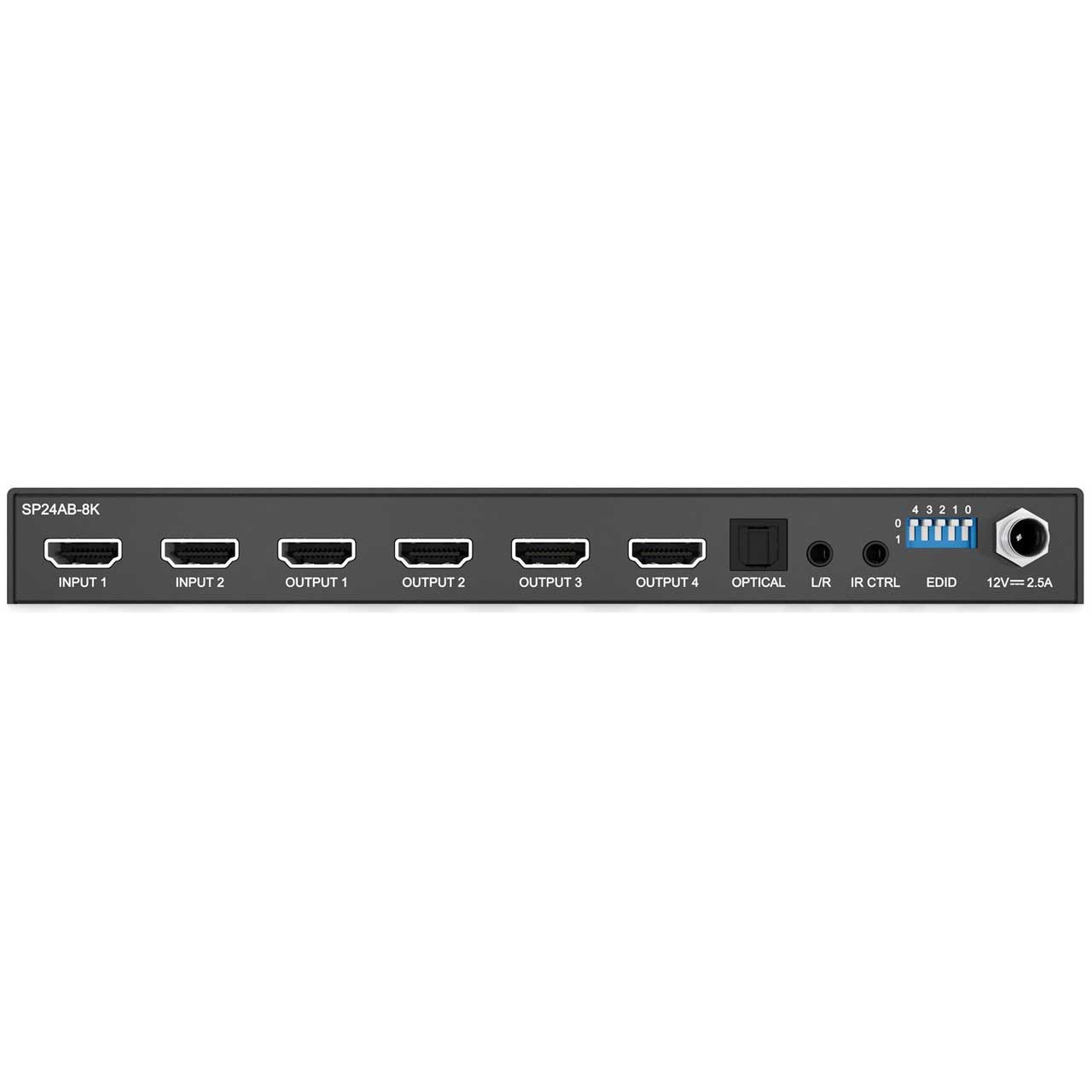

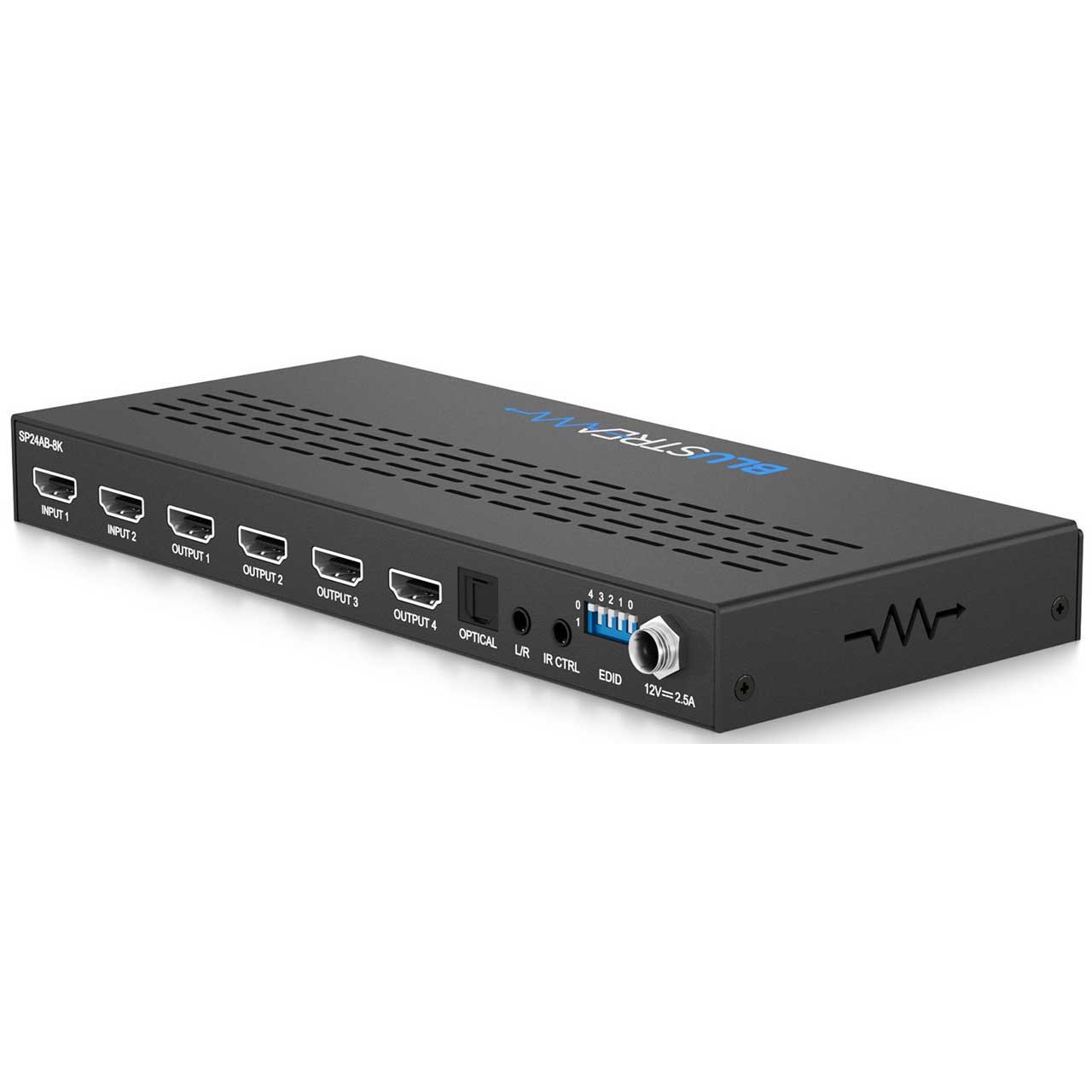

  • Video Input Connectors: 2x HDMI Type A, female
  • Video Output Connectors: 4x HDMI Type A, Female RJ45 connector
  • Audio Output Connectors: 1x Analogue left / right audio (3.5mm stereo jack), 1x Optical S/PDIF socket
  • IR Input Port: 1x 3.5mm stereo jack
  • Upgrade Port: 1x Micro USB connector
  • Casing Dimensions (W x D x H): 8.3" x 3.7" x .9" (212mm x 94mm x 23mm)
  • Power Supply: 12V/2.5A DC connector
  • Box Dimensions (W x D x H): 10.4" x 5.31" x 3.54" (265mm x 135mm x 90mm)
  • Shipping Weight: 2.2lbs (1kg)
  • Operating Temperature: 32°F to 104°F (0°C to +40°C)
  • Storage Temperature: -4°F to 140°F (-20°C to +60°C)


• Item Includes:

  • 1x SP24AB-8K
  • 1x 12V/2.5A DC power supply
  • 1x IR Receiver
  • 1x Mounting kit
  • 4x Rubber Feet
  • 1x Quick Reference Guide


• Warranty:

  • 3-Year Warranty


• GTIN:

  9340242004710
