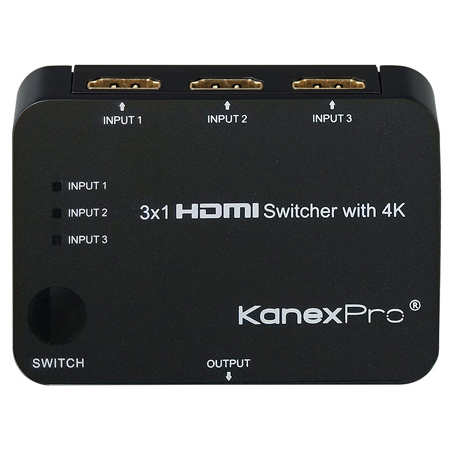

KanexPro SW-HD3X14K 3x1 HDMI Switcher with 4K Support

SW-HD3X14K - Overview

• Features:

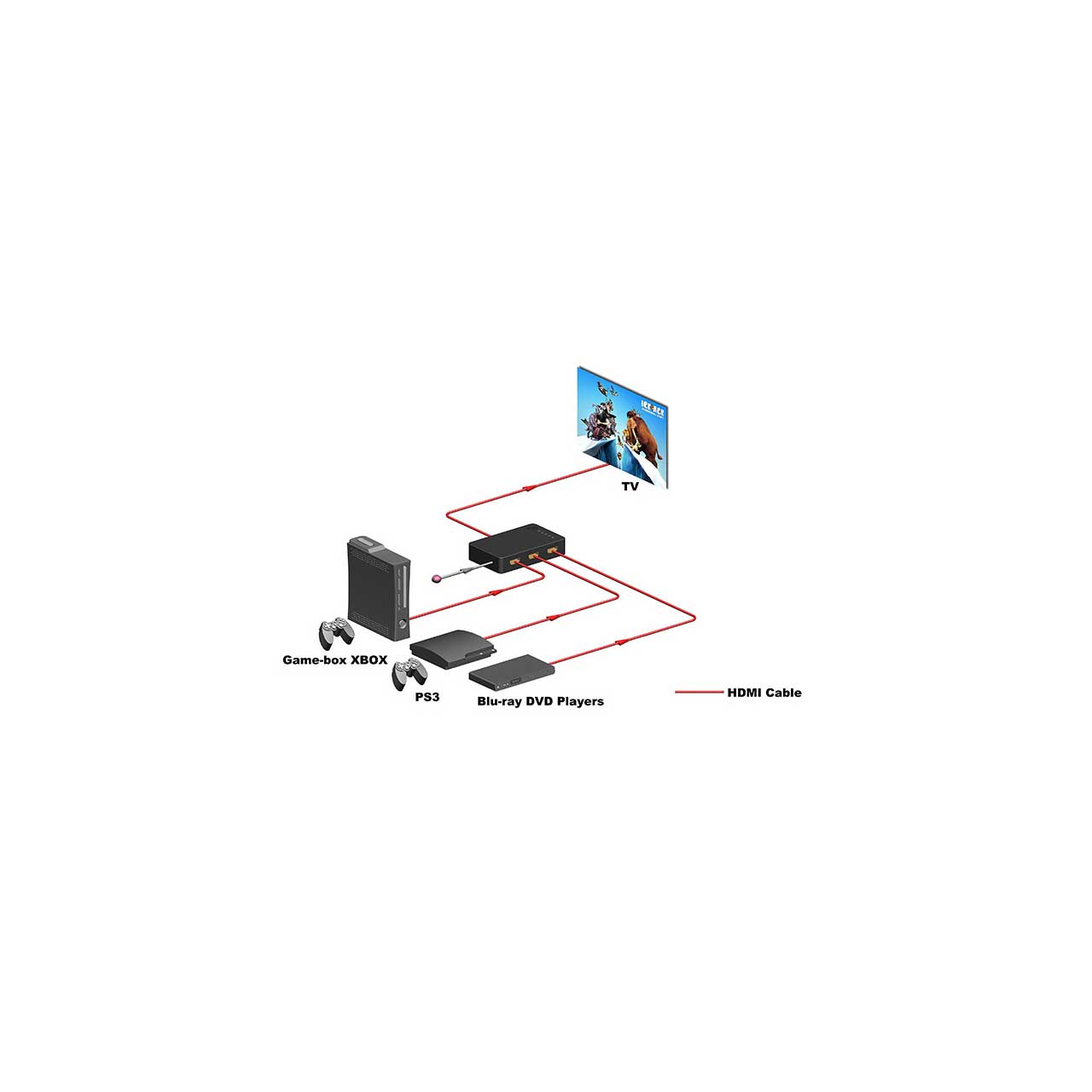

  • Rapidly switch between 3 inputs to one output
  • Supports resolutions up to 4K@30Hz
  • Full HD 1080p & 1920x1200
  • HDCP and EDID Compliant
  • Supports all 3D formats
  • Ultra-low power consumption, does not require a power supply
  • Switch using a manual button or included IR remote
  • Supports High Speed HDMI Specifications - (Deep color, HD lossless audio formats & Lip Sync)
  • Audio support: Dolby TrueHD, DTS-HD Master Audio 7.1ch
  • Supports uncompressed audio such as LPCM and compressed audio such as DTS Digital, Dolby Digital (including DTS-HD and Dolby True HD)
  • Front-panel LED's for input/ output signal presence
  • Ultra compact design
  • 5VDC external power supply included
  • IR / Remote control included


• Specifications:

  • Signal Input/Outputs
  • Input DDC Signal: 5 Volts p-p (TTL)
  • Input & Output Signal: High Speed HDMI Spec 1.4a
  • Operating Frequency: Vertical Frequency Range: 50/60Hz
  • Video Amplifier Bandwidth: 2.95 Gbps per Channel


  • Resolutions
  • (HDTV) Interlaced (50&60Hz): 480i, 576i, 1080i
  • Progressive (50&60Hz): 480p, 576p, 720p, 1080p & 4K@30Hz
  • IR specs: Input Ports: 5 HDMI Female ports, IR Receive port


  • Power Requirements
  • Power Consumption: 0.2W
  • External Power Supply: 5V DC @ 2A


  • Regulatory Approvals
  • Converter Unit: FCC, Ce, UL
  • Power Supply: UL, Ce, FCC


  • Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
  • Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
  • Dimensions: W 3.0" x D 2.0" x H1.70"
  • Weight: 1.80 ounces
  • Warranty: Limited 1-Year Parts & Labor


• Item Includes:

  • HDMI 1.4 3x1 Switcher
  • 5V Power Supply cable
  • Remote control IR Receive Extend cable
  • Operation Manual


• Warranty:

  • 1 Year


• GTIN:

  0813982020009
