INOGENI TOGGLE ROOMS XT Switcher - Switch Six USB/HDMI Devices between Three Hosts with an Extension - TAA-compliant

TOGGLE ROOMS XT - Overview

• Features:

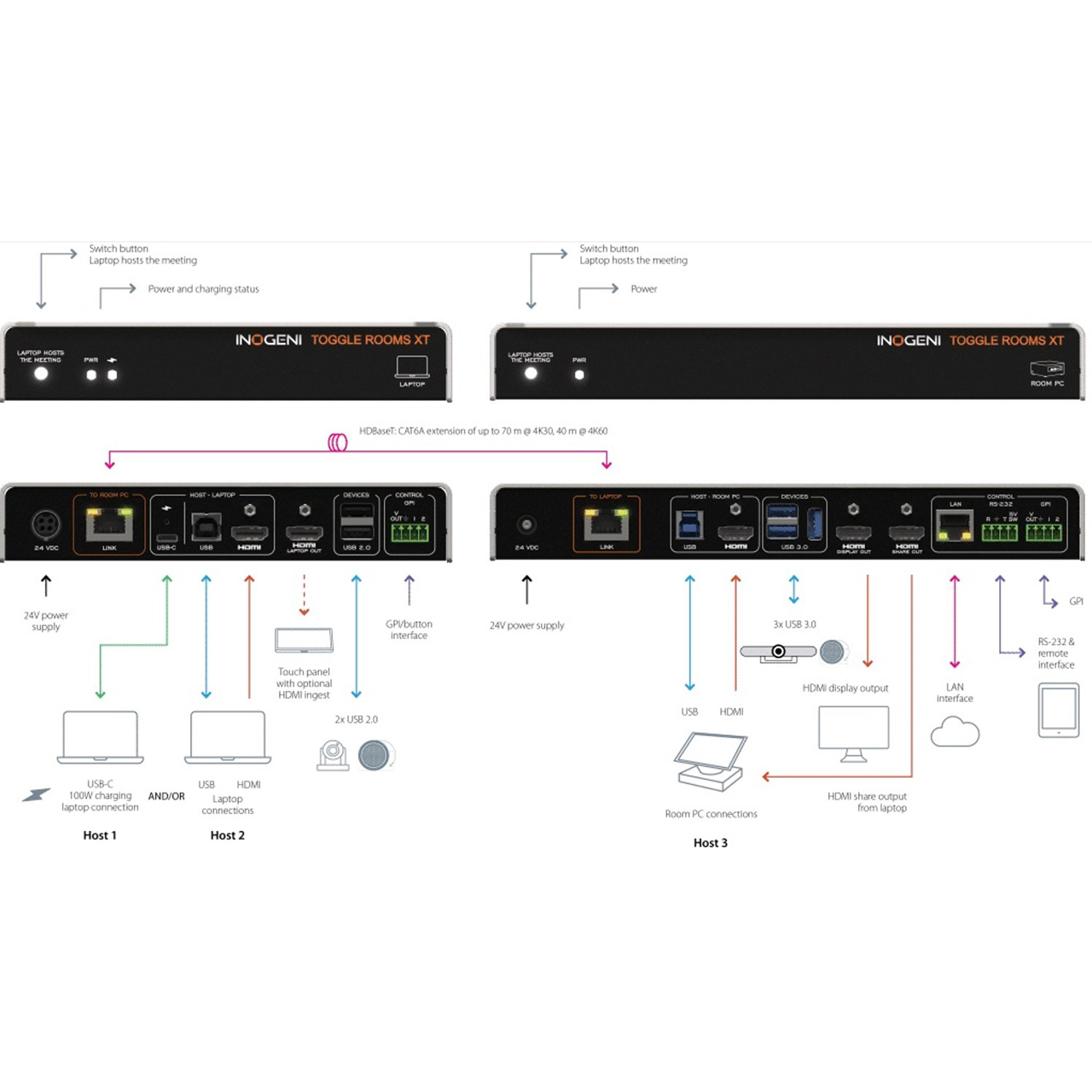

  • Switch 6 peripherals between 3 hosts
  • Automatic or manual switching between a Room PC hub and laptop hub
  • Direct connection of 5x USB devices + 1 HDMI display
  • Flexible laptop connectivity: USB-C (100W) or USB-B + HDMI

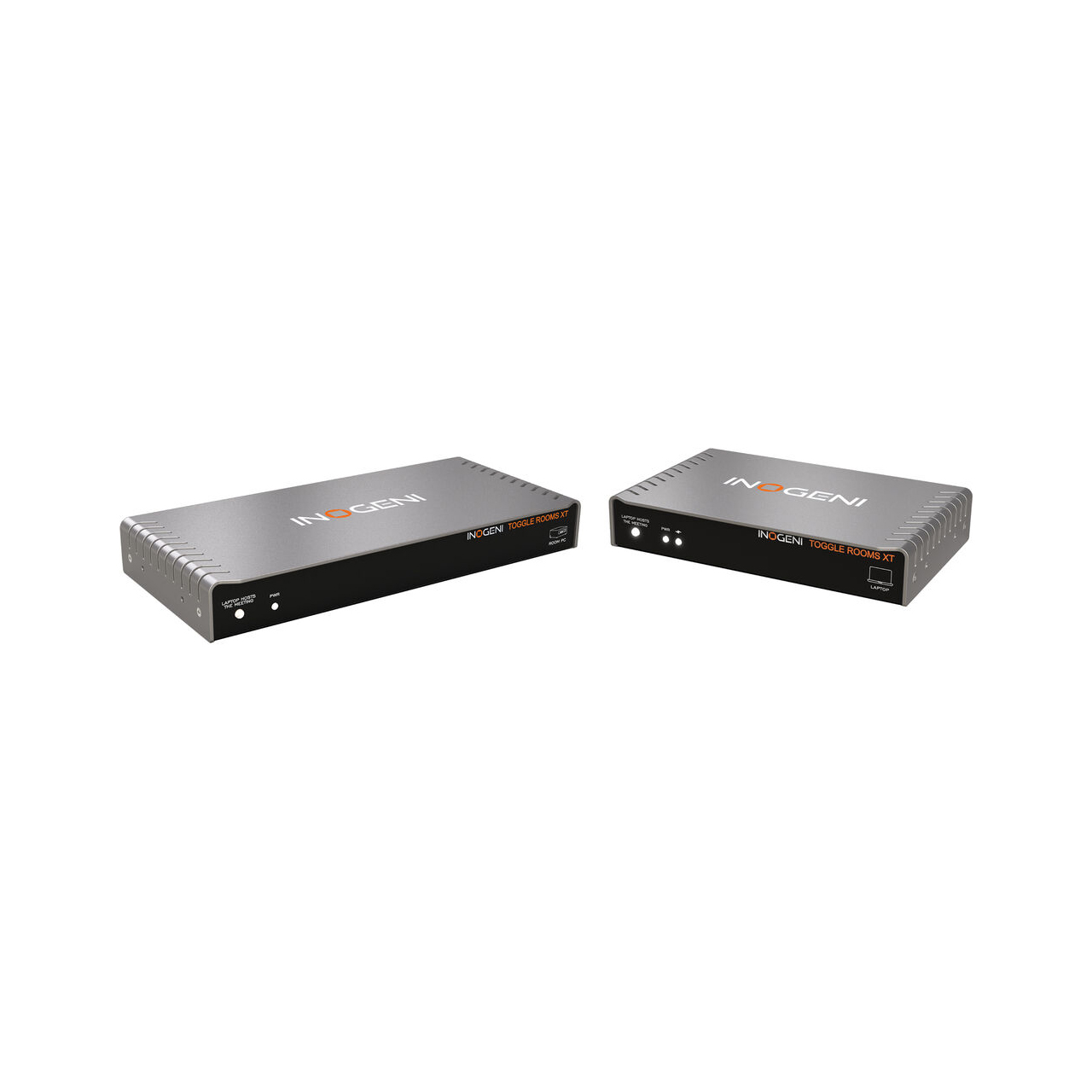

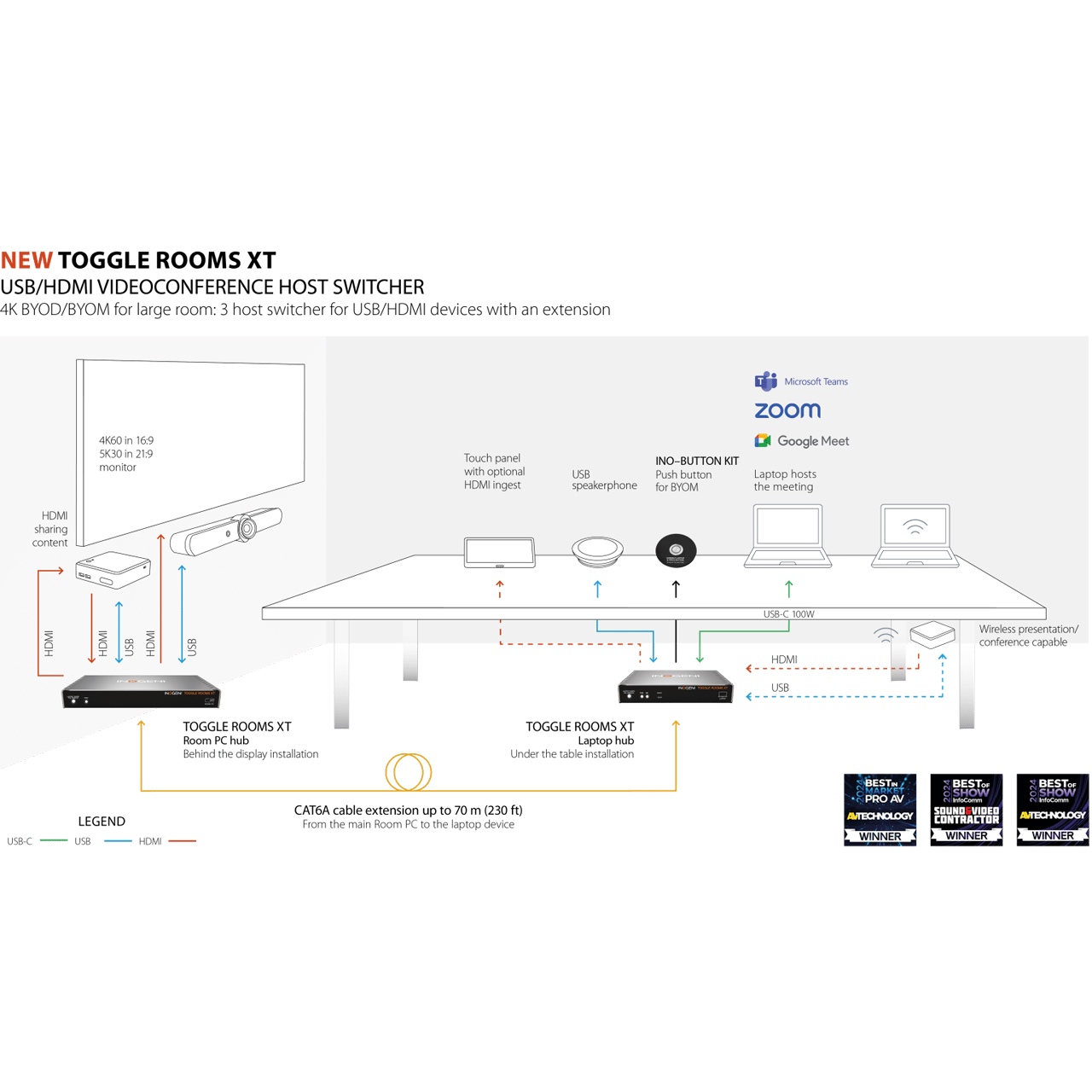

  • 2-box system: At the display (Room PC hub) and at the table (Laptop hub)
  • Uncompressed video via CAT6A cable up to 70 m/230 ft
  • 1 display: 4K60/16:9 and 5K30/21:9 widescreen (HDMI)
  • Compatible by design: Crestron, Logitech, Lenovo, Poly, MAXHUB, Jabra, Airtame, Teams, Zoom, etc.
  • USB 3.2 Gen 1/USB 3.1 Gen 1, backward compatible with USB 3.0/2.0
  • IP, RS-232 and GPI control
  • Optional mountable host switch button
  • Designed and manufactured in Canada and TAA-compliant
  • No driver required


• Specifications:

  • Link
  • Technology: HDBaseT 3.0
  • Range:
    - Up to 40 m (132 ft) when using 4Kp60
    - Up to 70 m (230 ft) when using 1080p60
  • Medium: CAT6A U/FTP (Please Note: INOGENI does not recommend using a crimp tool for attaching terminations. Instead, they highly recommend utilizing toolless terminations to ensure the preservation of signal integrity.)

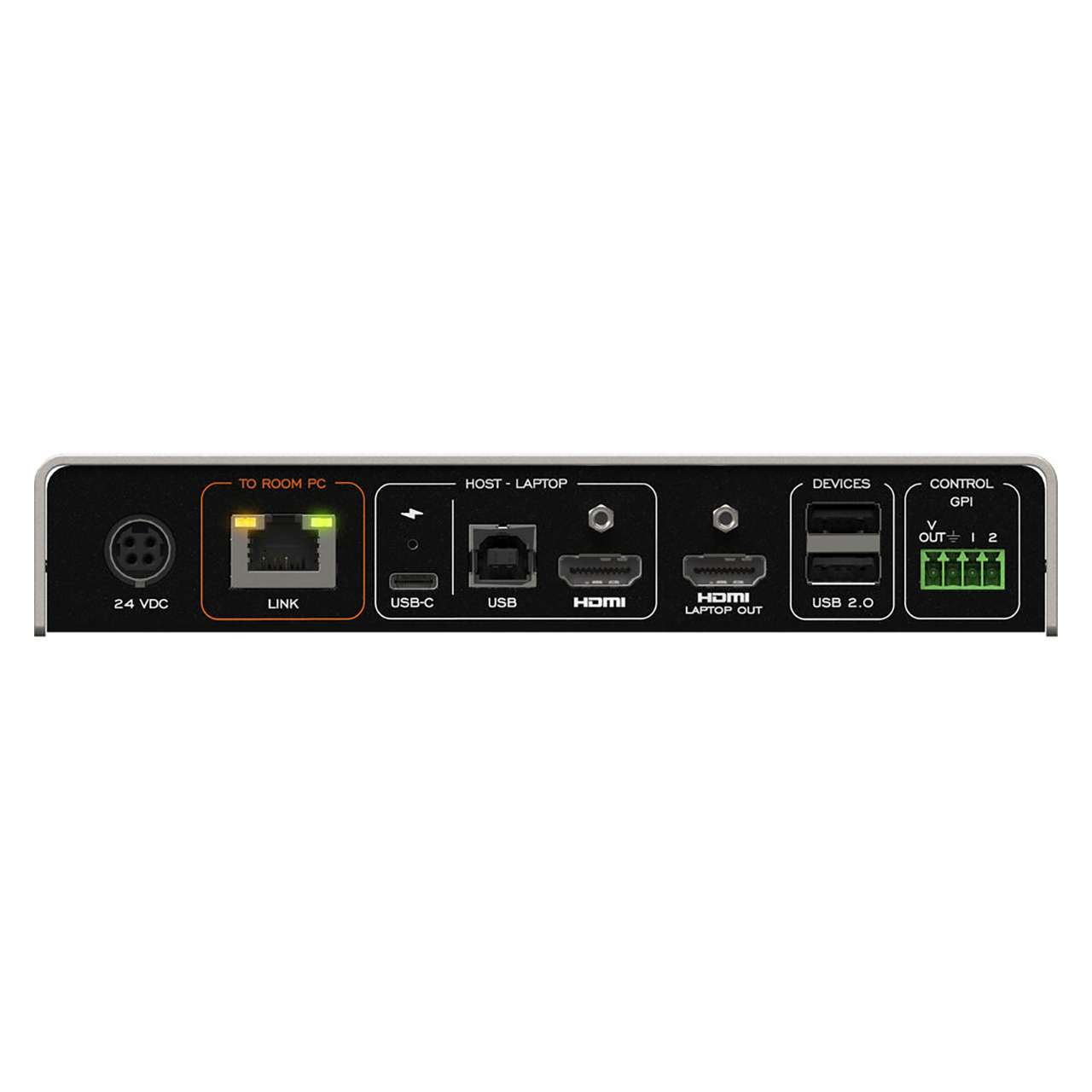

    Laptop Hub
  • USB-C connector (host #1):
    - Supports USB-C DisplayPort Alternate Mode
    - DisplayPort up to 3840x2160p60 / 4096x2160p60
    - USB 2.0 (480 Mbps)
    - Charges up to 100W
    - USB-C cable locking option
  • USB connector (host #2): USB 2.0 Type-B
  • HDMI input connector (host #2):
    - Up to 3840x2160p60 / 4096x2160p60
    - Cable Locking Option
  • HDMI Output Connector:
    - Up to 3840x2160p60 / 4096x2160p60
    - Cable Locking Option
  • USB Devices Connectors: USB 2.0 Type-A ports for peripherals
  • LINK connector: HDBaseT 3.0 interface
  • GPI:
    - 4-POS terminal block connector
    - 2x Contact-closure control
    - Controlled by open-drain IO (short to ground) or driven IO
    - Supported Voltage Range: 0 to 12V max
    - Voltage Threshold: 2.3V
    - VOUT: Able to power up the LED on the button of our INO-Button accessory
    - Logic-low level: 0 @ 0.5V
    - Logic-high level: 4.5 @ 5V
  • Power Connector: 24 VDC/160W

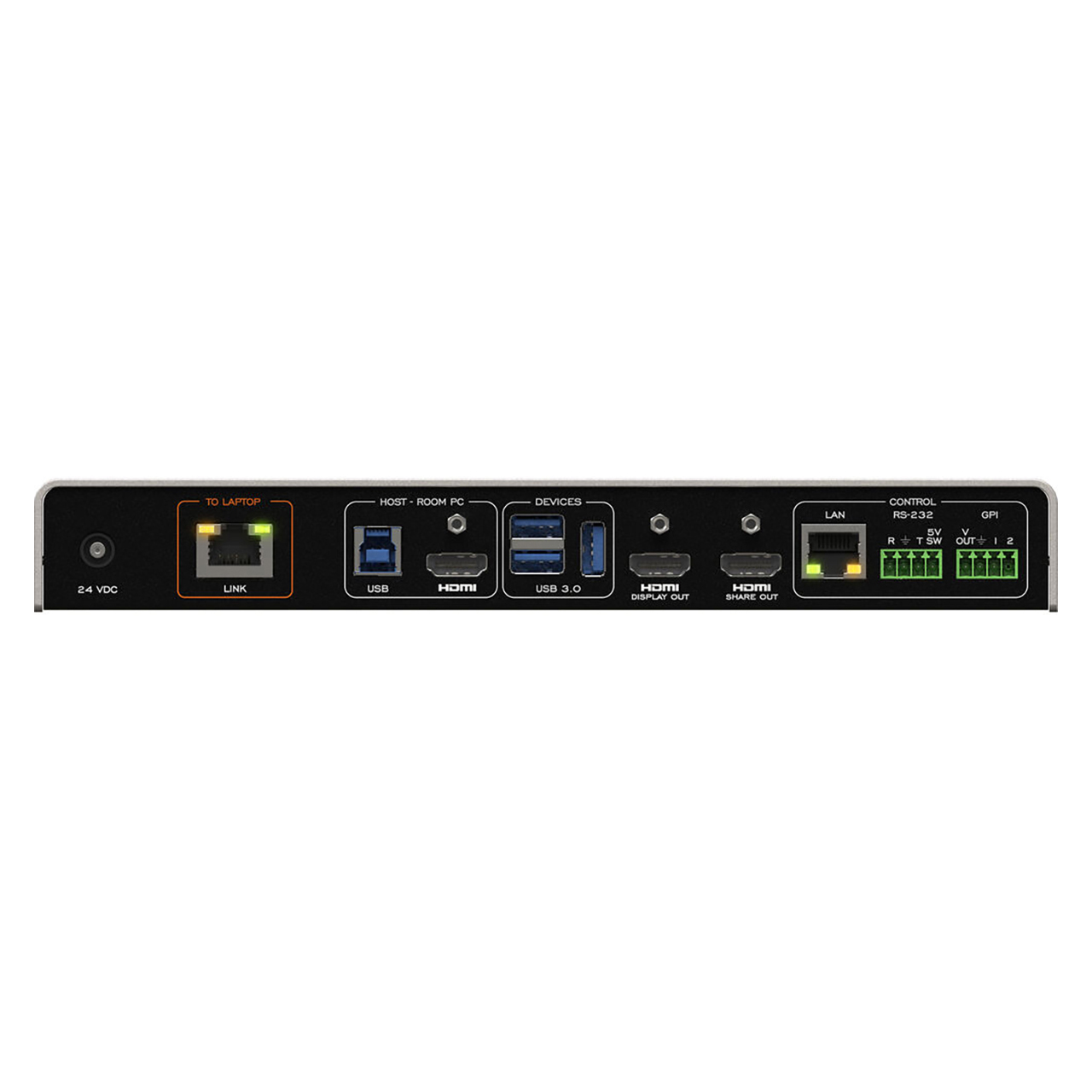

    ROOM PC HUB
  • LINK Connector: HDBaseT 3.0 Interface
  • USB connector (host #3): USB 3.0 Type-B/5 Gbps
  • HDMI input connector (host #3):
    - Up to 3840x2160p60 / 4096x2160p60
    - HDMI with Cable Locking Option
  • HDMI Display Output:
    - Up to 3840x2160p60 / 4096x2160p60
    - HDMI with cable locking option
  • USB Devices: 3x USB 3.0 Type-A ports 1.8A shared between downstream ports
  • GPI:
    - 4-POS terminal block connector
    - 2x Contact-closure control
    - Controlled by open-drain IO (short to ground) or driven IO
    - Supported voltage range: 0 to 12V max
    - Voltage threshold: 2.3V
    - VOUT: Able to power up the LED on the button of our INO-Button accessory
    - Logic-Low Level: 0 @ 0.5V
    - Logic-High Level: 4.5 @ 5V
  • IP interface:
    - 10/100Mbps
    - Supports DHCP or static addressing
    - IP control available through RESTAPI and Telnet connections
  • RS-232 interface:
    - 4-pos terminal block connector
    - Baud Rates: 9600 [default], 19200, 38400 and 115200
    - Data bits: 8
    - Stop bits: 1
    - Parity: None
    - Flow control: None
  • Power Connector: 24 VDC/36W

    Audio - HDMI
  • Audio: Audio passthrough from input to output
  • Formats: LPCM, Dolby Digital and DTS up to 192kHz

    Video - HDMI
  • HDCP Compliance: Compliant with HDCP2.3, HDCP2.2 and HDCP1.4
  • HDMI Compliance: Compliant with HDMI2.0b, HDMI1.4 and DVI1.0
  • Sampling frequency: 600 MHz
  • Video Scaling: Crosspoint switch supports video downscaling from 4K to 1080p
  • Chroma subsampling: YUV/RGB 4:4:4, 4:2:2
  • CEC: Ability to send CEC commands to connected HDMI display sink

    Compatibility
  • Operating System:
    - Windows 7 and above (32/64-bit)
    - macOS 10.10 and above
    - Linux (kernel v2.6.38 and above)
  • Consumed USB Tiers: 1 tier USB devices connected are reported to the same USB tier

    Certifications
  • Certifications Device: FCC, CE, UKCA, RoHS, IEC62368, SoV
  • Certifications power supply -100W: FCC, CE, UKCA, CB, CB IEC62368, UL, TUV, Test report
  • Certifications power supply -36W: FCC, CE, UKCA, CB, UL, TUV, EMC
  • TAA-Compliant: Yes

    Physical
  • Room PC hub - Dimensions (WxLxH): 9.88" x 4.56" x 1.28" (25.1cm x 11.57cm x 3.26cm)
  • Room PC hub - Power Supply: 36W (85-264VAC 50/60Hz to 24V/1.5A DC)
  • Room PC hub - Weight: 1.68 lb (760 g)
  • Laptop hub - Dimensions (WxLxH): 7.24" x 4.56" x 1.28" (18.4cm x 11.57cm x 3.26cm)
  • Laptop hub - Power supply: 160W (85-264VAC 50/60Hz to 24V/6.67A DC)
  • 160W (85-264VAC 50/60Hz to 24V/6.67A DC): 1.28 lbs (580g)
  • Operating Temperature: 32°F to 113°F (0°C to 45°C)
  • Storage Temperature: -40ÝF to 221ÝF (-40ÝC to 105ÝC)
  • Relative Humidity: 0% to 90% non-condensing
  • Mounting Options: Ability to mount under the table or on a wall


• Item Includes:

  • 1x TOGGLE ROOMS XT - ROOM PC device
  • 1x TOGGLE ROOMS XT - LAPTOP device
  • 1x USB-C to USB-C cable - 1.8 m/6 ft.
  • 1x USB 3.0 cable (USB-A to USB-B) - 1 m/3 ft.
  • 3x terminal block 4-pos
  • 1x power supply 85-264VAC 50/60Hz to 24V/6.67A DC for a LAPTOP hub
  • 1x power supply 85-264VAC 50/60Hz to 24V/1.5A DC for a ROOM PC hub
  • 2x International Adapters (USA/CA or EU/UK/AU/BIS)
  • 1x Set of Mounting Brackets


• Warranty:

  • 5 Year Limited Warranty
