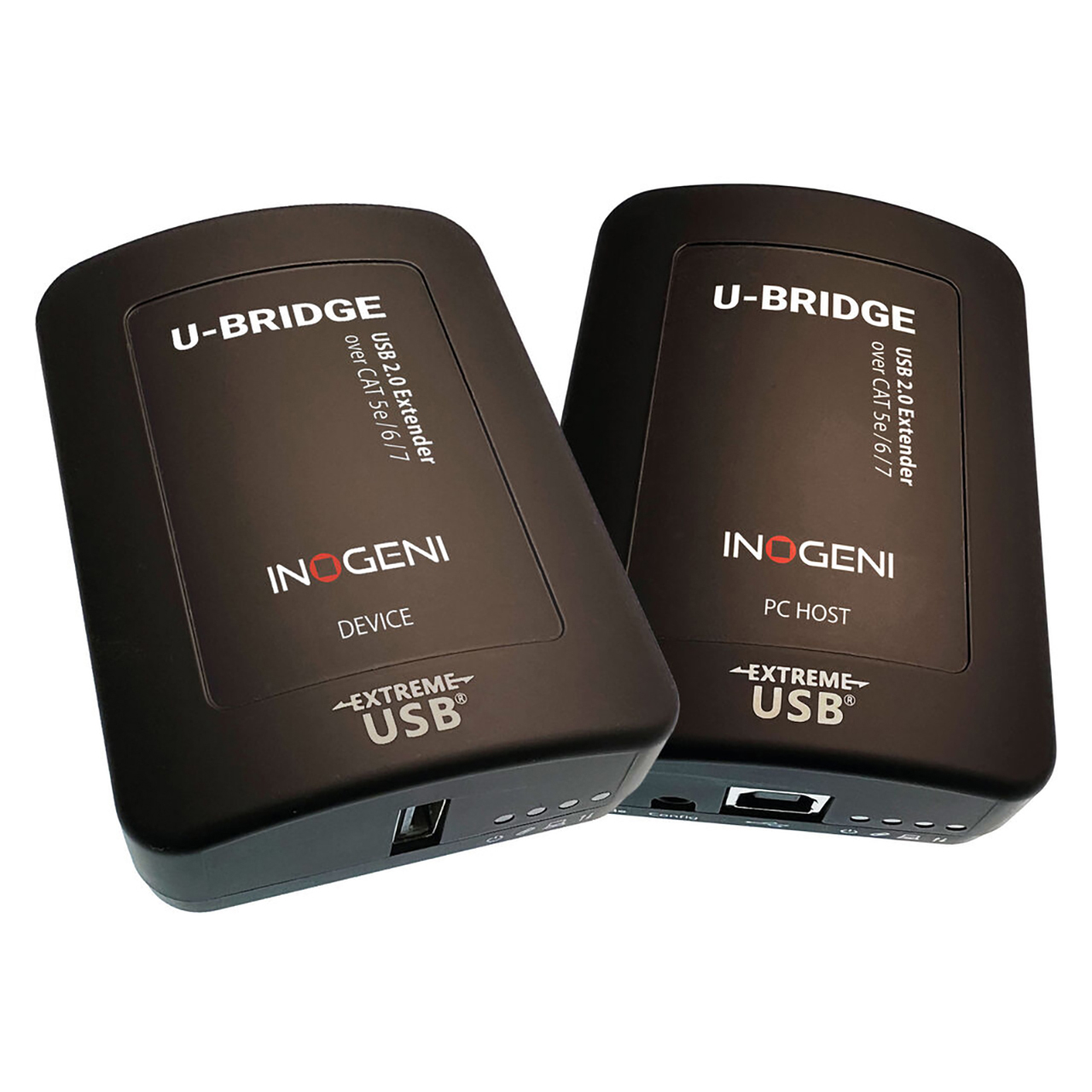

INOGENI U-BRIDGE USB 2.0 Camera and Device Extender - 328 Foot/100m - TAA-compliant

ITEM #: IN-U-BRIDGE MFG #: U-BRIDGE

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Inogeni
Free Shipping with $49 Minimum Order

Our Price:

$365.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

U-BRIDGE - Overview

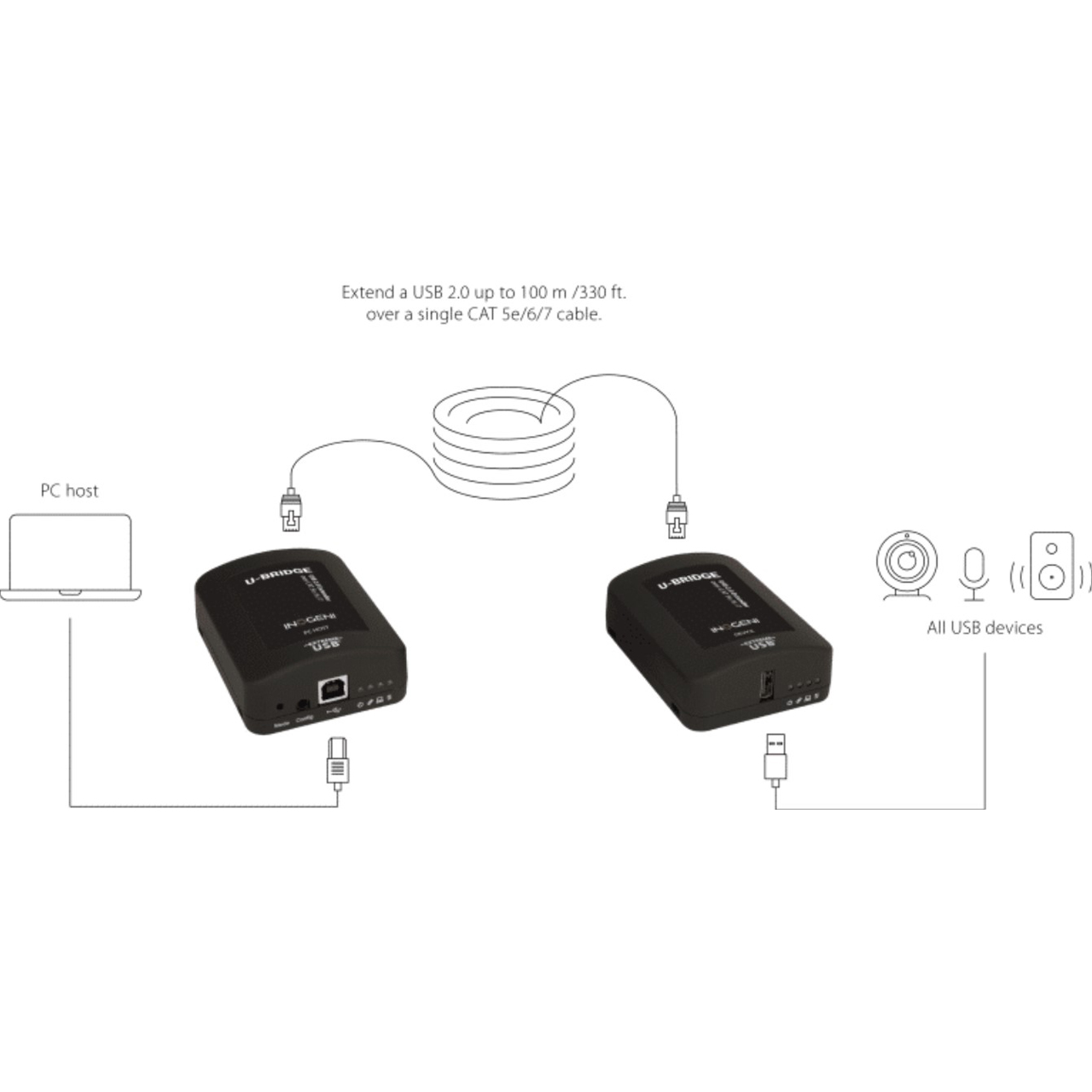

The INOGENI U-BRIDGE USB 2.0 video and audio extender enables high-speed USB 2.0 connections up to 330 ft (100 m) over a single CAT 5e/6/7 cable.

Extend your USB 2.0 camera to any INOGENI USB input, CODEC, or videoconferencing system. Use an INOGENI converter to extend your HDMI camera with the U-BRIDGE.

By connecting your HDMI camera to any INOGENI mixer or converter (HDMI to USB converter), you can effortlessly transmit high-quality video signals in MJPEG format, along with audio, to your computer or PC-based video-conferencing setup in any room and up to 100 m/330 ft. long.

Ideal for USB camera extension in videoconferencing rooms
The U-BRIDGE is fully compatible with all USB cameras, including professional-caliber equipment, such as Huddly, HuddleCamHD, AVer, Jabra, Logitech, Marshall cameras, and web cameras.

Versatile and proven Extreme USB technology
It supports all USB 2.0/1.1 devices and is designed for use with USB cameras, whiteboards, microphones, audio devices, and any other USB device (hard drives, flash drives or keyboards).

  • Features:

    • Flexible option to power either the PC HOST or DEVICE modules.
    • Provides plug-and-play convenience with no software drivers required
    • Works with all major operating systems, including Windows, macOS, and Linux
    • Enables access and control of USB devices
    • Supports all USB 2.0/1.1 devices of up to 480 Mbps
    • Connect the power adapter to either the PC Host or Device
    • Supplies up to 1 Amp to USB port
    • Mass storage acceleration for USB 2.0 device bulk transfers
    • Easy to install with two mounting slots on each side for use with a cable ties/zap straps


  • Specifications:

    • Range
    • Range: Direct connect up to 330 ft (100 m) over CAT 5e/6/7

      USB
    • Speeds:
      - USB 2.0: up to 480 Mbps
      - USB 1.1: up to 12 Mbps

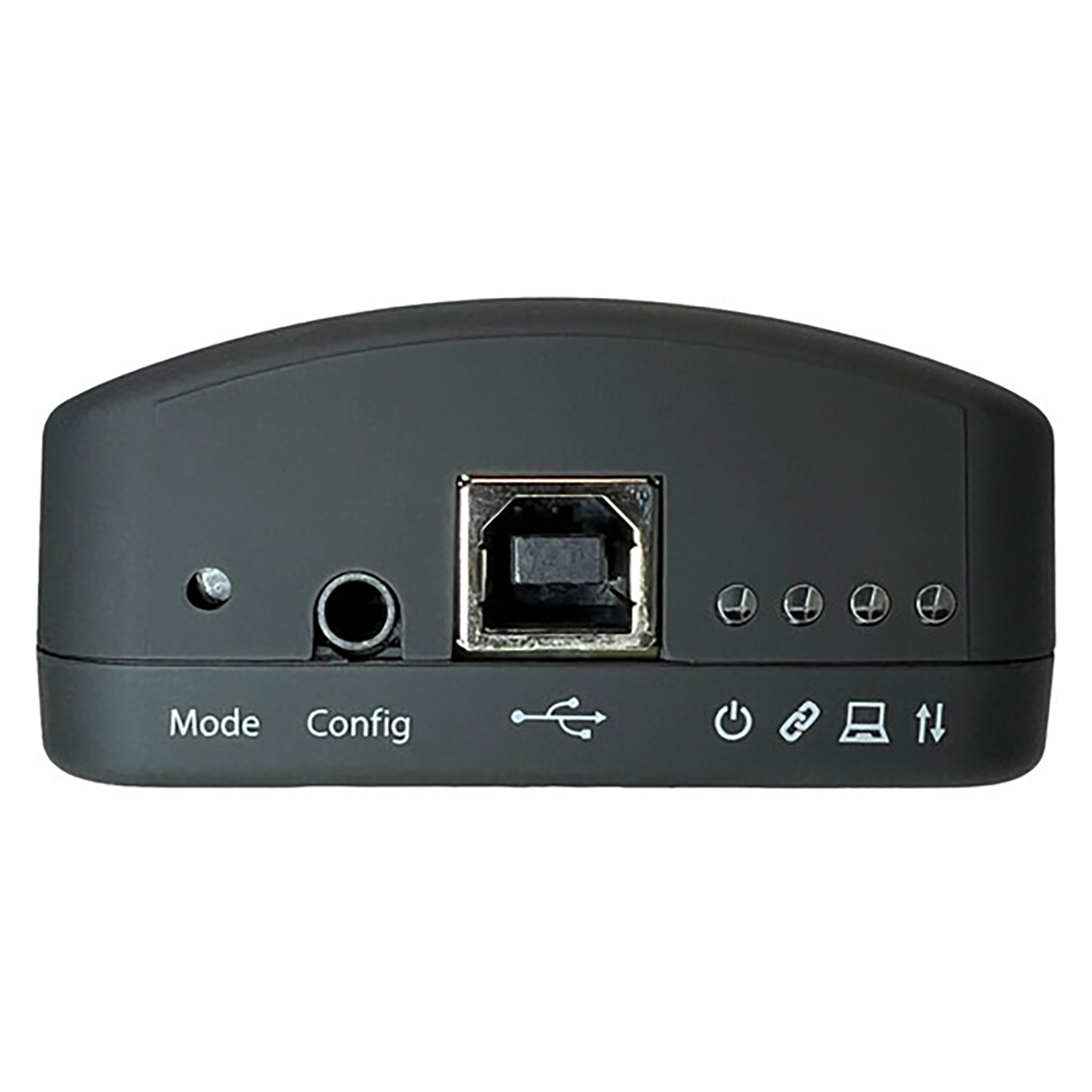

      PC Host Extender
    • USB Connector: 1x USB Type B receptacle
    • Link Connector: 1x RJ45
    • Dimensions (WxLxH): 2.6" x 3.4" x 1.2" (65.0mm x 87.5mm x 30.0mm)
    • Weight: 0.18lb (81g)
    • Mounting: Slots for cable ties
    • Enclosure Material: Black ABS with rubberized coating

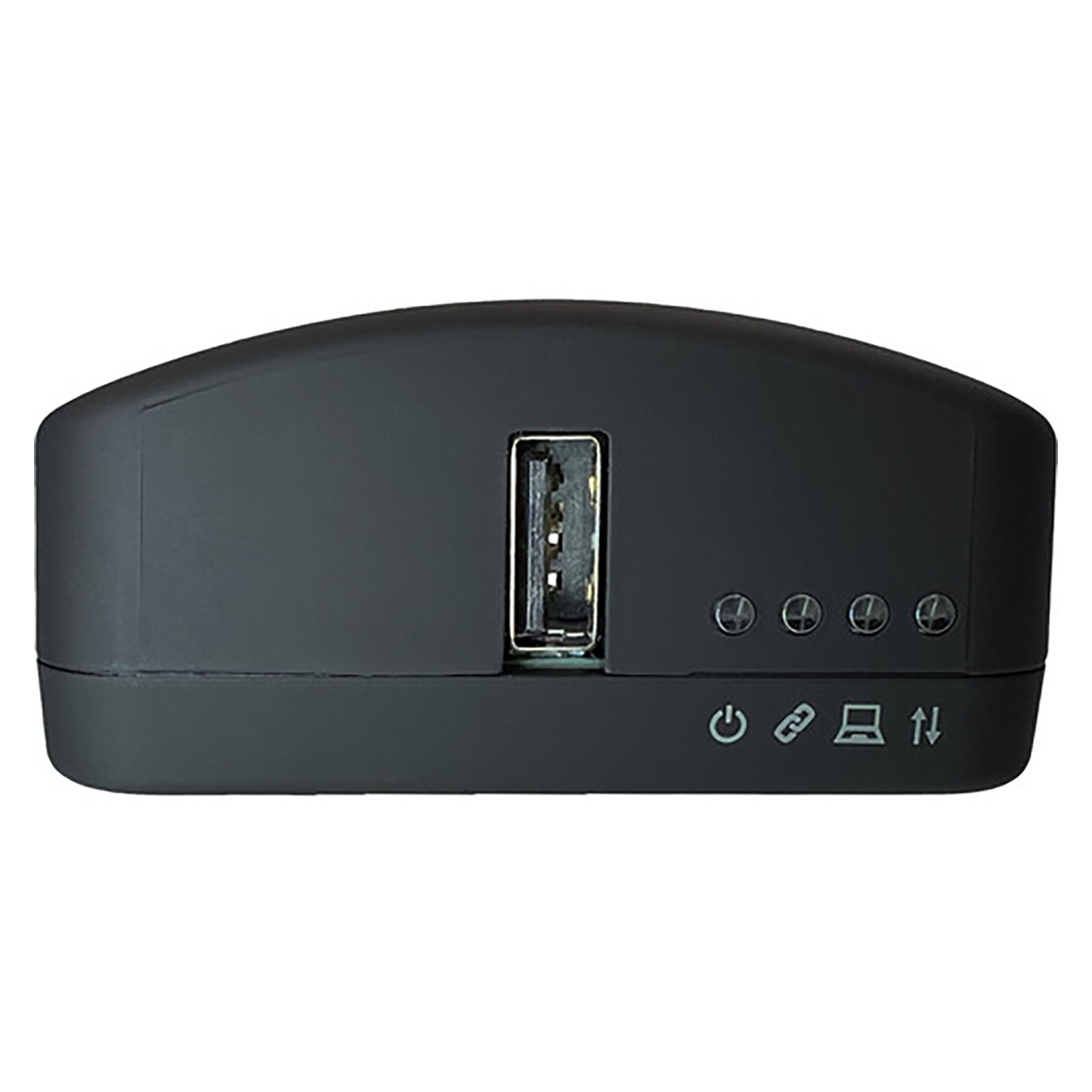

      Device Extender
    • USB Connector: 1x USB Type A receptacle
    • Link Connector: 1x RJ45
    • Available Current: Up to 1A to USB port
    • Dimensions (WxLxH): 2.6" x 3.4" x 1.2" (65.0mm x 87.5mm x 30.0mm)
    • Weight: 0.20 lbs (89g)
    • Mounting: Slots for cable ties
    • Enclosure Material: Black ABS with rubberized coating

      Physical Details

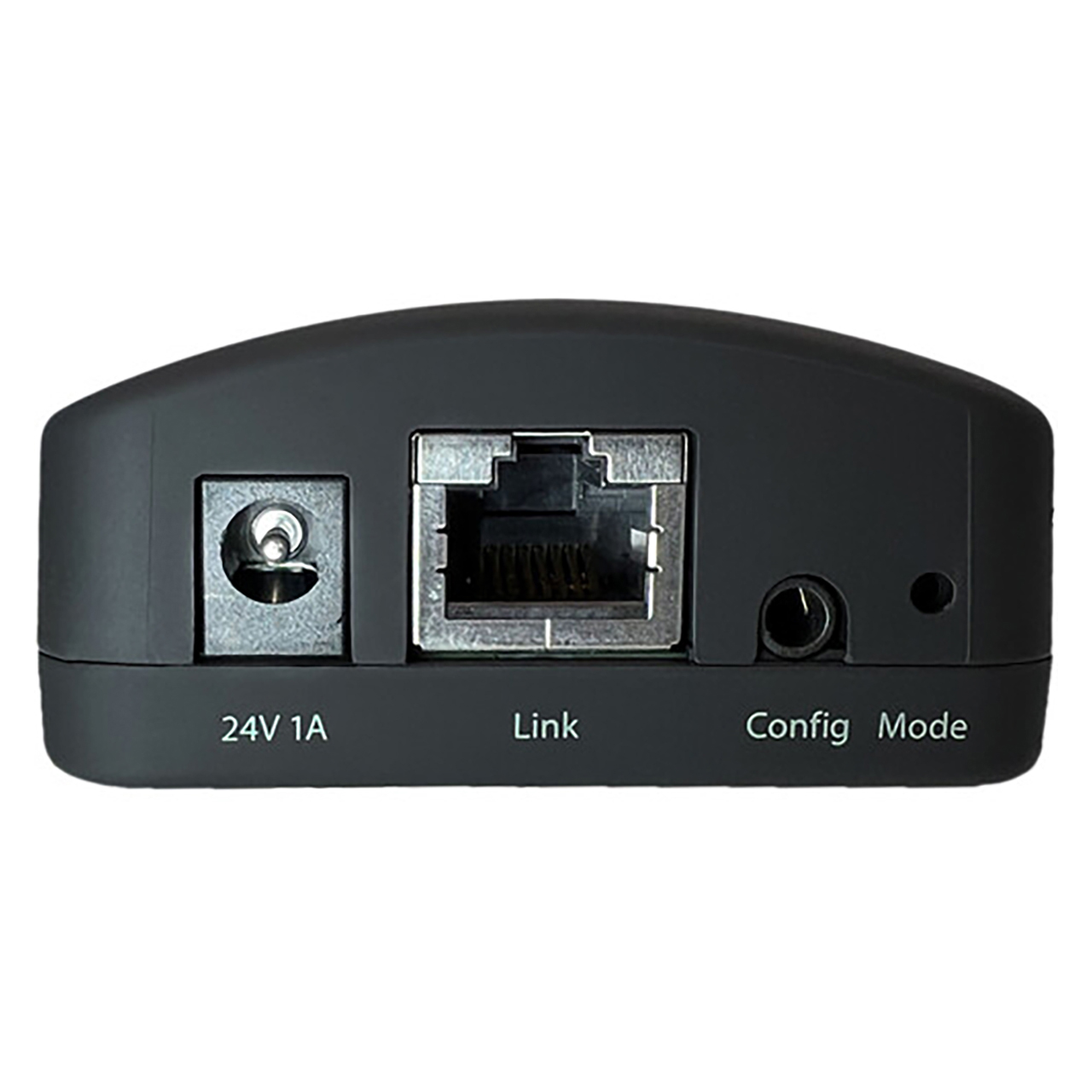

    • Power Supply: 100-240V AC input, 24V 1A DC output. Apply at either PC Host or Device modules
    • Operating Temperature: 32°F to 122°F (0°C to 50°C)
    • Storage Temperature: -4°F to 158°F (-20°C to 70°C)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing


  • Item Includes:

    • 1x INOGENI U-BRIDGE USB 2.0 Camera and Device Extender
    • 1x PC HOST extender module
    • 1x DEVICE extender module
    • 1x USB 2.0 cable
    • 1x Quick Start Guide
    • 1x Power Supply: 100-240V AC input, 24V 1A DC output
    • 1x International Adapters (North America, EU, UK, Australia/NZ, or Japan)


  • Warranty:

    • 5 Year Limited Warranty
