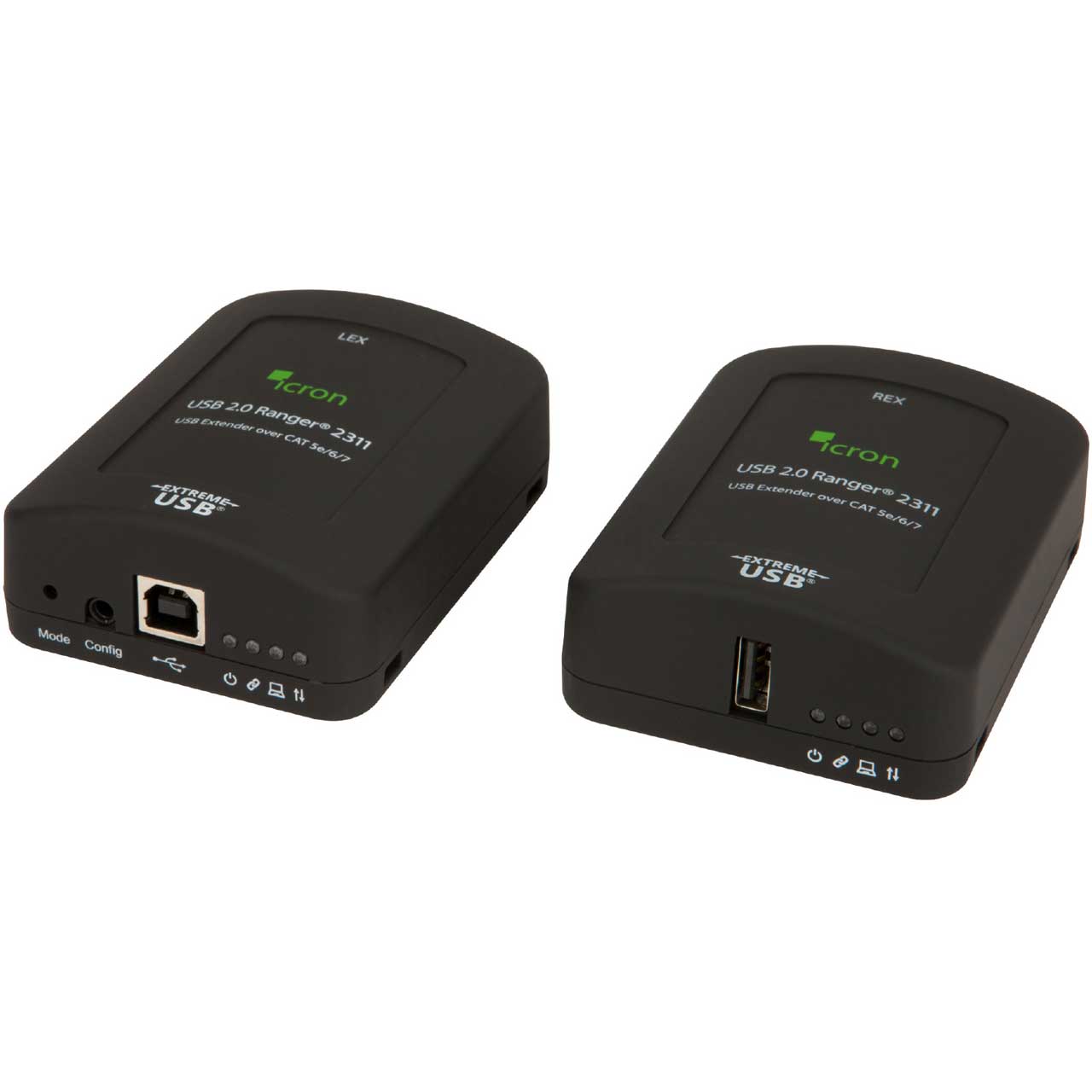

Icron 2311 USB 2.0 Ranger 2311 Single Port CAT 5e-6-7 100m Extender

ITEM #: ICR-2311 MFG #: 2311

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Icron
Free Shipping with $49 Minimum Order

List Price:

$365.00

Our Price:

$364.00

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

2311 - Overview

The Icron USB 2.0 Ranger® 2311 with flexible power extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 with the option to power either the LEX (Local Extender) or REX (Remote Extender). This USB 2.0 extender with flexible power is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.

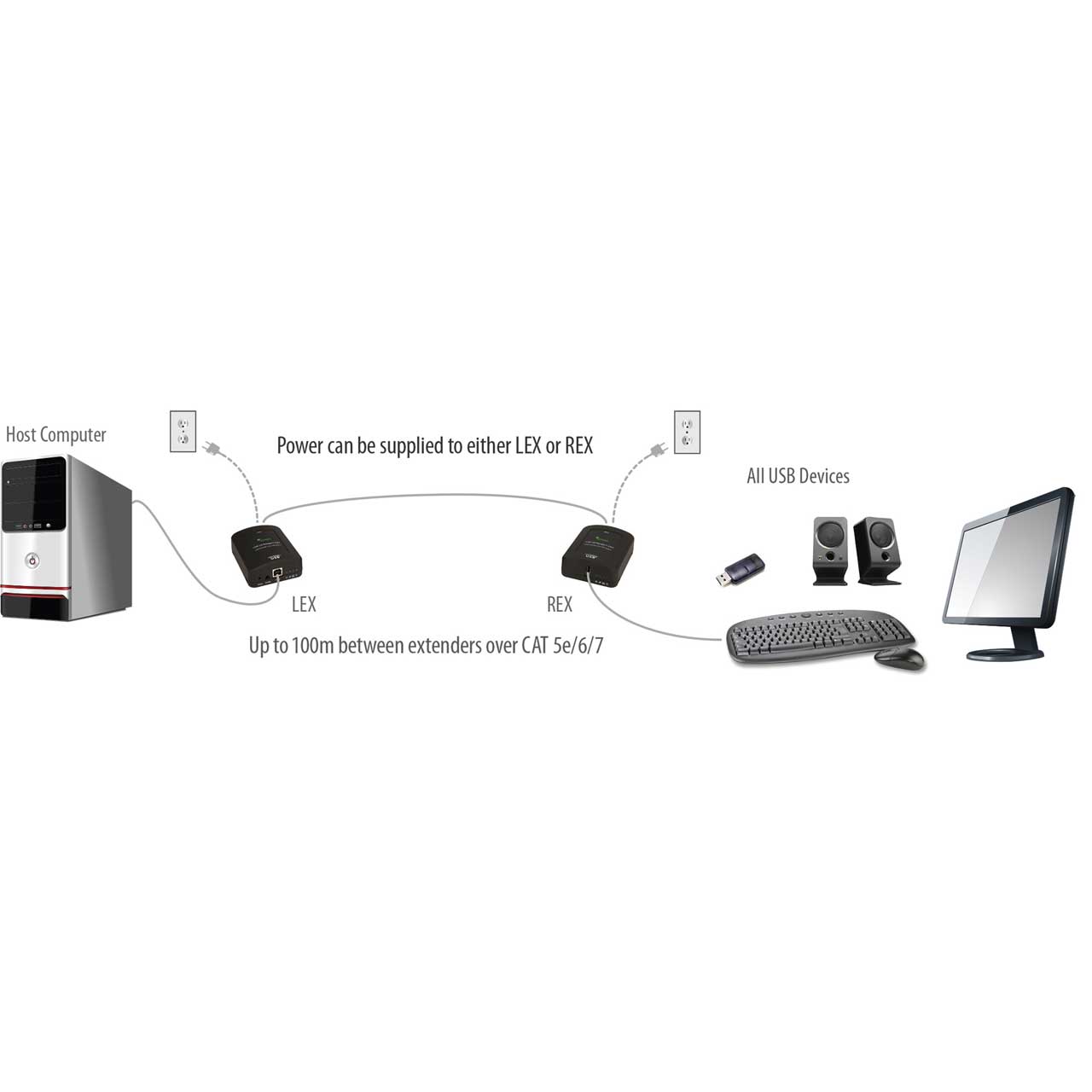

The USB 2.0 Ranger® 2311 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This USB 2.0 extender with flexible power provides installers the choice of applying power at either the LEX or REX, wherever most convenient. The Ranger 2311 is plug and play - no software drivers required - and works with all major operating systems: Windows®, macOSTM, and Linux®

Additionally, this ExtremeUSB® based extension system is ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Applications:
Interactive white board
Keyboard and mouse extension
Sensor/data acquisition
Industrial control

  • Features:

    • Flexible power - connect the power adapter to either the LEX or REX
    • Supplies up to 1 Amp to USB port
    • Mass Storage Acceleration for USB 2.0 device bulk transfers
    • Supports throughputs of up to 480Mbps
    • Includes the ExtremeUSB® suite of features:
      Transparent USB extension
      Plug and play; no software drivers required
      Works with all major operating systems: Windows®, macOS™, Linux® and Chrome OS™


  • Specifications:

    • Range
    • Direct Connect: Up to 100m (330 ft) over CAT 5e/6/7

      Speeds
    • USB 2.0: Up to 480Mbps
    • USB 1.1: Up to 12Mbps

      Power
    • Power Supply: 100-240V AC Input, 24V 1A DC Output

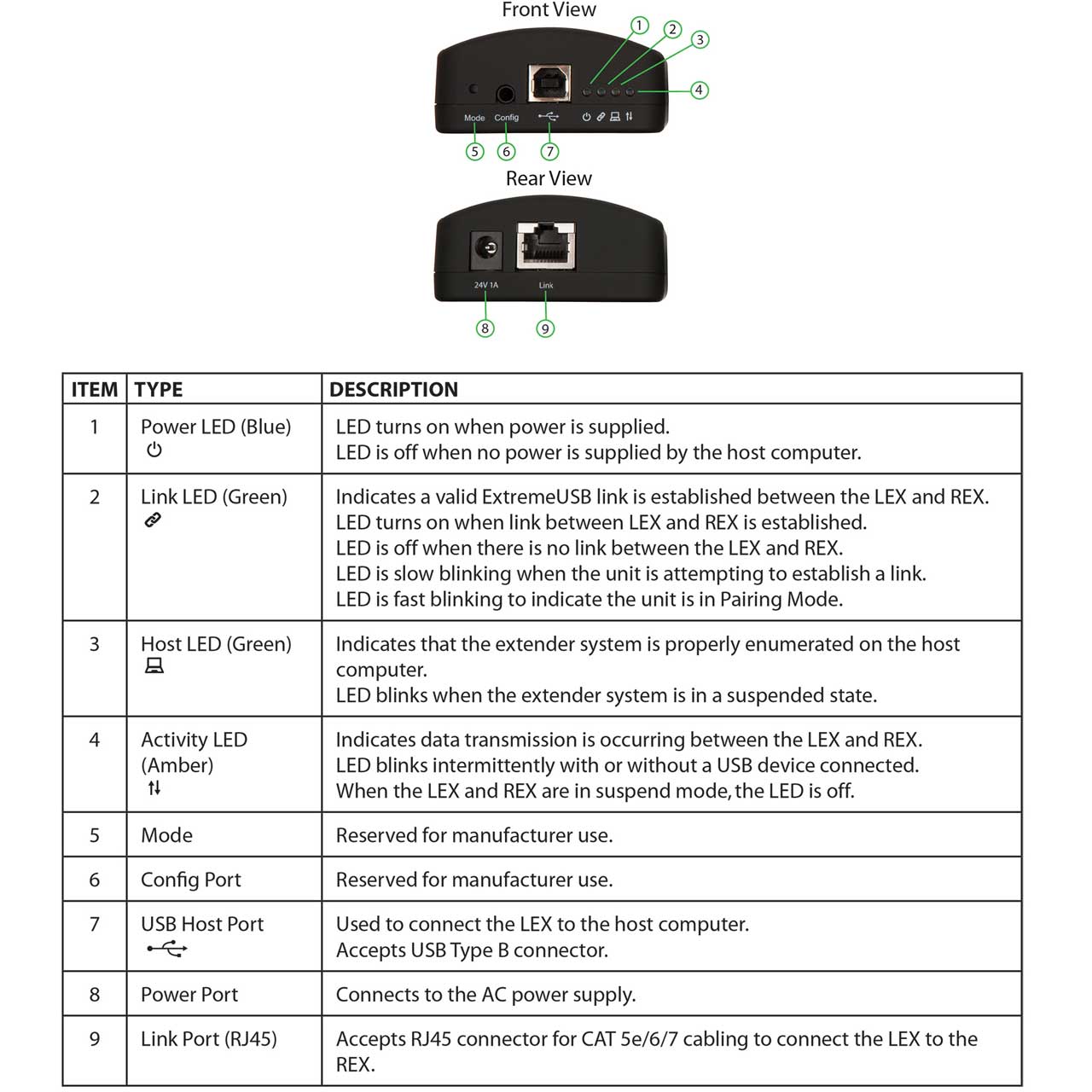

      LEX (Local Extender)
    • USB Connector: 1x USB Type B Receptacle
    • Link Connector: 1x RJ45
    • Dimensions: 65.0 x 87.5 x 30.0mm (2.6 x 3.4 x 1.2")
    • Mounting: Slots for Cable Ties
    • Enclosure Material: Black ABS with Rubberized Coating

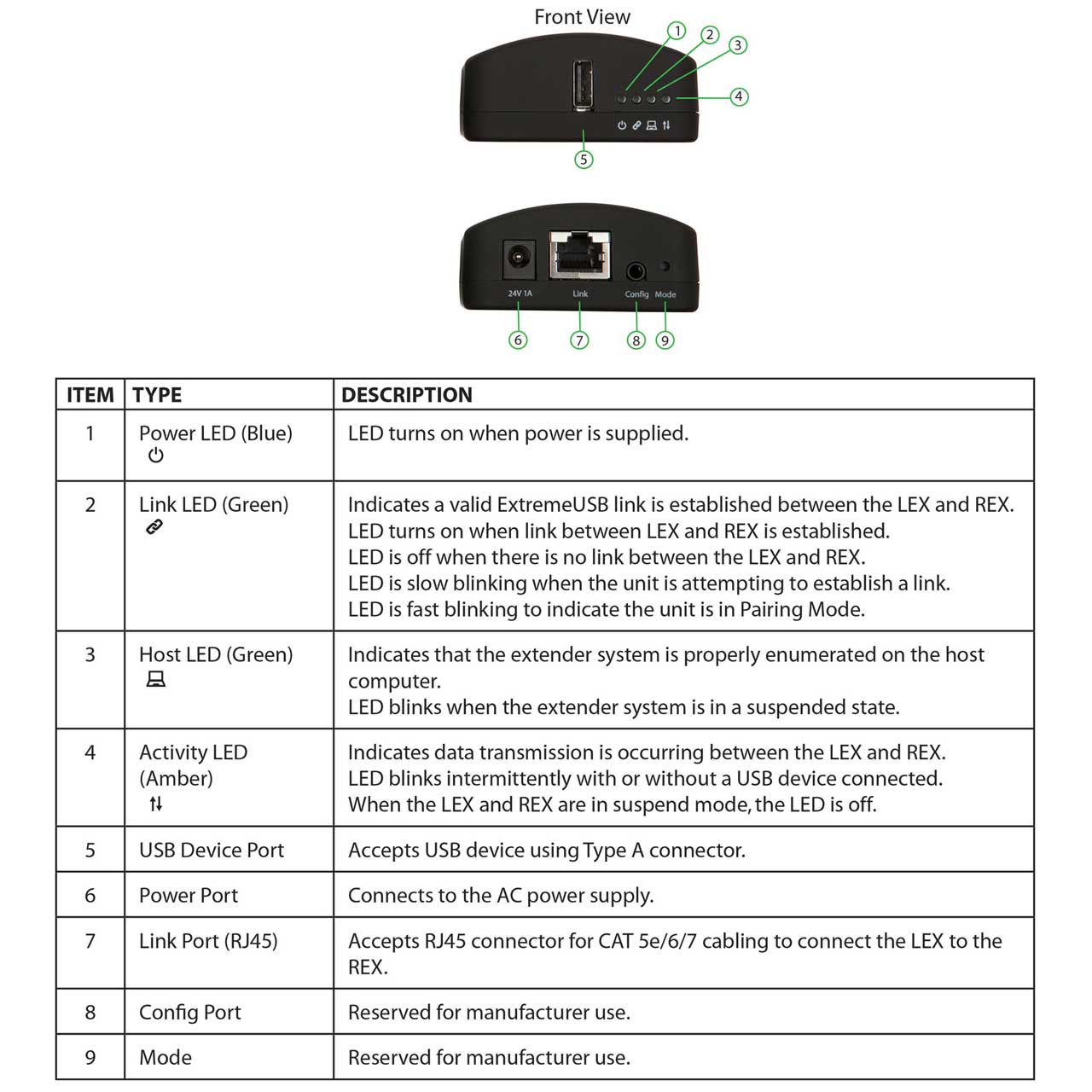

      REX (Remote Extender)
    • USB Connector: 1x USB Type A Receptacle
    • Link Connector: 1x RJ45
    • Available Current: Up to 1 Amp to USB port
    • Dimensions: 65.0 x 87.5 x 30.0mm (2.6 x 3.4 x 1.2")
    • Mounting: Slots for Cable Ties
    • Enclosure Material: Black ABS with Rubberized Coating

      Environmental
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Storage Temperature: -20°C to 70°C (-4°F to 158°F)
    • Operating Humidity: 20% to 80% relative humidity, non-condensing
    • Storage Humidity: 10% to 90% relative humidity, non-condensing

      Compliance
    • EMC: FCC (Class A), CE (Class A)
    • Environmental: RoHS2 (CE)
    • Safety: Flammability V-0


  • Item Includes:

    • Local Extender (LEX) module
    • Remote Extender (REX) module
    • USB Cable
    • Quick Start Guide
    • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)


  • Warranty:

    • 2 Year Warranty
