    HEX70HDUK-KIT - Overview

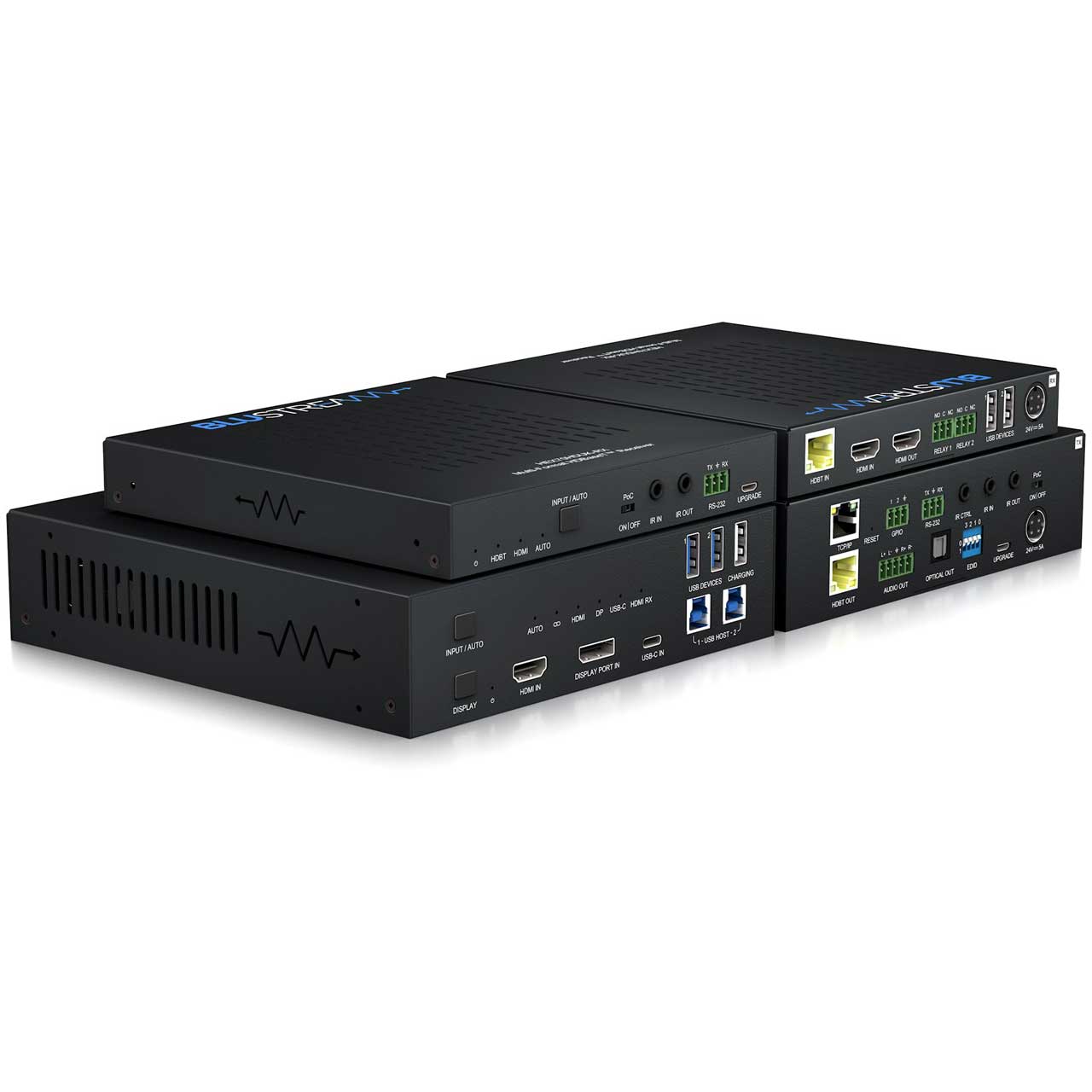

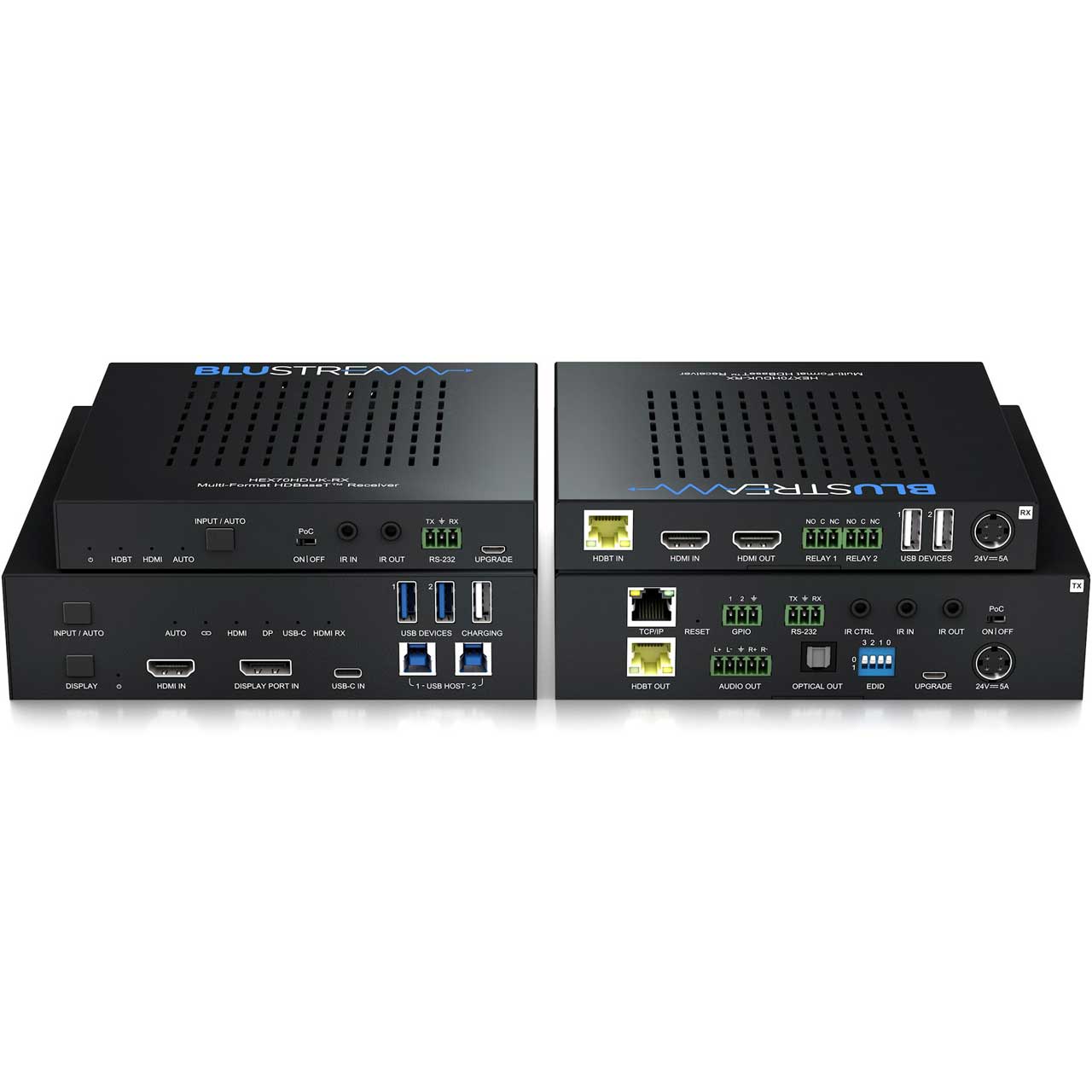

    The Blustream HEX70HDUK-KIT extender set is an industry leading HDMI2.0 4K 60Hz 4:4:4 (18Gbps) HDCP2.2 HDBaseTT multi-format solution utilizing CSC technology to deliver HDMI, USB-C and DisplayPortT up to lengths of 40m (70m at 1080p) over a single CAT cable. It provides enhanced features including USB 2.0 extension, local HDMI input on the HDBaseTT Receiver for additional source input, web-GUI for control and configuration, auto display control, audio breakout and bi-directional IR pass-through. he HEX70HDUK-KIT also features control via front panel, IR, RS-232 and TCP/IP, PoC (Power over Cable), and advanced EDID and HDCP management.

    • Specifications:

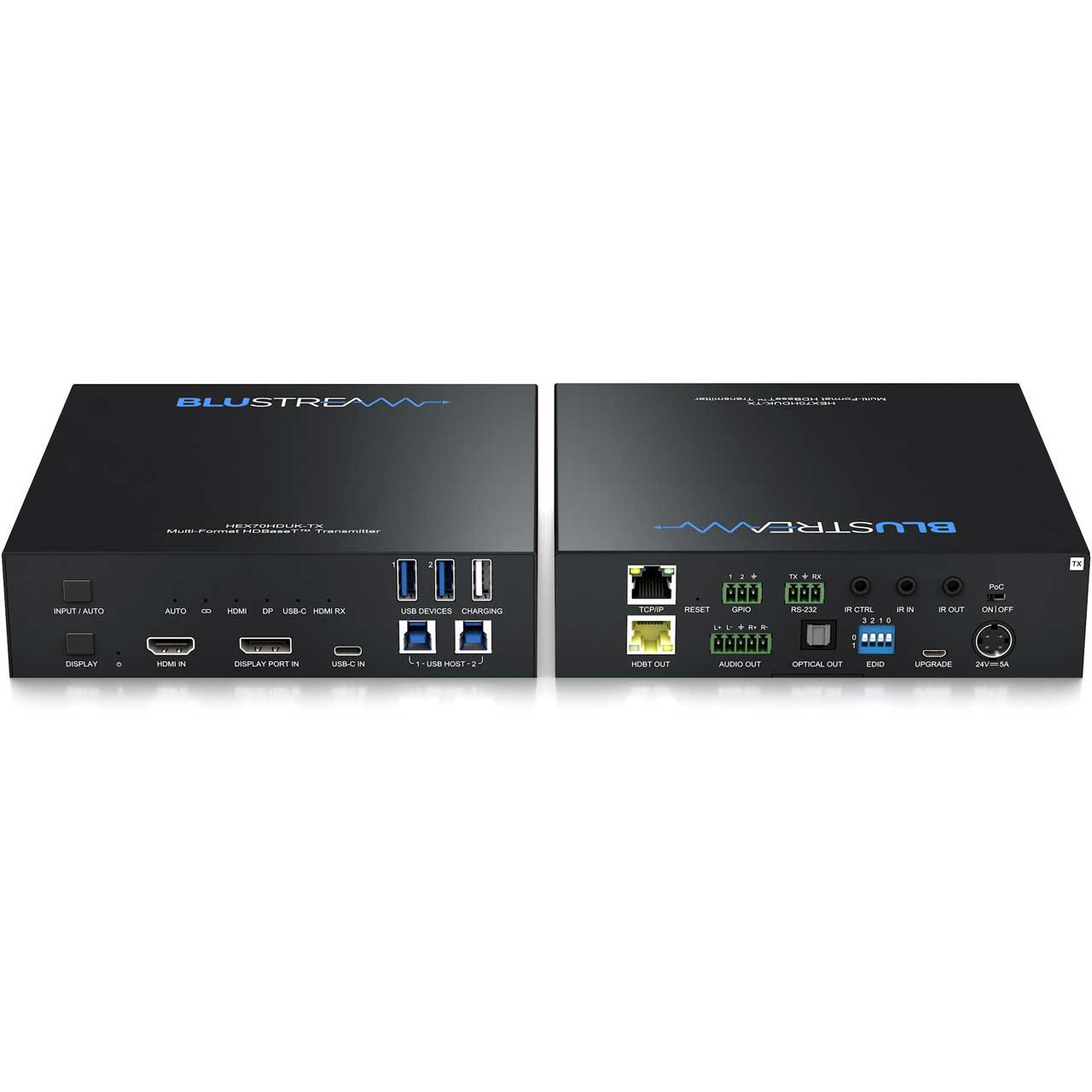

      • HEX70HDUK-TX:
      • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x USB-C Type C, 1 x DisplayPort.
      • Video Output Connectors: 1 x HDBaseTT RJ45 connector.
      • RS-232 Serial Port: 1 x 3-Pin Phoenix connector.
      • TCP/IP Control: 1 x RJ45, female.
      • IR Input Ports: 2 x 3.5mm stereo jack.
      • IR Output Ports: 1 x 3.5mm mono jack.
      • USB Ports: 3 x USB Type-A (1 x for charging only), 2 x USB Type-B.
      • EDID: 4-pin DIP switch.
      • Product Upgrade: 1 x Micro USB, female.
      • Local Power Input: 1 x 24V/5A 4-pin DIN connector.
      • Casing Dimensions (W x H x D): 183mm x 44mm x 173mm.

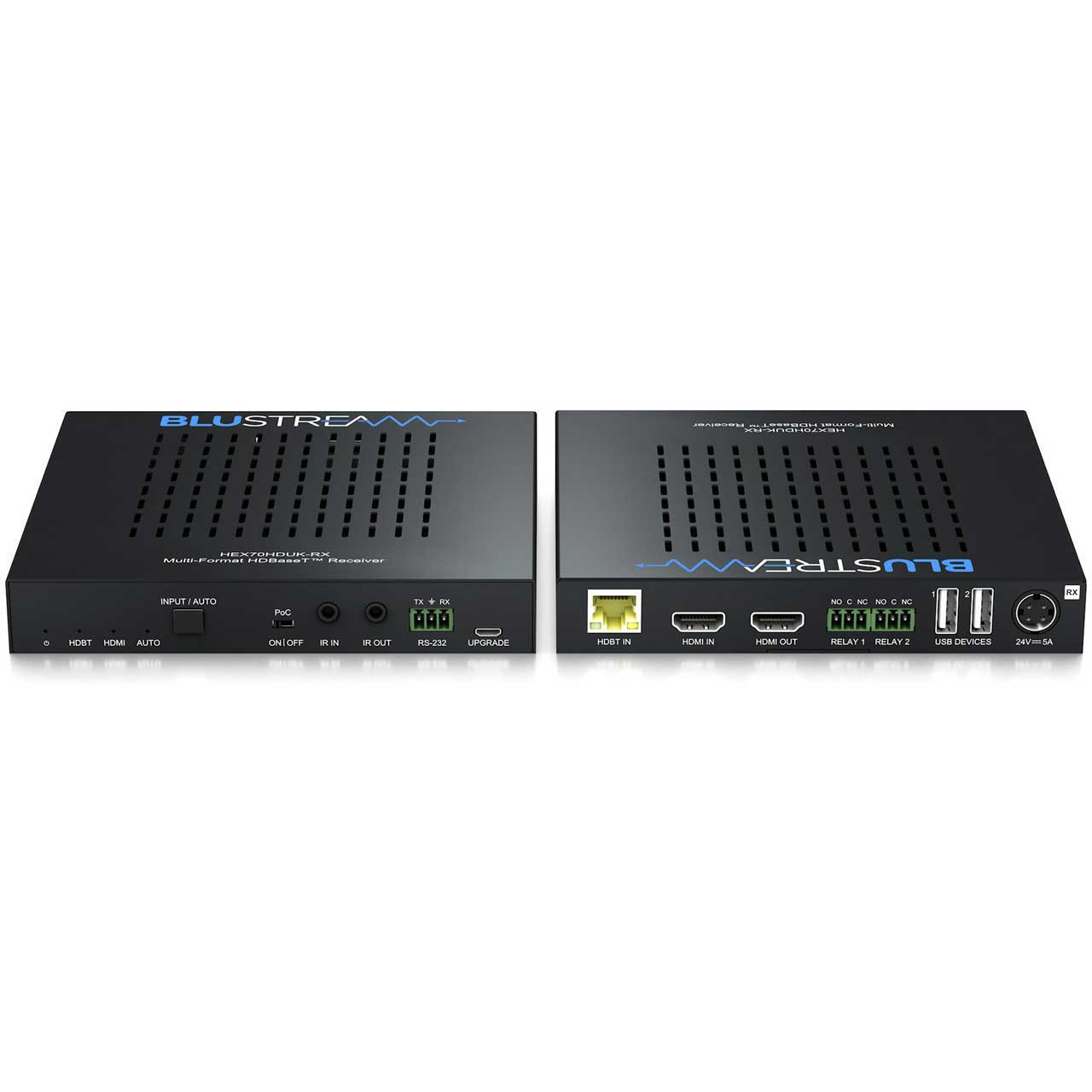

        HEX70HDUK-RX:
      • Video Input Connectors: 1 x HDMI Type A, 19-pin, female, 1 x HDBaseTT RJ45 connector .
      • Video Output Connectors: 1 x HDMI Type A, 19-pin, female.
      • RS-232 Serial Port: 1 x 3-pin Phoenix connector.
      • Relay Control: 2 x 3-pin Phoenix connector.
      • IR Input Ports: 1 x 3.5mm stereo jack.
      • IR Output Ports: 1 x 3.5mm mono jack.
      • USB Ports: 2 x USB Type-A.
      • EDID: 4-pin DIP switch.
      • Product Upgrade: 1 x Micro USB, female.
      • Local Power Input: 1 x 24V/5A 4-pin DIN connector.
      • Casing Dimensions (W x H x D): 155mm x 24mm x 155mm.
      • Power Supply: 24V/5A 4-pin DIN connector.
      • Operating Temperature: 32°F to 104°F
      • Storage Temperature: -4°F to 140°F


    • Item Includes:

      • 1 x HEX70HDUK-TX
      • 1 x HEX70HDUK-RX
      • 1 x 24V/5A DC power supply
      • 1 x USB-A to USB-B cable
      • 1 x IRE1 emitter
      • 1 x IRR receiver
      • 1 x RS-232 control cable
      • 2 x Mounting kit
      • 1 x Quick Reference Guide
