PureLink HCE II Tx/Rx HDMI over (CATx) HDBaseT

Name: PureLink HCE II Tx/Rx HDMI over (CATx) HDBaseT
Brand: PureLink
SKU: PLK-HCEII-TXRX
Price: 659.99 USD
Availability: InStock

ITEM #: PLK-HCEII-TXRX MFG #: HCE II TX/RX

PureLink

Our Price:

$659.99

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

HCE II TX/RX - Overview

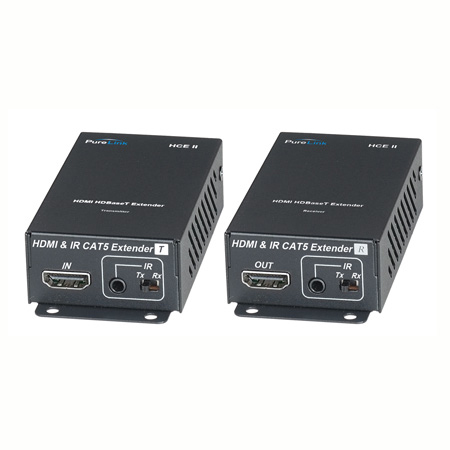

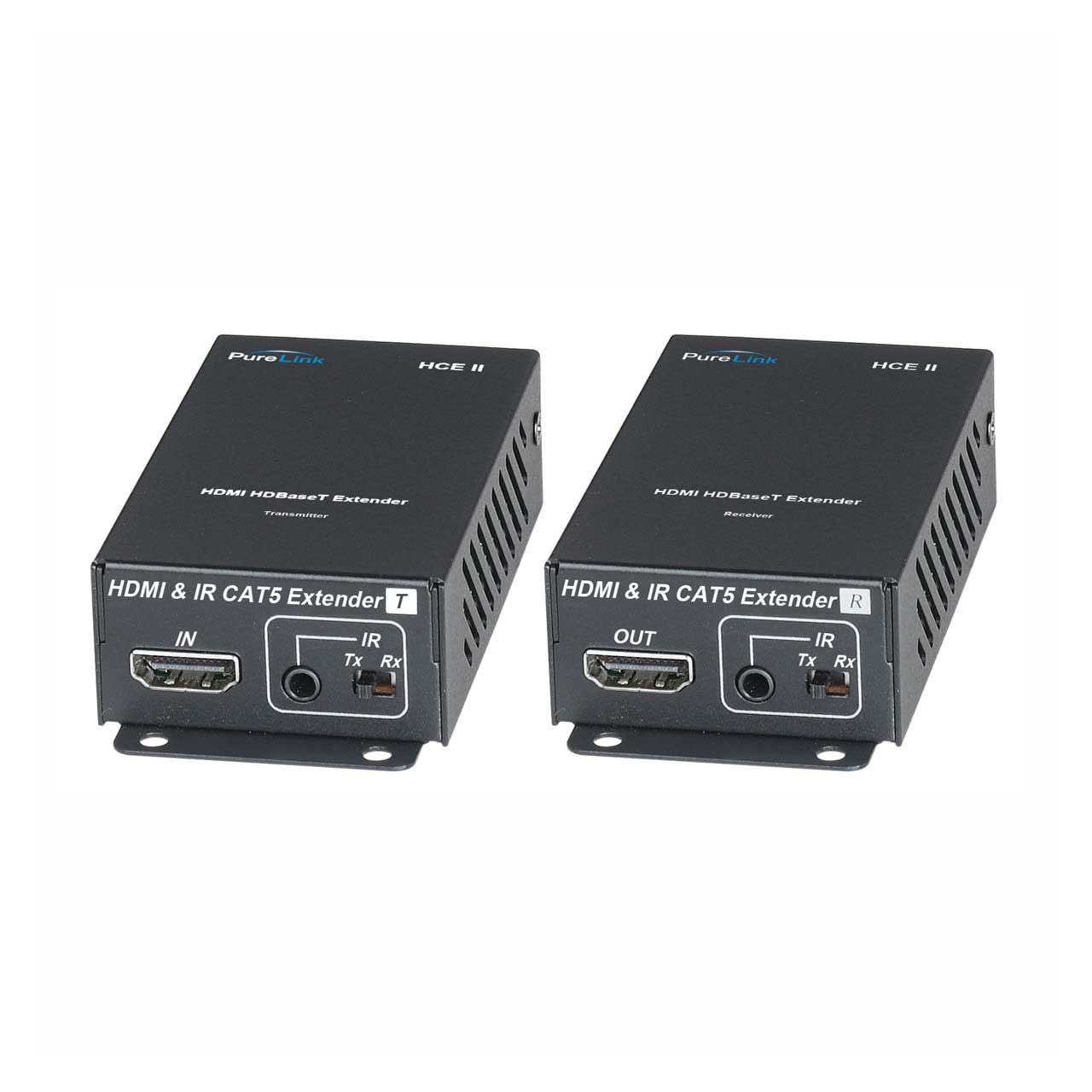

The PureLink HCE II is a transmitter and receiver set for long distance extension of HDMI video and embedded audio with bi-directional control signal (IR) over single CAT 5/6/7- type cable. It is designed on HDBaseT technology which allows full 3D support with up to 230ft (70m) at 1080P@60Hz, and 130ft (40m) at 4K2K (UHD) resolution. A compact and low profile enclosure makes the HCE II ideal for extending HDMI video, embedded multi-channel audio, and bidirectional control signal to limited space environment such as behind a flat-panel display.

Specifications:
- Input Signal HDMI
- Output Signal HDMI
- Supporting Display Resolutions VGA ~ WUXGA (up to 1920 x 1200 @ 60Hz), 480i ~ 1080p, Ultra HD (4K) @ 30Hz
- Max. Distance 1920x1200 @ 60Hz or 1080P@60Hz : 230ft (70m) 4K2K@30Hz : 130ft (40m)
- Power Connector Type DC Power Jack
- InputConnector Type HDMI Female connector
- Output Connector Type RJ45
- Conformations HDMI version 1.4 With HDCP
- Power Rating DC 5V , 2A
- Dimension 4.01 x 3.34 x 1.02 inches / 102.1 x 85.0 x 26.0 mm
- Weight 0.61lbs (0.28Kg) each
- * Please use CAT6a/CAT7 cable for maximum distance transmission.
- Operation and Reliability Specification
- 1. Operating Environment
- Temperature 32F ~ 131F (0°~ 55°)
- Humidity 10% ~ 80%
- Altitude 3,000m Max
- 2. Transit Environment
- Temperature -13F ~ 140F (-25?~ 60?)
- Humidity 5% ~ 95%
- Altitude 15,000m Max.
- 3. Storage Environment
- Temperature -4F ~ 185F (-20°~ 85°)
- Humidity 5% ~ 95%
- Altitude 3,000m Max.
- 4. Reliability
- MTBF 90% at over 50,000 hours aging test.
- In compliance with LCD Monitor reliability test standard.
