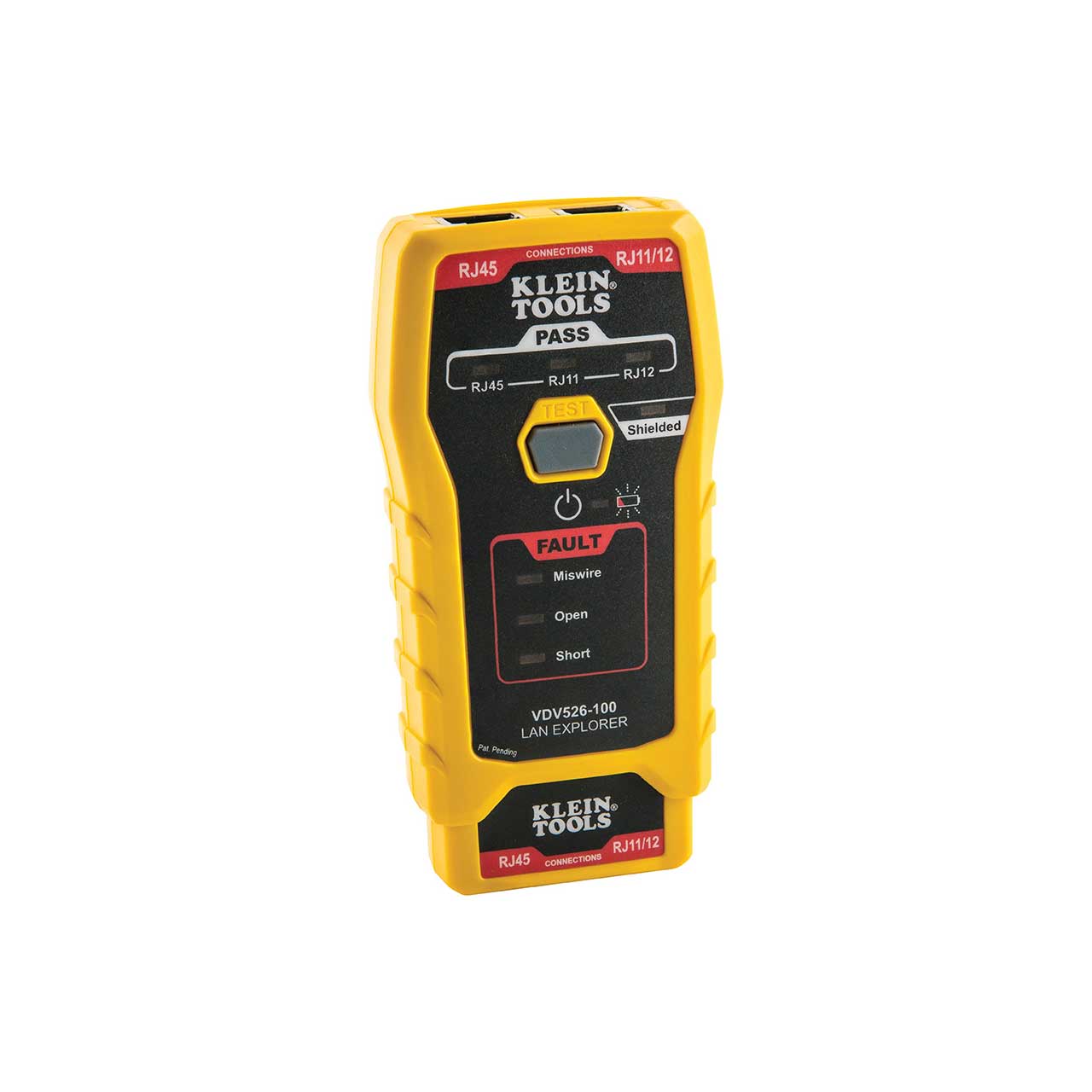

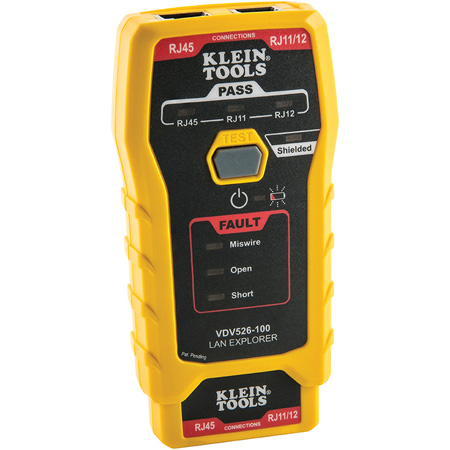

Klein Tools VDV526-100 LAN Explorer Data Cable Tester with Remote

VDV526100 - Overview

• Features:

  • Single button testing of RJ11, RJ12 and RJ45 terminated voice and data cables
  • Tests CAT3, CAT5e and CAT6/6A cables
  • Fast LED responses indicate cable status (Pass, Miswire, Open-Fault, Short-Fault, and Shield)

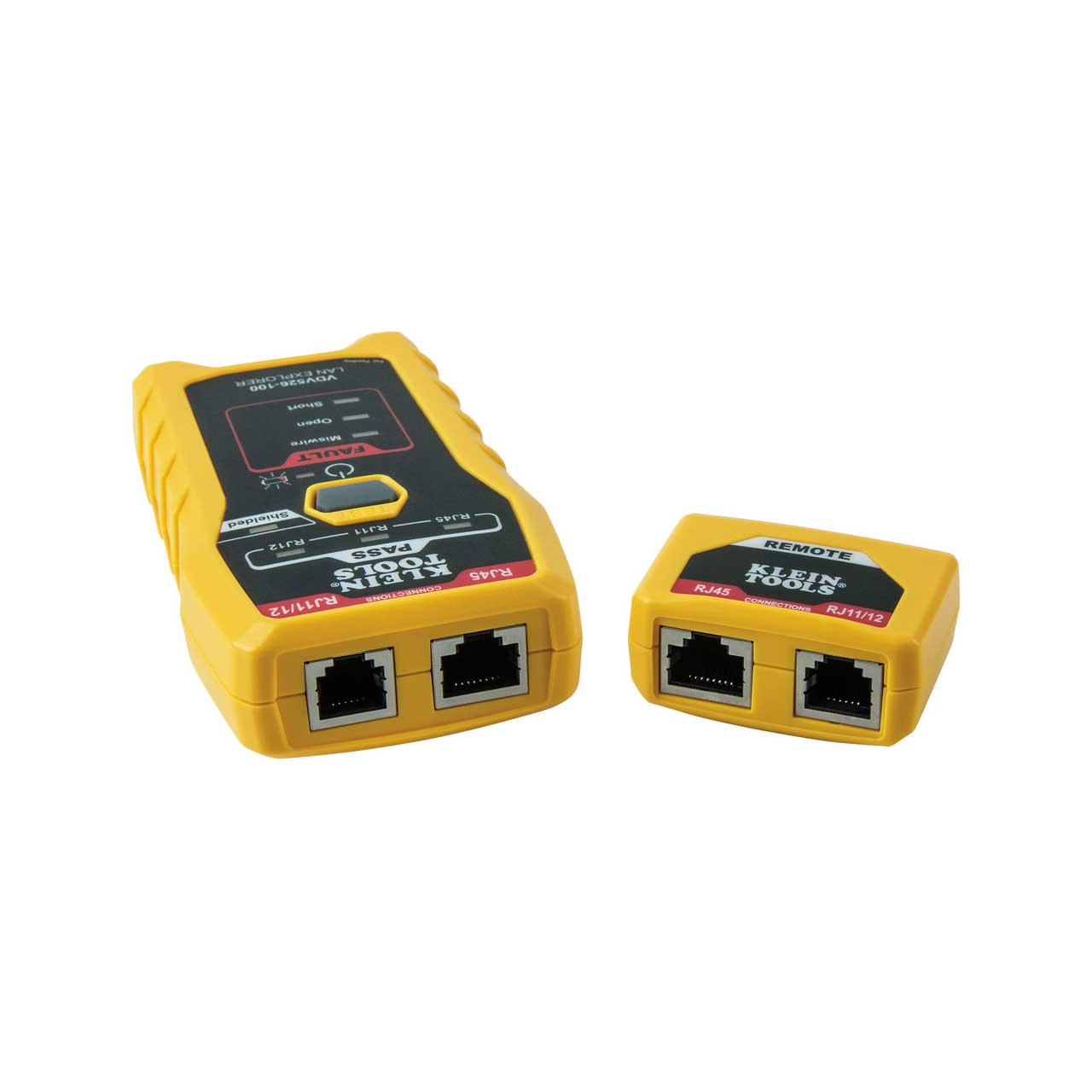

  • Test remote stores securely in tester body
  • Compact tester easily fits in your pocket
  • Auto Power-off feature to conserve battery life (9V included)
  • Low battery indicator
  • Replacement remote (VDV999-150) available (sold separately)


• Specifications:

  • Type: Twisted Pair, DATA, Voice, LAN
  • Application: Cable Testing
  • Special Features: LED response
  • Cable Type: CAT3, CAT5e, CAT6/6A
  • Overall Length: 5'' (127 mm)
  • Overall Height: 1.25'' (32 mm)
  • Overall Width: 2.5'' (63.5 mm)
  • Material: Plastic and Stamped Metal
  • Test-n-Map ID Remotes: 1
  • Batteries: 1 x 9V
  • Battery Life: Active: 80 Hours, Standby: 3.5 years
  • Drop Protection: 2' (0.6 m)
  • Supported Remotes: VDV999150
  • Connection & Adapter Types: RJ11, RJ12, and RJ45
  • Display: LED
  • Multiple Style Tone Generator: No
  • Faults Detected: Pass, Miswire, Open-Fault, Short-Fault, and Shield
  • Test & Measure Types: Voice, Data, RJ45, RJ11
  • Weight: 4.0 oz. (116 g)


• Item Includes:

  • Tester
  • Remote
  • 9V Battery


• Warnings:

  • Always wear approved eye protection.
  • Read all safety Information before using the product.
  • Carefully read all instructions.
  • Designed for use on unpowered/dark cable systems.
  • Do NOT connect to live AC power.
  • For indoor use only.


• GTIN:

  0092644692246
