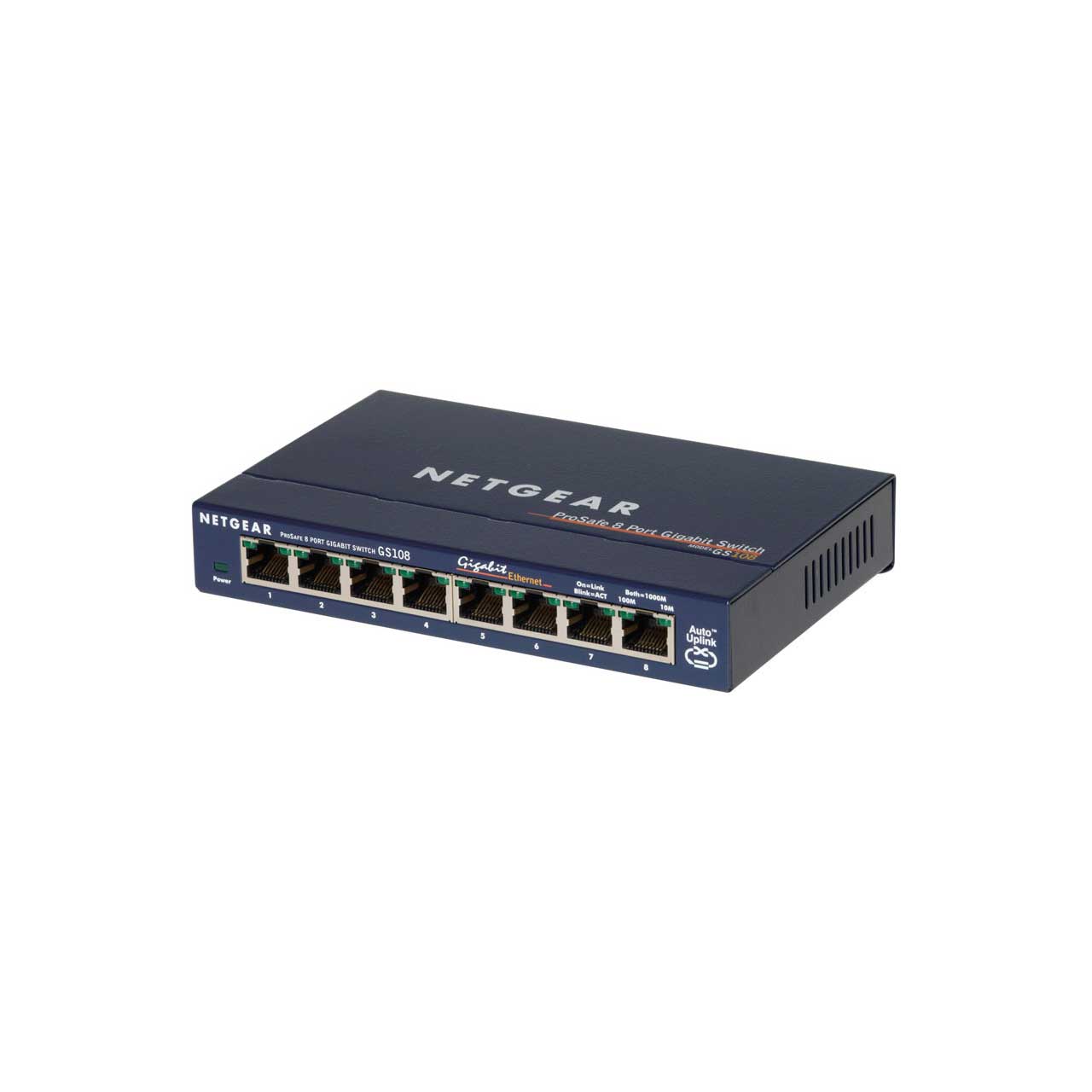

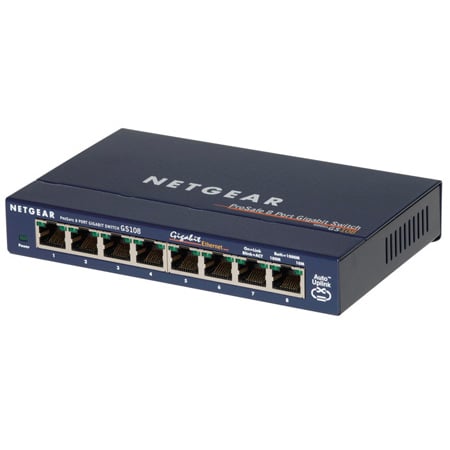

Netgear GS108 8-port Gigabit Ethernet Switch (10/100/1000 Mbps)

GS108 - Overview

• Features:

  • Plug and Play
  • The standards-based Gigabit switches sense and adjust for network speed and cabling type automatically. Easily integrate into your existing Ethernet network - no matter if it is running at 10/100Mbps or Gigabit speed.
  • Simple set up with no software or configuration needed
  • Front panel LEDs keep you informed of power status, link speed and link activities.

    Traffic Prioritization
  • Prioritize mission-critical applications such as voice and video Support IEEE 802.1 p and DSCP-based QoS for delivering data based on priority and type.

    High Quality and Reliable Performance
  • Superior network performance at non-blocking rate delivers true Gigabit speed with no compromise
  • Durable metal case and long product life (shown by MTBF numbers).

    Energy Efficient
  • GS108 supports the latest Energy Efficient Ethernet (IEEE 802.3az) standards, which reduces energy consumption when there is light traffic on an active port or when there is no link or no activity detected. It can further save energy when a short cable (<100m) is used. Energy savings lead directly to cost savings in operation.


• Specifications:

  • Product Specifications
  • Gibabit ports: 8
  • Max MAC entries: 4K
  • Buffer size: 192KB
  • Energy Efficient Enthernet (IEEE 802.3az complaint): Yes

    Performance Specification
  • Forwarding modes: Store-and-forward
  • Bandwith: 16 Gbps
  • Jumbo frame support: Up to 9K packet size
  • Acoustic noise (ANSI-S10.12): 0
  • Mean Time Between Failures (MTBF): 9,727,733

    Quality of Service (QOS)
  • DSCP: Yes
  • IEEE 802.1p COS: Yes
  • Queue WRR Ratio: 1:2:4:8

    IEEE Network Protocols
  • IEEE 802.3 Ethernet: IEEE 802.1p Class of Service
  • IEEE 802.3ab 1000BASE-T: IEEE 802.3x full-duplex flow control

    Miscellaneous Features
  • IEEE 802.3AZ (Energy Efficient Ethernet): Yes

    LEDs
  • Per port: Speed, Link, Activity
  • Per device: Power Status

    Physical Specifications
  • Dimensions: 6.2" x 4.0" x 1.1"
  • Weight: 1.04 lb
  • Power Consumption (all ports used): 4.92w

    Environmental Specifications
  • Operating Temp: 32°F - 104°F
  • Storage Temp: -4°F - 158°F
  • Humidity: 90% (operating), 95% (storage) max realtive humidity, non-condensing
  • Altitude: 10,000ft max


• Item Includes:

  • Gigabit Ethernet Switch
  • Power adapter
  • Wall-mount kit and rubber feet
  • Quick Install Guide


• Warranty:

  • Lifetime on switch and 2-year on power adapter


• GTIN:

  0606449070156
