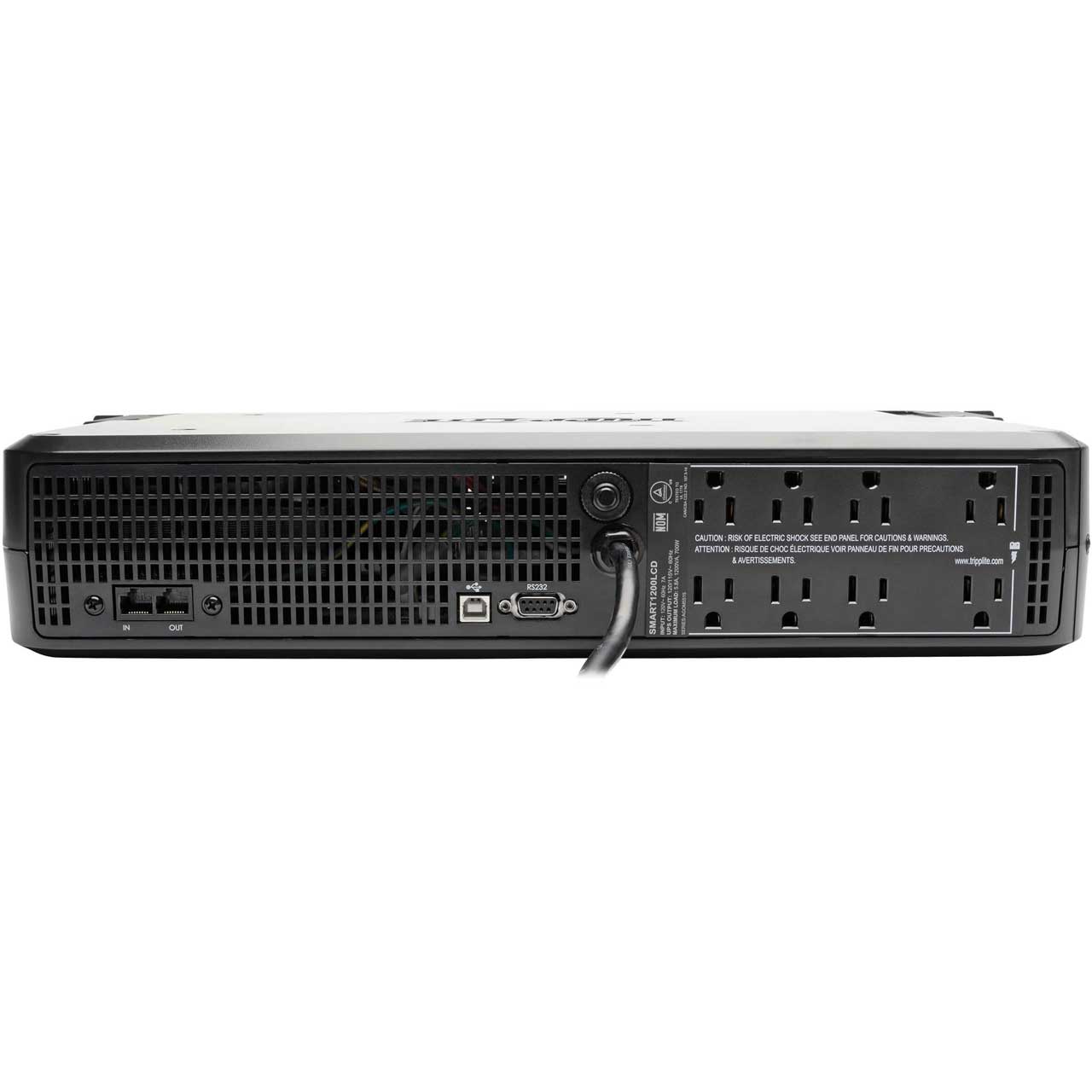

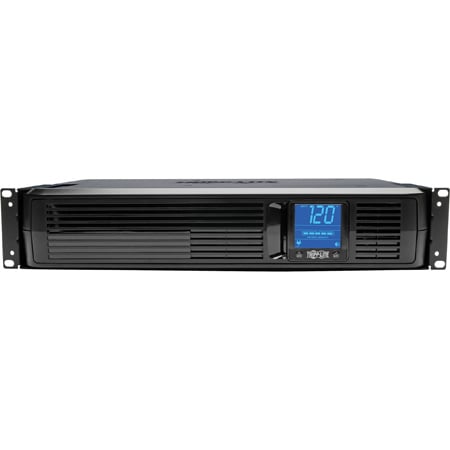

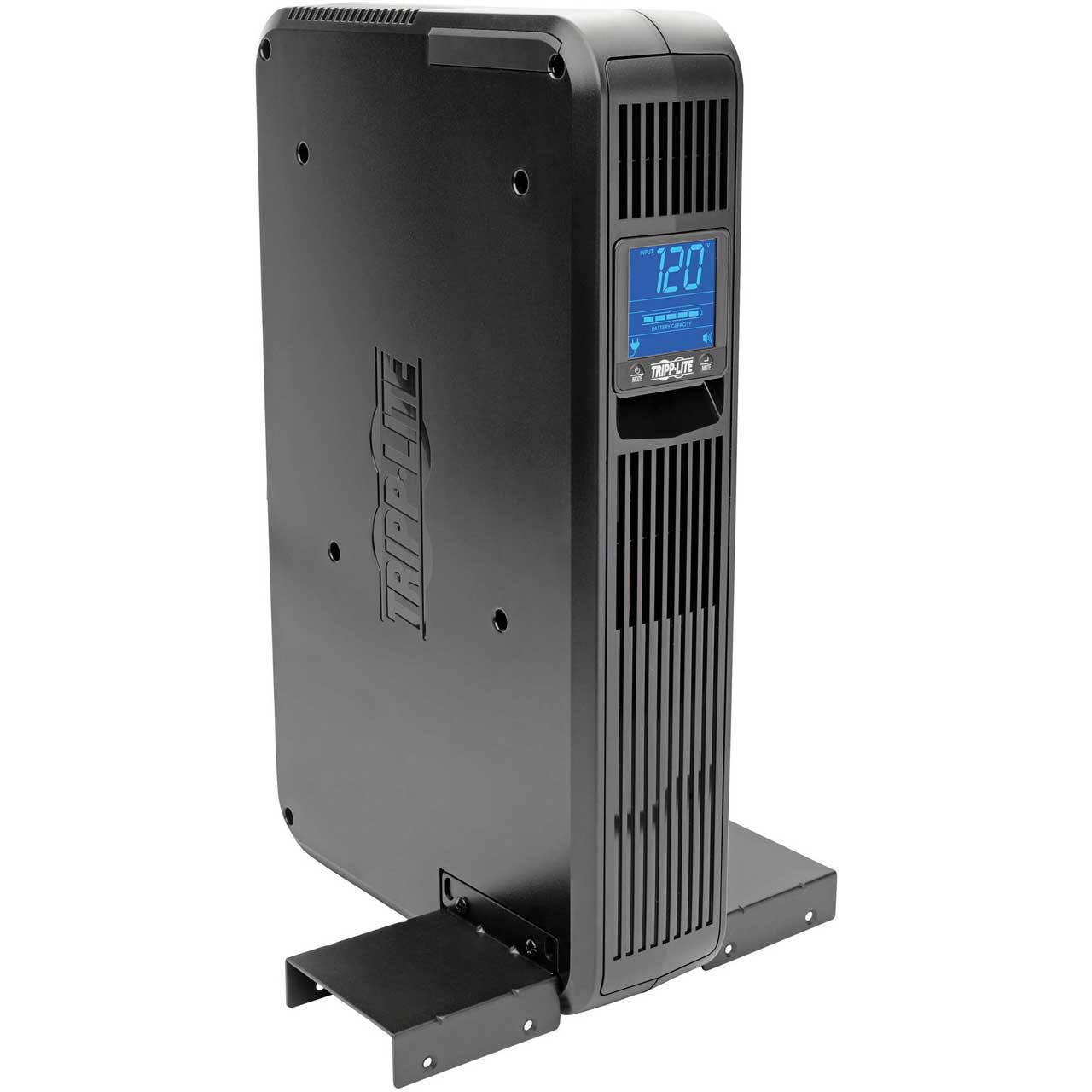

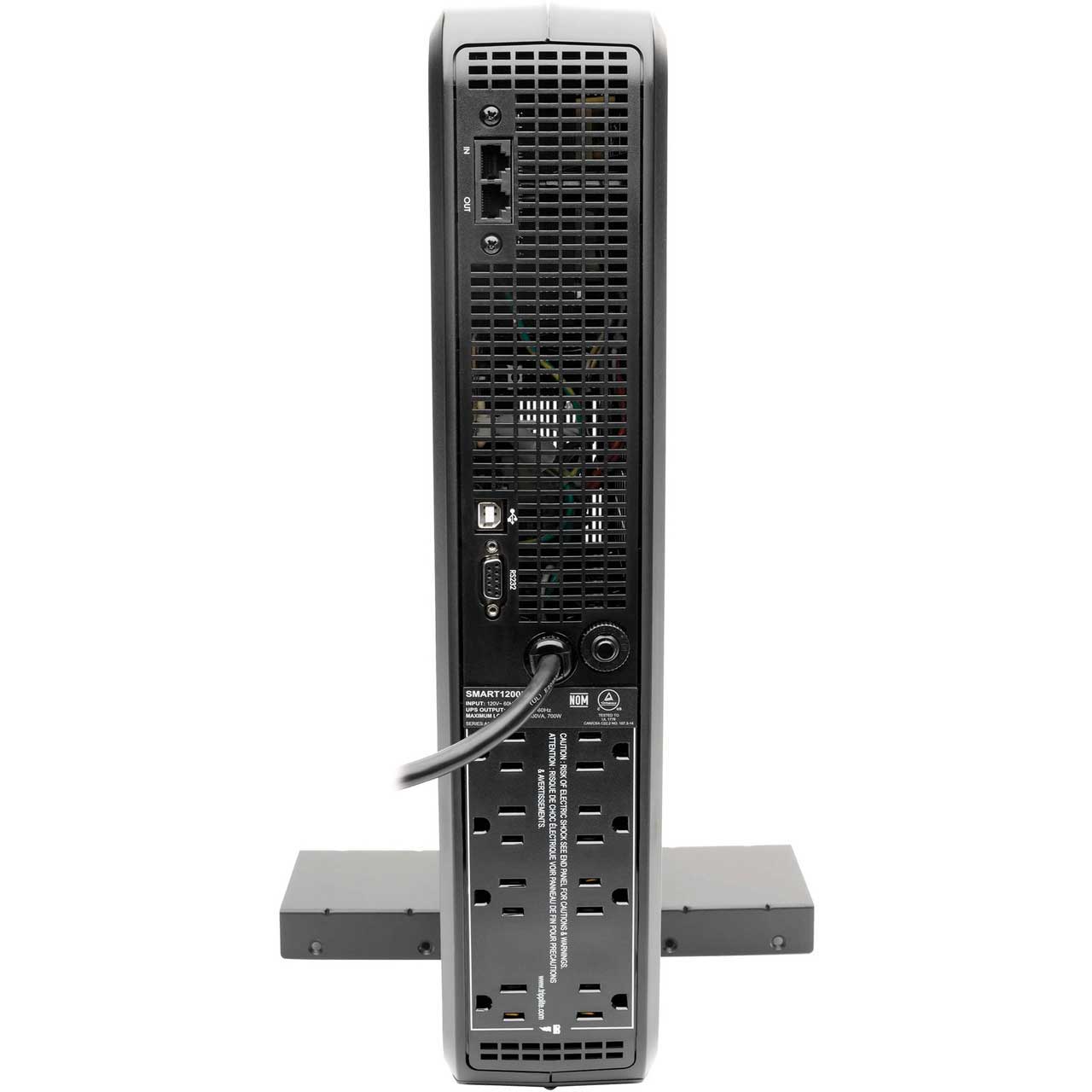

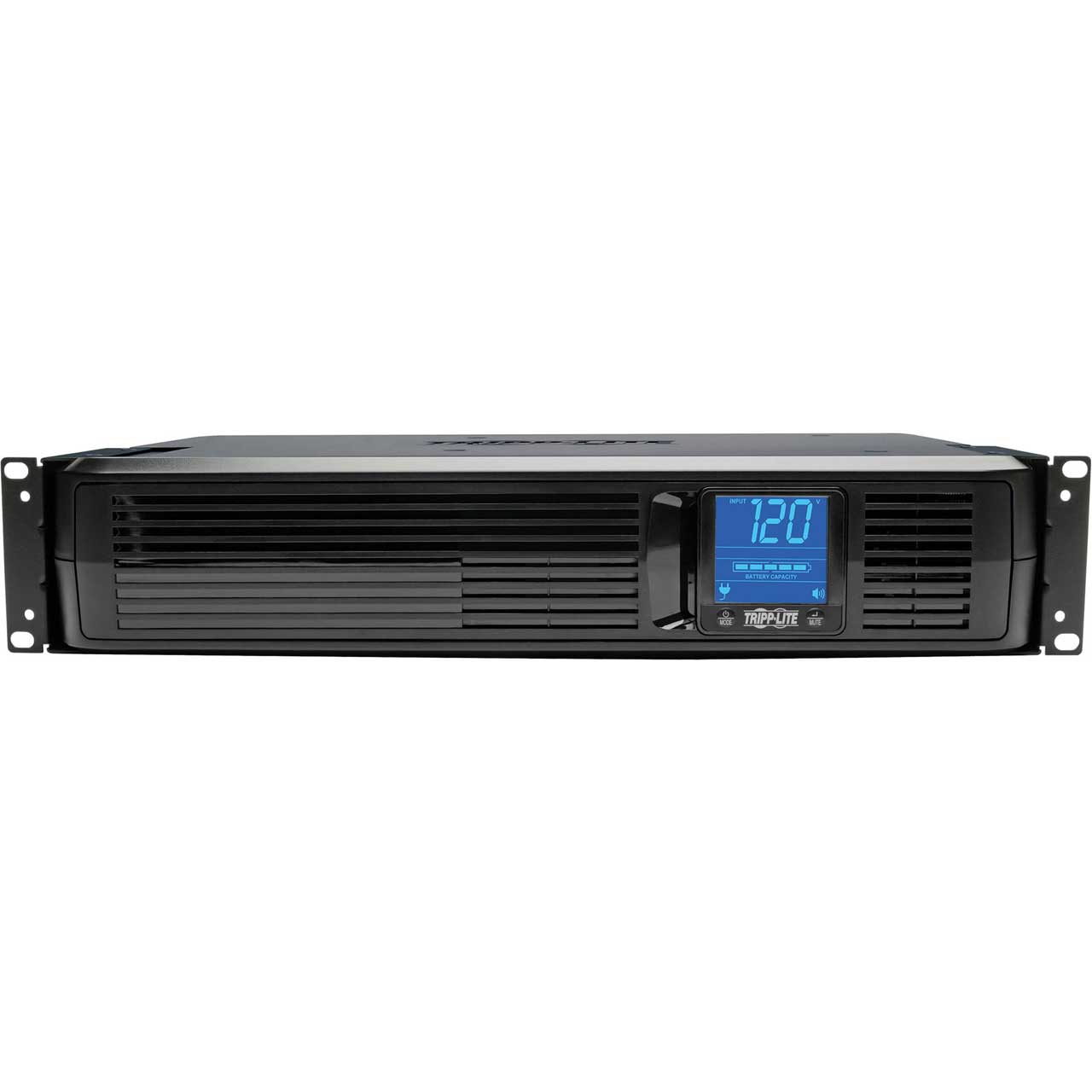

Tripp Lite SMART1500LCD SmartPro Digital UPS 1500VA

ITEM #: SMART1500LCD MFG #: SMART1500LCD

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$533.52

Our Price:

$339.00

Availability: In Stock
iAvailability Description Popup


SMART1500LCD - Overview

Tripp Lite's SMART1500LCD Line-Interactive Digital UPS System offers voltage regulation, surge suppression and long-lasting battery support for personal computers, network workstations, home entertainment systems and media centers. Internal UPS circuits support entry-level PCs or individual VCR/DVR components during power failures. Prevents data loss, viewing interruptions, lost recordings and loss of component programming.

Automatic Voltage Regulation (AVR) circuits regulate brownouts and overvoltages from 75V to 147V back to usable levels without using battery power. Offers complete power protection with support for upright tower, flat shelfmount or 2U rackmount installation in an attractive all-black cabinet design. Includes 8 battery-supported outlets. Built-in USB and DB9 serial port enables optional unattended system shutdown without data loss in case of extended power failure; cabling included.

PowerAlert software available via free download from www.tripplite.com. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X.

Built-in single-line RJ-45 jacks offer protection for equipment with single-line tel/DSL or network Ethernet connection. Built-in audible alarm and large LCD front panel voltage display indicates line power status, battery power status, battery low/replace status and voltage boost operation.

1500VA/900W power-handling capacity supports entry-level PCs, home entertainment systems, network workstations and audio/video components. Offers 3.5 minutes battery runtime with a full load of 1500VA/900W and 13 minutes with a half load of 750VA/450W. 3-year warranty; $250,000 connected equipment insurance (USA & Canada only).

  • Features:

    • LCD Display indicates input voltage, battery capacity and a variety of operating conditions. Display is rotatable for easy viewing whether UPS is in vertical or horizontal position
    • SMART1500LCD Digital Uninterruptible Power Supply offers voltage regulation, surge suppression and long-lasting battery support during blackouts
    • Supports entry-level PCs or single VCR/DVR components during blackouts
    • Regulates brownouts and overvoltages from 75V to 147V back to usable levels without using battery power
    • 8 UPS battery-supported outlets
    • Included DB9 serial and USB monitoring port and cable enables unattended shutdown in the case of extended power failure
    • HID-compliant USB port enables full integration with built-in power management and auto shutdown features of Windows and Mac OS X
    • PowerAlert software available via free download from www.tripplite.com
    • Set of phone/network protection jacks protects a single dialup/DSL phone line or network Ethernet connection

  • Specifications:

    • Rated input current (Maximum Load) 8.6A
    • Nominal Input Voltage(s) Supported 120V AC
    • UPS Input Connection Type 5-15P; Right-Angled
    • Input Circuit Breakers 10A
    • UPS Input Cord Length (ft.) 6
    • Recommended Electrical Service 15A 120V
    • Input Phase Single-Phase
    • Output Volt Amp Capacity (VA) 1500
    • Output Capacity (kVA) 1.5
    • Output Watt Capacity (Watts) 900
    • Nominal Voltage Details 115v nominal output in battery mode
    • Frequency Compatibility 60 Hz
    • Output Voltage Regulation (Line Mode) -18%, +8%
    • Output Voltage Regulation (Battery Mode) 115V (+/- 5%)
    • Output AC Waveform (AC Mode) Sine wave
    • Output AC Waveform (Battery Mode) PWM sine wave
    • Nominal Output Voltage(s) Supported 110V; 115V; 120V
    • Output Receptacles (8) 5-15R
    • Individually Controllable Load Banks No
    • Battery Type Valve Regulated Lead Acid (VRLA)
    • Full Load Runtime (min.) 4.4 min. (900w)
    • Half Load Runtime (min.) 11.8 min. (450w)
    • Expandable Runtime No
    • DC System Voltage (VDC) 24
    • Battery Recharge Rate (Included Batteries) Less than 4.5 hours from 10% to 90%
    • oltage Regulation Description Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
    • Overvoltage Correction Input voltages between 128 and 147 are reduced by 12%
    • Undervoltage Correction Input voltages between 93 and 107 are boosted by 14%
    • Severe Undervoltage Correction Input voltages between 75 and 92 are boosted by 30%
    • UPS AC Suppression Joule Rating 870
    • UPS AC Suppression Response Time Instantaneous
    • UPS Dataline Suppression 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
    • UPS Dataline Suppression Details 168 joules; Compatible with POE applications
    • EMI / RFI AC Noise Suppression Yes
    • Primary Form Factor Rackmount
    • Cooling Method Fan
    • Installation Form Factors Supported with Included Accessories 2 post 19 inch rackmount; 2 post front mount; 4 post 19 inch rackmount; Tower
    • Minimum Required Rack Depth (inches) 13.5
    • Rack Height 2U
    • Shipping Dimensions (hwd / in.) 7.10 x 14.90 x 21.30
    • Shipping Weight (lbs.) 31.90
    • UPS Housing Material ABS
    • UPS Power Module Dimensions (hwd, in.) 3.5 x 17.25 x 10.5
    • UPS Power Module Weight (kg) 13.61
    • Operating Temperature Range +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • Relative Humidity Up to 95%, non-condensing
    • AC Mode BTU / Hr. (Full Load) 78
    • AC Mode Efficiency Rating (100% Load) 98%
    • Transfer Time 4 milliseconds (AC to battery mode); 1 millisecond (Battery to AC mode)
    • Low Voltage Transfer to Battery Power (Setpoint) 75
    • High Voltage Transfer to Battery Power (Setpoint)
    • UPS Power Module Weight (lbs.) 30
    • UPS Certifications Meets FCC Part 15 Category B (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
    • Certification Details UL1778: 2014 R8.15 5TH EDITION; CSA-C22.2 NO. 107.3-14 3RD EDITION; FCC Part 68 Certification Number 5WSWP00B001; Industry Canada Certification Number 3449-001, REN: 0.1

  • Item Includes:

    • SMART1500LCD UPS
    • USB cable
    • DB9 serial cable
    • Telephone cable
    • Mounting hardware
    • Owner's Manual

  • GTIN:

    0037332126146
