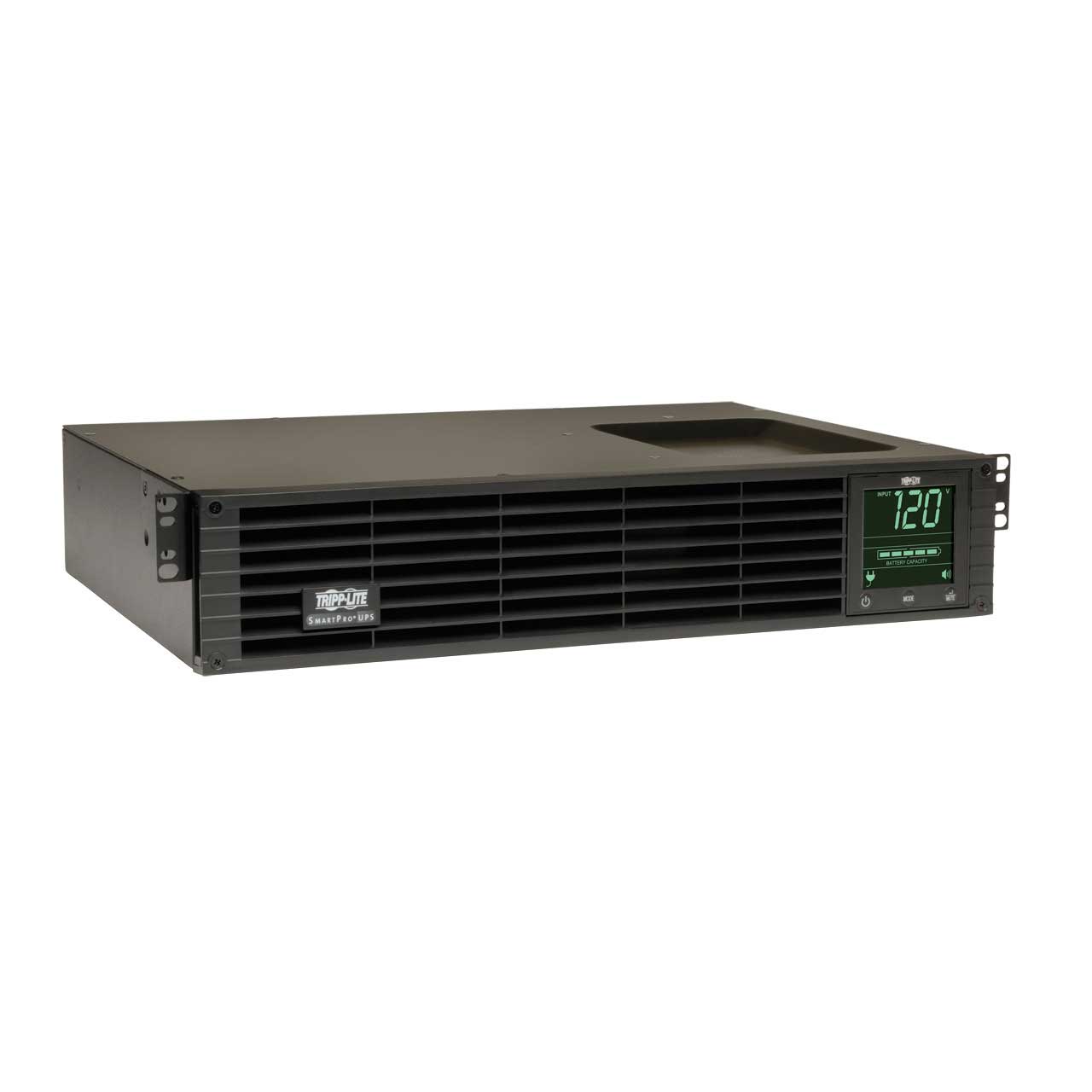

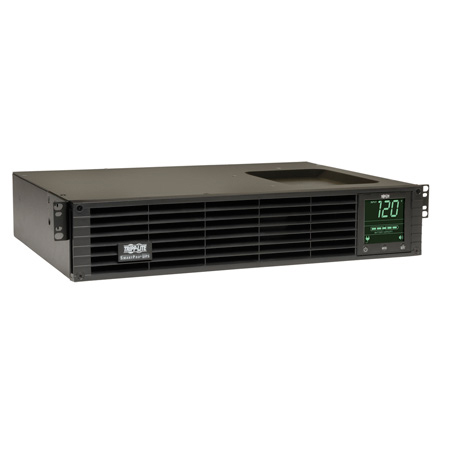

Tripp Lite SMART1500RMXL2U SmartPro 1500VA UPS System Rack/Tower Extended Run Line-Int

ITEM #: TRL-ST1500RMXL2U MFG #: SMART1500RMXL2U

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

List Price:

$1,437.70

Our Price:

$929.00

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


SMART1500RMXL2U - Overview

Tripp Lite SMART1500RMXL2U SmartPro Line Interactive UPS with enhanced LCD interface offers network-grade power protection for critical server, network and telecommunications equipment. Line Interactive Uninterruptible Power Supply (UPS) with built-in Auto-Voltage Regulation (AVR) actively corrects brownouts and overvoltages back to usable levels while maintaining a full battery charge in case of power failure. Tripp Lite's unique configuration excels in exceptionally poor-power environments with two separate levels of voltage boost to correct both slight undervoltages and severe brownout conditions. Interactive LCD interface reports UPS operating mode, detailed UPS and site-power data, plus enables a variety of UPS setup and configuration options. Super-fast switchover from line to battery power occurs within milliseconds to maintain operation of connected equipment without interruption or reboot. 95% line-mode efficiency offers reduced heat emissions and operating costs. Network management interfaces support communications via USB, RS-232 and optional SNMPWEBCARD network interface. HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X. Network communications ports enable detailed monitoring of equipment load levels, self-test data and utility power conditions. Includes PowerAlert monitoring software and complete cabling. Switched output load banks enable scheduled and real-time remote reboot and load shedding of select outlets. Emergency Power Off (EPO) interface. LCD display panel easily rotates for viewing in rackmount or tower configurations. Audible alarm with push-button momentary alarm-cancel and silent-mode configuration options. Programmable self-test. Field-replaceable, hot-swappable battery modules.

  • Features:

    • Tripp Lite SMART1500RMXL2UA line interactive 2U rack/tower UPS with 1500VA / 1.5kVA / 1350W capacity and extended runtime options
    • Line interactive UPS with Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages from 83 to 145V

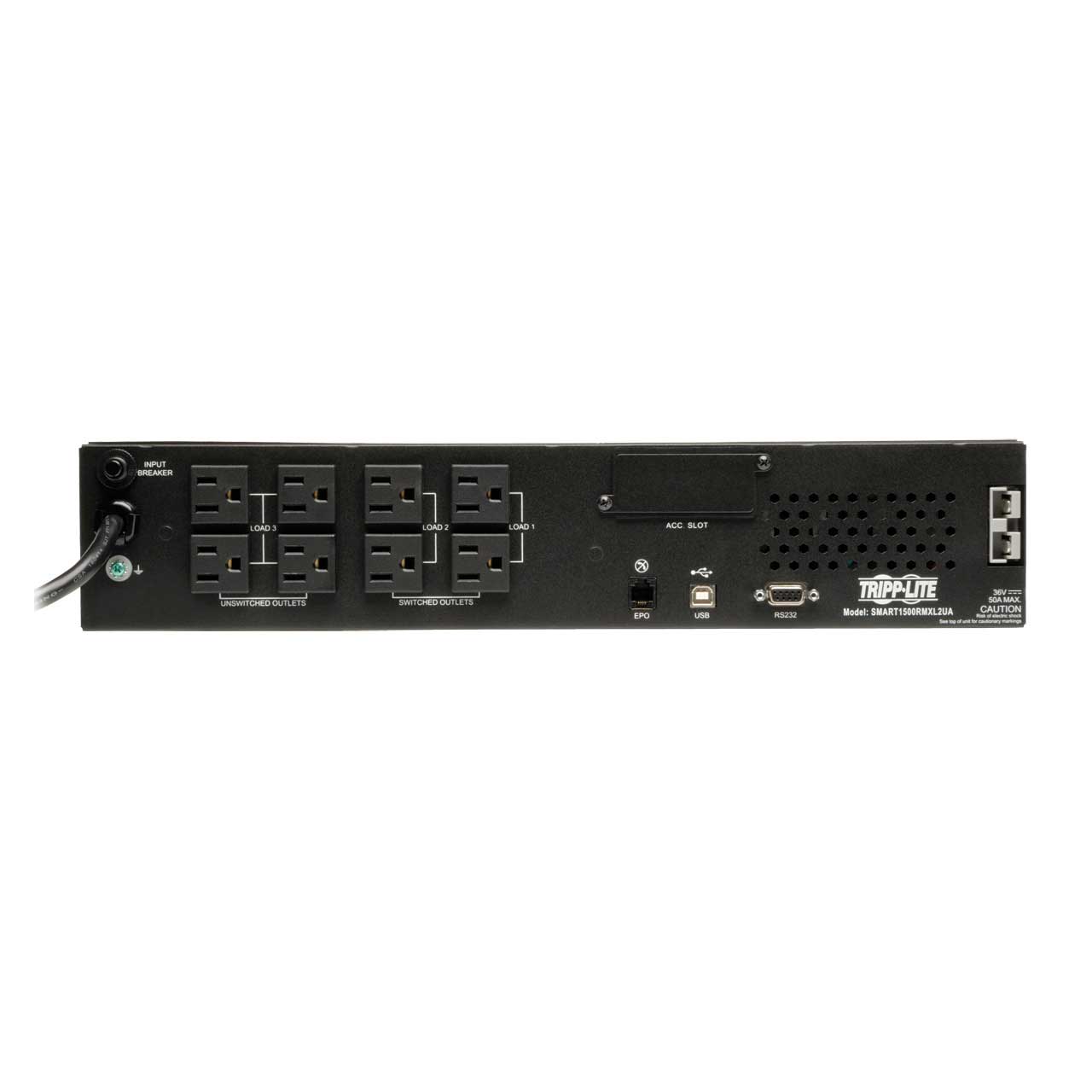

    • NEMA 5-15P input plug; 8 NEMA 5-15R output receptacles, Two independently switched output load banks
    • Maintains uninterrupted operation of connected networking equipment during blackouts, surges, brownouts and overvoltages
    • High 95% efficiency rating in line-power mode offers reduced power consumption and BTU emisssions
    • Internal batteries offer 14 minutes at 50% load (675W) and 4.9 minutes at 100% load (1350W)
    • Extended runtime is available with optional BP36V15-2U (limit 1); BP36V42-3U (multi-pack compatible); BP36V27-2US (multi-pack compatible), Output is reduced to 1200 watts maximum with external battery packs
    • External battery configurations require the use of Tripp Lite's External Battery Configuration Software (see manual)
    • Hot-swappable, user-replaceable internal batteries and external battery packs can be replaced with no disruption to connected equipment

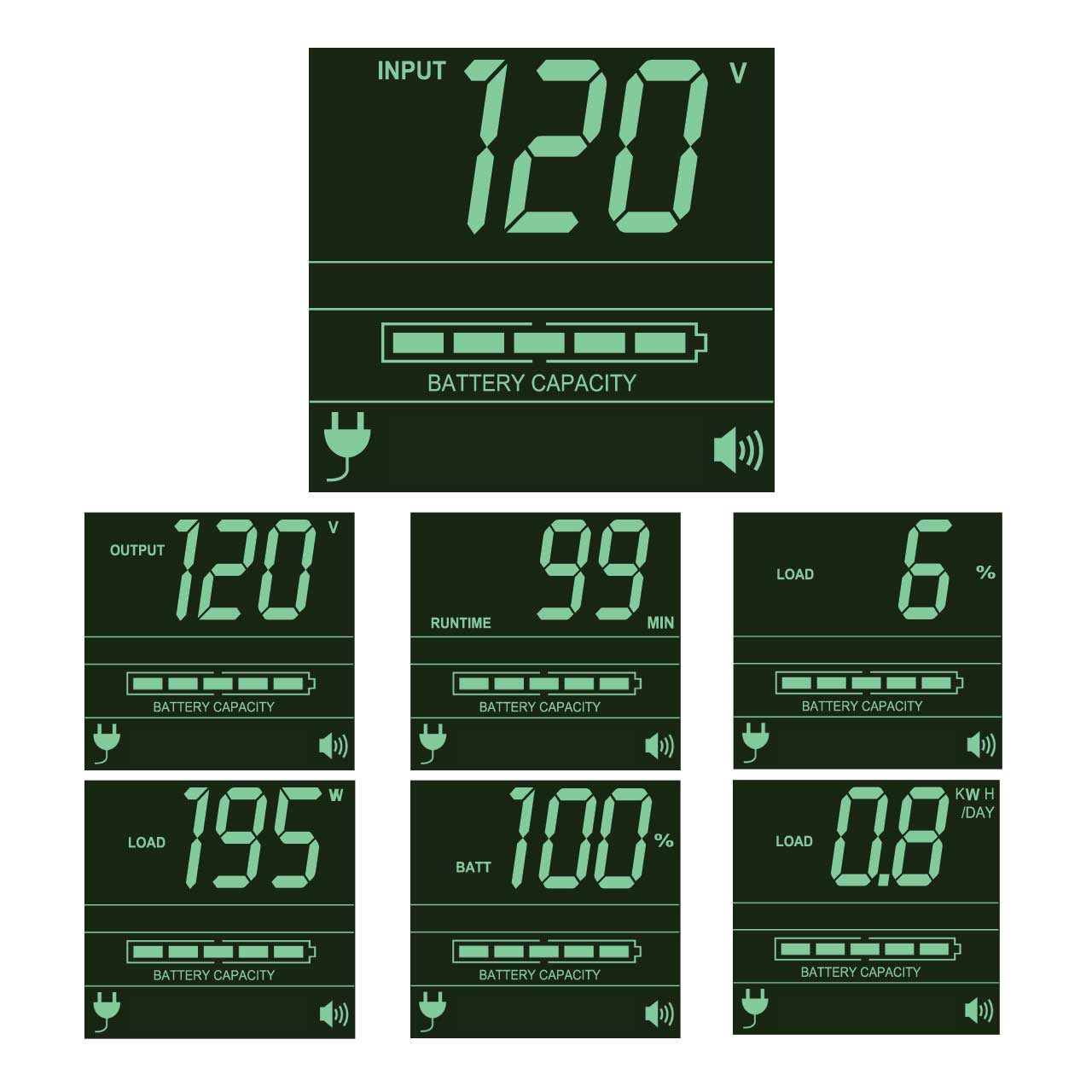

    • Front panel LCD monitoring screen with MODE and ENTER buttons reports operating mode with 5-bar battery charge graphic, plus 7 selectable screens of detailed UPS and site power information
    • LCD interface also supports a number of advanced user setup and operating preferences
    • Ships with 4 post rackmount installation hardware; Optional 2POSTRMKITWM enables 2 post rackmount/wallmount installation; Optional 2-9USTAND enables tower placement
    • Built-in USB, RS-232 and optional SNMPWEBCARD accessory monitoring options
    • HID-compliant USB interface enables integration with built-in power management and auto shutdown features of Windows and Mac OS X
    • Included PowerAlert UPS monitoring software; Built-in Emergency Power Off (EPO) interface with cable

  • Specifications:

    • Output Volt Amp Capacity (VA): 1500
    • Output kVA Capacity (kVA): 1.5
    • Output Watt Capacity (Watts): 900
    • Nominal Output Voltage(s) Supported: 115V; 120V
    • Frequency Compatibility: 60 Hz
    • Output Voltage Regulation (Line Mode): -18%, +8%
    • Output Voltage Regulation (Battery Mode): 115V (+/- 5%)
    • Output Receptacles: (8) 5-15R
    • Output AC Waveform (AC Mode): Sine wave
    • Output AC Waveform (Battery Mode): PWM sine wave
    • Rated input current (Maximum Load): 8.5A
    • Nominal Input Voltage(s) Supported: 120V AC
    • UPS Input Connection Type: 5-15P
    • Input Circuit Breakers: 10A
    • UPS Input Cord Length (ft.): 6
    • Recommended Electrical Service: 15A 120V
    • Input Phase: Single-Phase
    • Full Load Runtime (min.): 4 min. (900w)
    • Half Load Runtime (min.): 12 min. (450w)
    • External Battery Pack Compatibility: BP24V15RT2U (limit 1)
    • DC System Voltage (VDC): 24
    • Battery Recharge Rate (Included Batteries): Less than 4.5 hours from 10% to 90%
    • Voltage Regulation Description: Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
    • Overvoltage Correction: Input voltages between 128 and 147 are reduced by 12%
    • Undervoltage Correction: Input voltages between 93 and 107 are boosted by 14%
    • Severe Undervoltage Correction: Input voltages between 75 and 92 are boosted by 30%
    • Audible Alarm: Audible alarm indicates power-failure and low-battery conditions; Alarm can be permanently silenced via LCD interface
    • Alarm Cancel Operation: Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
    • Switches: 2 Switches control off/on power status and alarm-cancel/self-test operation; dimmer switch controls LCD brightness
    • UPS AC Suppression Joule Rating: 1038
    • UPS Dataline Suppression: 1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
    • UPS Power Module Dimensions (hwd, in.): 3.5 x 17.3 x 10.5
    • Installed Whole System Maximum Rack Depth (in.): 10.5
    • Rack Height (U Spaces): 2U
    • UPS Power Module Weight (lbs.): 29.4
    • UPS Shipping Dimensions (hwd / in.): 7.5 x 15 x 21.5
    • Shipping Weight (lbs.): 33.4
    • Cooling Method: Fan
    • Operating Temperature Range: +32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
    • Storage Temperature Range: +5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
    • WatchDog Compatibility: Supports Watchdog application, OS and hard-reboot restart options for remote applications
    • Cold Start (Startup in Battery Mode During a Power Failure): Cold-start operation supported
    • Green Energy-Saving Features: Greater than 95% efficiency - GREEN UPS
    • UPS Certifications: Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)

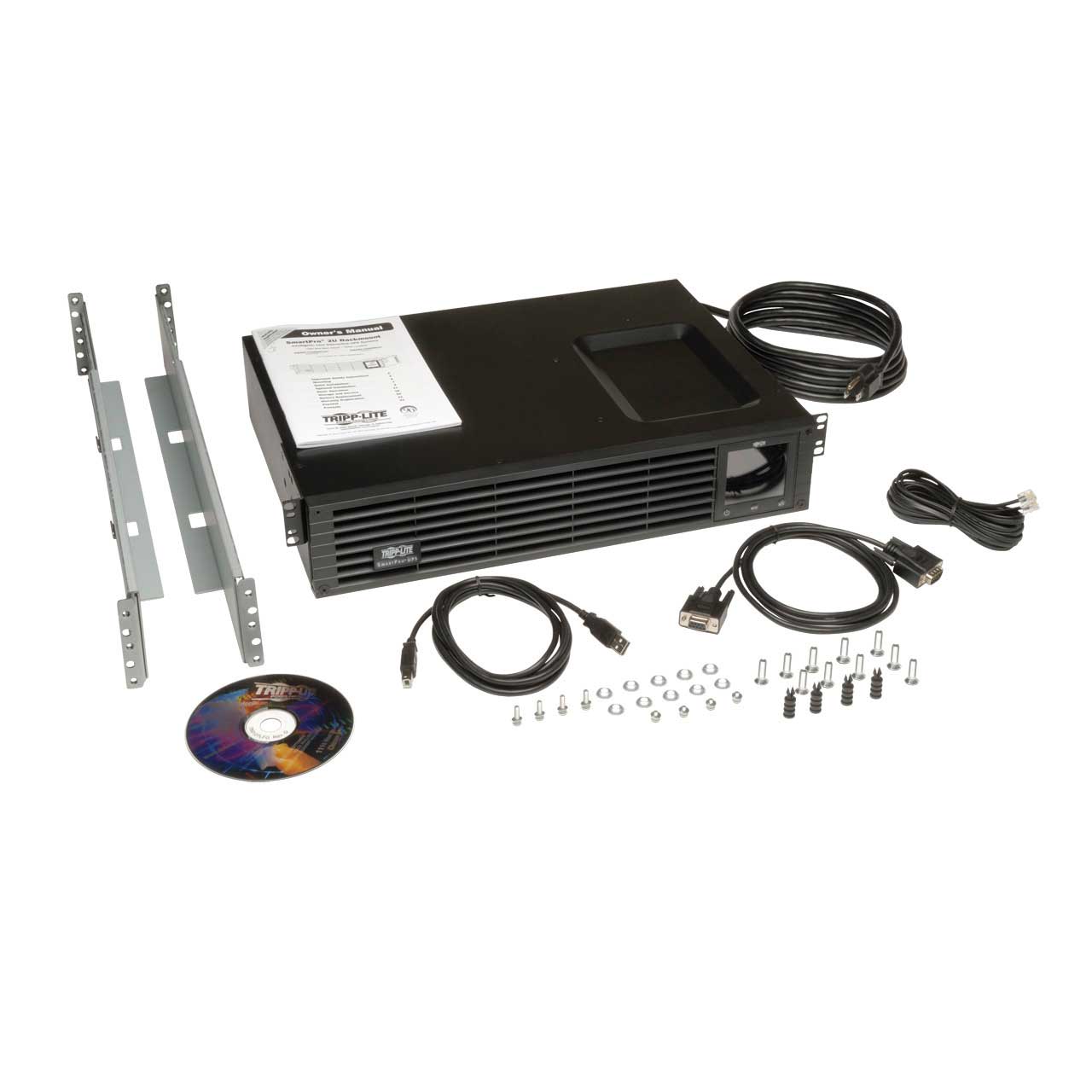

  • Item Includes:

    • SMART1500RMXL2UA UPS system
    • PowerAlert software with USB, Serial & EPO cabling
    • 4 post installation kit
    • Owner's manual

  • GTIN:

    0037332120403
