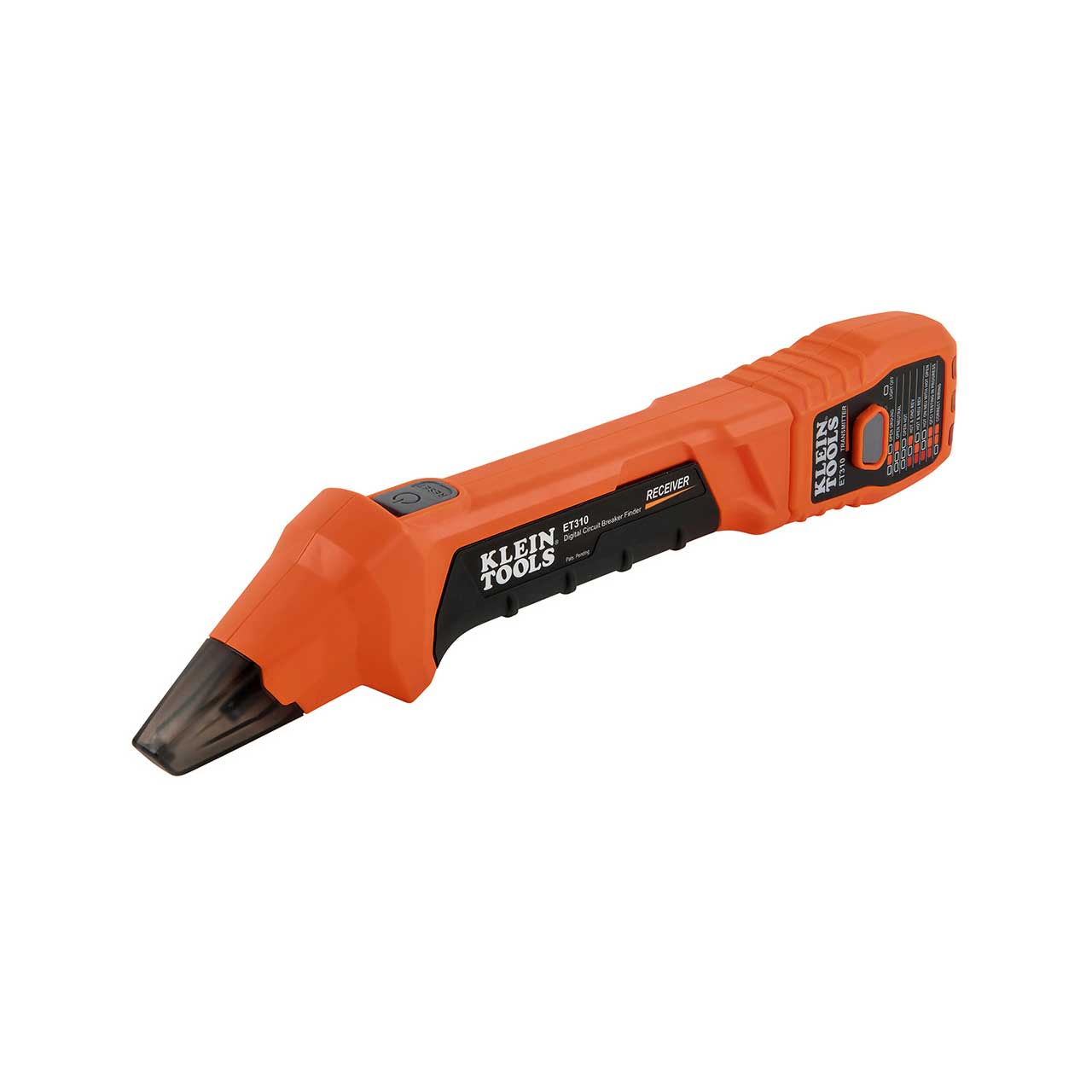

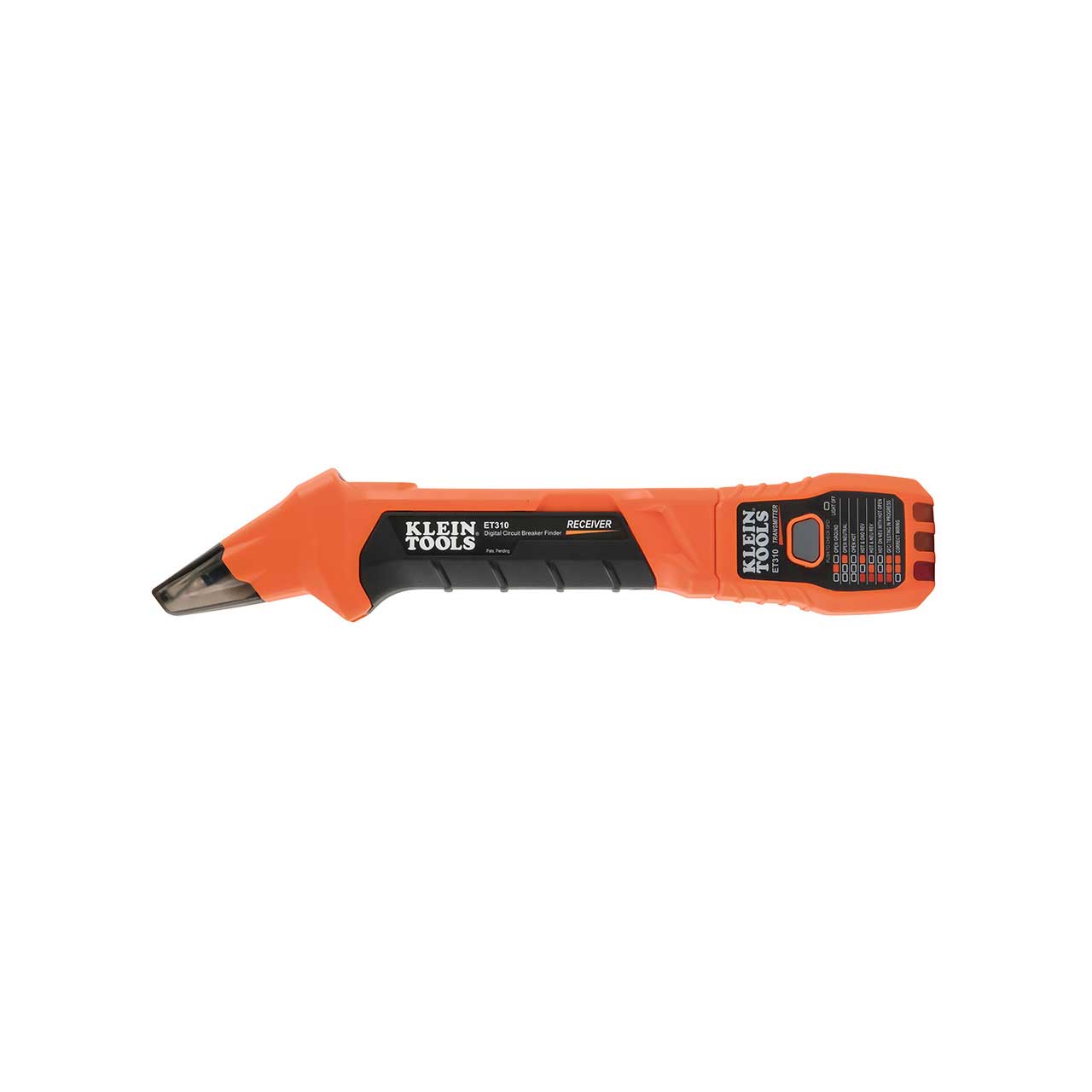

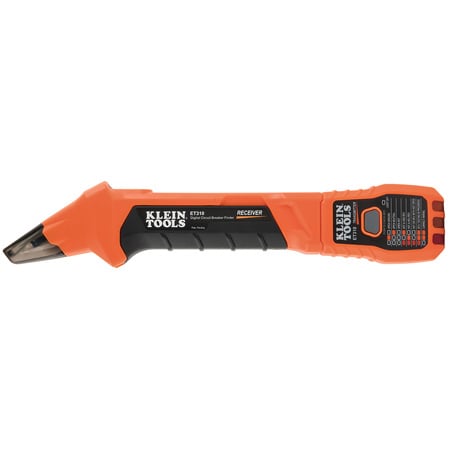

Klein Tools ET310 Digital Circuit Breaker Finder

ET310 - Overview

• Features:

  • Quickly and accurately locate the correct circuit breaker in a panel corresponding to the circuit to which an electrical outlet or fixture is connected
  • Tester consists of two parts: a Transmitter, connected to the electrical outlet or fixture and a Receiver, used to scan the panel to locate the correct breaker
  • Receiver delivers clear visual and audible indications when the correct breaker has been located
  • Operates on 90-120V AC circuits
  • Transmitter incorporates a GFCI outlet tester to inspect the wiring condition at the electrical outlet and test GFCI devices
  • Transmitter docks in the Receiver for convenient storage as a single item when tester is not is use
  • Transmitter incorporates a three-pin plug for connecting to North-American-style grounded electrical outlets. The transmitter may be connected
  • The transmitter may be connected to other electrical fixtures using optional accessories which are sold separately (Cat. No. 69411)
  • Receiver powers off automatically after approximately three minutes of non-use to conserve battery life
  • Transmitter is powered by the circuit when connected to the electrical outlet or fixture
  • Low battery indicator
  • Easily accessible battery compartment. Uses one 9V battery in receiver only; Transmitter does not require a battery
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT II 120V safety rating
  • Measurement Category II is applicable to test and measuring circuits connected directly to utilization points (socket outlets and similar points) of the low-voltage MAINS installation
  • Includes Transmitter, Receiver, user manual, and 9V battery (for Receiver)


• Specifications:

  • Type: Electronic Tester
  • Application: Locate Circuit Breakers in Panel, Test GFCI Devices
  • Special Features: Transmitter docks in Receiver Transmitter integrated GFCI outlet tester in receiver
  • Overall Length: 10.96'' (278mm) (With Transmitter docked in Receiver)
  • Overall Height: 2.16'' (55mm) (With Transmitter docked in Receiver)
  • Overall Width: 1.39'' (35mm) (With Transmitter docked in Receiver)
  • Material: PC & PC-ABS housing and electronic components
  • Standard: CATII 120V
  • Included: Includes Transmitter, Receiver, user manual, and 9V battery for Receiver
  • Weight: 7.2 oz. (204 g)


• GTIN:

  0092644692406
