Belden 1585A CMP/Plenum U/UTP Premise Horizontal CAT5e Cable (200MHz) 4-Pr BC 24AWG - Black - 1000 Ft

ITEM #: BL-1585A-1000 MFG #: 1585A 0101000

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$501.40

Our Price:

$438.46

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1585A 0101000 - Overview

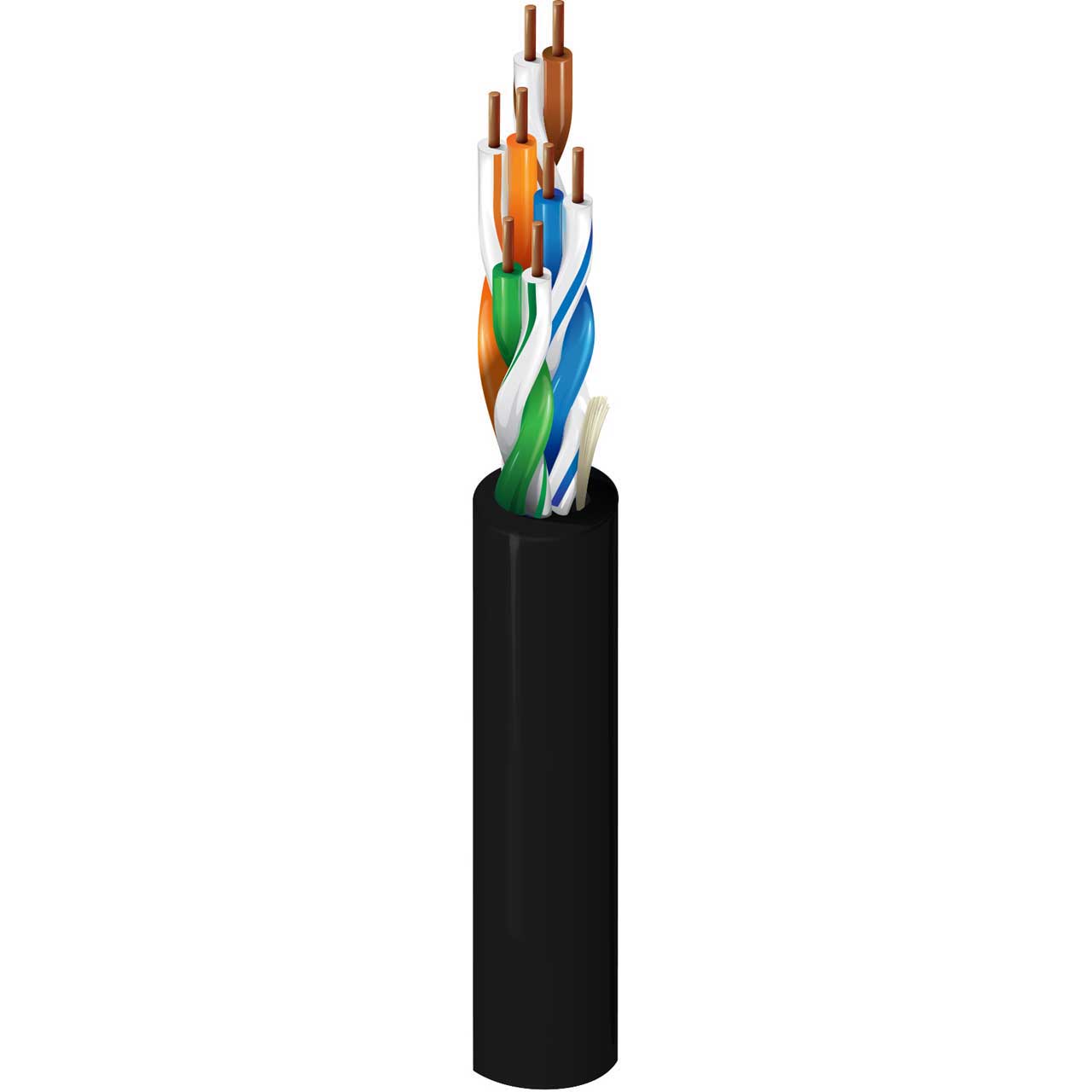

Belden 1585A is a Plenum-CMP, Category 5e Premise Horizontal (200Mhz) U/UTP cable. It's 4 Pair, with 24 AWG Solid Bare Copper Conductors in a Flamarrest® PVC-LS Jacket.

Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels. Thier top-of-line 1200 Series cable provides headroom beyond the TIA-568-C.2 Category 5e standard and is offered with Bonded-Pair technology to make your installation as robust as possible.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++, PoE+, PoE

  • Features:

    • Superior Electrical Performance: Exceeds Category 5e performance
    • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz
    • Stable Electricals: 1200 Cable's design features matched conductors on all four pairs providing for extremely stable electrical performance


  • Specifications:

    • Conductor Number of Pairs: 4
    • Total Number of Conductors: 8
    • Conductor AWG: 24
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Insulation Material: PO+FEP - Polyolefin + Fluorinated Ethylene Propylene
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Outer Shield Material: Unshielded
    • Outer Jacket Material Trade Name: Flamarrest
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.190 in (4.83 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)
    • Plenum (Y/N): Y
    • Non-Plenum Number: BL-1583A
    • UL Voltage Rating: 300 V (CMP)
    • UL Rating: 75°C
    • Operating: -20°C To +75°C
    • Installation: 0°C To +50°C
    • Storage: -20°C To +75°C
    • Max. Pull Tension: 25 lbs
    • Bulk Cable Weight: 21 lbs/1000ft
    • Environmental Suitability: Plenum, Indoor
    • Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
    • Resistance: NFPA 262, UL 910 (Plenum), FT6, FT6, IEC 60332-1-2 NEC / UL Compliance: 800, CMP
    • NEC/UL Compliance: Article 800, CMP
    • CEC/C(UL) Compliance: CMP


  • Item Includes:

    • Belden 1585A CAT5e Cable - Black - 1000 Ft


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825118398
