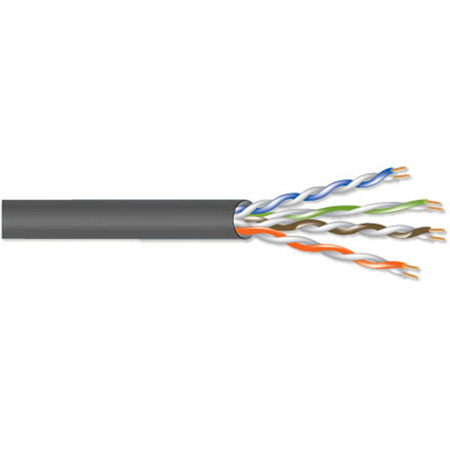

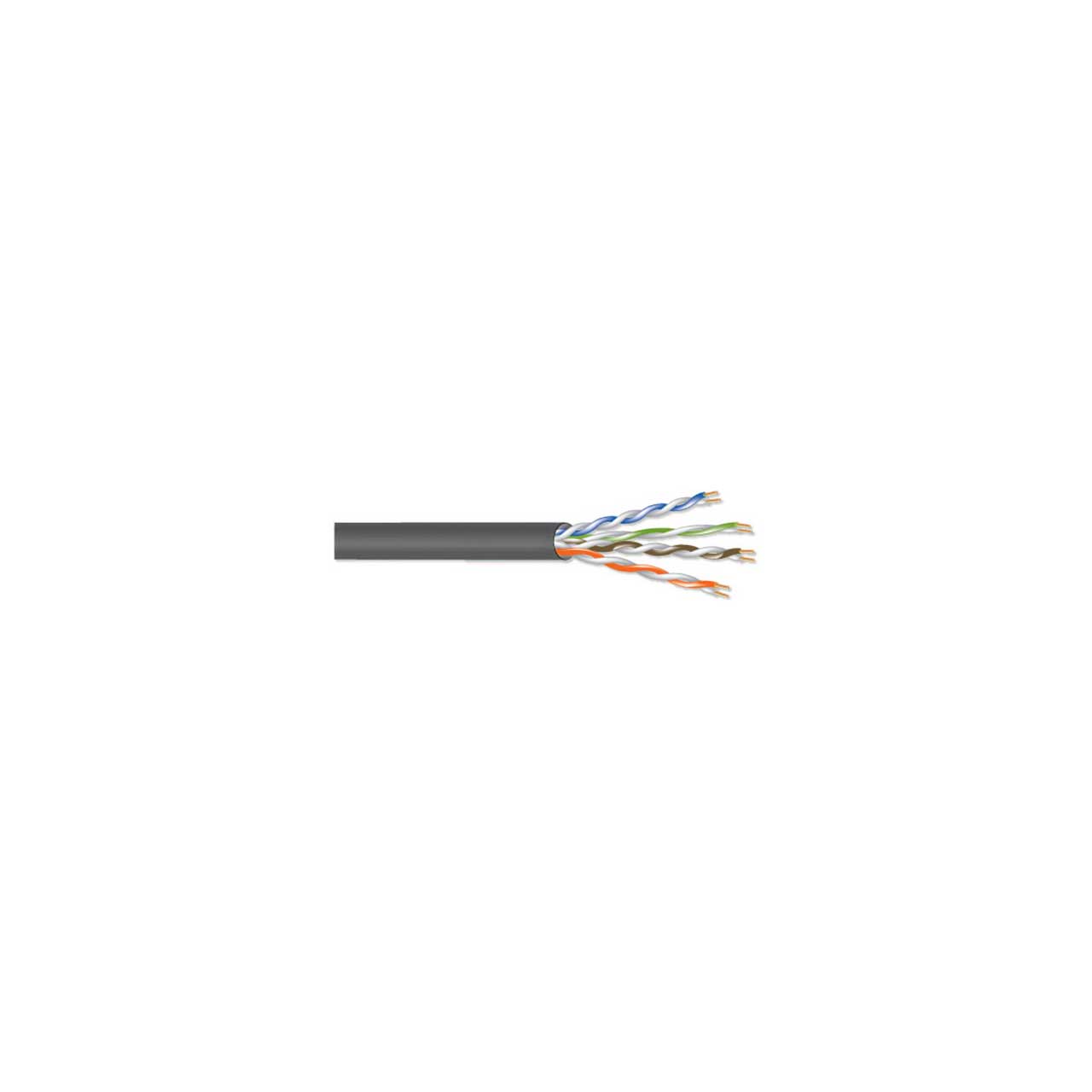

West Penn Wire 4245 Cat5e Cable with PVC Jacket - Gray - 1000 Foot Reel in a Box

4245 GRAY - Overview

• Features:

  • Multiple pair Category 5E cable
  • Enhanced UTP Category Cable
  • 4 pair 24AWG unshielded
  • Thermoplastic insulation
  • Each pair twisted in varied lays
  • Thermoplastic jacket

    Applications:
  • High performance horizontal wiring that meets or exceeds industry standards for:
  • Analog and Digital voice systems
  • Intercom systems
  • Security (CCTV) systems
  • 10 Base-T, 100 Base-T, and 1000 Base-T
  • FDDI TP-PMD
  • 16Mbps Token Ring
  • Home Networking
  • ATM 155Mbps
  • 550 Mhz Broadband video and standards underdevelopment such as: 622Mbps ATM

    Rating:
  • UL listed NEC type CMR or MPRas defined in NEC Article 800
  • Constructed in accordance with UL Standard 444
  • Complies with UL 1666 Vertical Tray Flame Test
  • Meets and Exceeds TIA/EIA 568-B.2 Specifications
  • Verified to Category 5E requirements by independent third party testing laboratory


• Specifications:

  • Number Of Pairs: 4
  • AWG Size: 24
  • Conductor Stranding: Solid
  • Conductor Type: Bare Copper
  • Nominal DCR: 26Ω/1000f
  • Insulation Type: Polyolefin
  • Insulation Color Code: 1.Blue,WH-Blue 2.Orange,WH-Orange 3.Green,WH-Green 4.Brown, WH-Brown
  • Nominal Impedance: 100Ω
  • Nominal Capacitance Between Conductors: 14 pF/f
  • Total Number of Conductors: 8
  • Jacket Type: PVC
  • Nominal Cable O.D.: 0.191"
  • Plenum: No
  • NEC UL Rating: CMR
  • RoHS Compliant: Yes
  • ANSI/TIA Category Category: 5E TIA/EIA 568C.2
  • TIA Test: ANSI/TIA-568-C.2
  • Pull Tension: 25lbs
  • Bend Radius: 0.955"
  • Cable Weight: 21lbs


• GTIN:

  0612825380504
