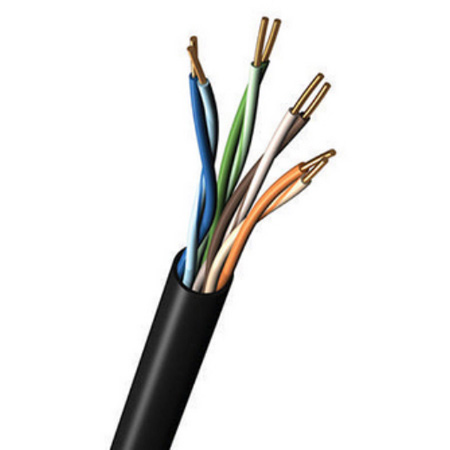

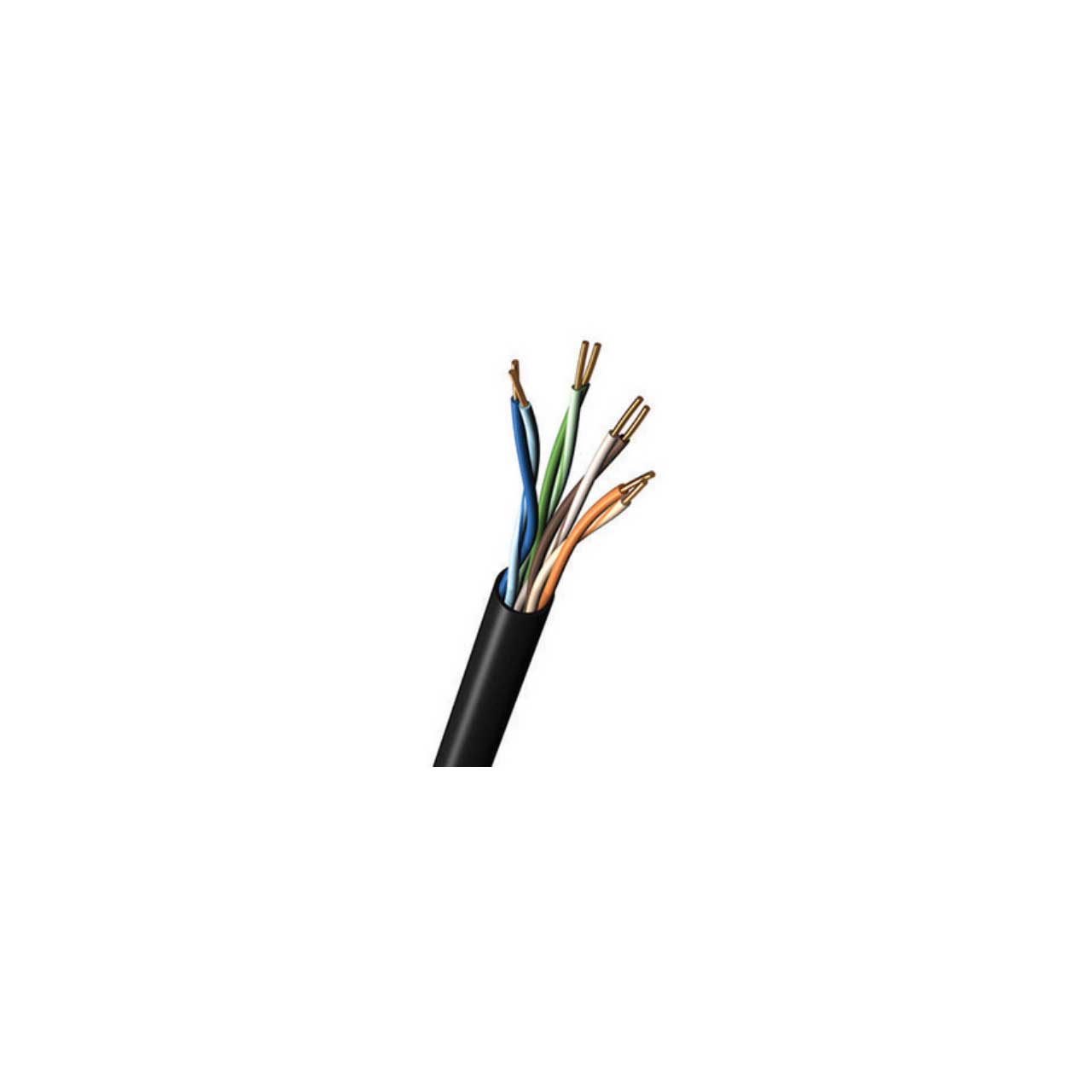

Belden 7923A CMX/MSHA Indoor/Outdoor UV/OIL Resistant 4-Pr DataTuff CAT5e Cable Sol BC 24AWG - Black - Per Foot

ITEM #: BL-7923A MFG #: 7923A PER FT.

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$1.37

Our Price:

$1.28

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

7923A PER FT. - Overview

Belden 7923A is a CMR/Riser rated, Cat 5e Industrial Ethernet Cable. It features Four 24AWG Bonded-Pair, (Solid) Bare Copper conductors with PO Insulation in a PVC Outer Jacket. Built for Harsh Enviornments like Mining it's MSHA (U.S. Mine Safety and Health Administration) approved.

Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels.

Applications
Mining
Harsh Environments
IIoT (Industrial Internet of Things)
Factory or process automation
IP cameras and devices
Data communication

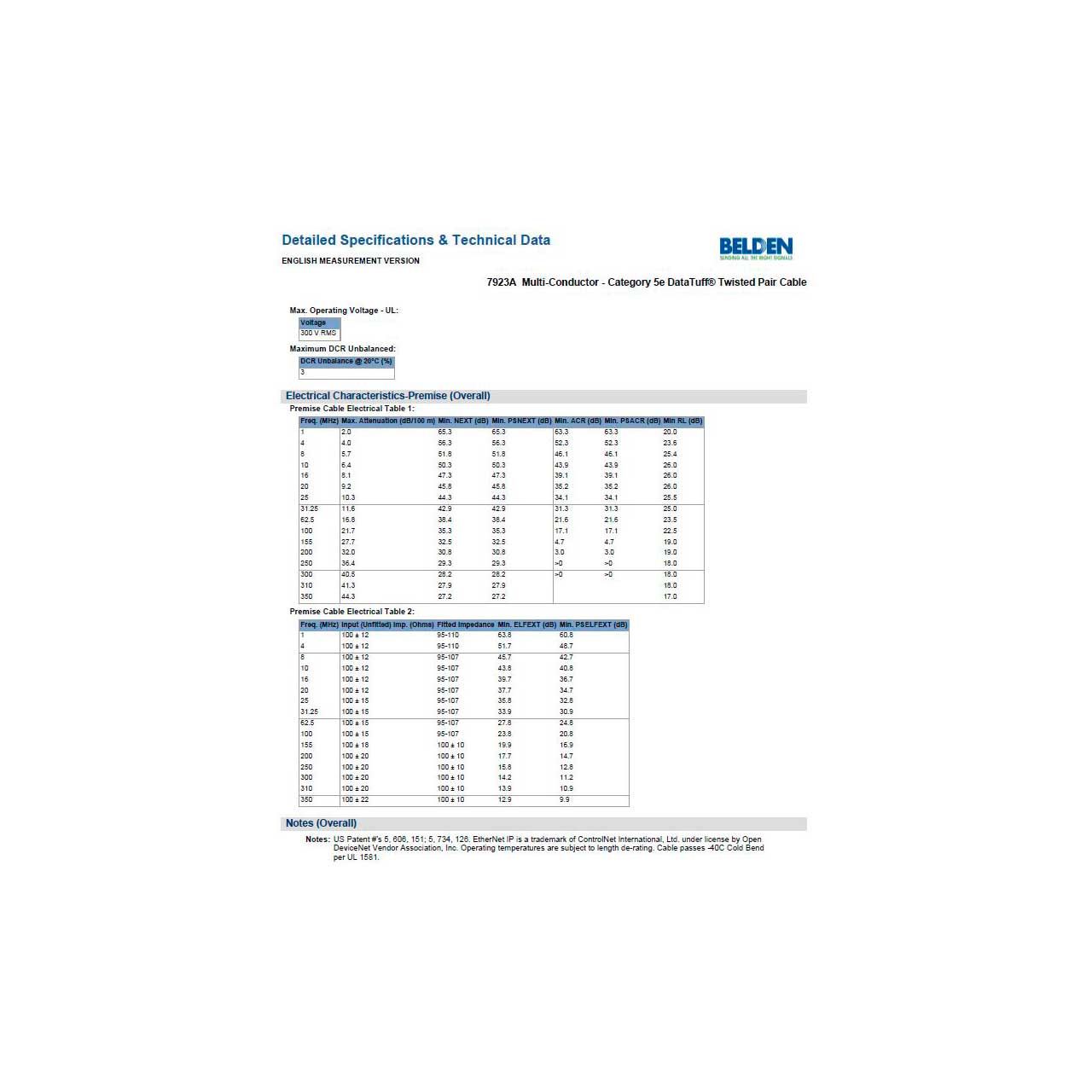

  • Specifications:

    • Conductor AWG: 24
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Number of Pairs: 4
    • Insulation Material: PO - Polyolefin
    • Bonded-Pair: Yes
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.230 in (5.84 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.230 in (5.84 mm)
    • Max. Conductor DCR: 9 Ohm/1000ft
    • Max. DCR Unbalance: 3.0%
    • Max. Capacitance Unbalance: 66 pF/ft
    • Nom. Mutual Capacitance: 15 pF/ft
    • Max. Delay Max.: 510 ns/100m
    • Delay Skew: 25 ns/100m
    • UL Voltage Rating: 300 V (CMR), 300 V (CMX-Outdoor)
    • UL Rating Temp: 75°C
    • Operating Temp: -40°C To +75°C
    • Installation Temp: -25°C To +75°C
    • Storage Temp: -25°C To +75°C
    • Max. Pull Tension: 40 lbs
    • Bulk Cable Weight: 27 lbs/1000ft
    • Environmental Suitability: Indoor/Outdoor, Indoor, Outdoor, Sunlight Resistance, Oil Resistance
    • Flammability / Fire Resistance: UL1666 Riser, FT4, FT4, 1202 Vertical Tray, IEC 60332-1-2
    • NEC / UL Compliance: 800, CMR;CMX-Outdoor;CMG
    • CEC / C(UL) Compliance: CMX-Outdoor;CMG
    • Data Category: Category 5e
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
    • CPR Euroclass: Eca


  • Item Includes:

    • 7923A Paired CAT5e DataTuff Twisted Pair Cable - Black - Per Foot
