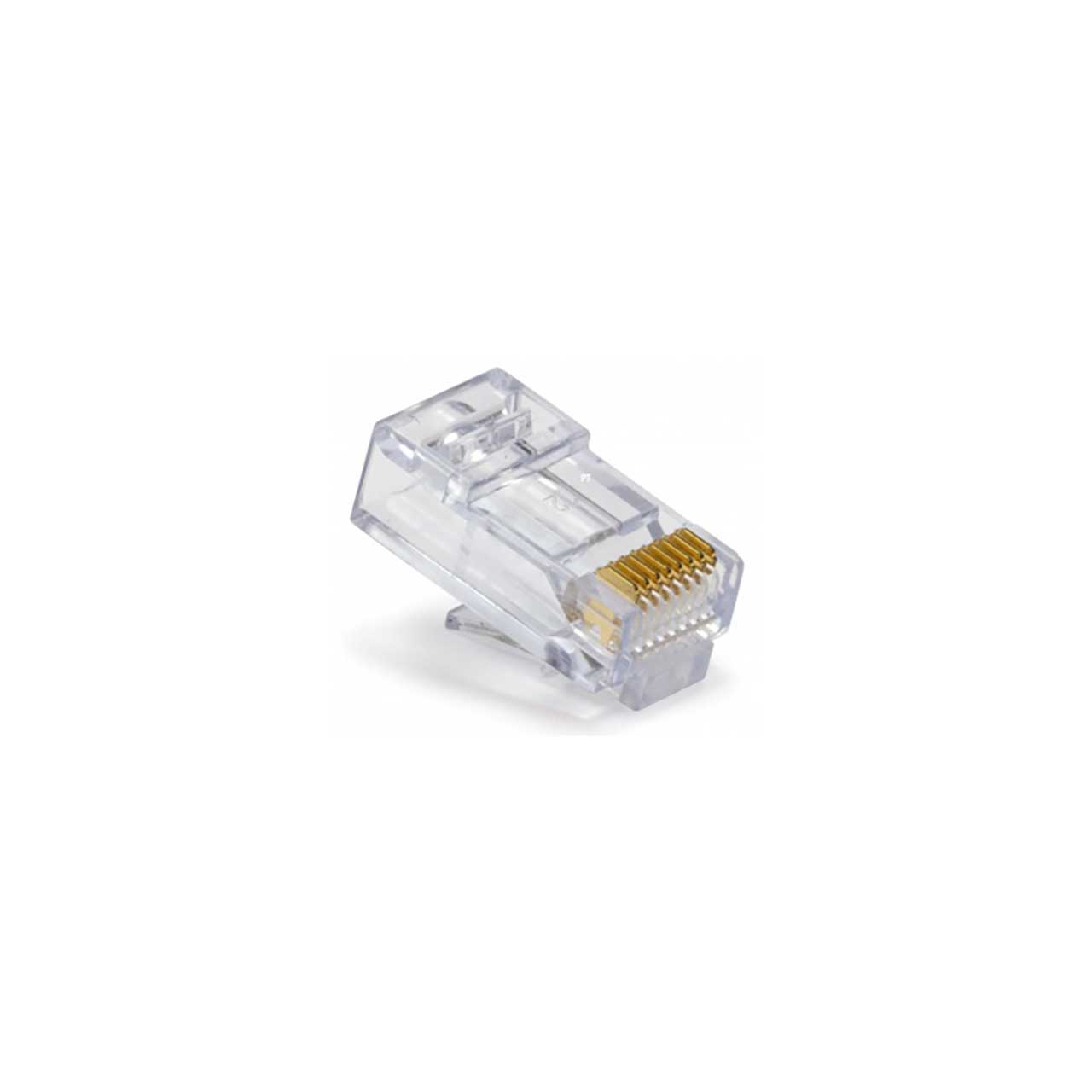

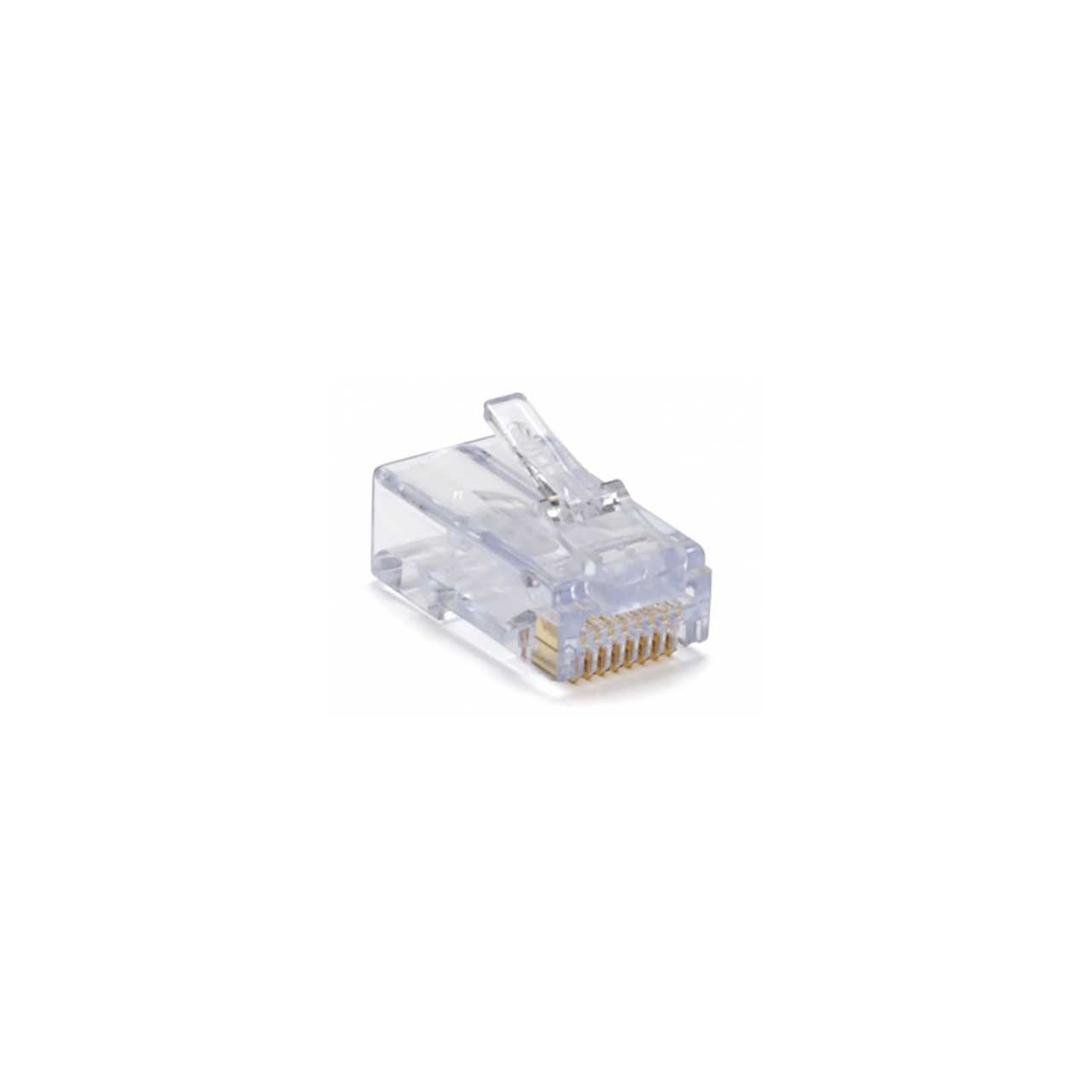

Platinum Tools 100010C EZ-RJ45 CAT6 Connectors for Solid or Stranded Conductors - 50 Pack

ITEM #: PLAT-EZ6-50 MFG #: 100010C

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$39.27

Our Price:

$33.39

Availability: In Stock
iAvailability Description Popup


    100010C - Overview

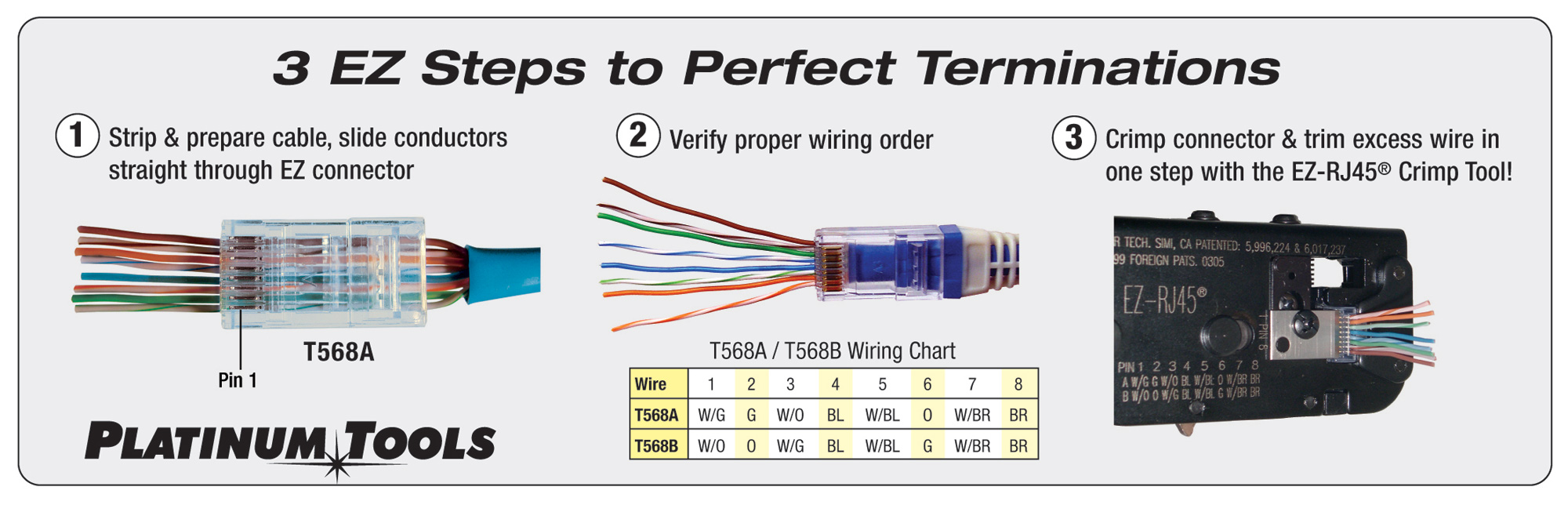

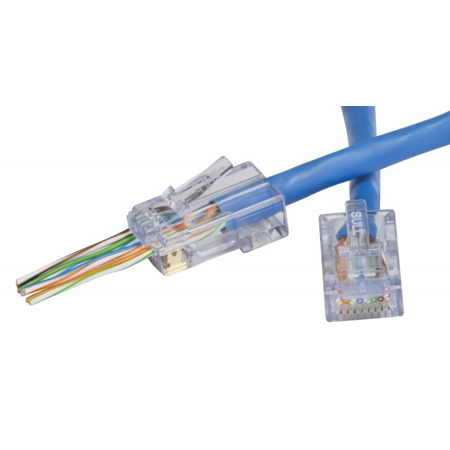

    The EZ-RJ45 connector system has been used and endorsed by professionals worldwide for over 20 years. The design allows conductors to extend through the front end of the connector for easy verification of correct wiring order prior to crimping. The Platinum Tools 100010C has a large interior body cavity makes cable insertion easy with wire twists close to contacts for optimized performance. Connectors are crimped and excess conductors trimmed in one action with either the 100054C or 100062C crimp tools.

    • Features:

      • Connectors are UL rated and CAT6, FCC and RoHS compliant
      • CAT6 performance per EIA/TIA B.2
      • Fast, simple terminations. One piece design, eliminates the need for load bars or liners
      • Use with solid or stranded conductors
      • Max cable OD: .275" (6.98mm)
      • Conductor OD range (including insulation) .037" - .041" (.94mm - 1.04mm)
      • Contacts: Phosphor bronze with 50 micro 24K hard gold over 100 micro nickel plate
      • Made in USA

    • GTIN:

      0899740000414
