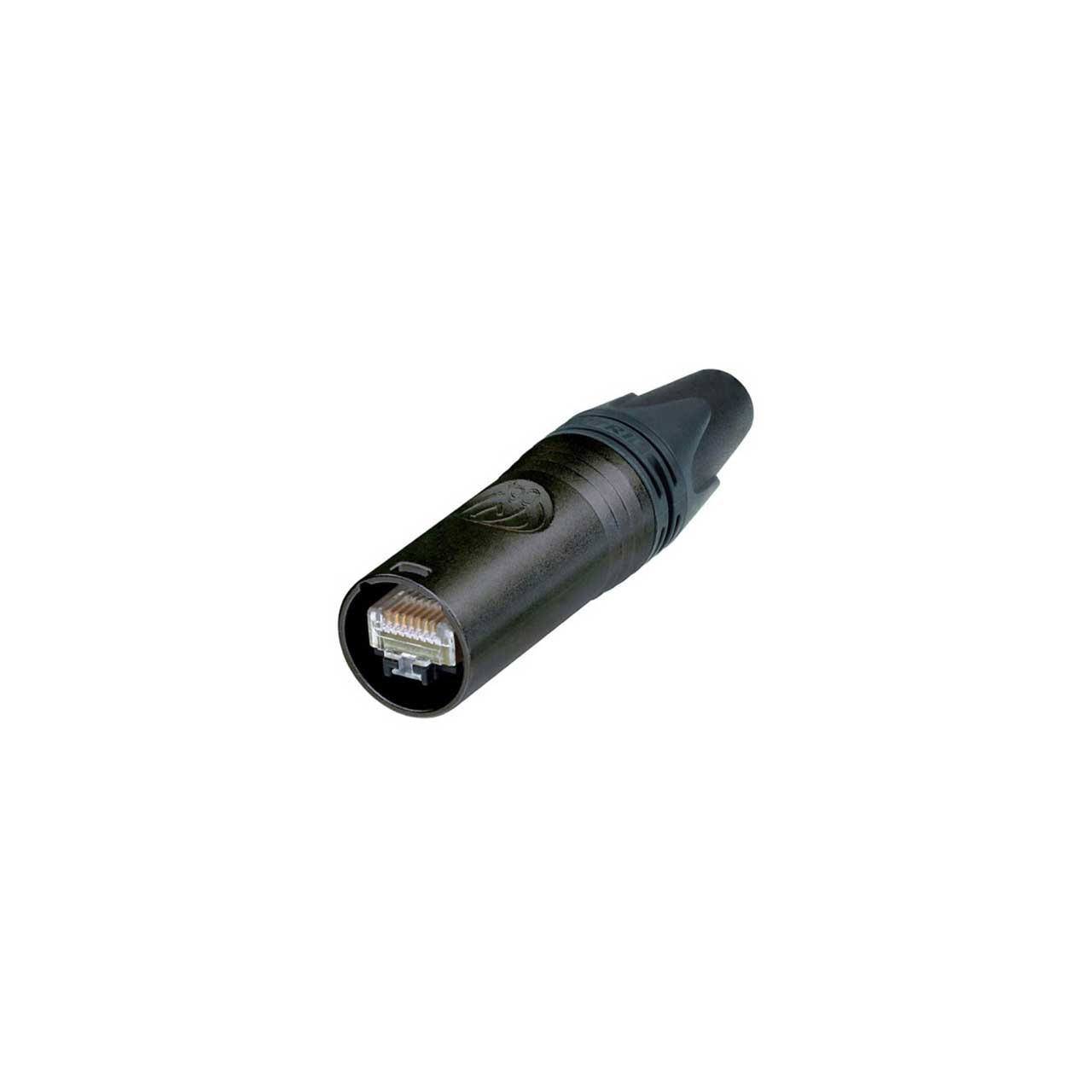

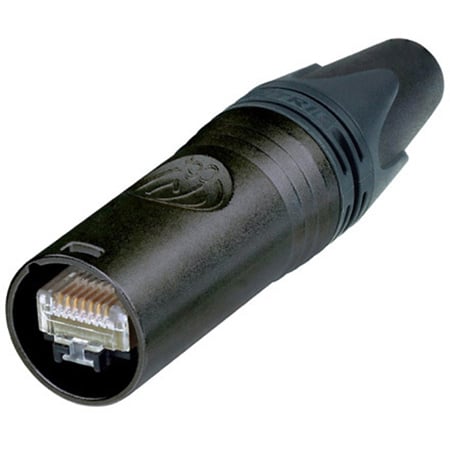

Neutrik NE8MX6-B etherCON CAT6A Cable Connector Self-termination - Black Plating

NE8MX6-B - Overview

• Features:

  • Ruggedized connector with CAT6A component compliance according to ISO / IEC 11801 and TIA / EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • IP 65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief


• Specifications:

  • Gender: male


  • Electrical
  • Dielectric strength: 1 kVdc
  • Insulation resistance: > 0.5 GΩ
  • Rated current per contact: 1.5 A

    Transmission performance
  • CAT6A, acc. TIA/EIA rating
  • CAT6A, acc. IEC/ISO/EN rating
  • Power over Ethernet PoE+ acc. IEEE 802.3at

    Mechanical
  • Cable O.D. 7.0 - 9.5 mm
  • Lifetime > 1000 mating cycles
  • Locking device
  • Latch lock
  • Wiring
  • IDC
  • Wire size (solid): 0.128 - 0.324 mm² (AWG 26/1 - AWG 22/1)
  • Stranded wire: 0.111 - 0.355 mm² (AWG 27/7 - AWG 22/7)

    Material
  • Bushing: PA / PU
  • Contact plating: Au
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Black
  • Strain relief: POM

    Environmental
  • Protection class: IP 65 (in combination with NE8FDX-*6-W)
  • Temperature range: -40 °C to + 70 °C


• GTIN:

  7613187009266
