Platinum Tools 90187 ezEX-RJ45 Cat5-5E Cat6 Cat6A Field Termination Kit

90187 - Overview

• Features:

  • Professional field kit has crimp tool and connectors for Cat5/5e, Cat6, Cat6A cables
  • Crimper accepts interchangeable dies (available separately) for other connector families or applications
  • Use with unshielded or shielded connectors
  • Connector max cable OD .29". Overall conductor OD range covered by 3 connectors .033"- .048"
  • Feed thru connectors to verify conductor order before crimping
  • Conductors terminate in Hi-Low staggered format for less potential X-talk and higher performance
  • Case has room to store other tools, connectors and accessories


• Specifications:

  • Use connectors with solid or stranded conductors
  • ezEX38 Connectors Cable OD: max .29"
  • Conductor range: .033" thru .038"
  • ezEX44 Connectors Cable OD: max .29"
  • Conductor range: .039" thru .044"
  • ezEX44 Connectors Cable OD: max .29"
  • Conductor range: .043" thru .048"
  • Connectors: RoHS 2, UL & FCC compliant - ezEX44 & ezEX48 Rated 10G

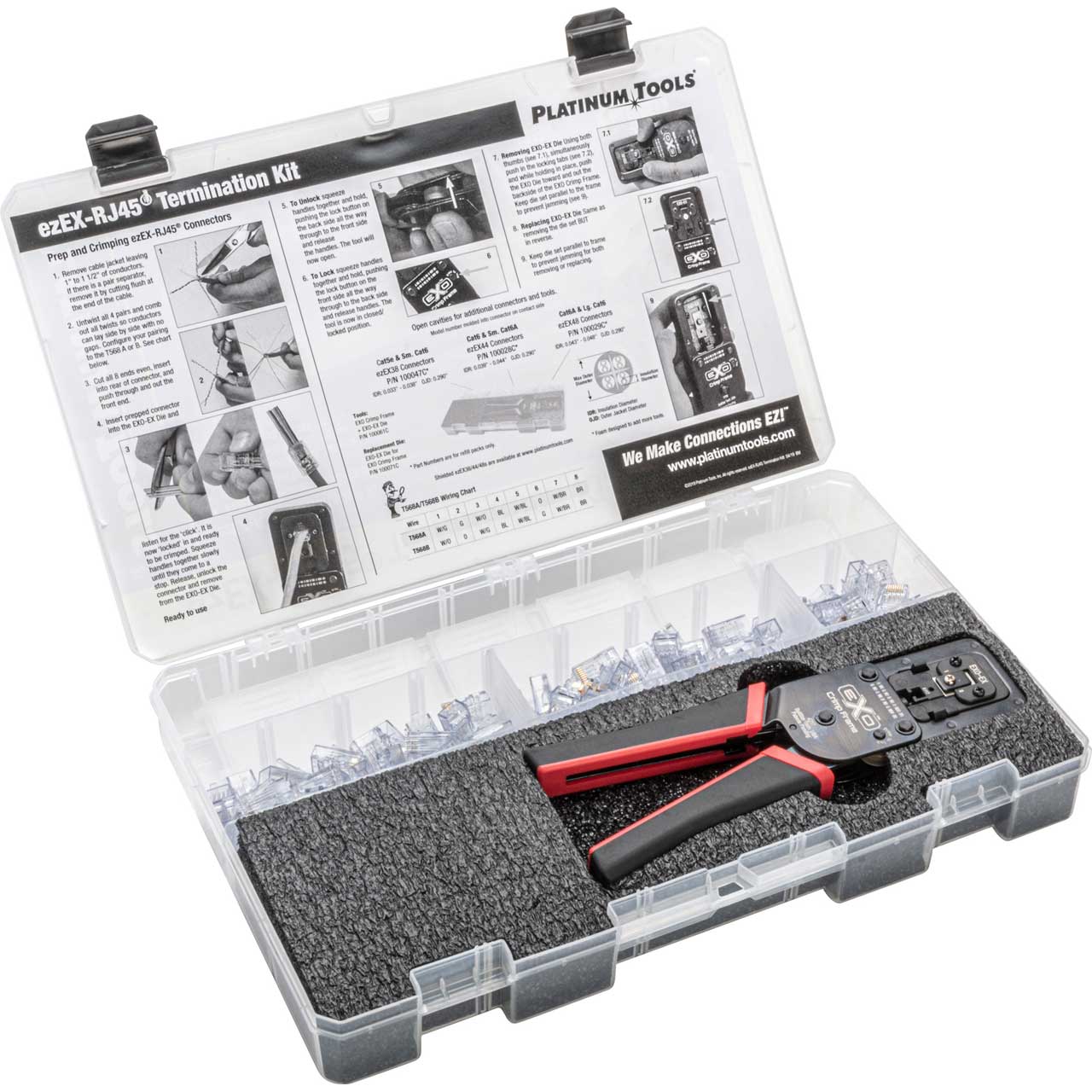

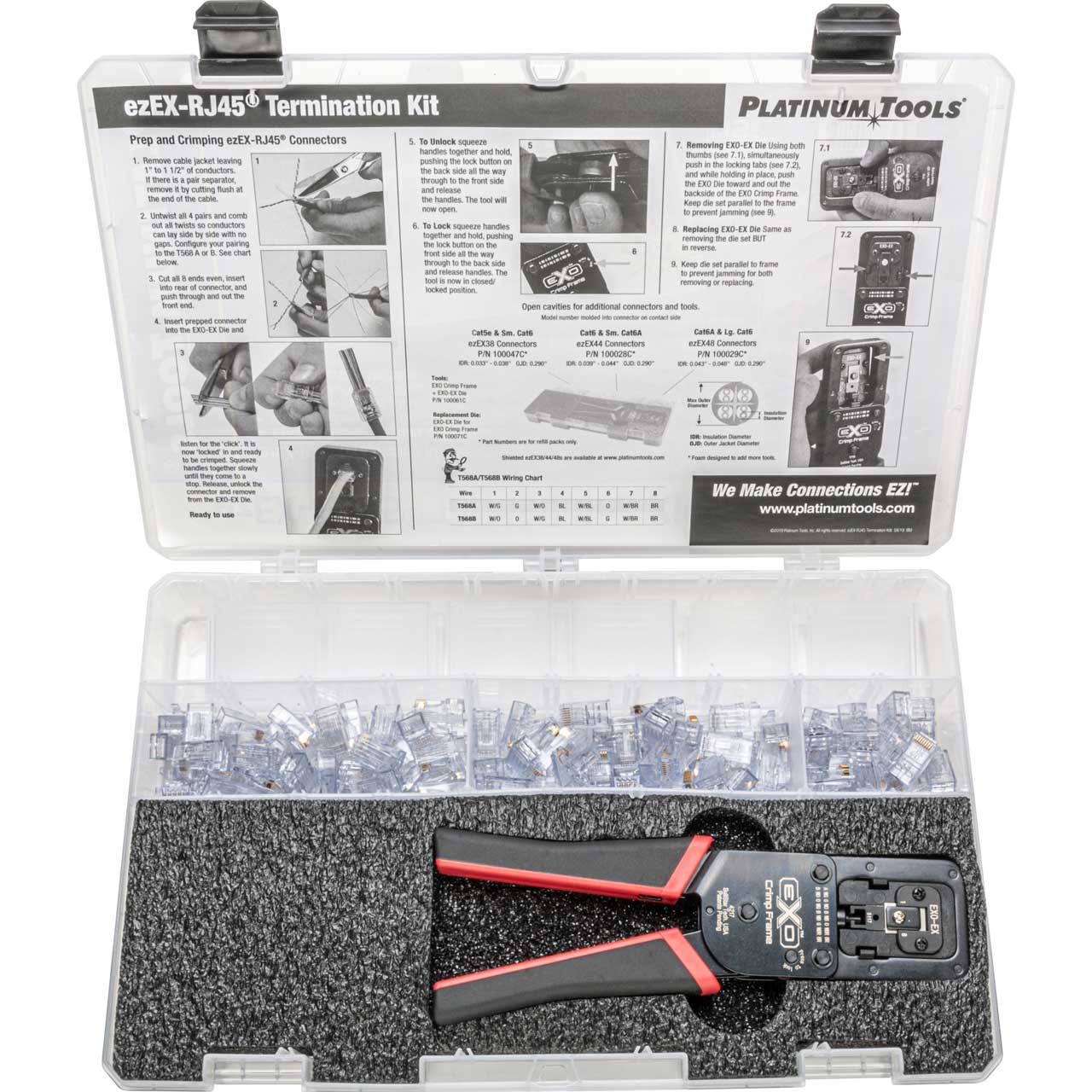

• Item Includes:

  • 100061C Crimper with black Die

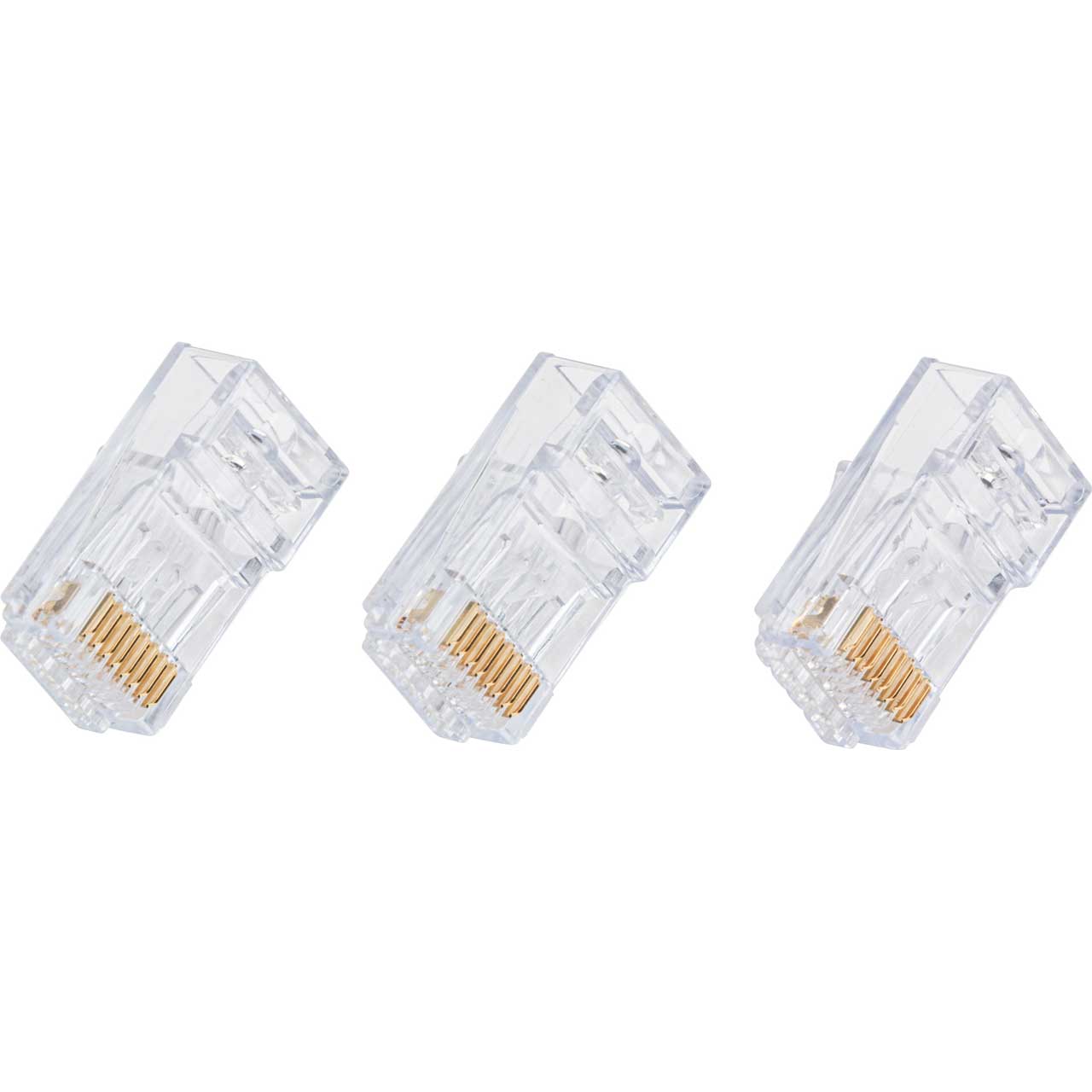

  • 50pcs ezEX38 Connectors
  • 50pcs ezEX44 Connectors
  • 25pcs ezEX48 Connectors
  • Hvy Duty Storage case


• Warranty:

  • Crimper 1 year warranty


• GTIN:

  0849160011323
