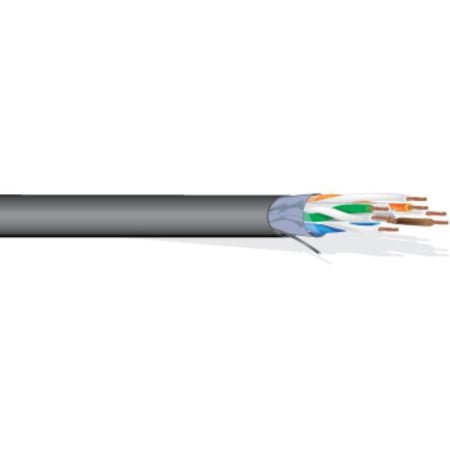

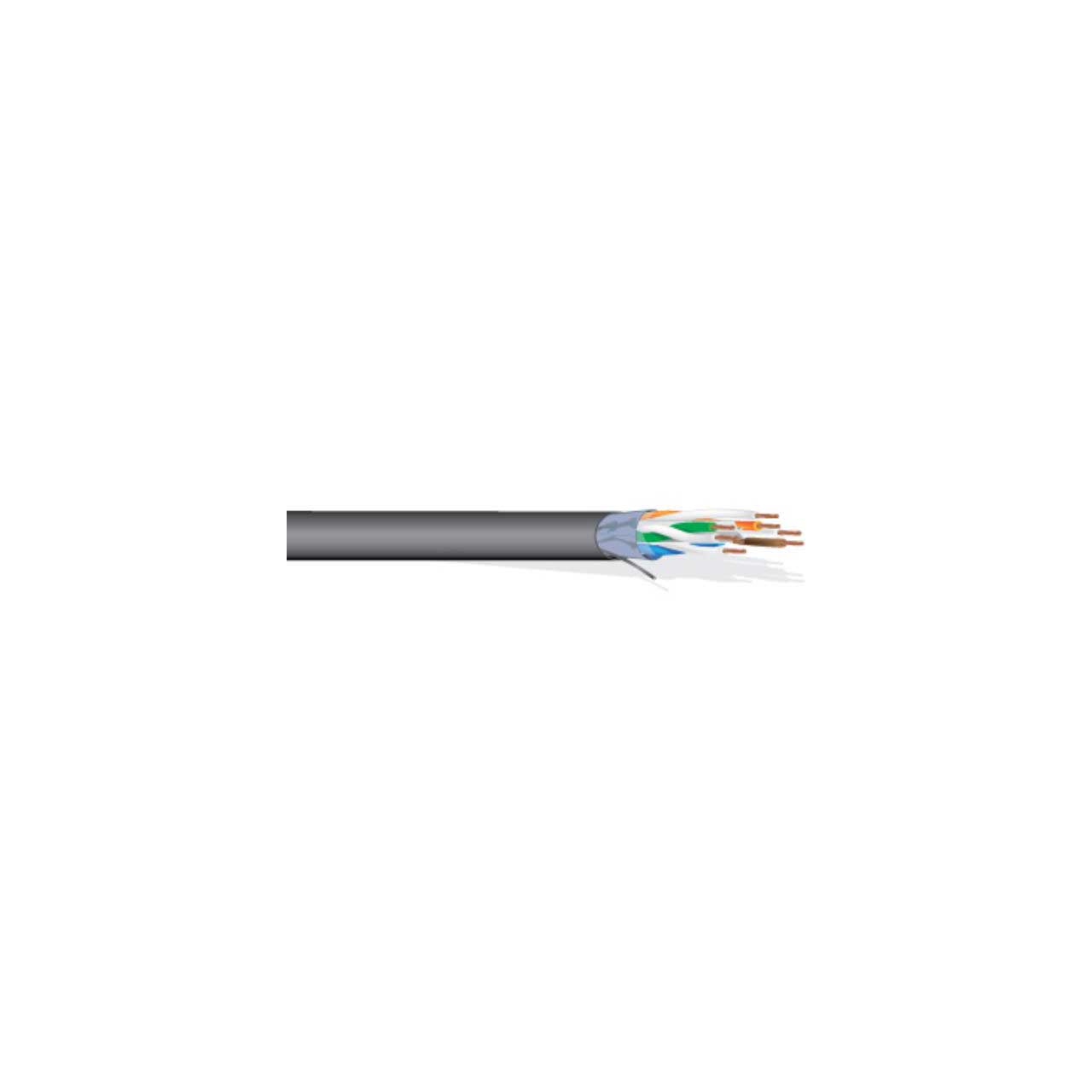

West Penn 4346AF 4 Pair 23AWG F/UTP Shielded Cat6A Cable - 10GBASE-T CMR 550MHz - Small OD - Black - 1000 Foot

ITEM #: WP-4346AF-1000BK MFG #: 4346AFBK1000

Primary Image
West Penn Wire Corp
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$484.10

Our Price:

$407.03

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

4346AFBK1000 - Overview

West Penn 4346AF is a 4 Pair 23AWG F/UTP Cat6A cable with 10G CMR 550MHz and Small OD. Suitable for Premise Horizontal Cable, Ethernet up to 10GBASE-T, Wi-Fi 6, Wi-Fi 5, Surveillance, HDBaseT, PoE++, PoE+, PoE, and Noisy Environments.

  • Specifications:

    • Number Of Pairs: 4
    • AWG Size: 23
    • Conductor Stranding: Solid
    • Conductor Type: Bare Copper
    • Nominal DCR: 21 Ohm/1000ft
    • Insulation Type: Polyolefin
    • Insulation Color Code: 1. Blue, White 2. Orange, White 3 .Green, White 4. Brown, White
    • Total Number of Conductors: 8
    • Jacket Type: PVC
    • Nominal Cable O.D.: .265 in
    • Plenum: No
    • Shield Type: 100% Aluminum Foil + Drain Wire - Drain Over the Foil
    • NEC UL Rating: CMR, CL3R UL 1666
    • RoHS Compliant: Yes
    • ANSI/TIA Category: ANSI/TIA-568.2-D Category 6A
    • Pull Tension: 25 lbs
    • Bend Radius: 1 in
    • Cable Weight: 37 lbs
    • Nominal Velocity of Propagation (VP): 70 %
    • Delay Skew: 45 ns/100m
    • UL Flammability: UL1666 Vertical Shaft
    • CSA Flammability: FT4
    • Operating Range: -20 to 75 Deg C
    • UL Voltage Rating: 300


  • Item Includes:

    • 1x West Penn 4346AF 4 Pair 23AWG F/UTP Cat6A Cable - 10GBASE-T CMR 550MHz - Small OD - Black - 1000 Foot


  • GTIN:

    0612825054184
