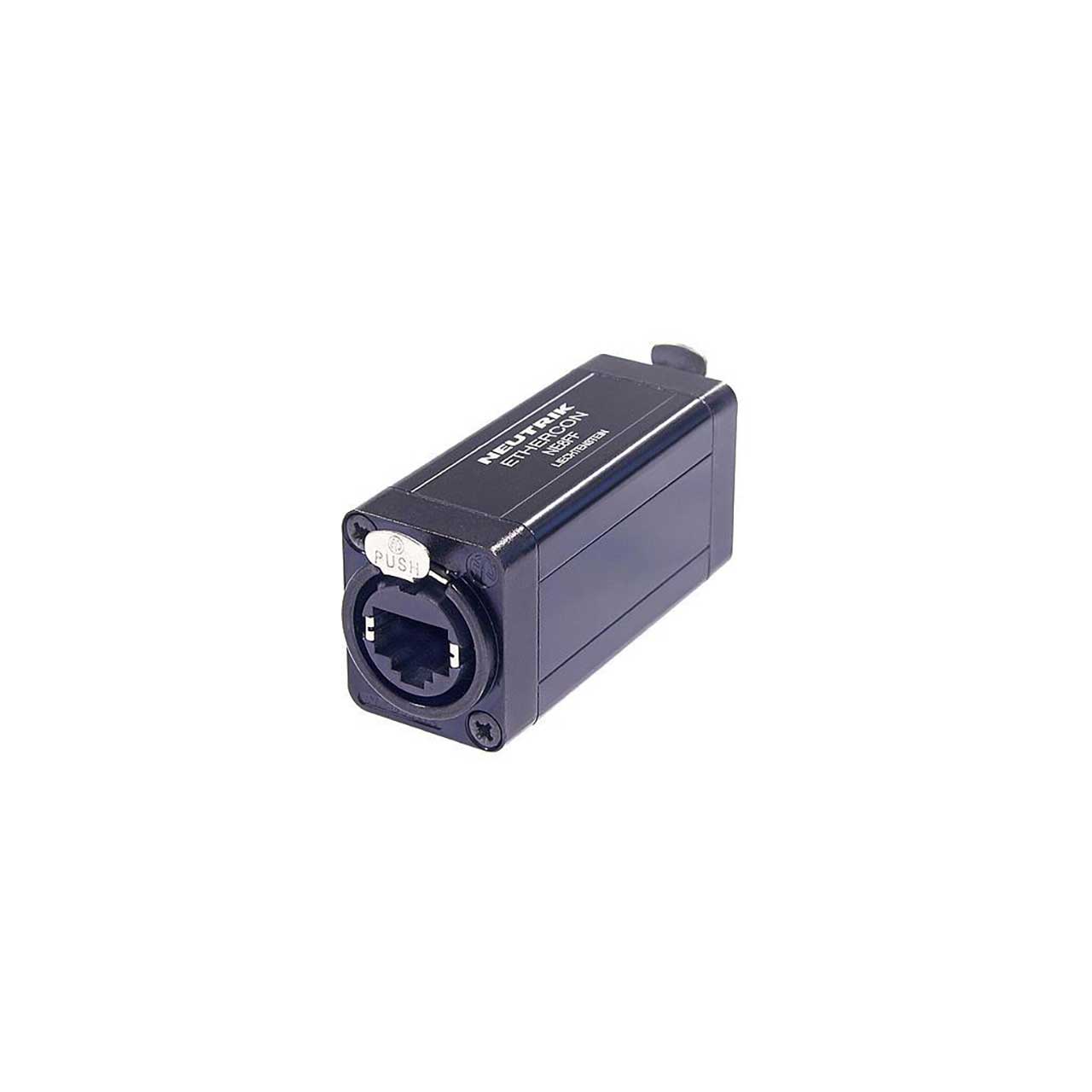

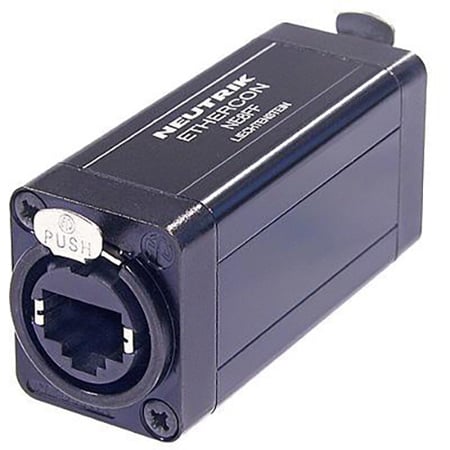

Neutrik NE8FF RJ45 etherCON Feedthrough Coupler

NE8FF - Overview

• Features:

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system


• Specifications:

  • Product
  • Title: NE8FF
  • Connection Type: Adapter
  • Gender: female

    Electrical
  • Contact resistance: < 10 mΩ
  • Dielectric strength: 1 kVdc
  • Frequencyrange: 1 - 100 MHz
  • Insulation resistance: > 0.5 GΩ
  • Rated current per contact: 1,5 A
  • Rated voltage: < 50 V
  • Standard compliance: TIA/EIA 586B, IEC11801

    Mechanical
  • Insertion force: ≤ 20 N
  • Withdrawal force: ≤ 20 N
  • Lifetime: > 1000 mating cycles
  • Locking device: Latch lock

    Material
  • Contact plating: 0.2 µm Au over Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: PBTP 15 % GR
  • Shell: AlMgSi 0.5, black plated
  • Strain relief: CuZn35Pb2, Tin plated

    Environmental
  • Flammability: UL 94 HB
  • Temperature range: -30 °C to +80 °C


• GTIN:

  7613187010347
