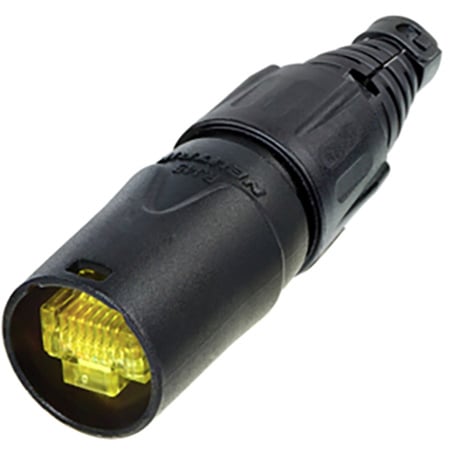

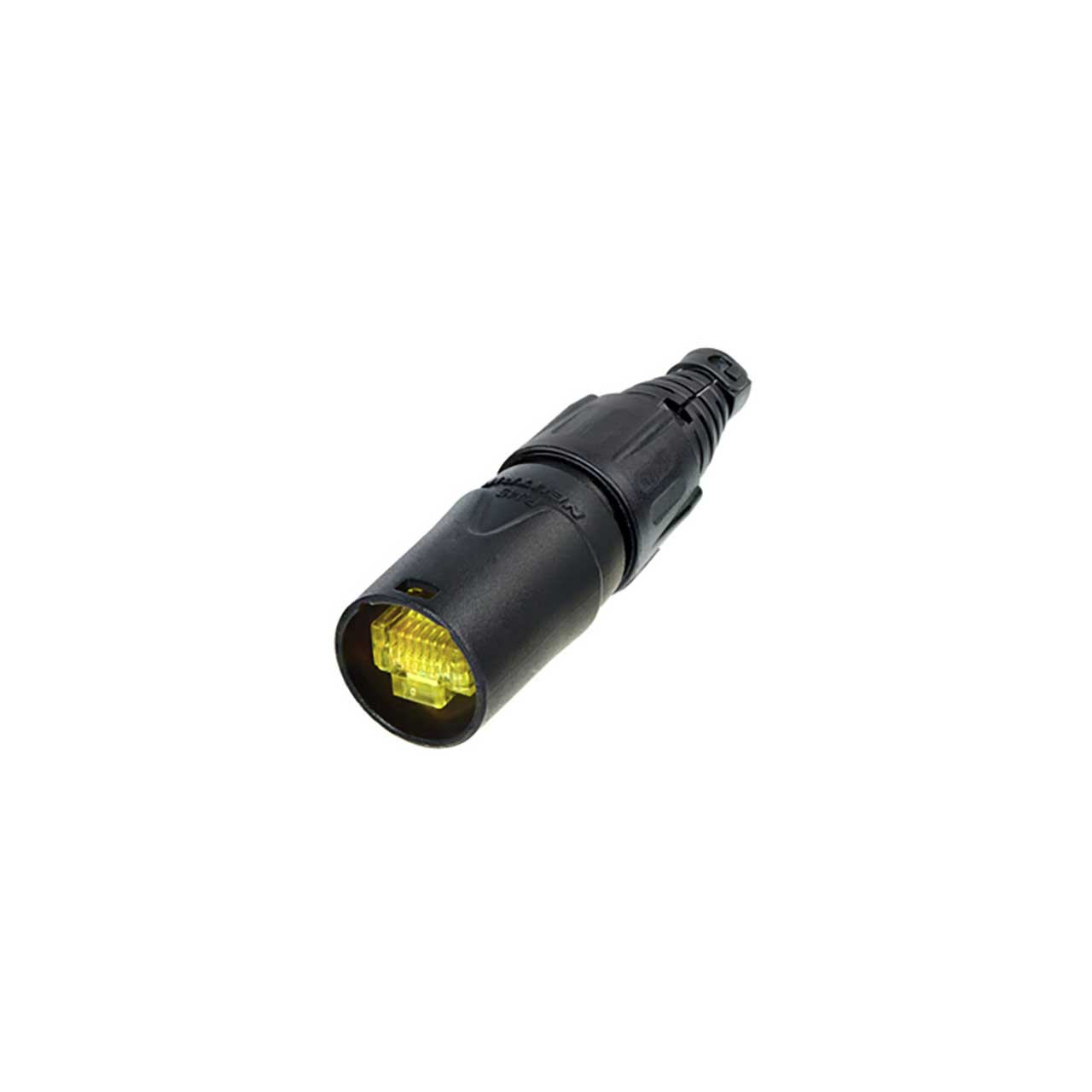

Neutrik NE8MX-B Cable End Connector Carrier X Series Black etherCON Shell Only - Requires RJ45 Connector and Cable

Name: Neutrik NE8MX-B Cable End Connector Carrier X Series Black etherCON Shell Only - Requires RJ45 Connector and Cable
Brand: Neutrik Americas
SKU: NE8MX-B
Price: 3.79 USD
Availability: PreSale

ITEM #: NE8MX-B MFG #: NE8MX-B

Neutrik Americas

List Price:

$4.42

Our Price:

$3.79

Quantity Pricing

Add to Wish List Leasing Options

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NE8MX-B - Overview

The NE8MX-B RJ45 cable connector carrier for pre-assembled RJ45 plugs consists of black chromium shell, bushing and boot. Packed with two cable protection elements for cable diameter either up to 5 mm or 8 mm. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Please Note: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.
Also note! Cable connectors do not include RJ45 plug. RJ45 cable assembly must be provided by end user!

Features:
- The RJ45 system for harsh and demanding environment
- Rugged diecast shell and unique chuck type strain relief
- Allows assembly of pre-assembled conventional RJ45 cables
- Cable connector carrier accepts the most common RJ45 plugs
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
- Accessories include color coded boots in 9 standard colors
Specifications:
- Cable O.D.: Max. 8mm 0.315'
- Insertion Force: ≥20 N
- Withdrawal Force: ≥20 N
- Lifetime: > 1000 mating cycles
- Boot: Polyamide (PA 6)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell Plating: Black chromium
- Strain Relief: Polyacetal (POM)
- Temperature Range: -22°F - 176°F (-30°C - 80°C)
GTIN:
7613187012112
