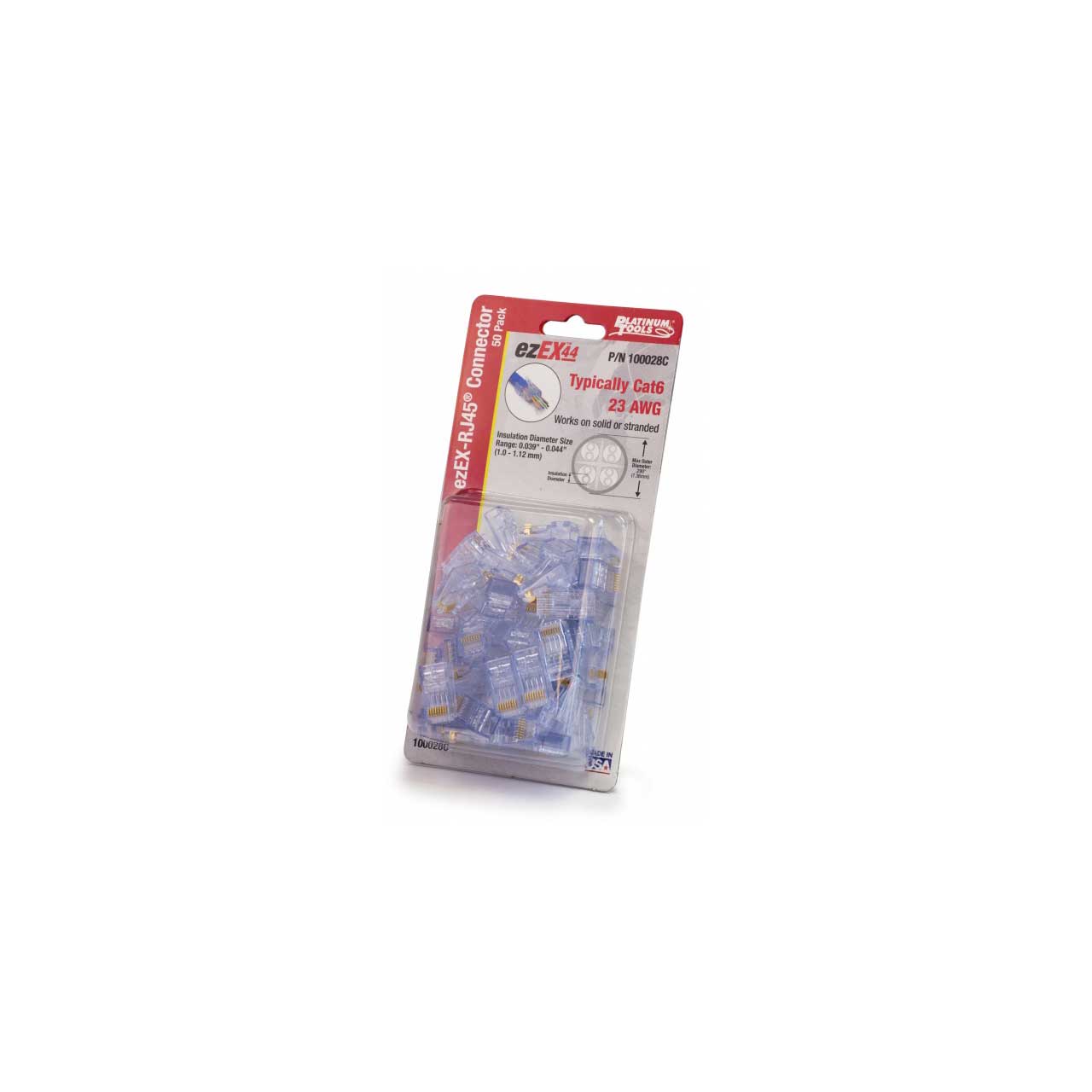

Platinum Tools 100028C ezEX44 10G RJ45 Connectors for 0.039 to 0.044 Conductors POE- 50 Pack

ITEM #: PLAT-100028C MFG #: 100028C

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$39.02

Our Price:

$33.17

Availability: In Stock
iAvailability Description Popup


    100028C - Overview

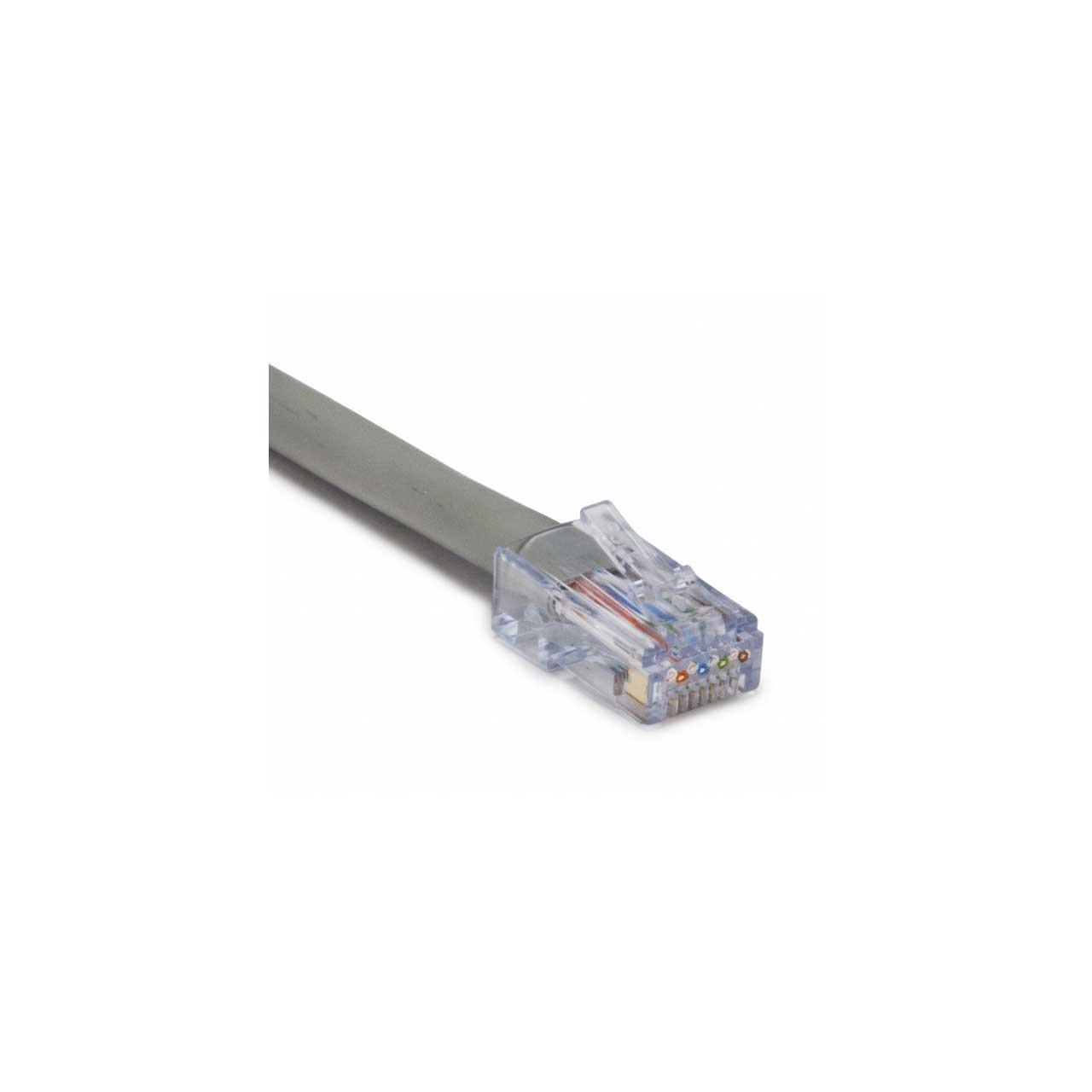

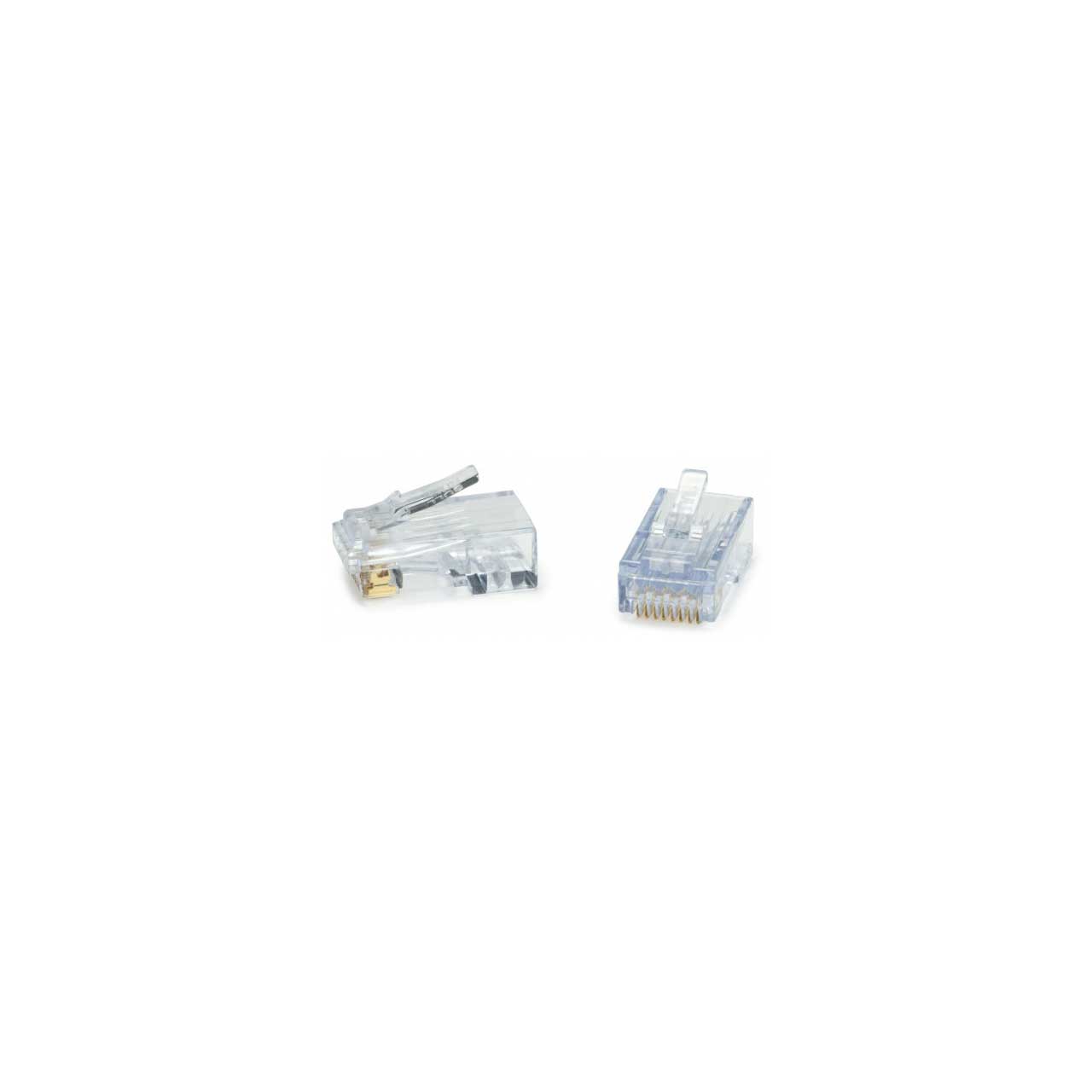

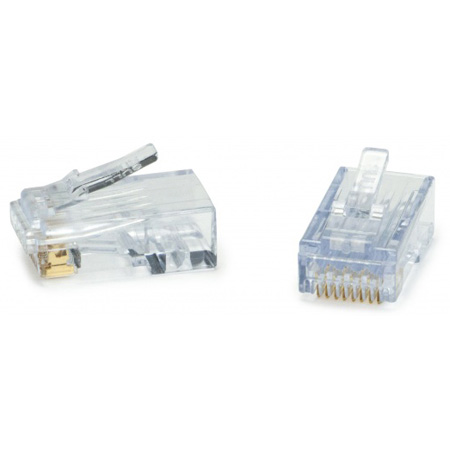

    The Platinum Tools ezEX44 Connector is designed for larger cables and conductors. Features a unique integrated Hi-Lo stagger load bar that allows larger conductors to pass through the front end of the connector. Making it easy to verify the wiring sequence before terminating. The connector is typically used with Cat6 and is terminated with EXO Crimp Frame and EXO-EX Die (PLAT-100061C).

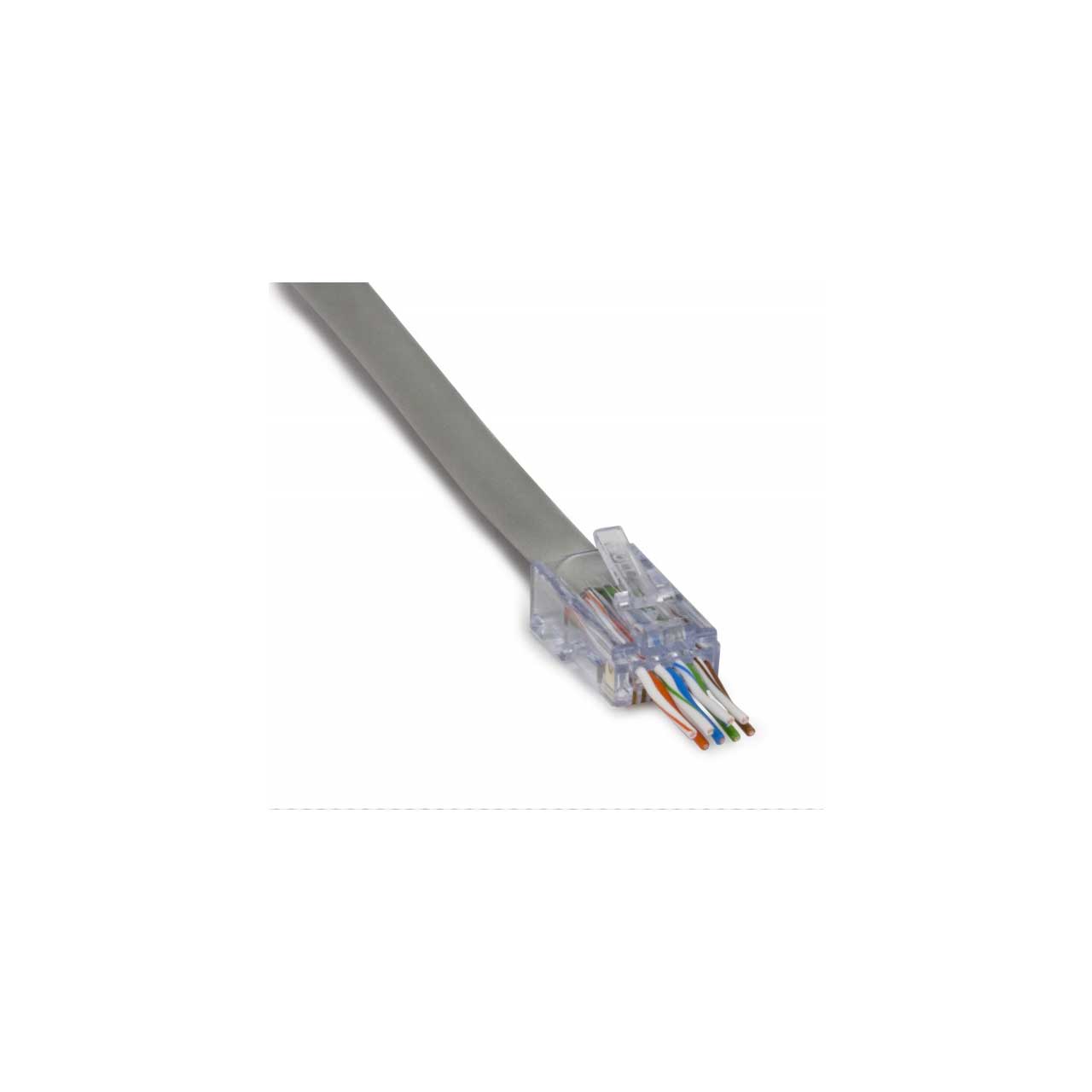

    In today's networks, twisted pair cables are demanding more speed and bandwidth. To help meet these requirements, Cat5e/6/6A cables have increased in size. Both the outer diameter of the cable and the insulation diameter of the conductors are larger and vary by manufacturer, making cable and connector compatibility a challenge. The new patented ezEX-RJ45 Termination System is the solution providing greater cable to connector compatibility to meet higher performance demands. The ezEX-RJ45 connectors feature a unique integrated Hi-Lo stagger load bar and allows "big" conductors to pass through the front end of the connector making it easy to verify the wiring sequence before terminating.

    • Features:

      • Rated for POE/POE+
      • Hi-Lo stagger to isolate each conductor
      • Simple one piece/pass through design, no bars or liners
      • Insulation Diameter (Conductor) Size range: .039" - .044" (1.0 -1.12mm)
      • Max Outer Diameter: .290" (7.36mm)
      • Typically used with Cat6
      • 5e/6/6A compliant
      • Solid or Stranded 24-22 AWG
      • TIA, TAA, RoHS 2, UL & FCC compliant
      • Made in the USA

    • GTIN:

      0849160008613
