Neutrik NE8MX-B-1 etherCON Cable Connector with Black Chromium Shell Chuck and Boot

Name: Neutrik NE8MX-B-1 etherCON Cable Connector with Black Chromium Shell Chuck and Boot
Brand: Neutrik Americas
SKU: NE8MX-B-1
Price: 3.59 USD
Availability: InStock

ITEM #: NE8MX-B-1 MFG #: NE8MX-B-1

Neutrik Americas

List Price:

$4.18

Our Price:

$3.59

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NE8MX-B-1 - Overview

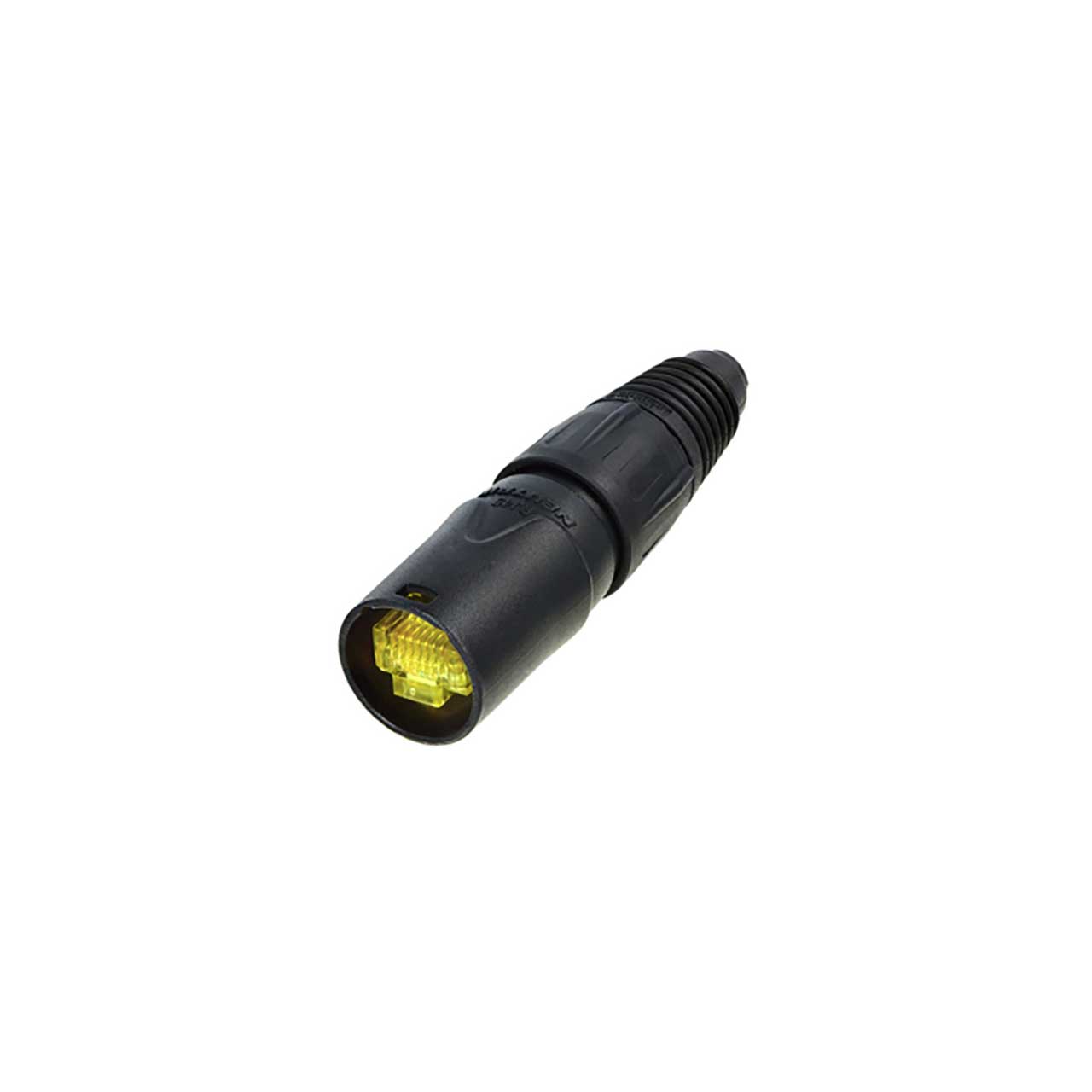

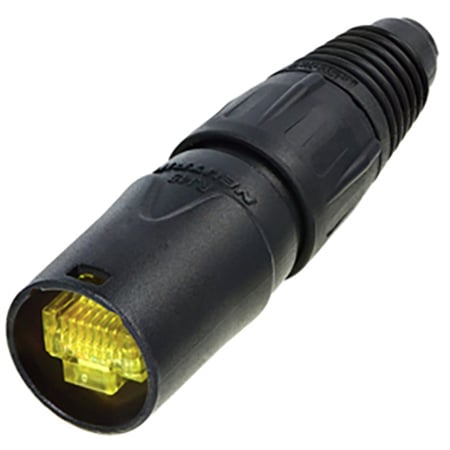

The Neutrik NE8MX-B-1 cable connector carrier consists of a black chromium shell, chuck and boot. The boot (same as X-series) is suitable for cable diameters from 3.5 - 8 mm. For non pre-assembled cables only. This unit does not include an RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust lockable solution.

Please Note: This unit does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

Shell, Chuck and Boot ONLY! RJ45 connector is not included.

Features:
- NEW the bushing has been optimized for improved operation with larger-diameter cables and the bushing insert color has changed from black to white.
- The RJ45 system for harsh and demanding environment
- Cable connector carrier accepts the most common RJ45 plugs
- Rugged diecast shell and unique chuck type strain relief
- Allows assembly of non pre-assembled conventional RJ45 cables
- Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
- Accessories include color coded boots in 9 standard colors
Specifications:
- Cable O.D: 3.5 - 8 mm
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Lifetime: > 1000 mating cycles
- Boot: Polyamide (PA 6)
- Shell: Zinc diecast (ZnAl4Cu1)
- Shell plating: Black chromium
- Strain relief: Polyacetal (POM)
- Temperature range: -30 °C to +80 °C
