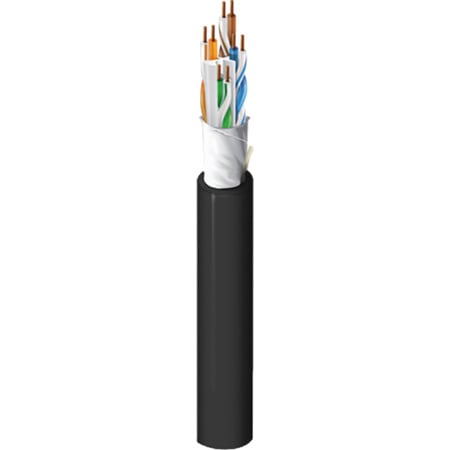

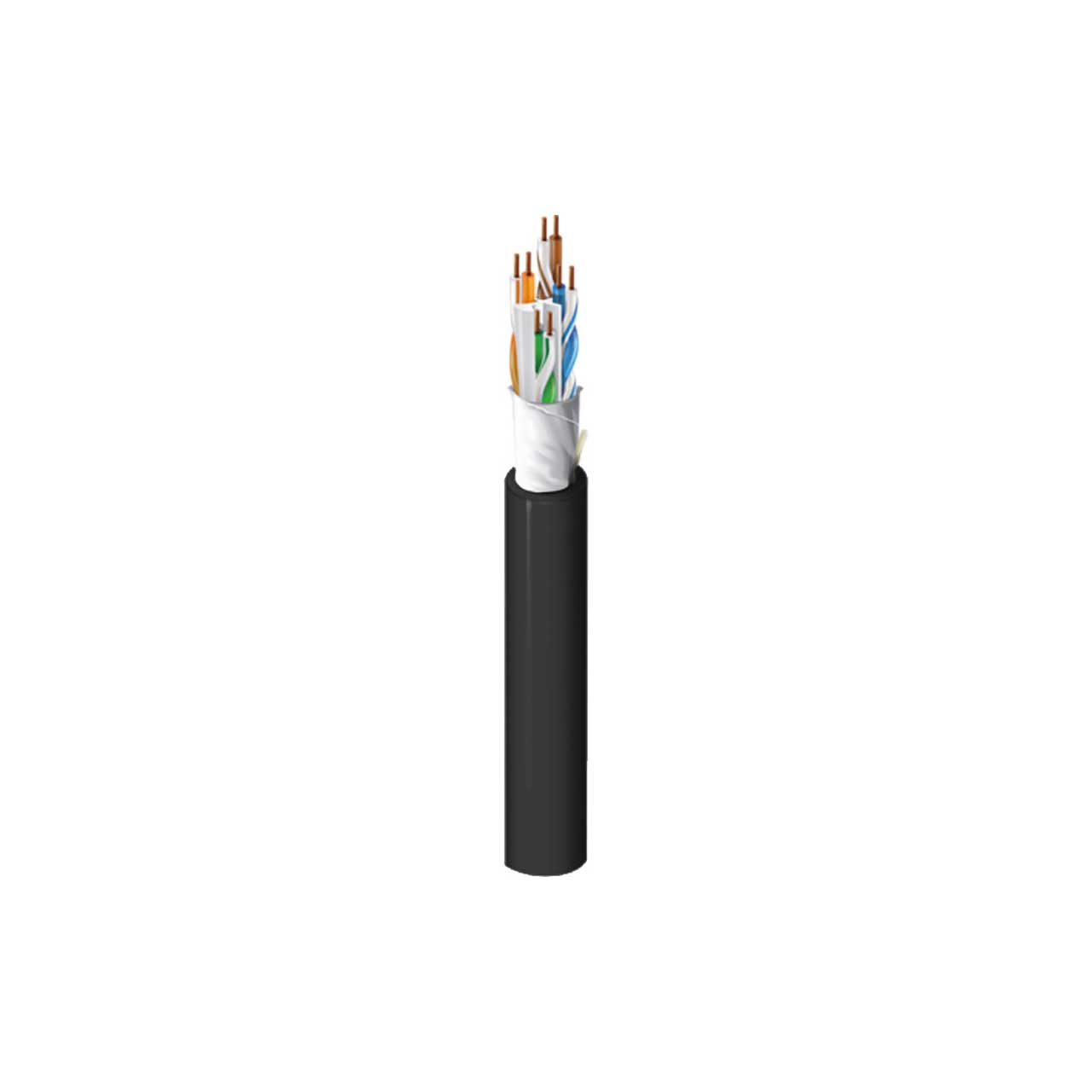

Belden 10GXS32 Riser/CMR 4 Bonded Pair U/UTP Cat6A Enhanced Ethernet Cable Solid BC 23AWG - Black - 1000 Ft/Reel in Box

ITEM #: 10GXS320A1000BK MFG #: 10GXS32010A1000

Primary Image
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$706.30

Our Price:

$576.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

10GXS32010A1000 - Overview

Belden 10GXS32 is a 23 AWG, Category 6A, U/UTP, Enhanced Premise Horizontal Cable (625MHz). It features 4 Bonded-Pairs with Solid Bare Copper Conductors and it's Riser-CMR rated in a PVC Jacket.

Belden Category 6A Copper Cable offers a wide range of options for your CAT 6A network, 10GXS Cable is the industry's gold standard for performance! Belden offers Ethernet cables that give operators the ability to run their company at full speed.

Applications
Premise Horizontal Cable
Ethernet up to 10GBASE-T
Wi-Fi 6
Wi-Fi 5
PoE++, PoE+, PoE
Noisy Environments
Data Center EoR and MoR
Network Backbone
HDBaseT
HDBaseT 4K UHD

  • Features:

    • Reliable network performance: Designed for mission-critical situations that require constant uptime
    • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
    • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
    • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables


  • Specifications:

    • Conductor AWG: 23
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Count: 8
    • Total Number of Pairs: 4
    • Insulation Material: PO - Polyolefin
    • Insulation Color Code: White & Blue, White & Orange, White & Green, White & Brown
    • Bonded-Pair: Yes
    • Outer Jacket Separator: Center Member (Patented EquiSpliner®), EquiBlock™ Barrier Technology
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.278 in (7.06 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.278 in (7.06 mm)
    • Max. Conductor DCR: 79 Ohm/km
    • Max. DCR Unbalance: 3.0%
    • Max DCR Unbalanced Between Pairs [%]: 5.0 %
    • Max. Capacitance Unbalance: 90 pF/100m
    • Nom.Mutual Capacitance: 17 pF/ft
    • UL Voltage Rating: 300 V RMS
    • Installation Temp Range: 0°C To +50°C
    • UL Temp Rating: 90°C
    • Storage Temp Range: -20°C To +75°C
    • Operating Temp Range: -20°C To +75°C
    • Bulk Cable Weight: 33 lbs/1000ft
    • Max Recommended Pulling Tension: 40 lbs
    • Min Bend Radius During Installation: 2.5 in
    • Min Bend Radius/Minor Axis: 1.1 in
    • Environmental Suitability: Riser, Indoor
    • Flammability / Reaction to Fire: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
    • CEC / C(UL) Compliance: CMR


  • Item Includes:

    • 10GXS32 Cat6A Enhanced Ethernet Cable 23AWG - Black - 1000 Ft/Reel in Box


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825102038
