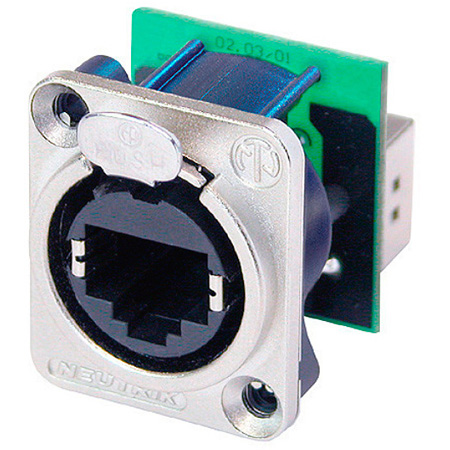

Neutrik NE8FDP etherCON RJ45 Feedthru

NE8FDP - Overview

• Features:

  • Accommodates NE8MC* or any standard RJ45 plug
  • Approved latch lock system
  • Mountable from the front or rear of the panel
  • Complies with Cat 5e according to TIA / EIA 568B and ISO / IEC 11801 standard


• Specifications:

  • Electrical
  • Contact resistance: < 10 mΩ
  • Dielectric strength: 1 kVdc
  • Frequency range: 1 - 100 MHz
  • Insulation resistance: > 0.5 GΩ
  • Rated current per contact:1,5 A
  • Rated voltage: < 50 V
  • Transmission performance: CAT 5e
  • Standard compliance: TIA/EIA 586B, IEC11801

    Mechanical
  • Insertion force: 20 N
  • Withdrawal force: 20 N
  • Lifetime: > 1000 mating cycles
  • Panel thicknessmax. 4 mm 0.16'
  • Wiring: Feedthrough
  • Locking device: Latch lock
  • Chassis shape: D

    Material
  • Contact plating: 0.2 æm Au over Ni plating
  • Contacts: Bronze (CuSn8)
  • Insert: PBTP 15 % GR
  • Shell: Zinc diecast (ZnAl4Cu1)
  • Shell plating: Nickel

    Environmental
  • Flammability: UL 94 V-0
  • Temperature range: -30°C to +80°C


• Item Includes:

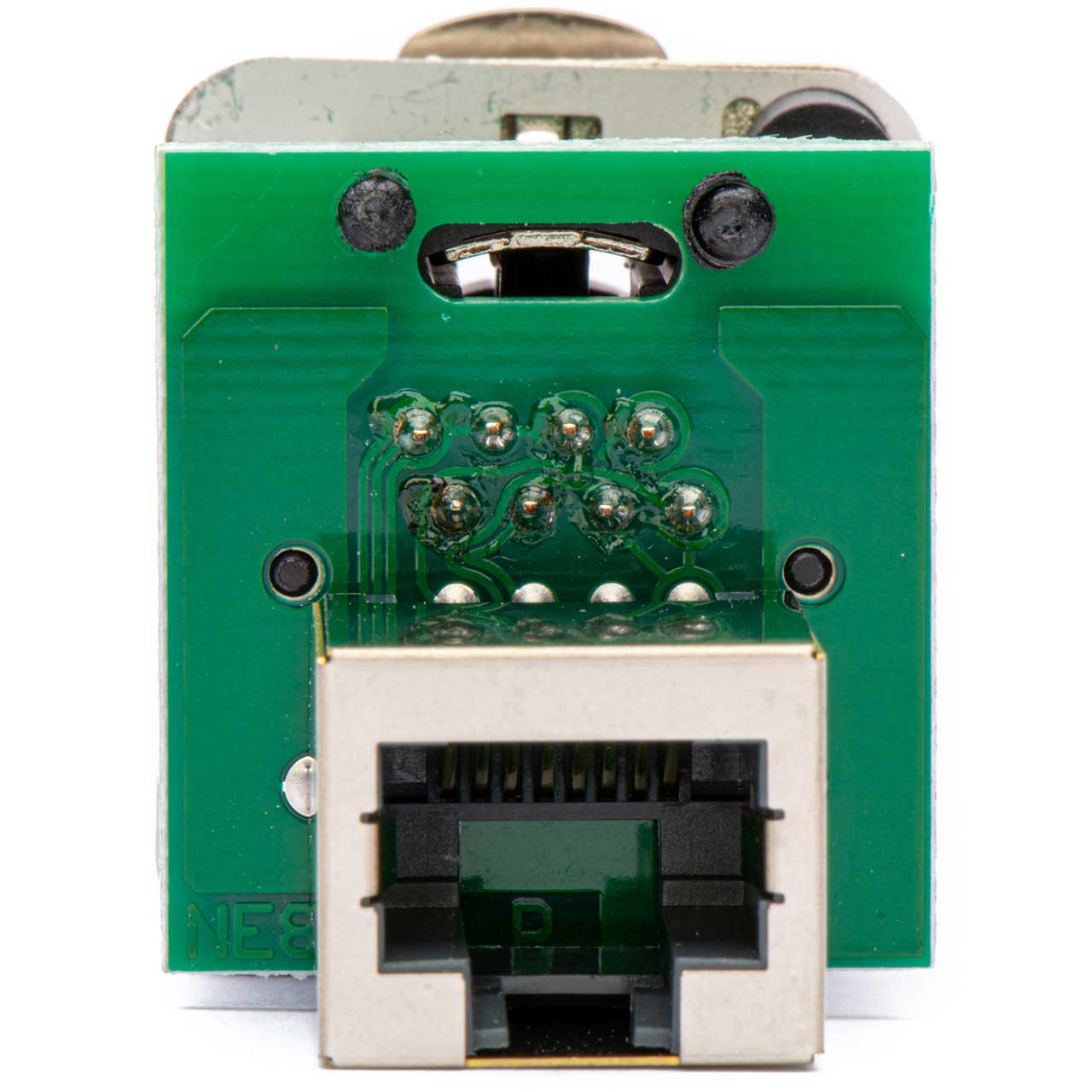

  • RJ45 feedthrough receptacle, D-shape metal flange with the latch lock, mounting screws


• GTIN:

  7613187004919
