Neutrik NE8MX Cable End Connector Carrier X Series etherCON CAT5 - Nickel - Requires RJ45 cable

ITEM #: NE8MX MFG #: NE8MX

Primary Image
Neutrik Americas
Free Shipping with $49 Minimum Order

List Price:

$3.92

Our Price:

$3.36

Quantity Pricing

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

NE8MX - Overview

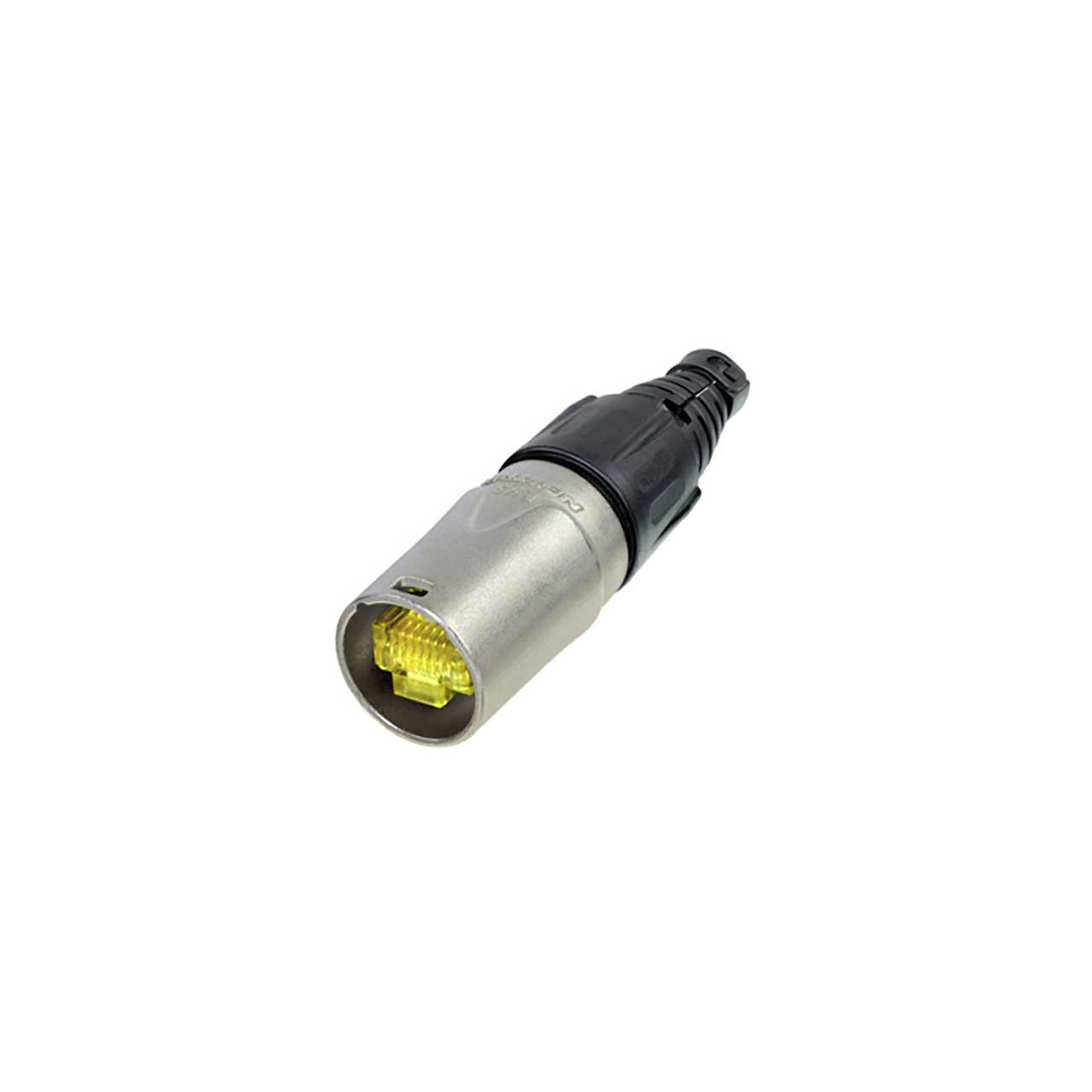

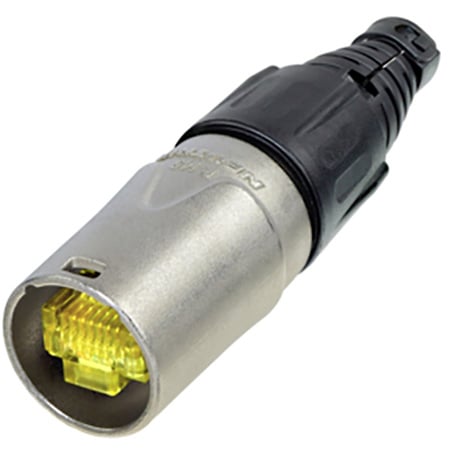

The NE8MX is a cable connector carrier that consists of a velour chromiuim shell, chuck and boot. The boot is suitable for cable diameters from 5 - 8 mm. Cable connector carrier does not include a RJ45 plug. The etherCON cable connector carrier upgrades a conventional RJ45 connector to an extremely robust, outdoor protected lockable solution (IP65 & UL50E). ATTENTION: Does not intermate with the CAT6 chassis connectors NE8FDY-C6 and NE8FDY-C6-B.

  • Features:

    • The RJ45 system for harsh and demanding environment
    • Rugged diecast shell and unique chuck type strain relief
    • Allows assembly of pre-assembled conventional RJ45 cables
    • Protects Ethernet connections in a variety of commercial type applications and is designed to prevent breakage of the fragile components of standard RJ45 connectors
    • Accessories include color coded boots in 9 standard colors


  • Specifications:

    • Cable O.D.: 5.0 - 8.0 mm
    • Insertion force: ≥ 20 N
    • Withdrawal force: ≥ 20 N
    • Lifetime: > 1000 mating cycles
    • Boot: UV-resistant rubber
    • Shell: Zinc diecast (ZnAl4Cu1)
    • Shell plating: Velour Chromium
    • Strain relief: Polyacetal (POM)
    • Temperature range: -30 °C to +80 °C
    • Protection class: IP65, UL50E (mated)


  • GTIN:

    7613187012105
