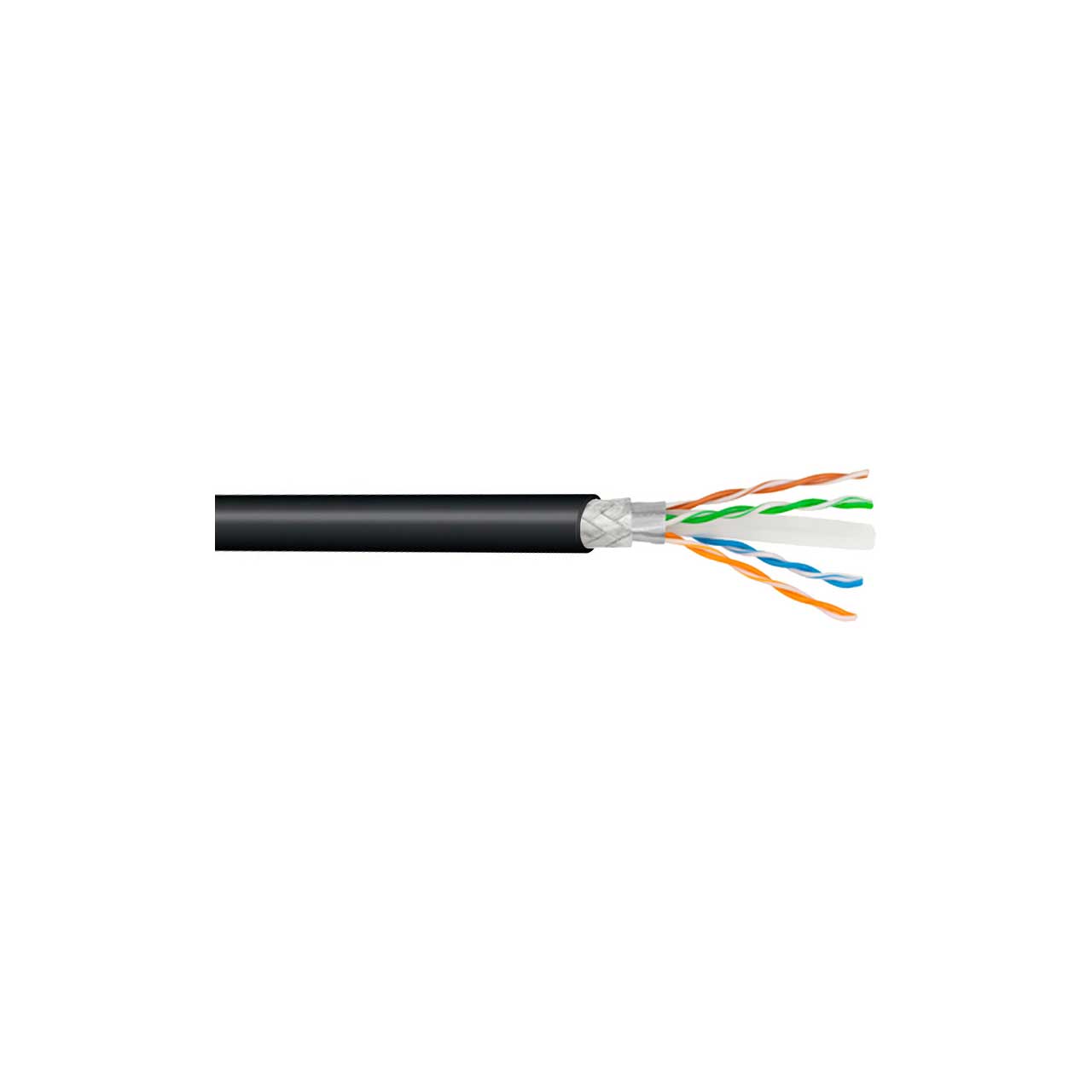

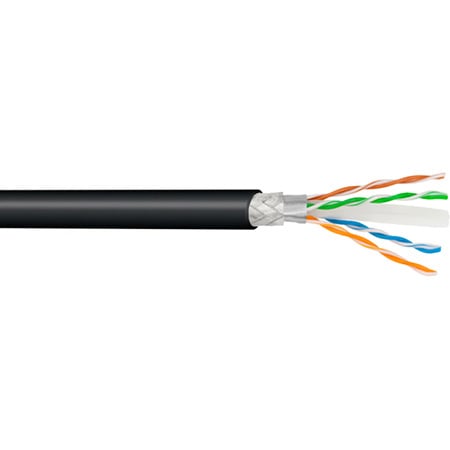

Shattuc SCDX6AT-RO-00 Heavy Duty Indoor/Outdoor Category 6A 24AWG Stranded Data/Tactical Cable - Per Foot

SCDX6AT-RO-00 - Overview

• Features:

  • Shielded flexible patch/jumper cable to support screened industrial ethernet/ IP, TIA-568-C.2 category 6 and 6A applications.
  • NEC (UL) type CMX outdoor - CM and CEC C(UL) type CMX outdoor - CM
  • Cable is suitable for use in Class I Division II hazardous locations
  • Cable is UL approved for Sunlight Resistant and Direct Burial Applications.
  • Meets IEEE 1202 flame test
  • All materials used in the manufacture of this cable are RoHS compliant
  • Maximum Voltage: 300V


• Specifications:

  • Conductor
  • Material: 24 AWG 7/32 TC
  • Quantity: 4 PAIR

    Overall Cabling
  • Binder: FOAM PP TAPE
  • Shield: 75% TC BRAID, 100% FOIL

    Insulation
  • Material: HDPE
  • Wall Thickness: .011"
  • Color Code: WHT/BLU X BLU, WHT/ORG X ORG, WHT/GRN X GRN, WHT/BRN X BRN

    Jacketing
  • Material: TPE
  • Wall Thickness: .039"
  • Diameter: .325" +/- .010"
  • Color: BLACK
  • Weight: 48.5 lbs/MFT
  • Temp Rating: 75°C to -20°C PER UL 444

  • Temp Rating: 75°C to -40°C MANU RECOMMEND
