Belden 1583A Riser/CMR U/UTP CAT5e Premise Horizontal 4 Non-Bonded Pair Cable 200MHz 24AWG - Black - Per Foot

ITEM #: BL-1583A MFG #: 1583A

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$0.32

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

1583A - Overview

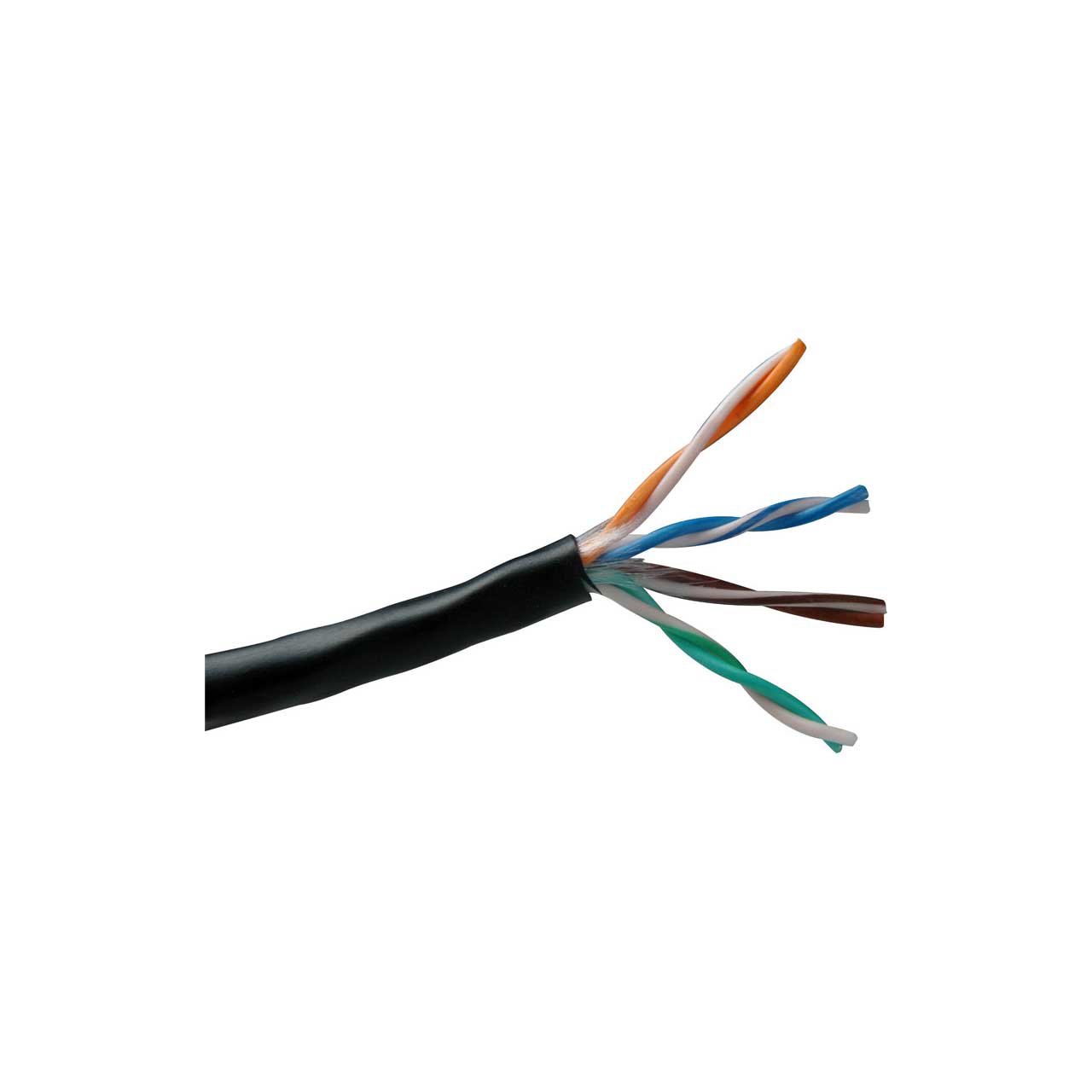

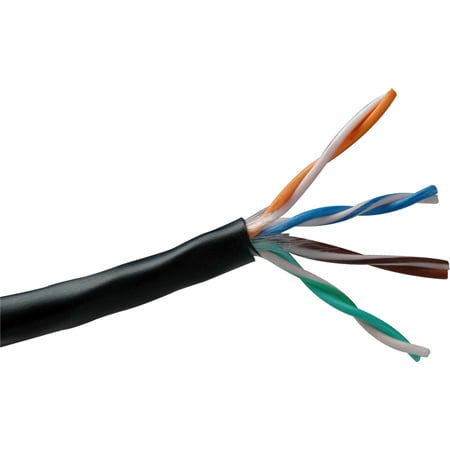

Belden 1583A is a U/UTP Category 5e Premise Horizontal Cable (200MHz), with 4 Non-Bonded Pair, 24 AWG with Solid Bare Copper Conductors in a Riser/CMR rated PVC Jacket.

Ensure maximum network performance and stability in legacy IP applications, renovations and price-sensitive environments with Category 5e cables that exceed standards. Belden offers several Category 5e performance levels.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++, PoE+, PoE

Please Note: Our stock of Belden 1583A sold by the foot varies in length. The maximum continuous length on hand is never more than 400 feet. For full rolls, see model BL-1583A-1000.

  • Features:

    • Superior Electrical Performance: Exceeds Category 5e performance
    • Stable Electricals: Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
    • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz

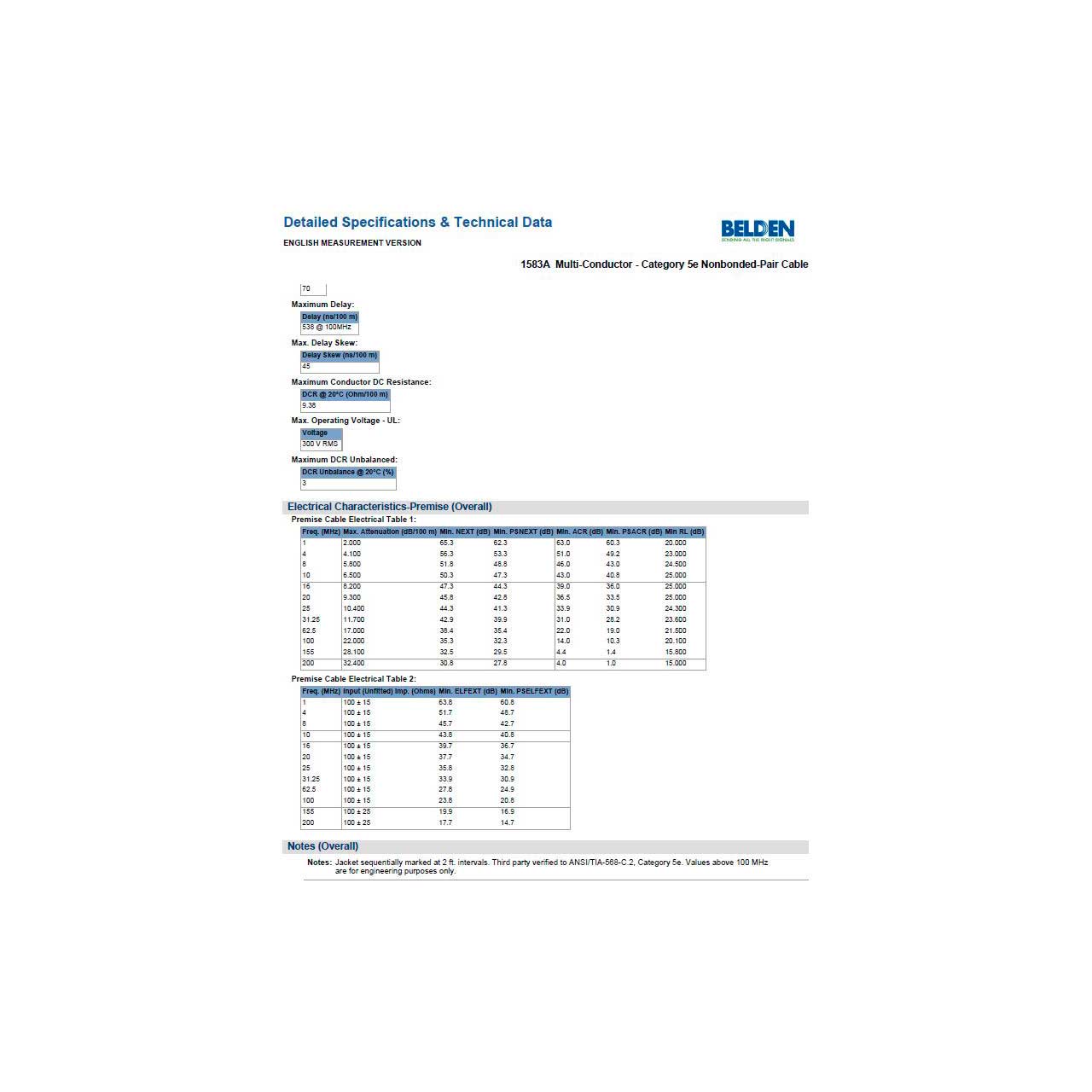

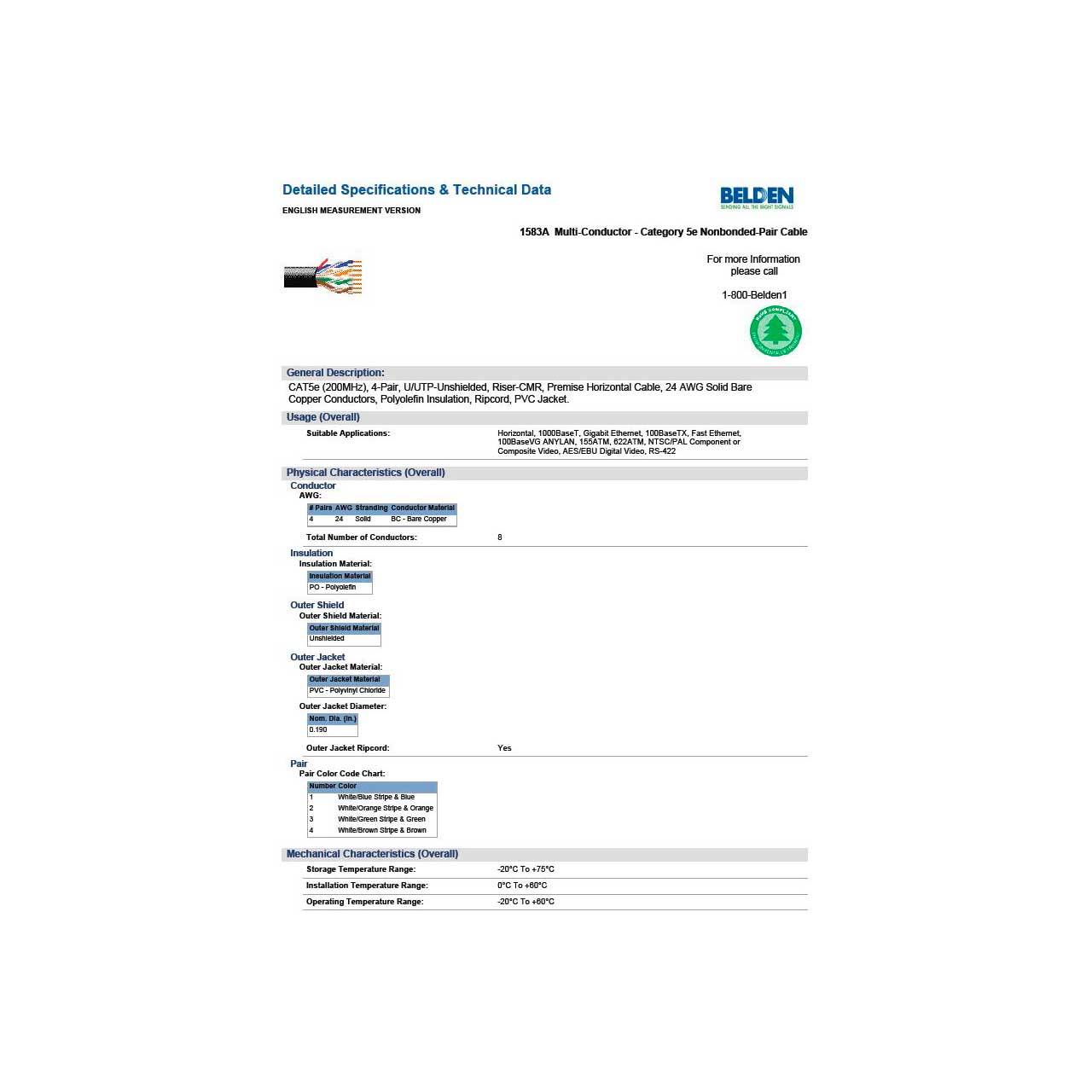

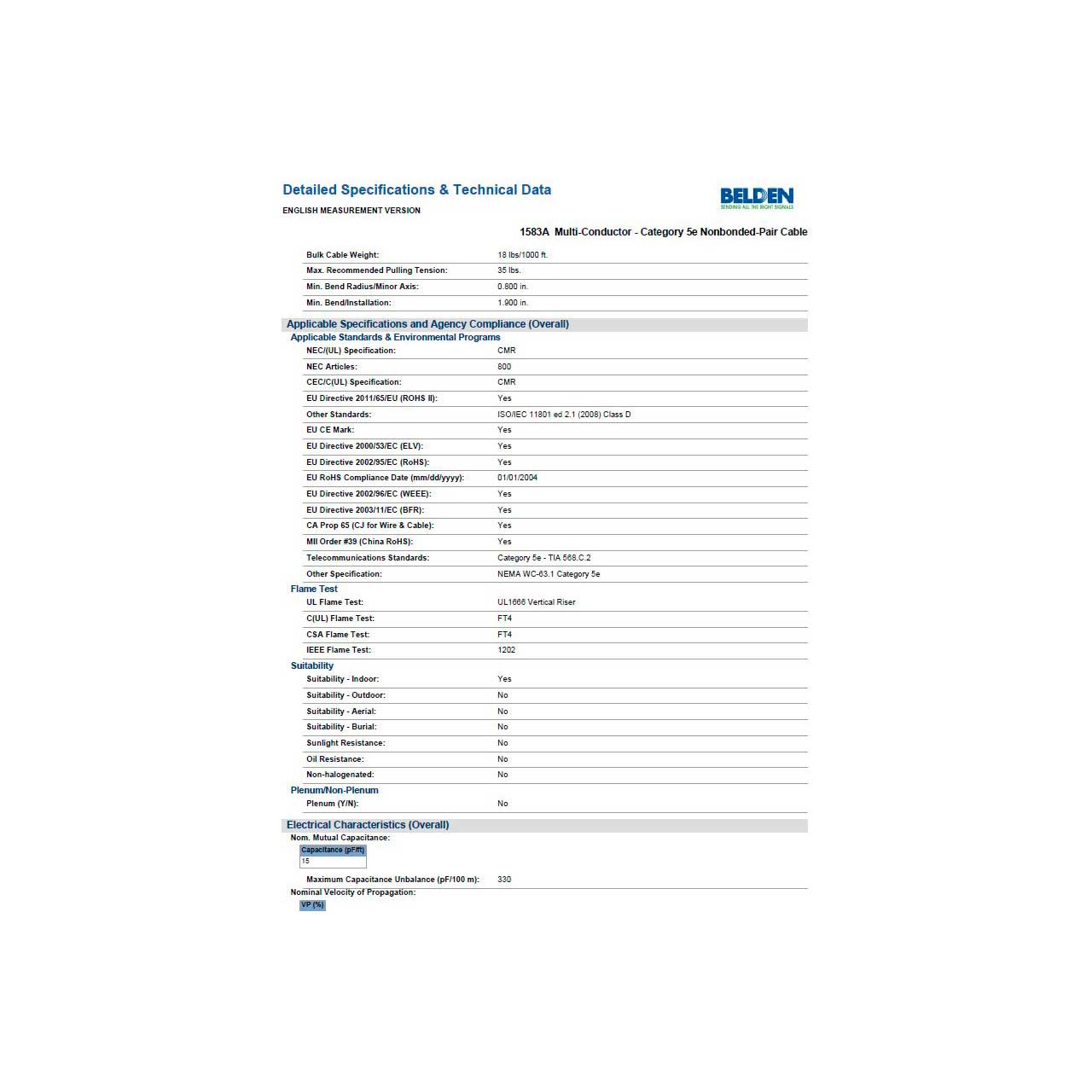

  • Specifications:

    • Conductor AWG: 24
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Number of Pairs: 4
    • Insulation Material: PO - Polyolefin
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.190 in (4.83 mm)
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)
    • Max. Conductor DCR: 93.8 Ohm/km
    • Max. DCR Unbalance: 5%
    • Max. DCR Unbalanced Between Pairs [%]: 55%
    • Max. Capacitance Unbalance: 330 pF/100m
    • Nom. Mutual Capacitance: 15 pF/ft
    • Frequency Delay [MHz]: 100 MHz
    • Max. Delay: 537.6 ns/100m
    • Max. Delay Skew: 45 ns/100m
    • UL Voltage Rating: 300 V (CMR)
    • UL Rating Temp: 75°C
    • Operating Temp: -20°C To +75°C
    • Installation Temp: 0°C To +50°C
    • Storage Temp: -20°C To +75°C
    • Max. Pull Tension: 25 lbs
    • Bulk Cable Weight: 18 lbs/1000ft
    • Environmental Suitability: Riser, Indoor
    • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
    • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
    • NEC / UL Compliance: 800, CMR
    • CEC / C(UL) Compliance: CMR
    • ICEA Compliance: S-90-661-2012
    • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
    • NEMA Compliance: NEMA WC-63.1
    • Data Category: Category 5e
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
    • CPR Euroclass: Eca


  • Item Includes:

    • 1583A Riser/CMR U/UTP CAT5e Cable 200MHz 24AWG - Black - Per Foot


  • Warranty:

    • Limited 10 Year Warranty
