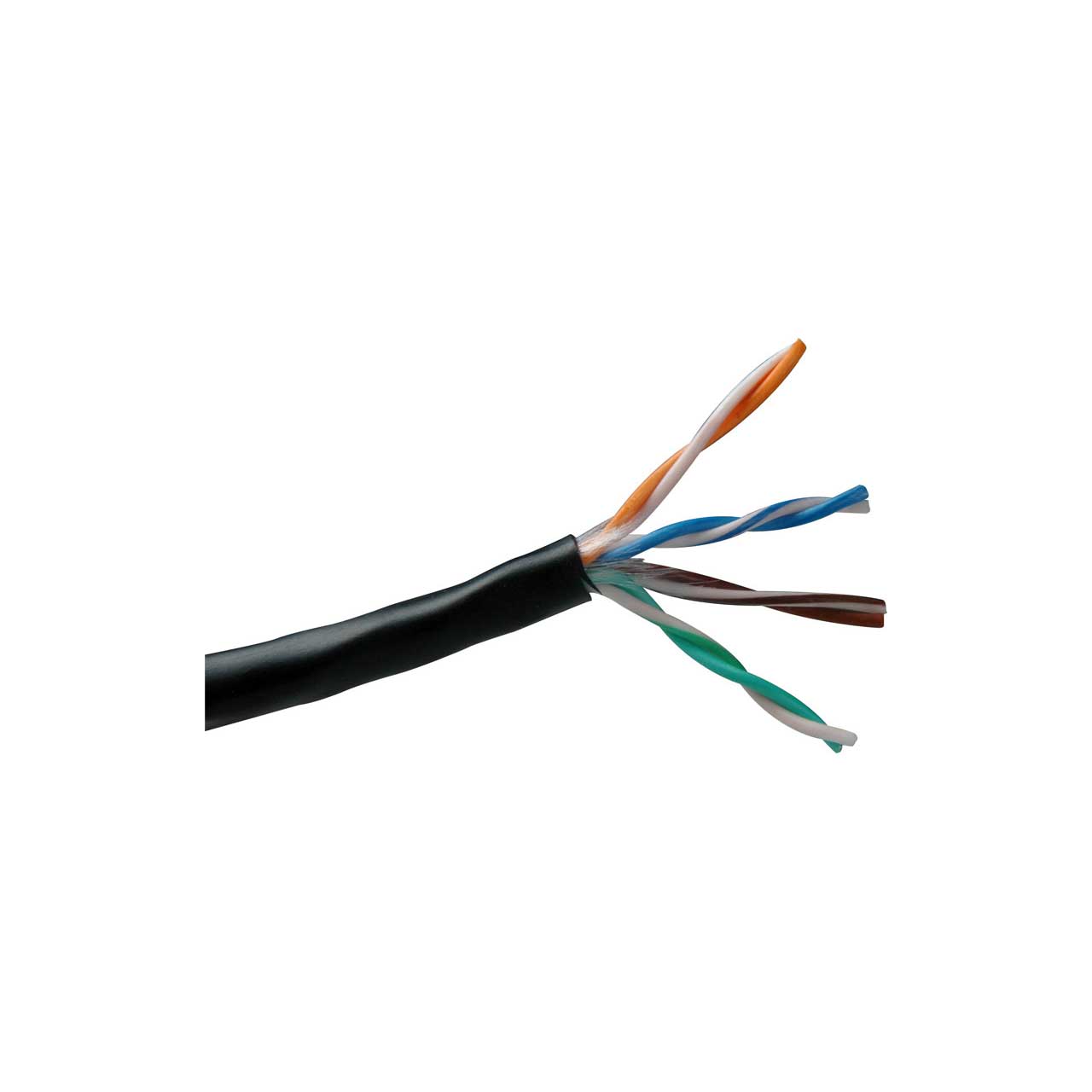

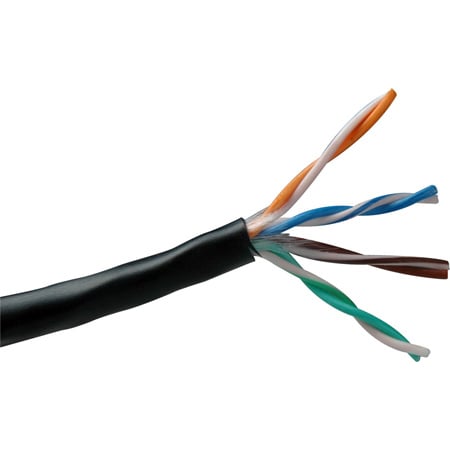

Belden 1583A Riser/CMR U/UTP CAT5e Premise Horizontal 4 Non-Bonded Pair Cable 200MHz 24AWG - Black - 1000 Foot

1583A 0101000 - Overview

• Features:

  • Superior Electrical Performance: Exceeds Category 5e performance
  • Stable Electricals: Cable’s design features matched conductors on all four pairs providing for extremely stable electrical performance
  • Performance Headroom: As part of the REVConnect 1200 System, delivers data rates up to 1.2 Gb/s for a system with usable bandwidth of 160 MHz


• Specifications:

  • Conductor AWG: 24
  • Conductor Stranding: Solid
  • Conductor Material: BC - Bare Copper
  • Conductor Number of Pairs: 4
  • Insulation Material: PO - Polyolefin
  • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
  • Outer Jacket Material: PVC - Polyvinyl Chloride
  • Outer Jacket Nom. Diameter: 0.190 in (4.83 mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.190 in (4.83 mm)
  • Max. Conductor DCR: 93.8 Ohm/km
  • Max. DCR Unbalance: 5%
  • Max. DCR Unbalanced Between Pairs [%]: 55%
  • Max. Capacitance Unbalance: 330 pF/100m
  • Nom. Mutual Capacitance: 15 pF/ft
  • Frequency Delay [MHz]: 100 MHz
  • Max. Delay: 537.6 ns/100m
  • Max. Delay Skew: 45 ns/100m
  • UL Voltage Rating: 300 V (CMR)
  • UL Rating Temp: 75°C
  • Operating Temp: -20°C To +75°C
  • Installation Temp: 0°C To +50°C
  • Storage Temp: -20°C To +75°C
  • Max. Pull Tension: 25 lbs
  • Bulk Cable Weight: 18 lbs/1000ft
  • Environmental Suitability: Riser, Indoor
  • Sustainability: Product Lens™, Environmental Product Declaration (EPD) Available
  • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
  • NEC / UL Compliance: 800, CMR
  • CEC / C(UL) Compliance: CMR
  • ICEA Compliance: S-90-661-2012
  • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3
  • NEMA Compliance: NEMA WC-63.1
  • Data Category: Category 5e
  • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 5e
  • CPR Euroclass: Eca


• Item Includes:

  • 1583A Riser/CMR U/UTP CAT5e Cable 200MHz 24AWG - Black - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825317661
