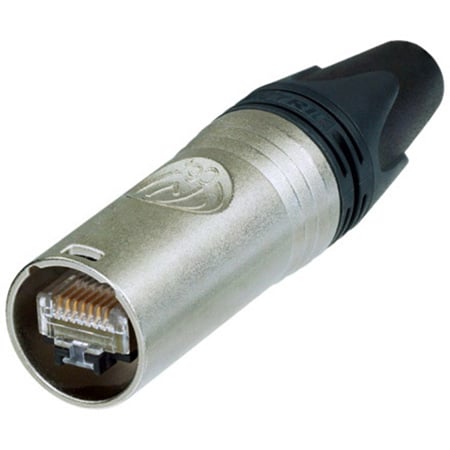

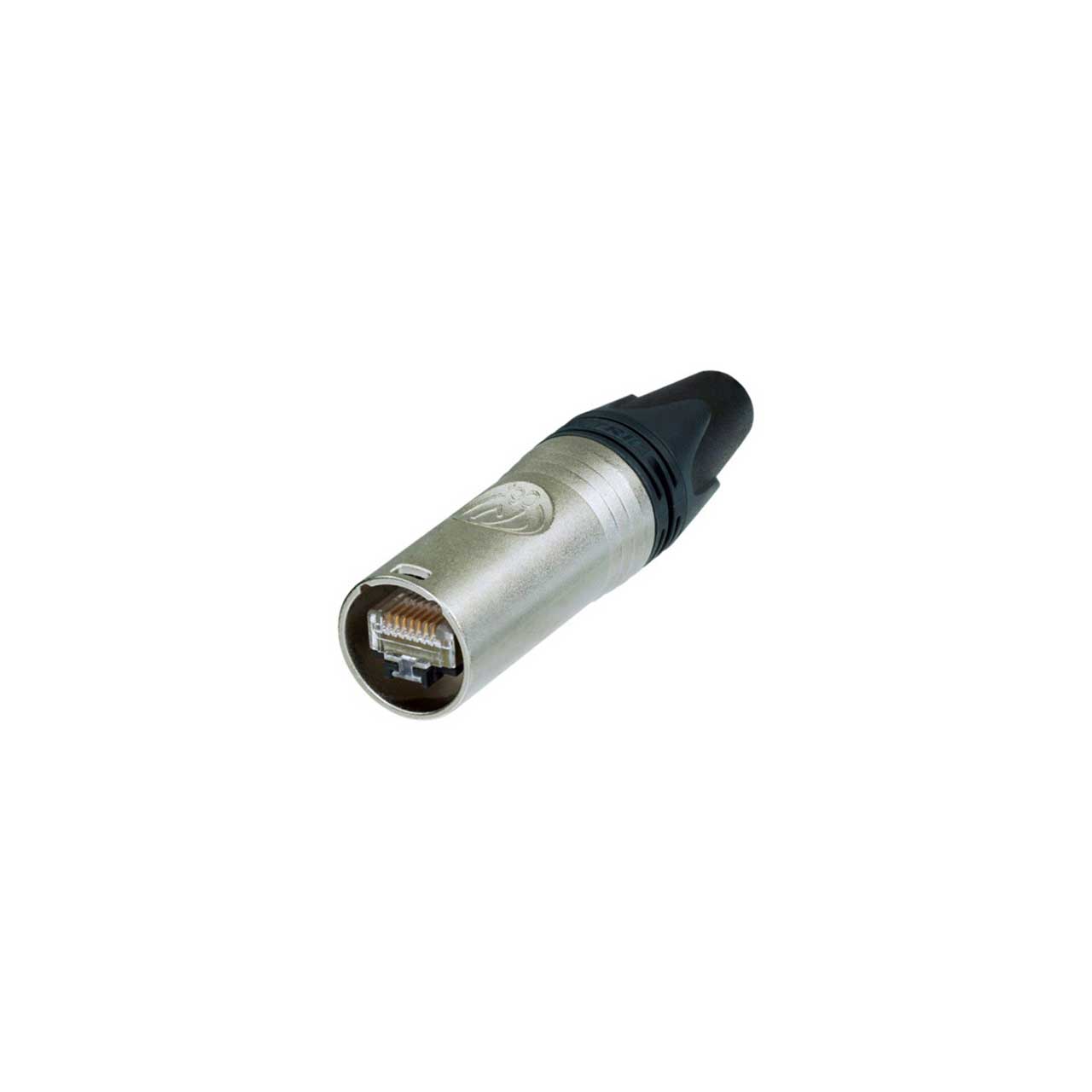

Neutrik NE8MX6 etherCON CAT6A Cable Connector Self-termination - Nickel Plating

NE8MX6 - Overview

• Features:

  • Ruggedized connector with CAT6A component compliance according to ISO/IEC 11801 and TIA/EIA 568-C.2
  • PoE+ compliant according to 802.3at Type2
  • IP65 protected when mated with NE8FDX-P6-W or NE8FDX-Y6-W
  • Rugged latch lock system million fold proven
  • Intermateable with the existing etherCON CAT5 range
  • Unique Neutrik chuck-type strain relief


• Specifications:

  • Gender male


  • Electrical
  • Dielectric strength 1 kVdc
  • Insulation resistance > 0.5 GΩ
  • Rated current per contact 1.5 A
  • Transmission performance
  • CAT6A, acc. TIA/EIA rating
  • CAT6A, acc. IEC/ISO/EN rating
  • Power over Ethernet PoE+ acc. IEEE 802.3at


  • Mechanical
  • Cable O.D. 7.0 - 9.5 mm
  • Lifetime > 1000 mating cycles
  • Locking device Latch lock
  • Wiring
  • IDC
  • Wire size (solid): 0.128 - 0.324 mm² (AWG 26/1 - AWG 22/1)
  • Stranded wire: 0.111 - 0.355 mm² (AWG 27/7 - AWG 22/7)


  • Material
  • Bushing PA / PU
  • Contact plating Au
  • Shell Zinc diecast (ZnAl4Cu1)
  • Shell plating Nickel
  • Strain relief POM


  • Environmental
  • Protection class IP 65 (in combination with NE8FDX-*6-W)
  • Temperature range -40 °C to + 70 °C


• GTIN:

  7613187009235
