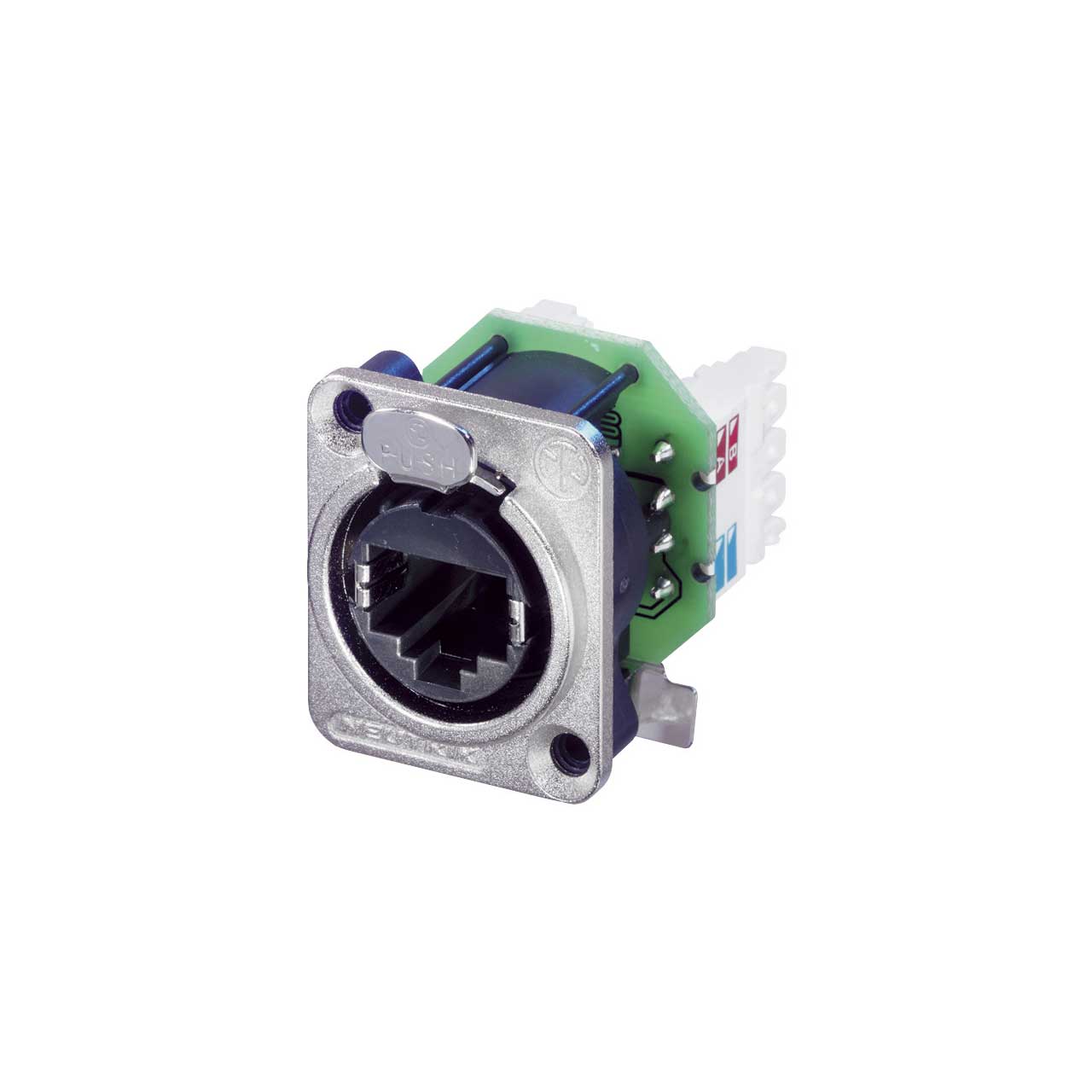

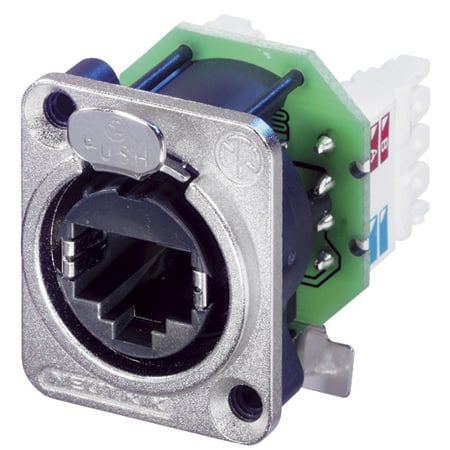

Panel mount receptacle with IDC 110 punch down terminals, D-shape metal flange with latch lock, max. panel thickness 4 mm. Mounting screws included.
A new generation of ruggedized RJ45 connectors. EtherCon Series is available shielded or unshielded and is compatible for use with 10 Base-T systems. The EtherCon series is especially developed for, but not limited to, audio and stage applications including DMX systems. Nevertheless the operational area of EtherCon is not limited to the entertainment industry. The EtherCon male cable connector carrier is a robust diecast shell with a unique metal chuck-type strain relief for optimal cable and plug protection. The female chassis connector is based on the proven Neutrik A/B and D series connectors with the secure latching system.
-
- Accommodates NE8MC or any standard RJ45 plug
- Complies with Class D according to TIA / EIA 568B and ISO / IEC 11801 standard
- Approved latch lock system
- Mountable from the front or rear of the panel
- Ground-panel connection
-
