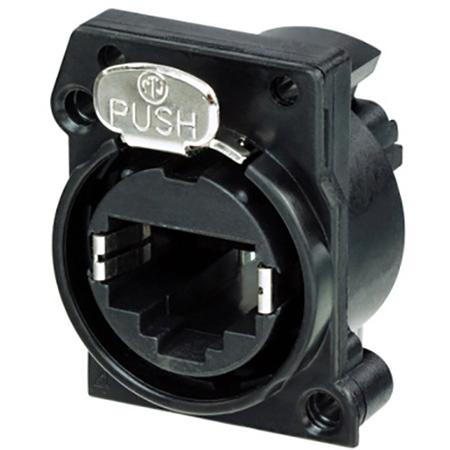

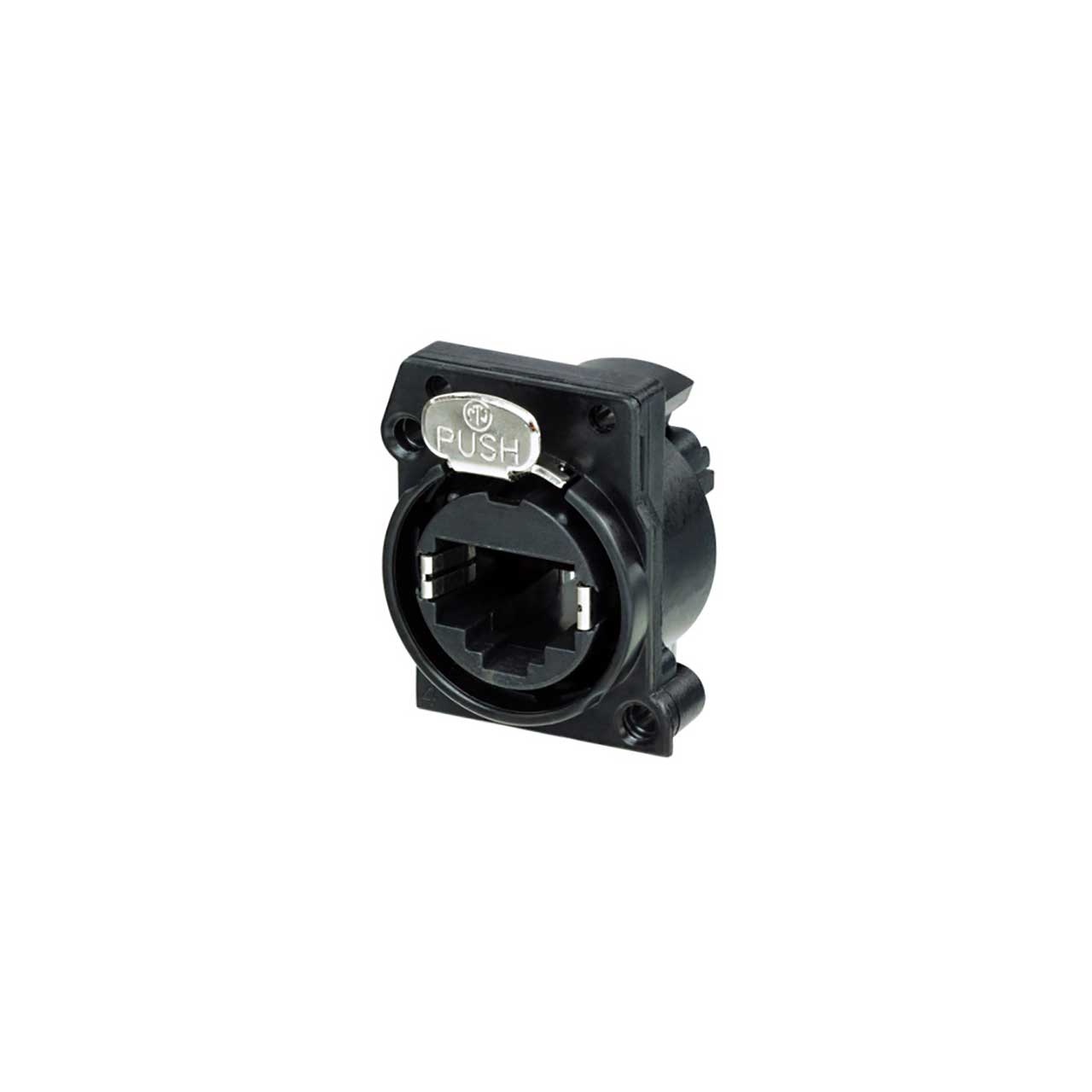

Neutrik NE8FAH-C5 etherCON Horizontal PCB Mount RJ45 Receptacle - CAT5e A Series

Name: Neutrik NE8FAH-C5 etherCON Horizontal PCB Mount RJ45 Receptacle - CAT5e A Series
Brand: Neutrik Americas
SKU: NE8FAH-C5
Price: 7.10 USD
Availability: InStock

ITEM #: NE8FAH-C5 MFG #: NE8FAH-C5

Neutrik Americas

List Price:

$8.28

Our Price:

$7.10

Quantity Pricing

Add to Wish List Leasing Options

Availability: In Stock

Report Lower Price Large Quantity Quote

Required Accessories

Recommended Accessories

NE8FAH-C5 - Overview

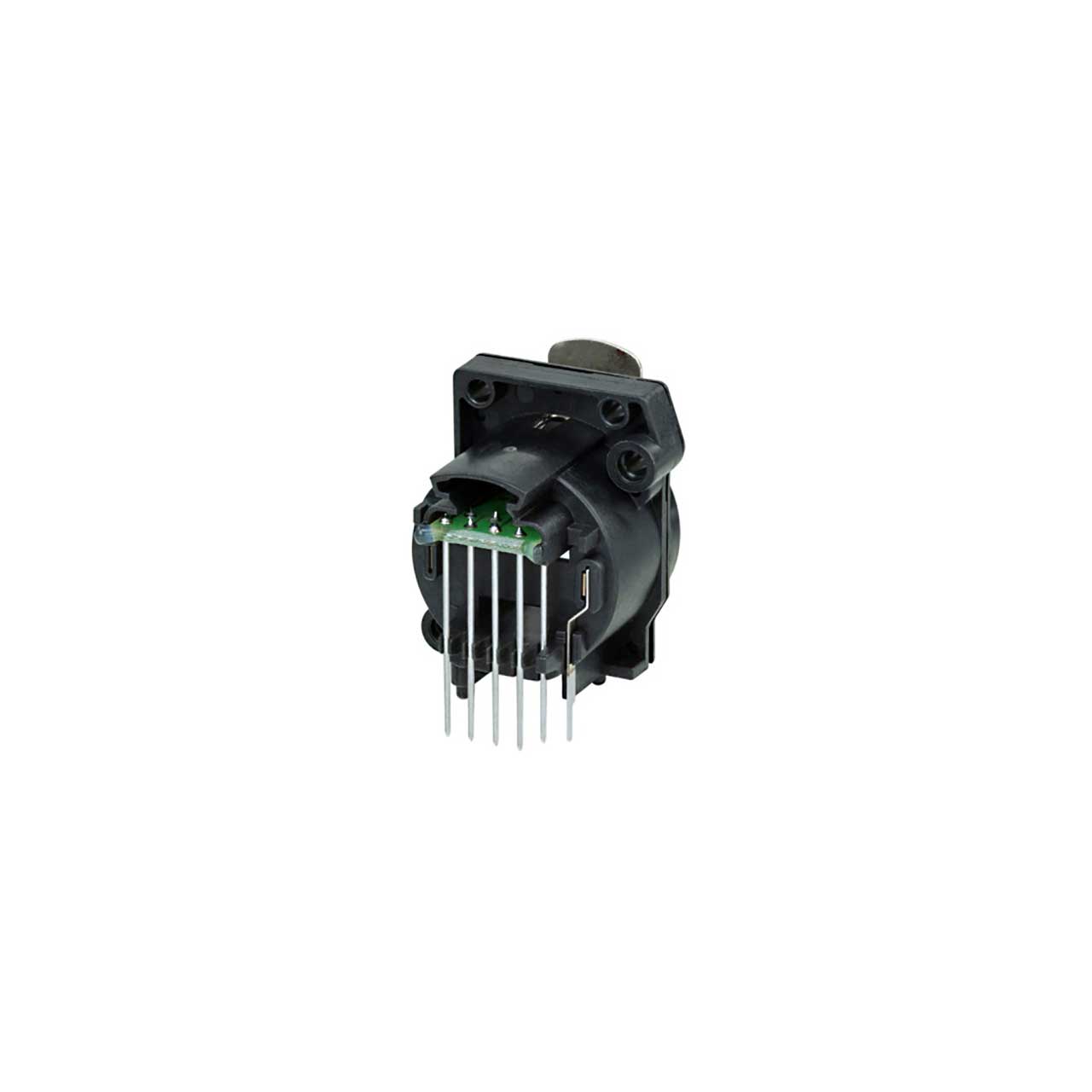

Horizontal PCB mount RJ45 receptacle, CAT5e, A-Series cutout with latch lock, max. panel thickness 3 mm

The etherCON Series is a ruggedized and lockable RJ45 connector system, optimized for pro audio, video and lightning network applications. The chassis connectors are shaped to fit into standardized panels out of the entertainment industry.

The all plastic A-Series offers the most space saving and cost effective design.

Attention! Does not intermate with CAT6 cable connectors.

Features:
- Accommodates rugged etherCON NE8MC* or any standard RJ45 plug
- Approved latch lock system
- Most space saving and cost effective design
- Isolated to panel ground
- PoE+ compliant according to 802.3at Type2
- CAT5e performance according to ISO/IEC 11801 and TIA/EIA 568-C.2
Specifications:
- Contact resistance: < 10 m OHm (inner)
- Dielectric strength: 1 kVdc
- Frequencyrange: 1 - 100 MHz
- Insulation resistance: > 0.5 G Ohm
- Rated current per contact: 1.5 A
- Rated voltage: < 50 V
- Transmission performance: CAT5e, acc. TIA/EIA 586C.2, IEC11801
- Power over Ethernet: PoE+ acc. IEEE 802.3at
- Insertion force: = 20 N
- Withdrawal force: = 20 N
- Lifetime: > 1000 mating cycles
- Panel thickness: max. 3 mm (0.12'')
- Wiring: Horizontal PCB mount
- Locking device: Latch lock
- Mounting direction: Rear
- Chassis shape: A
