Belden 1872A CMR 4 Bonded Pair U/UTP CAT6+ Premise Horizontal Copper Cable 23AWG - Black - 1000 Foot

ITEM #: BL-1872A-1000 MFG #: 1872A 0101000

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Belden
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$547.10

Our Price:

$493.41

Add to Wish ListLeasing Options
Availability: In Stock
iAvailability Description Popup
Report Lower PriceLarge Quantity Quote

1872A 0101000 - Overview

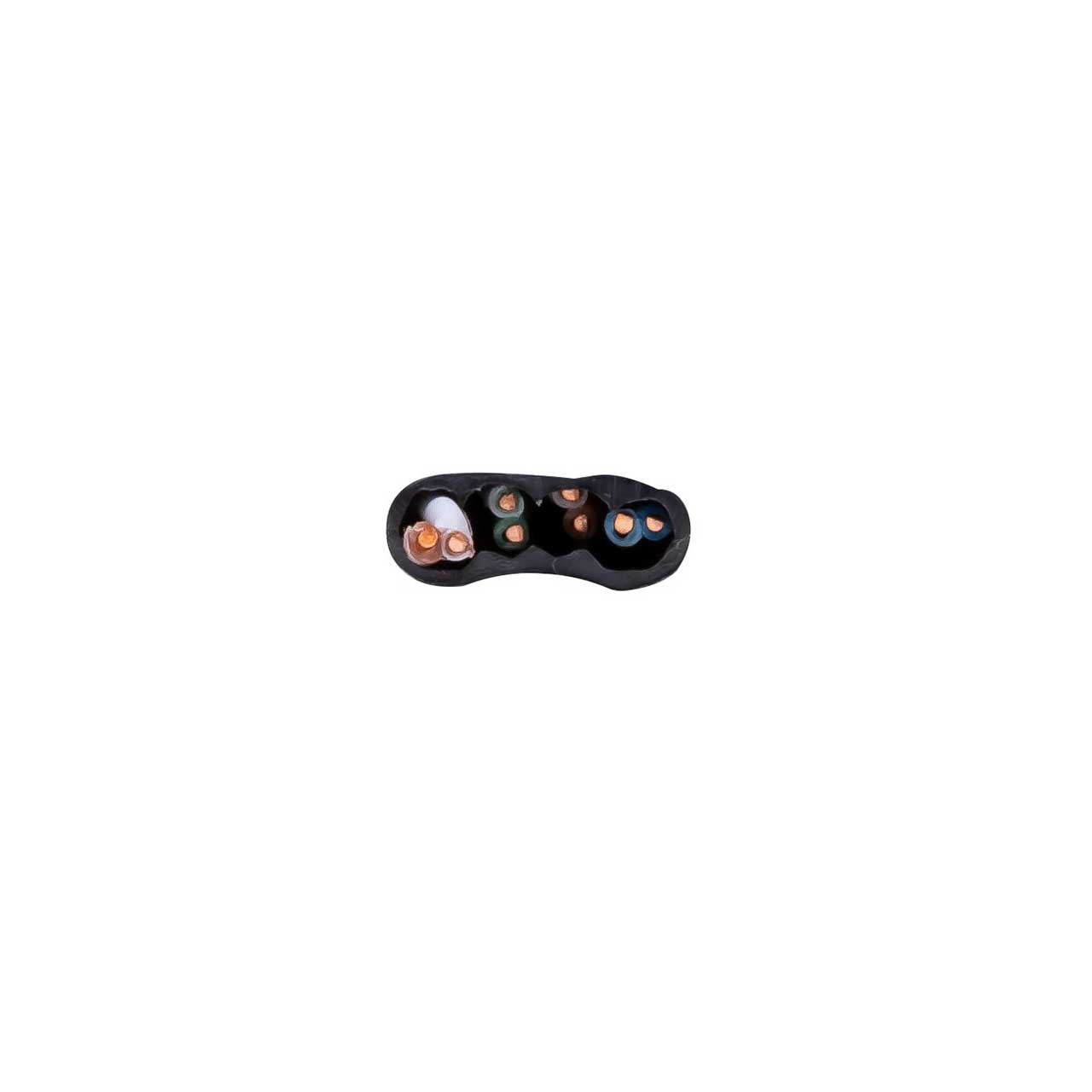

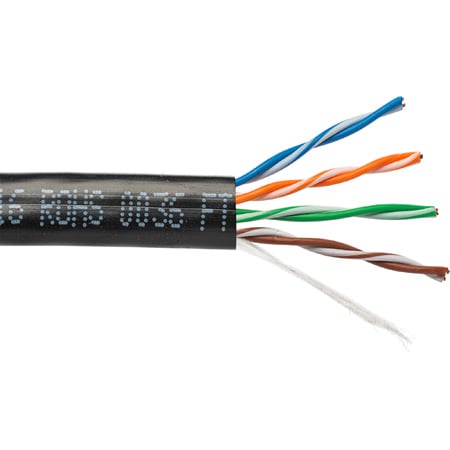

Belden 1872A is a Riser/CMR rated, 23 AWG, Premise Horizontal Category 6+ Cable (350MHz). It features 4 Bonded-Pairs, 23 AWG Solid Bare Copper Conductors, U/UTP(unshielded twisted pair) in a PVC Jacket.

Belden offers several Category 6 performance levels with every level exceeding TIA-568-C.2 performance and produced with Belden's superior quality. Bonded-Pair technology is an option to make your installation as robust as possible.

Applications
Premise Horizontal Cable
Ethernet 1000BASE-T
Ethernet 100BASE-TX
Ethernet 10BASE-T
PoE++, PoE+, PoE

  • Features:

    • Improve Crosstalk Performance: Central spline separates pairs and maintains stable pair position
    • Optimized Cable Balance: Improved balance of transmission performance for simultaneous parallel transmission protocols
    • Performance Reliability: Guarantees across all parameters, including insertion loss and crosstalk, for excellent uptime, headroom and network speeds
    • Withstand Installation Rigors: Bonded-Pair Cables handle higher pulling tensions and tighter bend radii

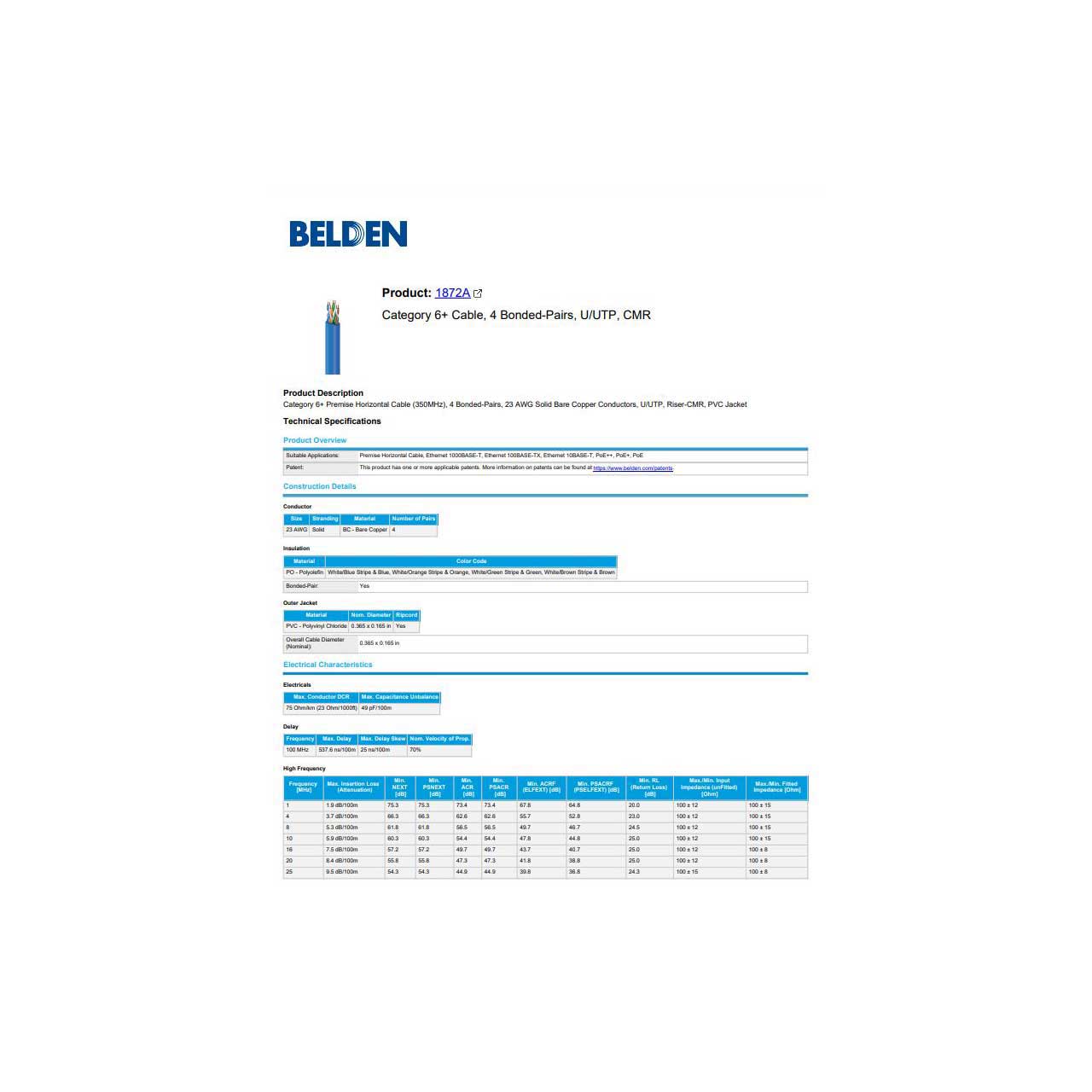

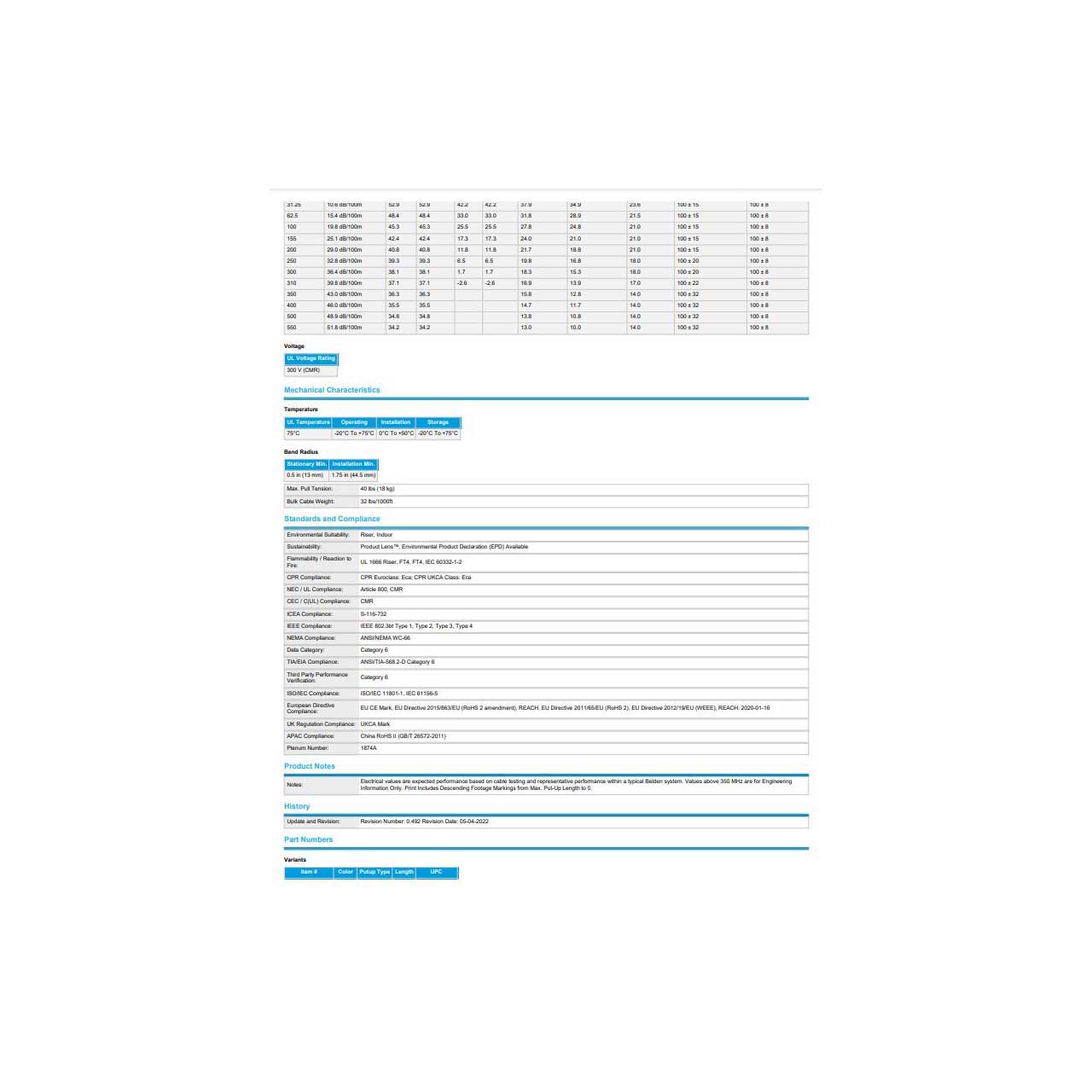

  • Specifications:

    • Conductor AWG: 23
    • Conductor Stranding: Solid
    • Conductor Material: BC - Bare Copper
    • Conductor Number of Pairs: 4
    • Insulation Material: PO - Polyolefin
    • Insulation Color Code: White/Blue Stripe & Blue, White/Orange Stripe & Orange, White/Green Stripe & Green, White/Brown Stripe & Brown
    • Bonded Pair: Yes
    • Outer Jacket Material: PVC - Polyvinyl Chloride
    • Outer Jacket Nom. Diameter: 0.365 x 0.165 in
    • Outer Jacket Ripcord: Yes
    • Overall Cable Diameter (Nominal): 0.365 x 0.165 in
    • Max Conductor DCR: 75 Ohm/km
    • Max DCR Unbalance: 3%
    • Max Capacitance Unbalance: 49 pF/100m
    • Nom Mutual Capacitance: 15 pF/ft
    • Nom Velocity of Prop.: 70%
    • Frequency Delay[MHz]: 100 MHz
    • Max Delay: 537.6 ns/100m
    • Max Delay Skew: 25 ns/100m
    • Nom Velocity of Propagation (VP) [%]: 70%
    • UL Voltage Rating: 300 V (CMR)
    • UL Rating Temp: 75°C
    • Operating Temp: -20°C To +75°C
    • Installation Temp: 0°C To +50°C
    • Storage Temp: -20°C To +75°C
    • Max Pull Tension: 40 lbs
    • Bulk Cable Weight: 32 lbs/1000ft
    • Environmental Suitability: Riser, Indoor
    • Sustainability: Product Lens, Environmental Product Declaration (EPD) Available
    • Flammability / Fire Resistance: UL 1666 Riser, FT4, FT4, IEC 60332-1-2
    • NEC / UL Compliance: 800, CMR
    • CEC / C(UL) Compliance: CMR
    • ICEA Compliance: S-116-732-2013
    • IEEE Compliance: IEEE 802.3bt Type 1, Type 2, Type 3, Type 4
    • NEMA Compliance: ANSI/NEMA WC-66
    • Data Category: Category 6
    • TIA/EIA Compliance: ANSI/TIA-568.2-D Category 6


  • Item Includes:

    • 1872A CAT6+ Premise Horizontal Copper Cable 23AWG - Black - 1000 Foot


  • Warranty:

    • Limited 10 Year Warranty


  • GTIN:

    0612825125464
