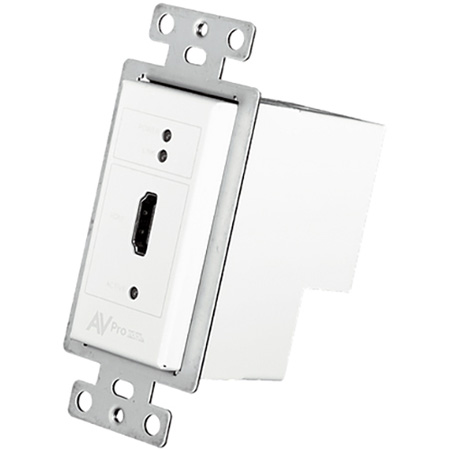

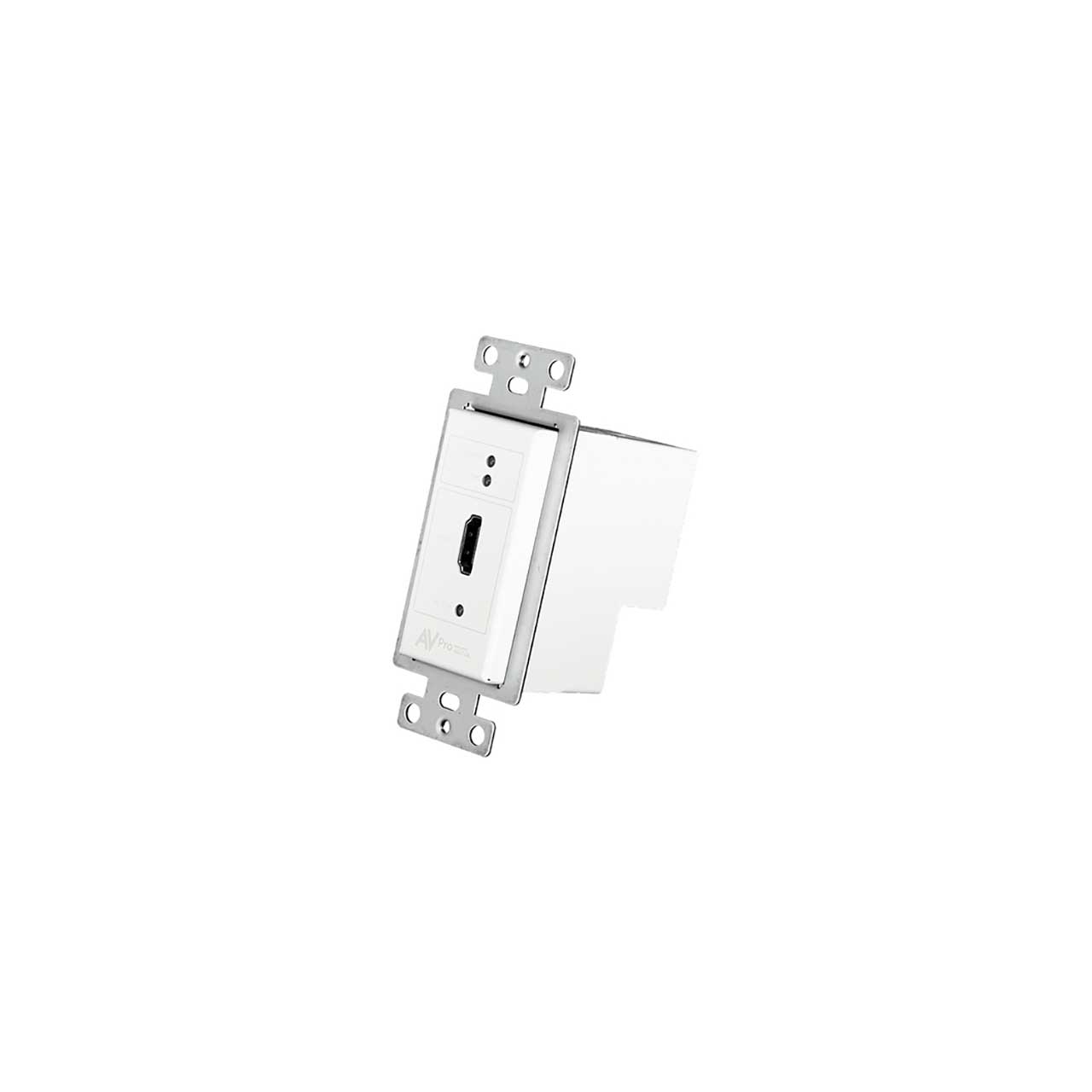

AVPro Edge AC-CXWP-HDMO-T HDMI Wall Plate Transmitter via HDBaseT - Up to 230ft on 4K (Cat6a) - White

ITEM #: APR-AC-CXWPHDMOT MFG #: AC-CXWP-HDMO-T

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$719.00

Availability: In Stock
iAvailability Description Popup


AC-CXWP-HDMO-T - Overview

The AVPro Edge AC-CXWP-HDMO-T single gang, HDBaseT wall plate transmitter is apart of ConferX's line of professional audio video products. Installing this sleek transmitter is a breeze as it's built to fit in any standard single gang mug ring, but its sleek design is only the beginning. If using the AC-EX100-UHD-R3, the AC-CXWP-HDMO-T is able to transmit an HDMI signal over CAT 6a for up to 100 meters when using 1080p, and up to 70 meters with working with 4K. The entire ConferX line of products is built to military-grade standards to ensure stable connections for long periods of time. We are so sure about that, it comes with our no-nonsense 10-year warranty.

Simplify installations in schools, offices, meeting rooms, and huddle rooms. Once integrated into your client's system, they now have the perfect solution for sharing information from any computer or source. This unit is designed to work flawlessly with all PC, VESA and traditional resolutions 4K 60Hz 4:2:0 8-bit & HDR 4:2:2 12 BIT. With the AC-CXWP-HDMO-T you get a sleek look your client will like, a stable connection that lasts and a product that works seamlessly with any source you throw at it.

  • Features:

    • HDMI 2.0 Input
    • 4K 30 4:4:4, 4K60 4:2:0 HDMI Support
    • HDR 4:2:2 12 Bit Support
    • HDCP 2.2 & Earlier Supported
    • 100M (330ft) 0n 1080P, Up to 70m (230ft) on 4K (Cat6a)
    • CEC Pass Through
    • No Local Power Necessary (Powered by AC-EX100-UHD-R or other POE devices)

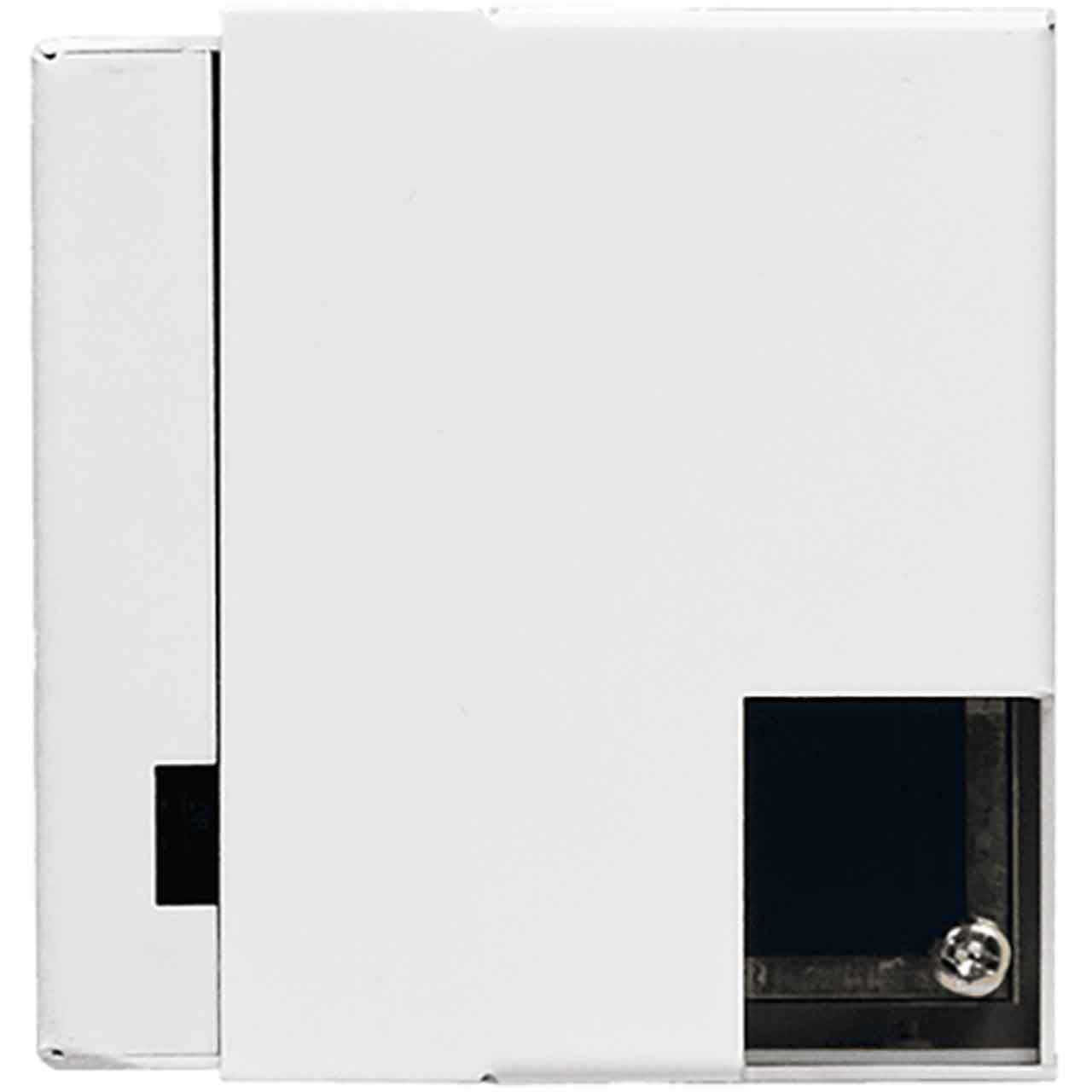

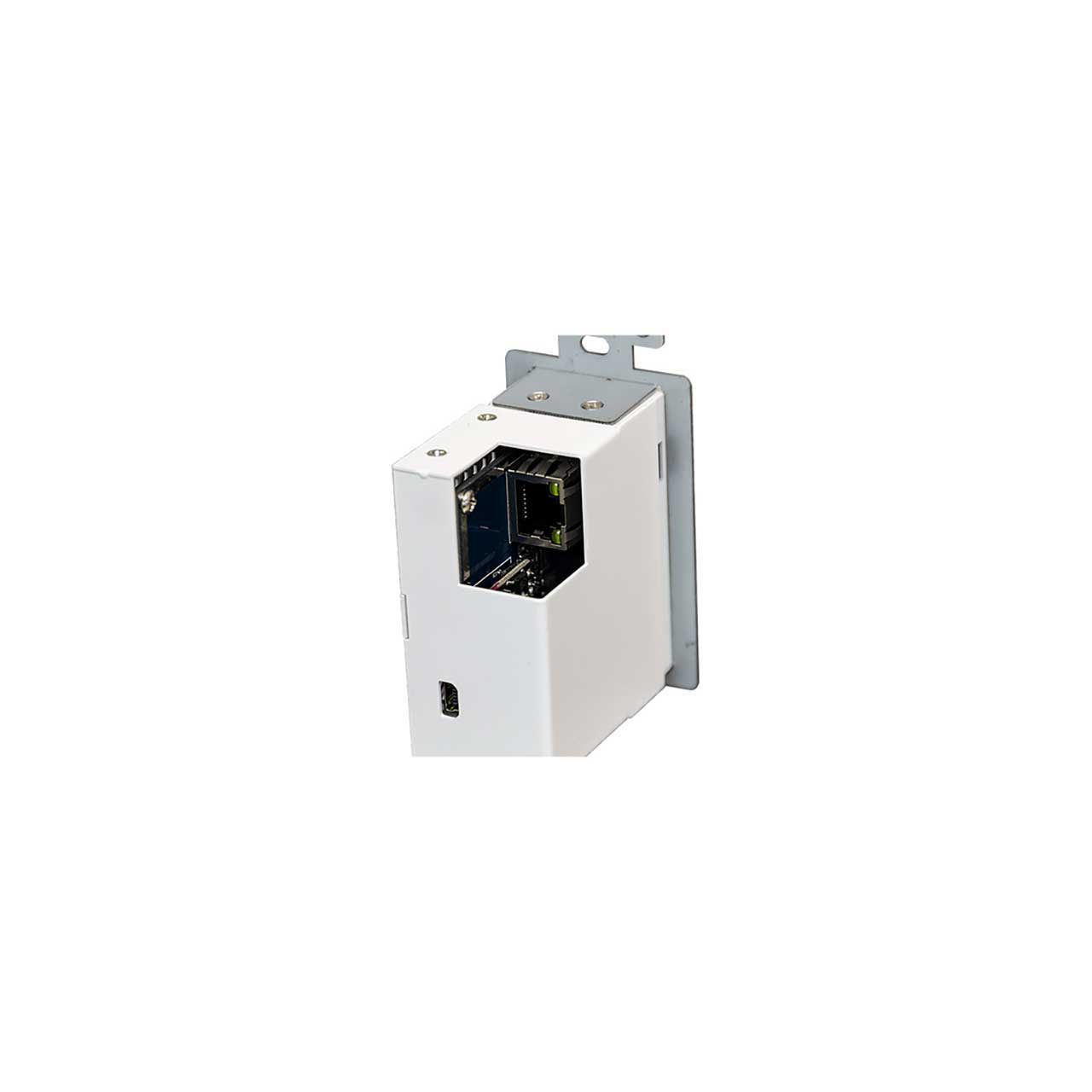

    • Single Gang, Low heat, Straight in rear RJ45 receptacle design.
    • Rugged, long-life chassis
    • Plug & Play auto input sensing
    • Designed for the conference/classroom room so your customer can focus on their meetings, not their video system.
    • Single UTP/STP LAN cable (CAT-6A) for all signals
    • ESD protection circuitry (Inputs / Outputs) till 7KV.
    • Single Gang Construction (Fits Decora Type USA single gang boxes and mud rings)
    • HDCP 2.2 & Earlier Supported
    • Single Gang (Decora), Low heat, rugged, long-life chassis
    • Compatible with HDBaseT displays, projectors, AVR's
    • Supports uncompressed PCM 2- Ch., 5.1, 7.1, Dolby Digital, DTS, Dolby TrueHD, DTS HD-Master Audio, Atmos.
    • Can Cascade for ultra-long distance

  • Specifications:

    • Video:
    • Video Resolutions: Up to 4K 60Hz 4:2:0 & 4k30 4:4:4
    • VESA Resolutions: Up to 2560x2048 (QSXGA)
    • HDR Formats/Resolutions: 4k24 4:2:2 12 bit, 4k24 4:2:0 10 bit
    • Color Space: YUV (Component), RGB (CSC: Rec. 601, Rec. 709, BT2020, DCI, P3 D6500)
    • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0 Supported
    • Deep Color: Up to 16 bit (1080), Up to 12 bit (4K)

      Audio:
    • Audio Formats Supported HDMI: PCM 2.0 Ch, LPCM 5.1 & 7.1, Dolby Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio, DTS-X, Dolby Atmos

      Distance:
    • Distance 1080p: 100m (330 feet) (With CAT 6a/7)
    • Distance 4k & HDR: 70m (230 feet) (with CAT 6a/7)

      Other:
    • Compatible Receivers: AC-EX100-UHD-R3 (100M), AC-EX70-SC2-R (70M), AC-CX100-RAMP (100M)
    • Bandwidth: 10.2 Gbps
    • CEC: Yes
    • HDCP: HDCP 2.2 and Earlier

      Ports:
    • HDMI (input): Type A
    • HDBaseT (output to Reciever): RJ45

      Environmental:
    • Operating Temperature: 23 to 125°F (-5 to 51°C)
    • Storage Temperature: -4 to 140°F (-20 to 60°C)
    • Humidity Range: 5-90% RH (No Condensation)

      Power:
    • Power Consumption (Total): 8 Watts (16.5 when paired with receiver)
    • Power Supply: Input: AC 100-240V ~ 50/60Hz
    • Output: DC 5V (mini USB)

      Dimensions:
    • Dimensions (Single Unit Only) (Length/Width/Height): 2.75 x 2.55 x 1.22 (without wall decora cover)
    • Wall space: single gang
    • Compatible Box Types: mud rings, stud mount, clamp mount, metal & plastic boxes, lv boxes
    • Dimensions (Packaged Length/Width/Height): 6.25 x 5.375 x 3.5
    • Weight (Unit): 0.4lbs (0.18Kg)
    • Weight (Packaged): 0.5lbs (0.23Kg)

  • Item Includes:

    • 1x AC-CXWP-HDMO-T Transmitter Unit

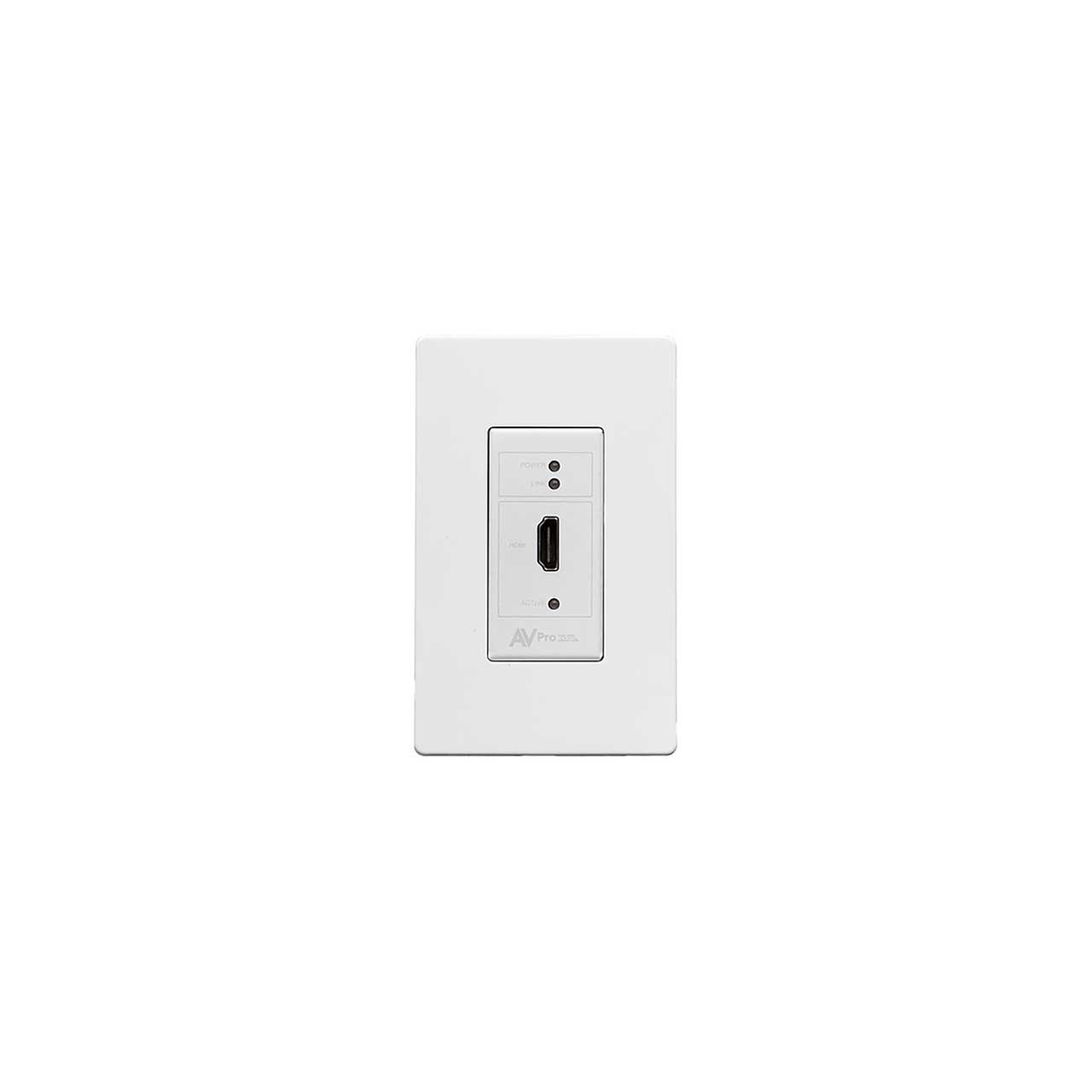

    • 1x Decora Wall Plate Cover (White)

  • Warranty:

    • 10-year warranty
