Kramer TP-580Rxr 4K60 4:2:0 HDMI HDCP 2.2 Receiver with RS-232 & IR over Extended-Reach HDBaseT

TP-580RXR - Overview

HDMI over HDBaseT Twisted Pair Receiver

• Features:

  • High Performance Standard Extender - Professional HDBaseT extender for providing extended-reach signals over twisted-pair copper infrastructures. TP-580Rxr is a standard extender that can be connected to any market-available HDBaseT-compliant extension product. For optimum extension reach and performance, use recommended Kramer cables.
  • HDMI Signal Extension - HDMI 2.0 and HDCP 2.2 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D. EDID and CEC signals are passed through from the source to the display.
  • I-EDIDPro™ Kramer Intelligent EDID Processing™ - Intelligent EDID handling, processing and pass-through algorithm that ensures Plug and Play operation for HDMI source and display systems.
  • Multi-channel Audio Extension - Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Bidirectional RS-232 Extension - Serial interface data flows in both directions, allowing data transmission device control.
  • Bidirectional Infrared Extension - IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.

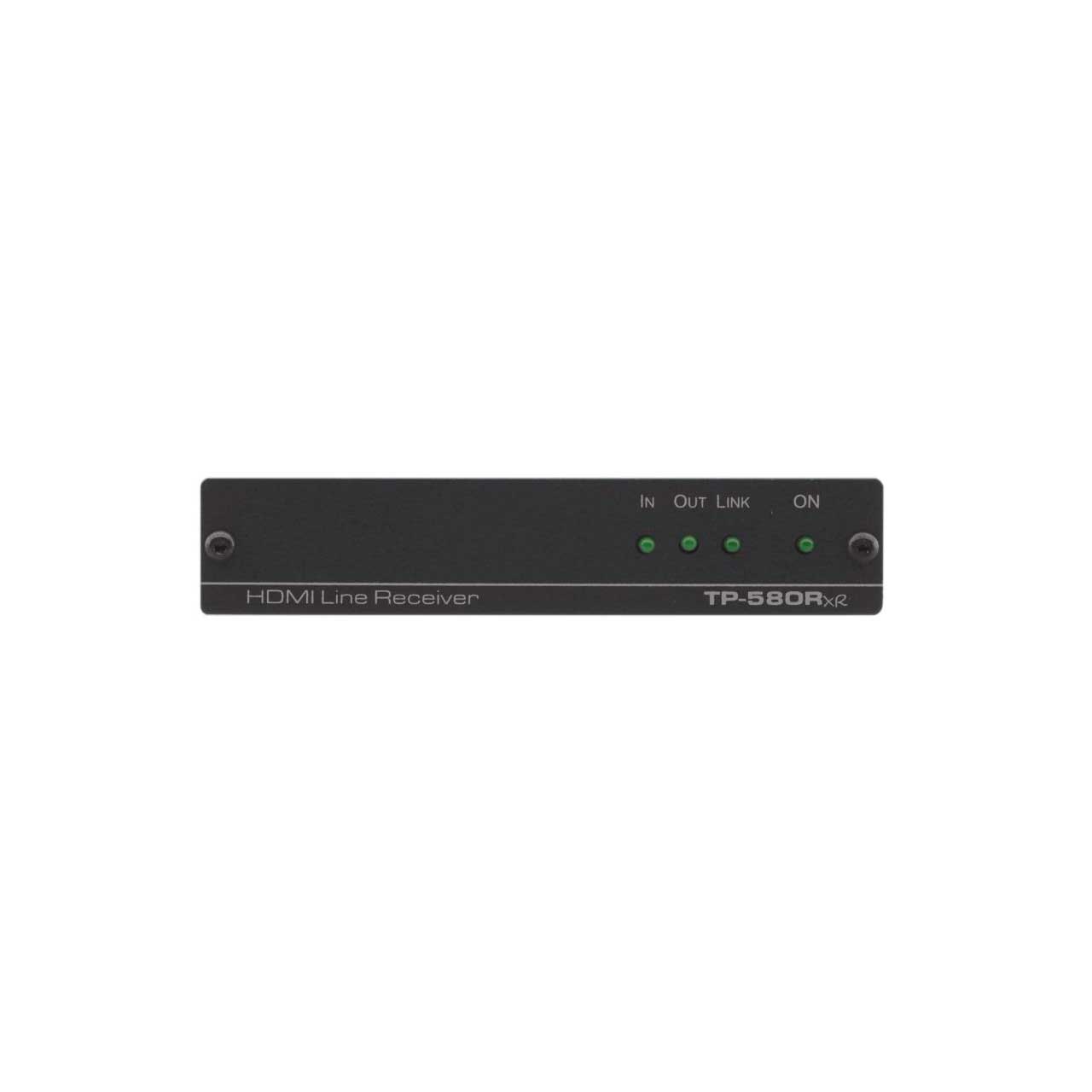

  • Cost-effective Maintenance - Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection and the K-Upload tool ensures lasting, field-proven deployment.

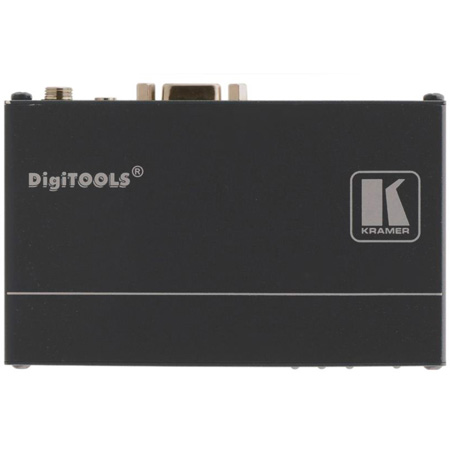

  • Easy Installation - Compact DigiTOOLS fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.


• Specifications:

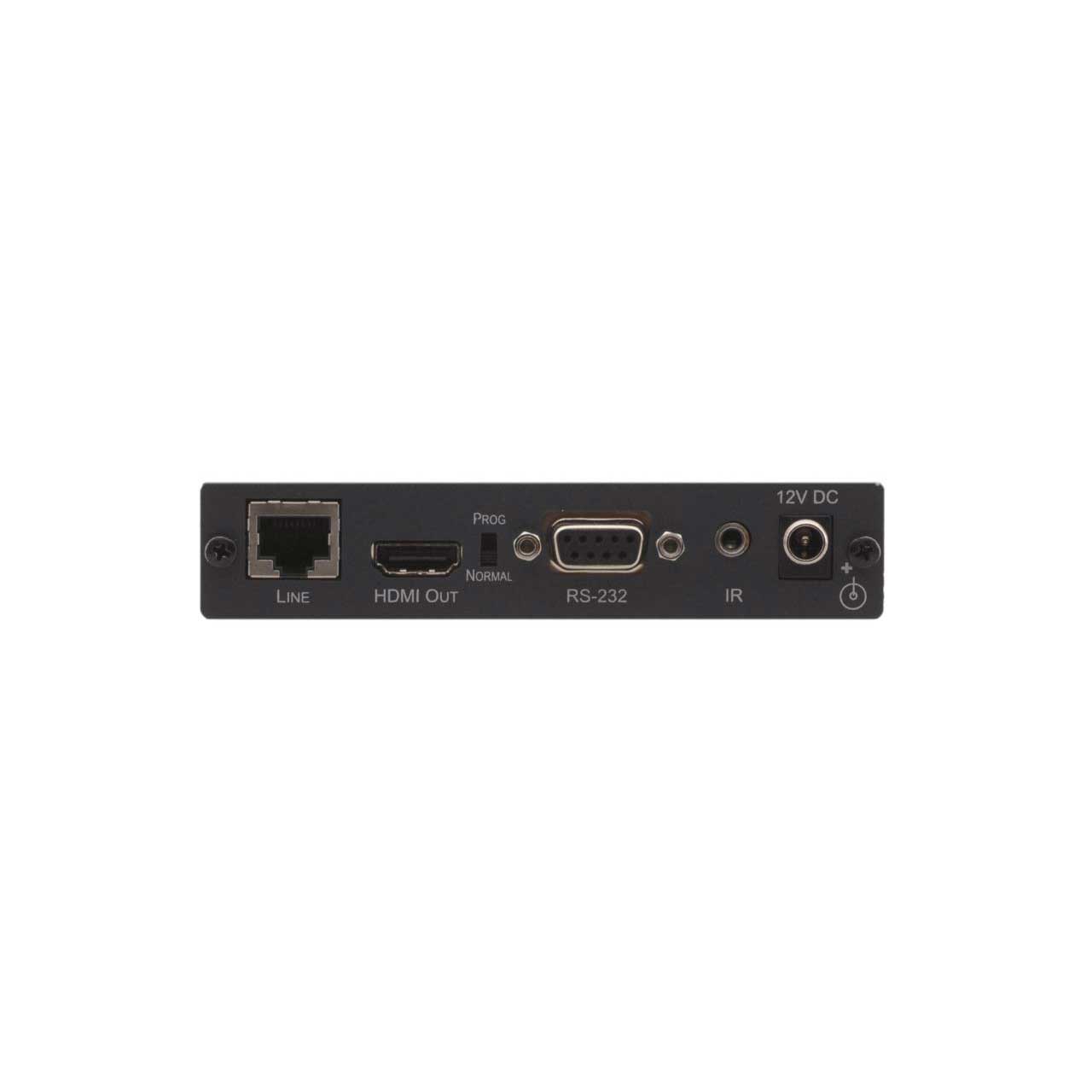

  Inputs:
  • 1 HDBT on an RJ-45 female connector

    Outputs:
  • 1 HDMI on an HDMI connector

    Ports:
  • 1 IR on a 3.5mm mini jack for IR link extension
  • 1 RS-232 on a 9-pin D-sub connector for serial link extension and device firmware upgrade

    Extension Line:
  • HDBaseT 1.0 compliant
  • Up to 100m (330ft) at 4K @60Hz (4:2:0)
  • Up to 130m (430ft) at full HD (1080p @60Hz 36bpp)
  • Up to 180m (590ft) at HDBaseT ultra mode and full HD (1080p @60Hz 24bpp)
  • Note: When using Kramer HDBaseT cables

    Video:
  • Up to 10.2Gbps bandwidth (3.4Gbps per graphic channel)
  • Up to 4K UHD @60Hz (4:2:0) 24bpp resolution
  • HDMI 2.0 and HDCP 2.2 signal compliance

    Extended RS-232:
  • 300 to 115200 baud rate

    Control RS-232:
  • 115200 baud rate

    Power Source:
  • 12V DC, 2A

    Power Consumption:
  • 12V DC, 500mA

    Enclosure:
  • DigiTOOLS size, aluminum type

    Cooling:
  • Convection ventilation

    Operating Temperature:
  • 0° to 40°C (32° to 104°F)

    Storage Temperature:
  • -40° to +70°C (-40° to 158°F)

    Humidity:
  • 10% to 90%, RHL non-condensing

    Included Accessories:
  • Power supply

    Product Dimensions:
  • 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H

    Product Weight:
  • 0.2kg (0.4lbs) approx.

    Shipping Dimensions:
  • 15.70cm x 12.00cm x 8.70cm (6.18" x 4.72" x 3.43" ) W, D, H

    Shipping Weight:
  • 0.7kg (1.6lbs) approx.


• Item Includes:

  • TP-580TXR
  • Power Supply


• Warranty:

  • 7 Year Limited Warranty


• Applications:

  • Long-distance AV signal extension for multi-room, large dividable auditoriums and lecture hall connectivity
  • AV extension in conference rooms, boardrooms, control rooms, hotels and large church facilities


• GTIN:

  7291063051723
