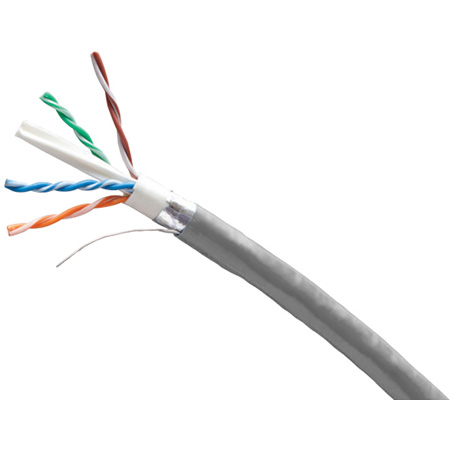

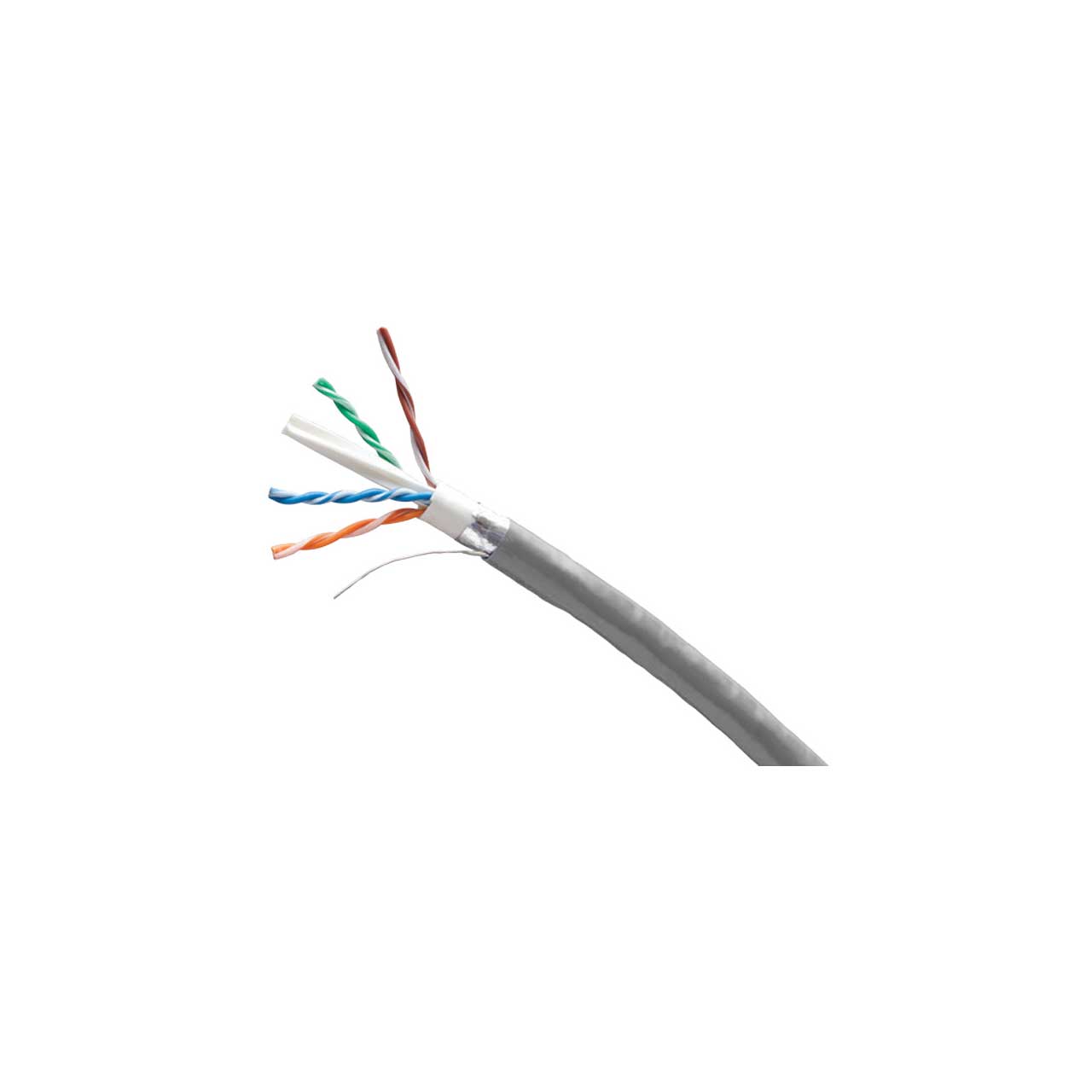

Belden 10GX63F CMP/Plenum 10GX CAT6a Enhanced Premise Horizontal F/UTP 4-Pr Shielded Cable 23AWG - Gray - 1000 Ft

10GX63F 0081000 - Overview

• Features:

  • Reliable network performance: Designed for mission-critical situations that require constant uptime, whether indoor or outside
  • Best-in-class system noise immunity: Achieved through outstanding cable balance, is less susceptible to RFI/EMI in noisy environments
  • Reduce installation time and costs: 10GXW is the smallest and lightest horizontal Category 6A cable available
  • Unparalleled performance: Full 100m channel length under 100W PoE load without derating up to 60°C using 10GXS cables
  • Designed to Last: Higher pulling tensions and tighter bend radii offered by Bonded-Pair Cables


• Specifications:

  • Conductor: 4 Pair, 23 AWG Solid Stranding Bare Copper
  • Insulation Material: FEP
  • Inner Jacket Nom. Diameter 0.26 in (6.6 mm)
  • Inner Jacket Material: PVC
  • Inner Jacket Ripcord: Yes
  • Outer Jacket Material: Flamarrest
  • Outer Jacket Material: Tape - Bi-Laminate (Alum+Poly) 100%
  • Outer Jacket Nom. Diameter: 0.310 in (7.87 mm)
  • Outer Jacket Ripcord: Yes
  • Overall Cable Diameter (Nominal): 0.310 in (7.87 mm)
  • Overall Cabling Separator Material: Patented X-Spline Center Member
  • Storage Temperature Range: -20 to +80° C
  • Installation Temperature Range: +5 to +50° C
  • Operating Temperature Range: -10 to +75° C
  • Bulk Cable Weight: 45 lbs/1000 ft.
  • Max. Recommended Pulling Tension: 45 lbs.
  • Min. Bend Radius/Minor Axis: 1.200 in.
  • Min. Bend/Installation: 3 in.
  • NEC/(UL) Specification: CMP
  • CEC/C(UL) Specification: CMP
  • EU Directive 2011/65/EU (ROHS II): Yes
  • EU CE Mark: Yes
  • EU Directive 2000/53/EC (ELV): Yes
  • EU Directive 2002/95/EC (RoHS): Yes
  • EU RoHS Compliance Date (mm/dd/yyyy): 03/07/2011
  • EU Directive 2002/96/EC (WEEE): Yes
  • EU Directive 2003/11/EC (BFR): Yes
  • CA Prop 65 (CJ for Wire & Cable): Yes
  • MII Order #39 (China RoHS): Yes
  • Telecommunications Standards: Category 6A - TIA 568.C.2
  • ANSI Specification: ANSI/TIA 568-C.2 Category 6A
  • UL Flame Test: NFPA 262 Plenum Flame Test (UL910)(FT6)
  • C(UL) Flame Test: FT6
  • CSA Flame Test: FT6
  • Suitability - Indoor: Yes
  • Plenum (Y/N): Yes
  • Capacitance (pF/ft): 17.00
  • Velocity of Propagation: 64%
  • Delay (ns/100 m): 538 @ 100MHz
  • Delay Skew (ns/100 m): 45
  • DC Resistance @ 20° C (Ohm/100 m): 8.2
  • Voltage: 300 V RMS


• Item Includes:

  • 10GX63F Category 6A Cable - Gray - 1000 Foot


• Warranty:

  • Limited 10 Year Warranty


• GTIN:

  0612825102502
