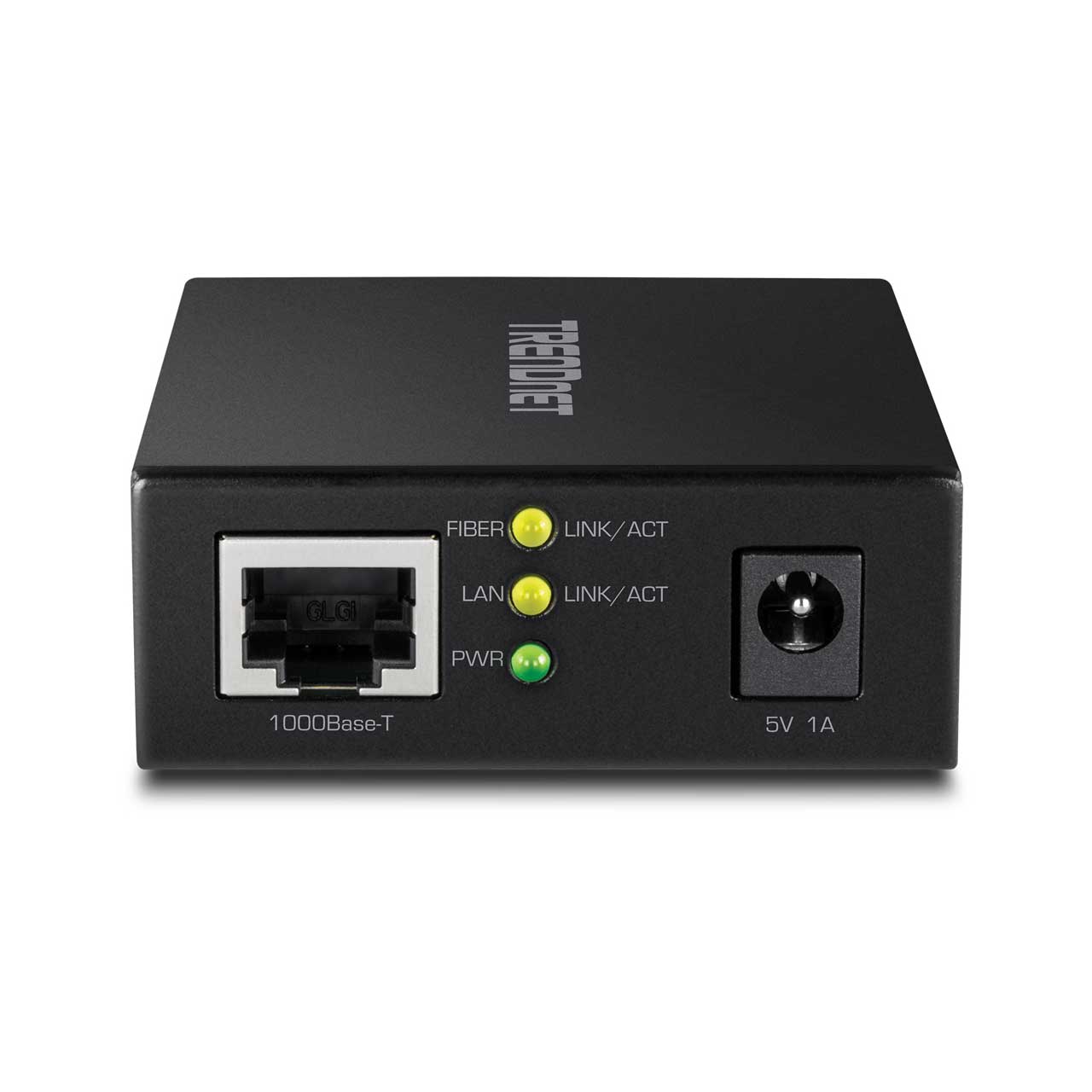

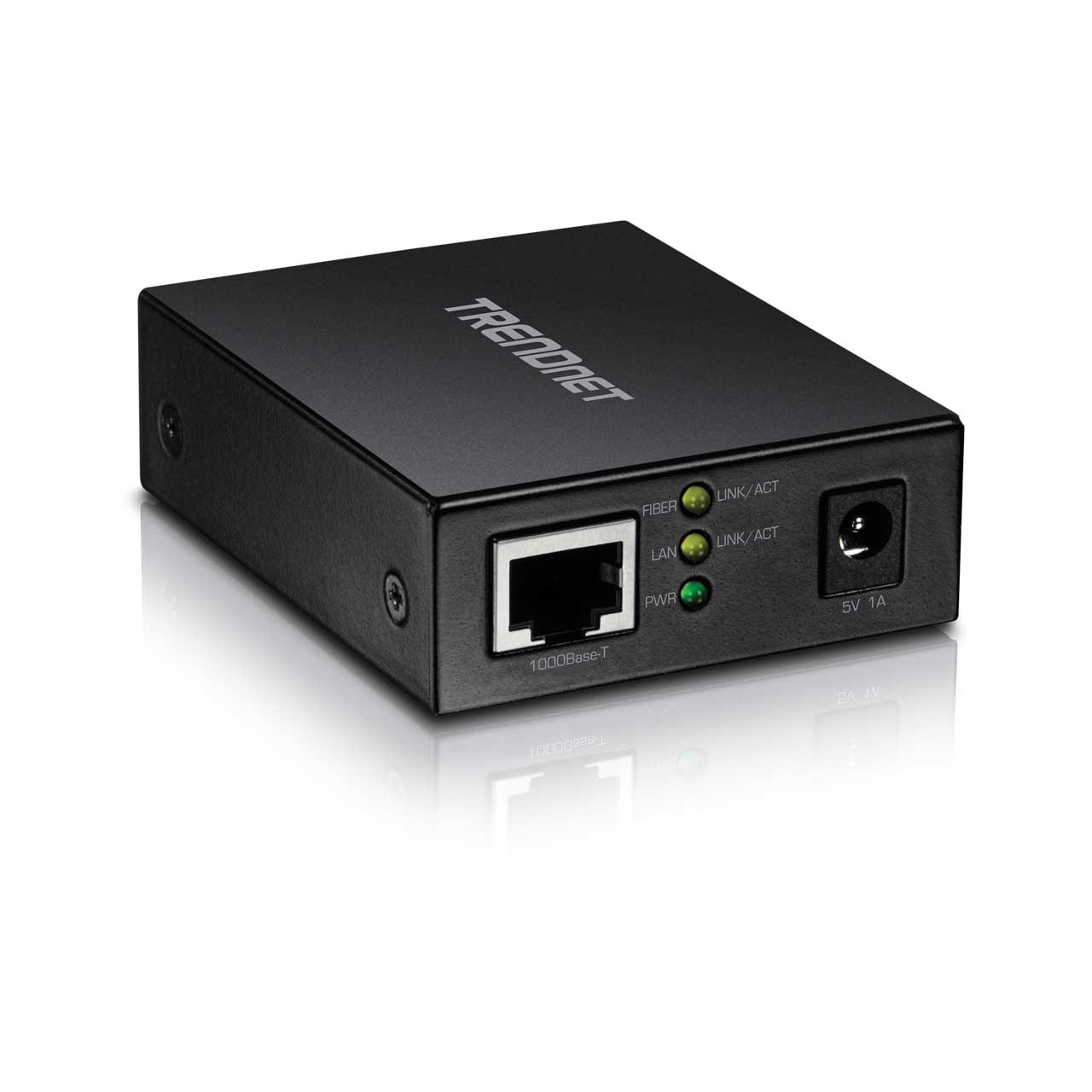

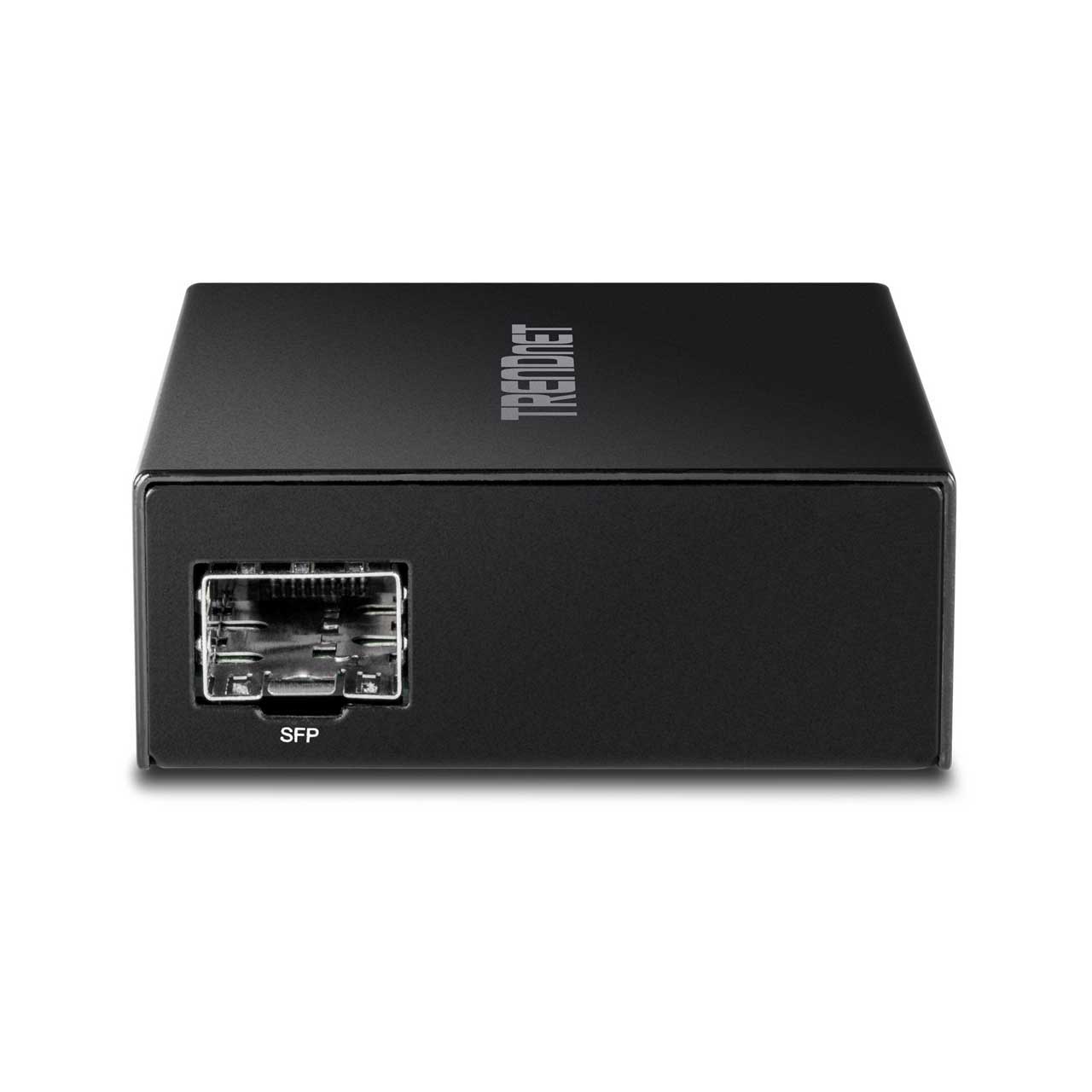

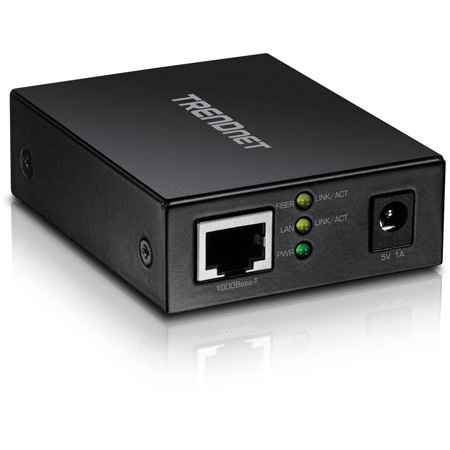

TRENDnet TFC-GSFP 1000BASE-T to SFP Fiber Media Converter - 1 x Network (RJ-45) - Single-mode - Multi-mode

TFC-GSFP - Overview

• Features:

  • Dual-Speed SFP Slot - Dual-speed SFP slot supports both 100 Mbps and 1000 Mbps SFP modules.
  • Power Adapter - Included power adapter for standalone use.
  • Compact - Small and compact metal housing design provides greater installation flexibility.
  • Network Ports - 1 x 10/100/1000 Mbps RJ-45 copper port and 1 x 100/1000 Mbps dual-speed SFP slot.
  • Switching Capacity - 4 Gbps switching capacity.
  • Jumbo Frame- Sends larger packets, or jumbo frames (up to 9 KB), for increased performance


• Specifications:

  • Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3z

    Device Interface
  • 1 x Gigabit port
  • 1 x 100/1000 Mbps SFP slot
  • LED indicators

    Data Transfer Rate
  • Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
  • Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)
  • Gigabit: 2000Mbps (full duplex)

    Power
  • Input: 110 - 240 V AC, 50/60 Hz
  • Output: 5V DC, 1A


  • Consumption: 5 Watts (Max.)
  • Operating Temperature: 0 - 40 °C (32 - 104 °F)
  • Operating Humidity: Max. 90% non-condensing
  • Dimensions: 75 x 60 x 12 mm (3 x 2.4 x 0.5 in.)
  • Weight: 156 g (5.5 oz.)
  • Certifications: CE, FCC


• Item Includes:

  • 1x TFC-GSFP
  • 1x Quick Installation Guide
  • 1x Power Adapter (5V DC, 1A)


• Warranty:

  • 3-year warranty


• GTIN:

  0710931504682
