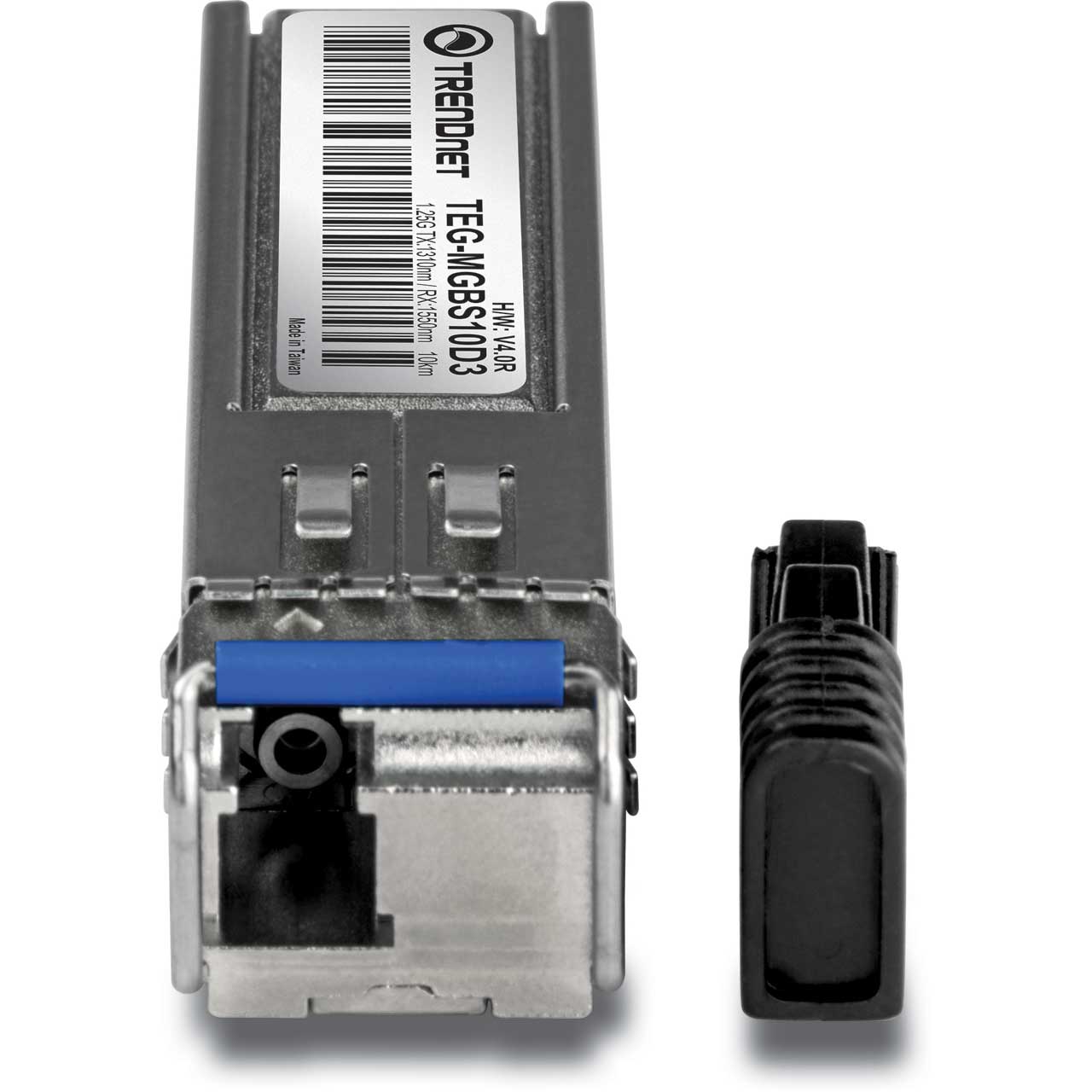

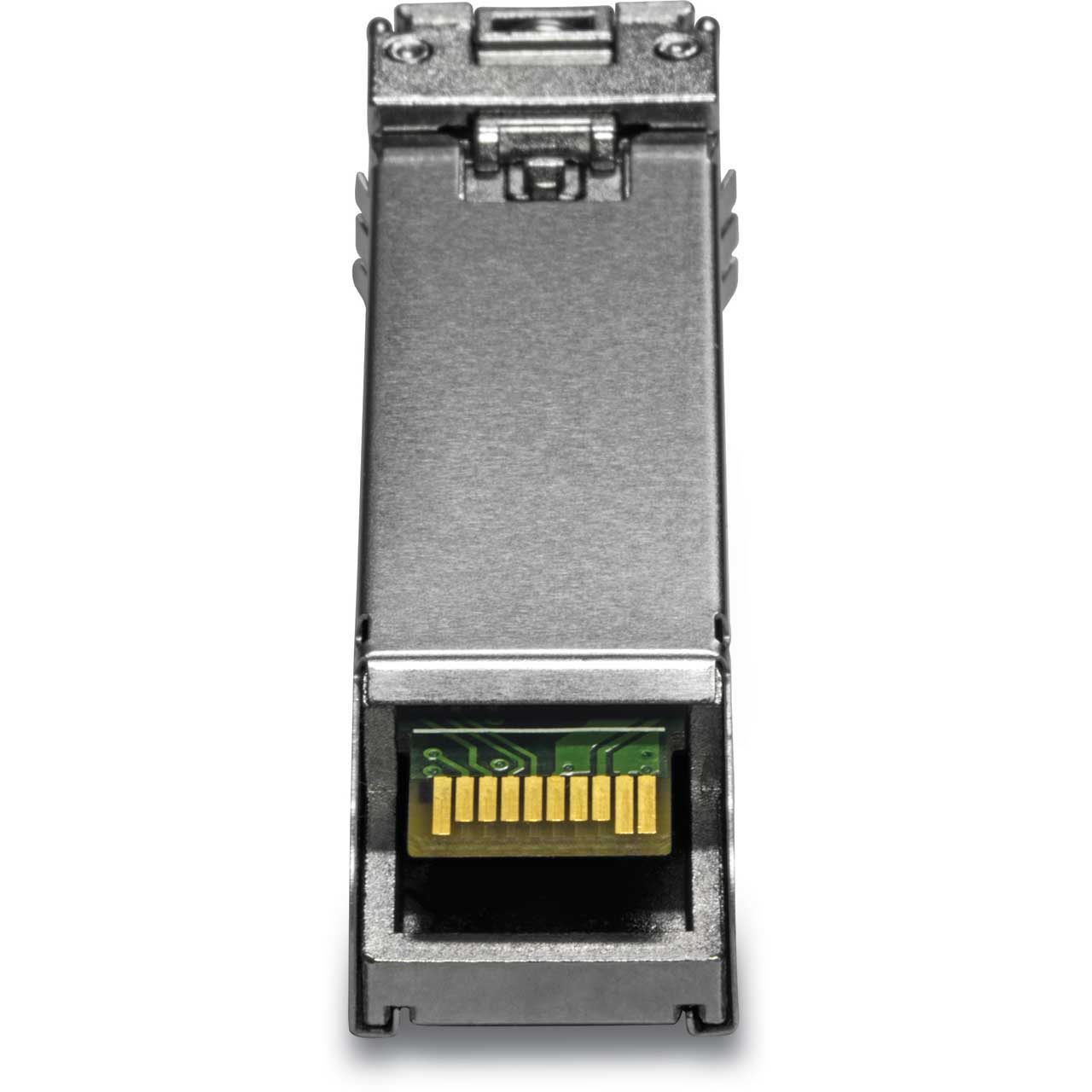

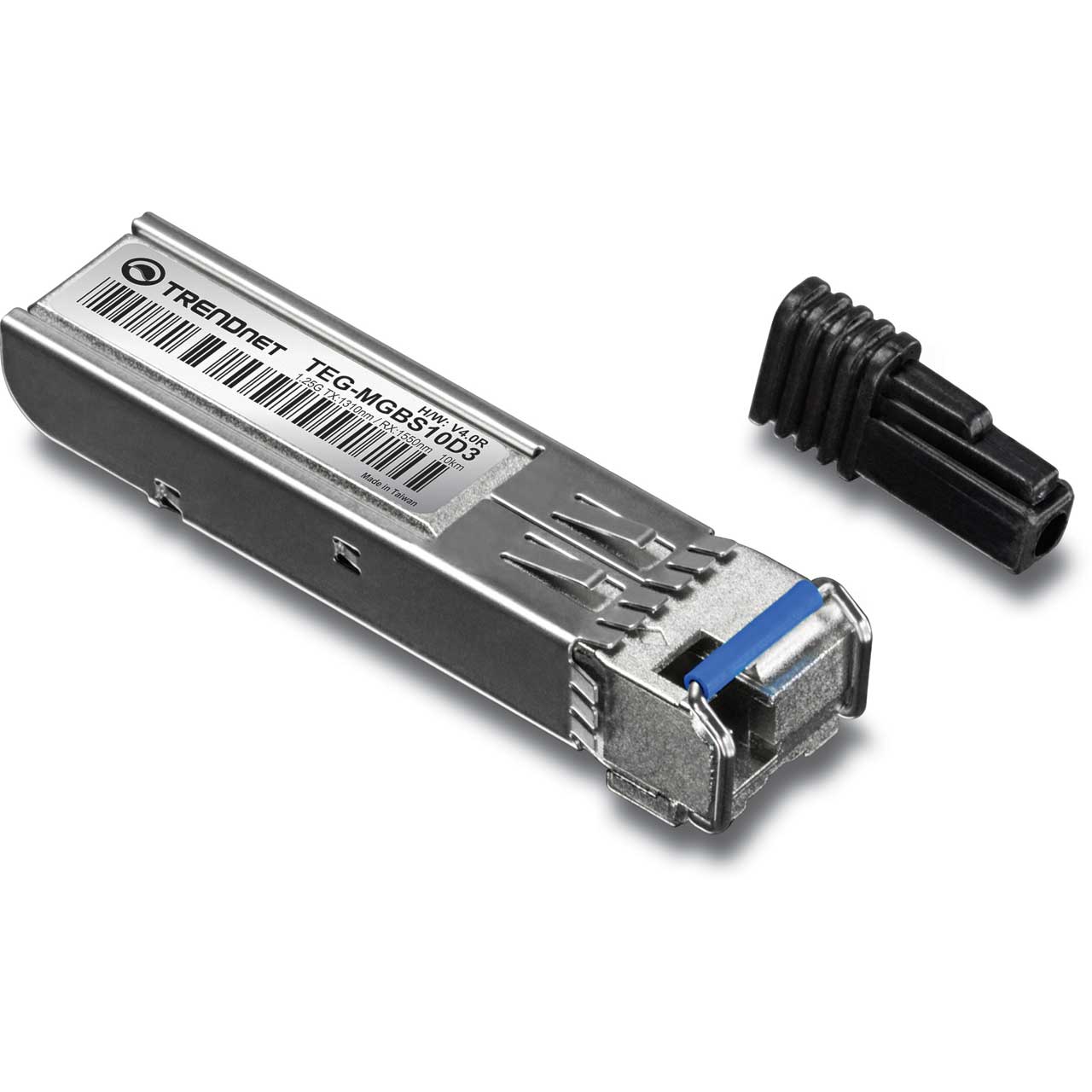

TRENDnet TEG-MGBS10D3 Mini-GBIC Version v4.0R Dual Wavelength Single-Mode LC Transmitter Module - 1.25Gbps - 1310 - 10km

TEG-MGBS10D3 - Overview

• Features:

  • Must pair with TEG-MGBS10D5 or other compatible module
  • Compliant with IEEE 802.3z
  • ANSI Fiber Channel compliant
  • Compliant with Small Form-Factor Pluggable (SFP) Multi-Source Agreement (MSA) ports
  • Supports data rate of up to 1.25 Gbps
  • Transmission distance of up to 10 km (6.2 miles)
  • Metal Enclosure with low Electromagnetic Interference (EMI) design
  • Simplex LC optical interface
  • Hot pluggable
  • Low power consumption


• Specifications:

  • Standards
  • IEEE 802.3z
  • ANSI Fiber Channel compliant
  • Class 1 Laser

    Interface
  • SFP MSA Compliant
  • Simplex LC optical interface


  • Power Consumption: Max. 0.8 Watts
  • Dimension: 57 x 13 x 12 mm (2.2 x 0.5 x 0.5 in.)
  • Weight: 18 g (0.6 oz.)


  • Temperature
  • Operating: 0°C ~ 70°C (32°F ~ 158°F)
  • Storage: -40°C ~ 85°C (-40°F ~ 185°F)
  • Humidity: Max 85% (non-condensing)


  • Certifications: CE, FCC

    Wavelength
  • TX: 1310 nm
  • RX: 1550 nm


  • Optical Output Power (dBm): -9 ~ -3
  • Optical Input Power (dBm): -23 ~ -3
  • Power Budget: -14
  • Distance: 10 km


• Item Includes:

  • 1x TEG-MGBS10D3
  • 1x Quick Installation Guide


• GTIN:

  0710931610277
