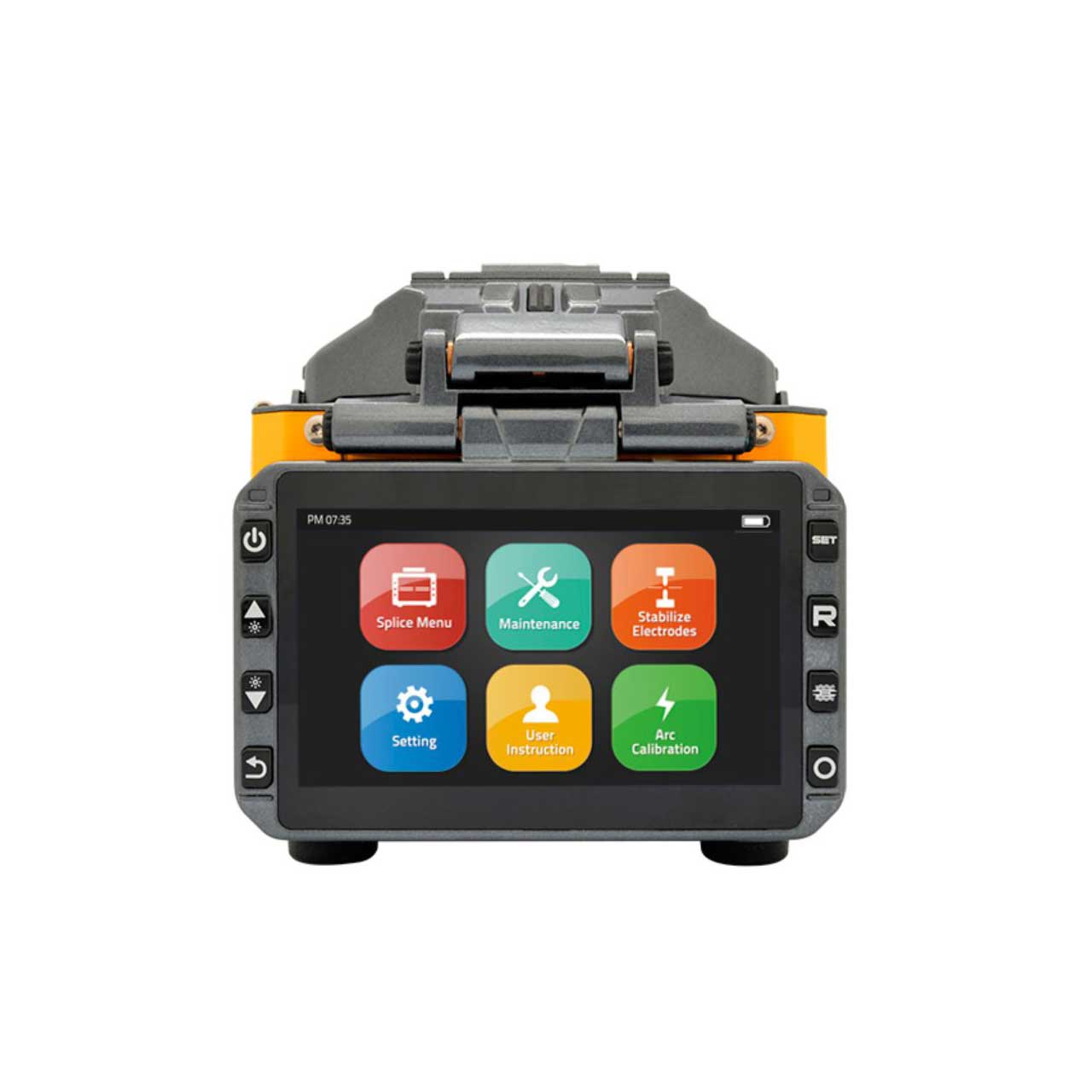

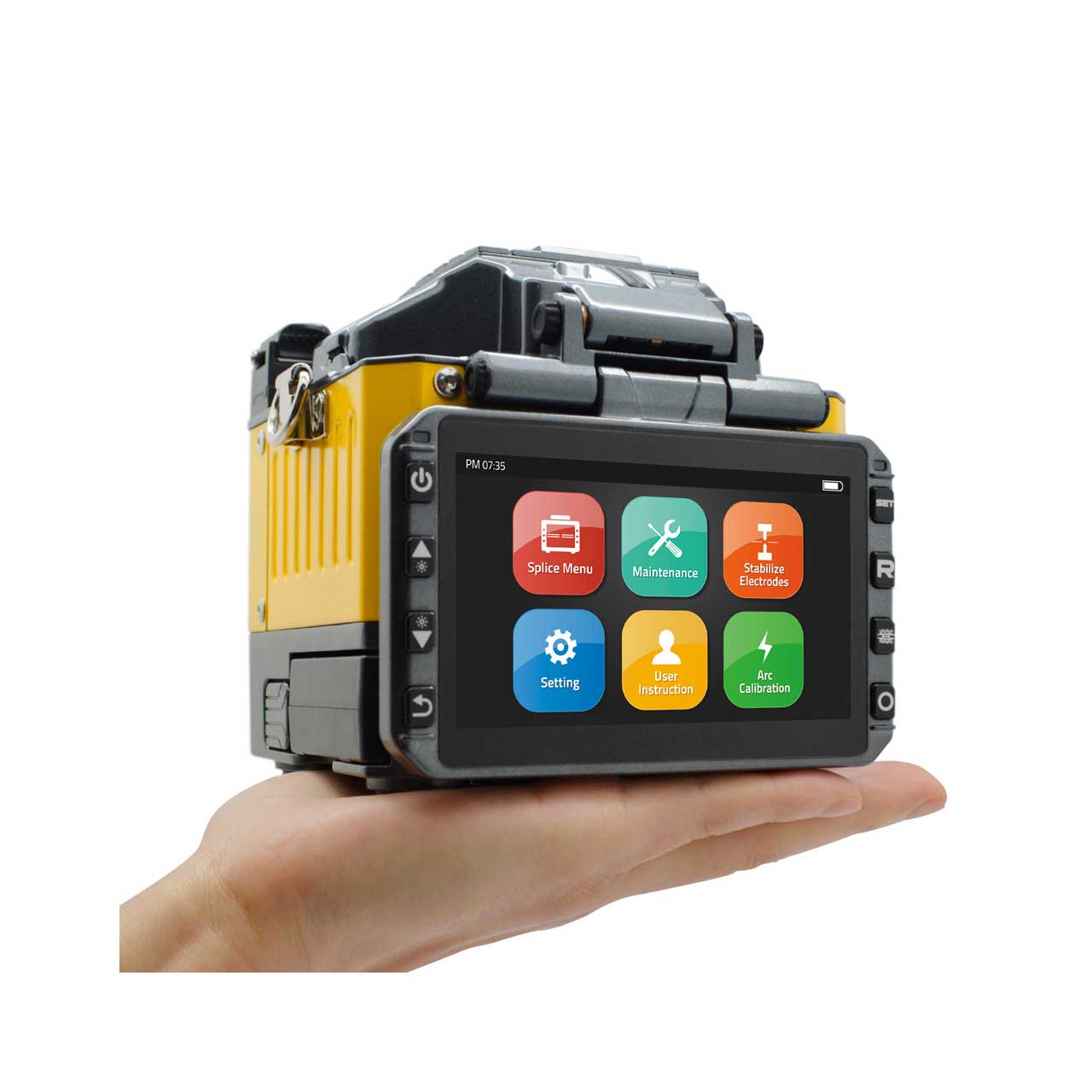

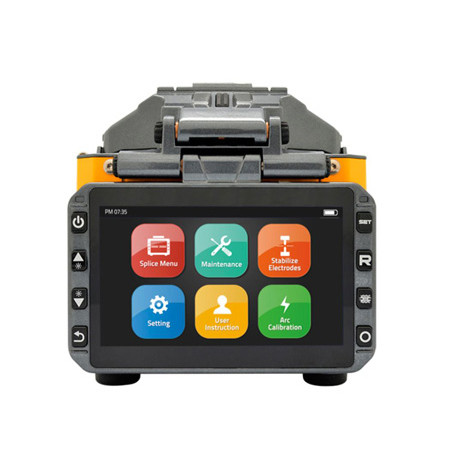

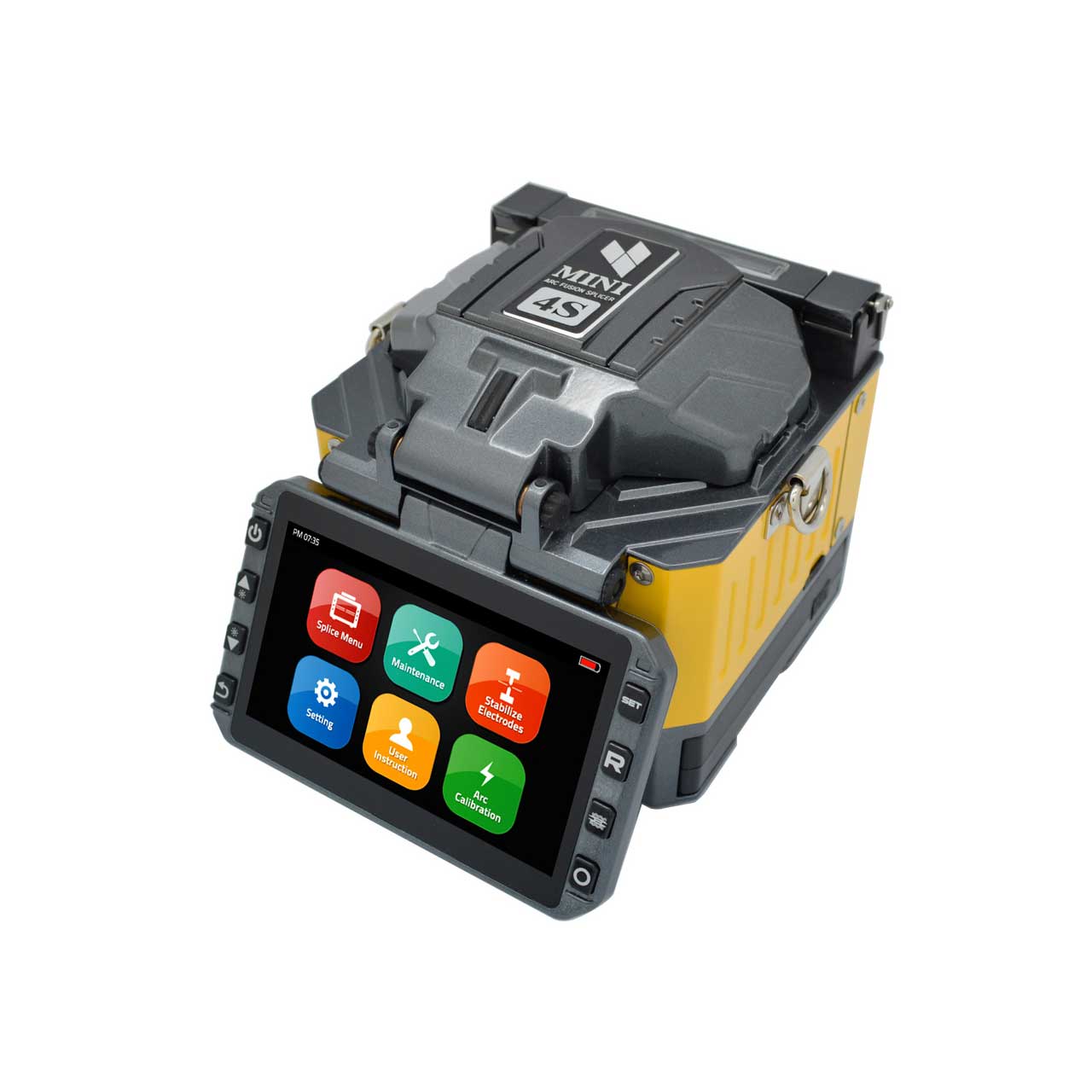

Fiber Fox MINI 4S Clad Alignment Fusion Splicer with 4 Motors and Cleaver

MINI 4S - Overview

• Features:

  • Fastest Splicing Time: 7 sec with single mode fiber (quick mode)
  • 16 sec Heating time
  • Comes with 2 Battery Packs
  • Full Touch Screen
  • SOC Compatible


• Specifications:

  • Splicing Method: Active Alignment DAA(Digitalized Active Alignment)
  • Average Loss: SM(0.03dB) / MM(0.01dB) / DS(0.05dB) / NZDS(0.05dB) / G.657(0.03dB)
  • Return Loss: >>60dB
  • Splice Time: 12s average SM / SM 7s Quick mode
  • Electrode Lifespan: >3,500 arcs
  • Applicable Fiber: SM(ITU-T G.652, MM(ITU-T G.651), DS(ITU-T G.653), NZDS(ITU-T G.655), IT-G657A, IT-G657B, 0.25mm, 0.9mm, 2.0mm, 2.4mm, 3.0mm, FLAT(indoor cable)
  • Cleaved Length: Coating Diameter < 0.25mm = 5-16mm, Coating Diameter > 0.25mm = 8-16mm minimum
  • Coating Diameter: 100-1000um
  • Cladding Diameter: 80-150um
  • Heating Programs: Factory installed mode : 3, User installable mode : 23
  • Heating Time: Typical 18s
  • Protection Sleeve: 40mm, 60mm, SOC-3.0, SOC-0.9
  • Data Output: Micro HDMI-USB master device
  • Splice Programs: 8 user modes, User installable mode : 70+
  • Splice Memory: Up to 2000 records
  • Battery: Typical 200 Cycles (Splice & Heat) / single battery <2 Batteries Standard>
  • Power Supply: AC 100-240V input or DC 9~14V
  • Monitor: Color 4.3'' LCD monitor, with Touch Screen (Tempered Glass)
  • Cameras: 2 CCD camera system
  • Magnification: XY : 150 times , X/Y : 300 times
  • Fiber Display: X/Y or XY, single X.Y
  • Weight: 2.88 lbs. (without battery)
  • Size: 4.8 x 4.88 x 5.4 (in)
  • Wind Protection: The max wind speed 15m/s
  • Operating Environment: Elevation 0-5000 meters, 14~140°F, 0~95% relative humidity
  • Storage Condition: Temperature -40 to 176°F, 0~95% relative humidity, battery -4~86°F
  • Pull Test: 1.96~2.25N (standard)


• Item Includes:

  • 1x - Mini 4S Splicer
  • 1x - Mini 5OG Cleaver
  • 1x - Cleaver softcase
  • 1x - COoling Tray
  • 1x - Spare Electrode
  • 1x - Connector Heater Block
  • 1x - Connector Holder
  • 1x - Operation Manual CD
  • 1x - Car Cigar Jack
  • 2x - Battery Packs
  • 1x - Shoulder Strap
  • 1x - Power Cord
  • 1x - AC adapter
  • 1x - USB Cable
  • 1x - Hand Carrying Case
